Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide
Copyright © 2023 Tellabs
®
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1131 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tellabs 1131

Summary of Contents for Tellabs 1131

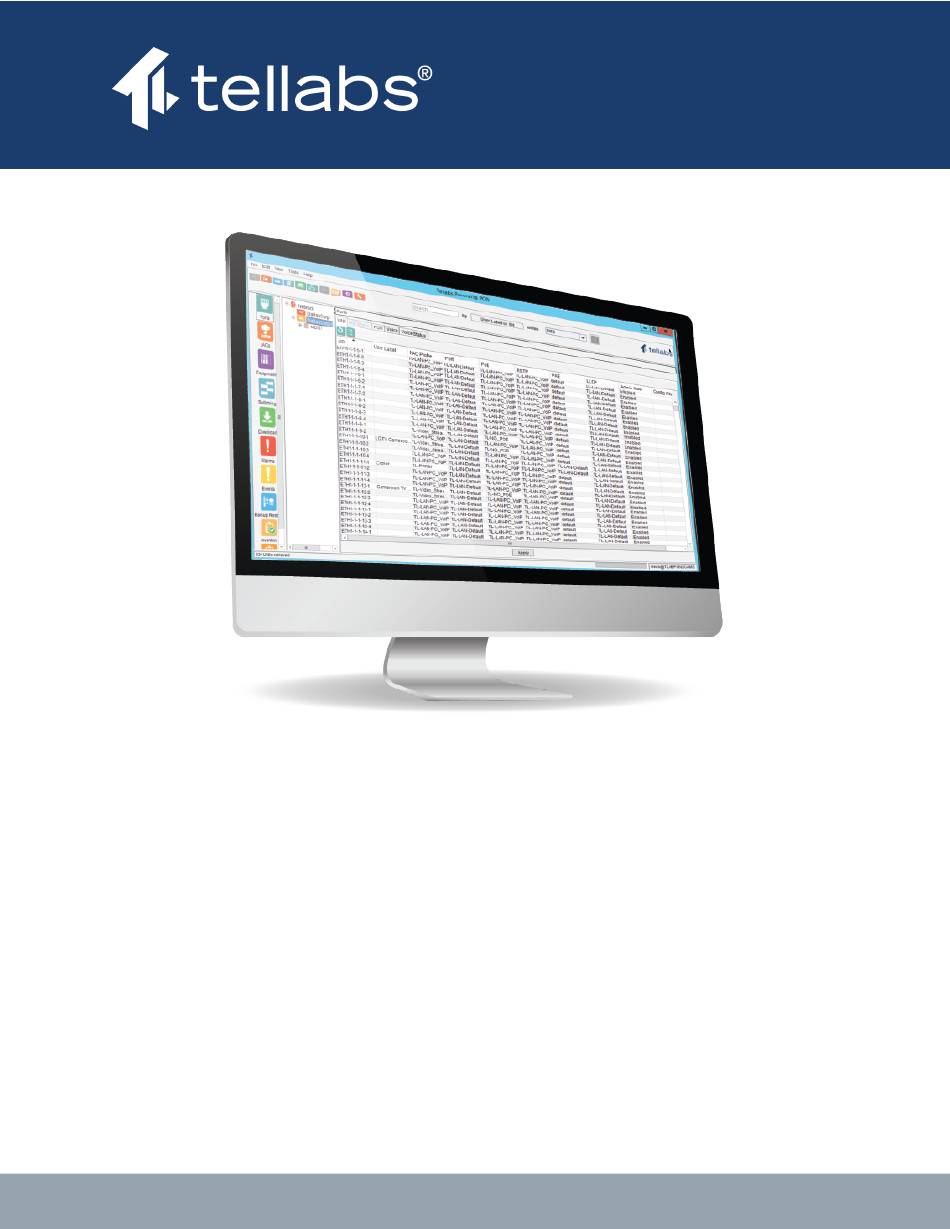

  • Page 1 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Copyright © 2023 Tellabs ® All Rights Reserved...

  • Page 2: Tellabs® Information

    Tellabs Enterprise, Inc. Although every precaution has been taken in the preparation of this publication, Tellabs Enterprise, Inc. assumes no (i) responsibility for errors or omissions contained herein or (ii) liability for any damages resulting from the use of information contained herein.

  • Page 3: Table Of Contents

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Tellabs® Information......................2 Copyright...........................2 Trademarks..........................2 Proprietary..........................2 1. Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide..........................4 Install Tellabs 1131..........................8 Install 2:32 Fiber Splitter........................10 Specifications............................. 13 Tellabs®1131 Communication Ports....................14...

  • Page 4: Tellabs® 1131 Optical Line Terminal Description, Installation, And Turn Up Guide

      This document provides instructions to install the Tellabs®1131 Optical Line Terminal (OLT). The 1131 is a self-contained and sealed unit, for mounting in standard 23-in (58.4cm) and 19-in (48.3cm) size racks. This guide describes the 100−220 VAC powering, suggested mounting instructions and turn up and the initialization procedures for the OLT1131.
  • Page 5 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Tellabs Product Document Name and Number (System) Tellabs 1100 Series Tellabs 1100 Series Optical LAN Managing the PON User’s Guide Tellabs 1100 Series Optical LAN Craft User Interface Guide...
  • Page 6 · The instructions provided in this section assume all of the components to be installed are being ordered from Tellabs®. If any component was not ordered from Tellabs®, refer to the installation instructions included with that component. The components required for the installation of each unit are listed in the following table.
  • Page 7 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Description Qty Req’d Tellabs® 1131 Shelf Power Cable Small form-factor pluggable (SFP) optical transceiver 1 XFP (10G) SFP (1G) Page 7 of 44...

  • Page 8: Install Tellabs 1131

     The paint must be removed to ensure a good electrical connection to ground. 7. Refer to Power up the Tellabs 1131 for details on the 1131 power up sequence.
  • Page 9 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Page 9 of 44...

  • Page 10: Install 2:32 Fiber Splitter

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Install 2:32 Fiber Splitter If Passive Optical Network (PON) Protection Group (PPG) scheme is to be utilized, a 2:32 PON Fiber Splitter must be installed. Following completion of the installation of...
  • Page 11 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide 4. Remove the paint from a rail mounting hole adjacent to the lower-left corner of the splitter shelf and connect the frame ground to the equipment rail. 5. Proceed to “Install 2:32 Splitter Fiber Connections” ...
  • Page 12 The Tellabs®1131 is packaged and shipped to the customer, ready for installation.  Note: Shelf extensions are required if the Tellabs®1131 shelf is to be installed in a 23-inch rack and must be ordered separately.         Tellabs 1131 Specifications ·...

  • Page 13: Specifications

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Specifications The following table lists the descriptions and specifications of the Tellabs®1131. Description Specification Input Power (1131) 100 - 250 V ac Frequency 45 - 65 Hz Power Draw (Watts) (fully...

  • Page 14: Tellabs 1131 Communication Ports

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Tellabs 1131 Communication Ports ® The Tellabs®1131 provides the communication ports and connections, called out in the illustration below. Refer to “Specifications”. Page 14 of 44...

  • Page 15: Power Availability

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Power Availability Ensure that there is an available 100/220 VAC outlet within six feet of the Tellabs®1131 unit. Page 15 of 44...

  • Page 16: Facility Grounding

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Facility Grounding Prior to beginning the installation, ensure that the facility grounding system is installed in accordance with EIA/TIA-607 Grounding and Bonding Requirements for Telecommunications in Commercial Buildings, United States Department of Agriculture Rural Utilities Service (RUS) Bulletin 1751F-810, and/or local practices, as applicable.

  • Page 17: Rack Mounting

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Rack Mounting When selecting the installation rack and its location, the following items should be considered as part of that selection: · Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.

  • Page 18: Installation Of Overhead Cable Trays

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Installation of Overhead Cable Trays It is recommended that sufficient overhead cable trays are installed to accommodate both fiber and metallic cabling. Page 18 of 44...
  • Page 19 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Perform the following procedures to turn up the Tellabs® 1131 OLT: Power up the Tellabs® 1131 · Turn Up the Tellabs 1131 · Perform Optic Power Level Testing ·...

  • Page 20: Power Up The Tellabs® 1131

    1. Insert the power cable into the power input socket at the back of the Tellabs® 1131. Connect the other cable lead into a 120/240 VAC outlet or use a 208V/240V outlet to power up the unit, within the European Union.
  • Page 21 Dark GREEN Note: The cooling fans will change speed only if the Tellabs® 1131 has existing data (i.e., has been previously turned up.)              5. Does the STAT OLT CPU, STAT PON CPU, and the ACT LEDs illuminate, as...

  • Page 22: Turn Up The Tellabs 1131

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Turn Up the Tellabs 1131 Alert!  This procedure is service affecting, if the OLT1131 has been turned up and service has been established. Alert! Do not attempt this procedure without a valid IP address from the Data Center.
  • Page 23 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide o Uplink interface(s) o Port VLAN ID (1-3999, 4021-4094) o Port VLAN Priority (0-7) o Optional LACP Mode (Active or Passive) o Optional LACP Timer (Long or Short) o Transport interface(s) To connect the Tellabs®...
  • Page 24 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide 1. Wait for the system ready message to display. This only takes a few minutes. ##############################   System  Ready   YOU MAY LOGIN.  ############################## Press ENTER to see the login prompt.
  • Page 25 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Note: If your selected password does not meet the system security rules you will be asked. to enter a valid password, follow the on-screen password policy guidance on creating a secure password.
  • Page 26 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide AID  of  Uplink  Interface  #1:  (NET1)  ......[NET1]  :  NET1 Port  speed  for  NET1:  (1G(1),  10G(2)  ...... [1]  :  1 Number of ports for NET1: (1-2) ......... [2] : 2 Enable Link Aggregation Control Protocol (LACP) for NET1 : (y/n) ..[Y] : Y...
  • Page 27 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide |  Element  Management  Configuration | |================================================================================= ===| | Bridge Configuration   | Bridging Type : 802.1q   | Network Interface(s)     Interface ID : NET1 Admin State : enabled |  ...
  • Page 28 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Default Gateway :192.168.1.1 |     | Element Management   Admin State :enabled IP Stack Type :IPv4 VLAN Priority :7 |================================================================================= ===||  | 17.A Warning and prompt to delete and then re-add the OLT, is displayed: Warning:  IP  address  has  changed,  and  hence  the  OLT  must  be  deleted  from  the  EMS  and...
  • Page 29 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide 21.The turn up parameters are written to a non-volatile random access memory (NVRAM) on the ESU and the ESU performs a cold reboot. The following LED sequence and fan events occur: ·...

  • Page 30: Perform Optic Power Level Testing

    Perform Optic Power Level Testing This section provides the instructions for installing and testing the fiber connections using the optic power meter to measure power levels, after the Tellabs® 1131 has been turned up. Refer to “Turn up the Tellabs®...
  • Page 31 +0.5/1.122 +5/3.162 –27/0.002 –8/0.158  · If YES, you have verified the Tellabs® OLT has the correct optic power levels - to“Install 2:32 Splitter Fiber Connections”. · If NO, use these procedures until the optic levels are within the recommended parameters specified in Table...
  • Page 32 GPON Port +0.5/1.122 +5/3.162 –27/0.002 –8/0.158  9. If the Tellabs®  unit is bad, contact Tellabs Technical Assistance Center (TAC) for assistance. 10.If after following the above instructions, the optic levels cannot meet the levels spec- ified in Table 3, please contact Tellabs Technical Assistance Center (TAC).

  • Page 33: Install 2:32 Splitter Fiber Connections

    OLT and the 2:32 fiber Splitter. Note 1: PON Protection Groups can be sourced from; 1) two PON ports on the Tellabs® 1131, or 2) PON ports on different PON cards in different OLTs. Note 2: Ensure that the proper fiber connectors are available before proceeding.
  • Page 34 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Ensure that the connectors, UPC or APC are on the splitter end. The same is true for the splitter-to-ONT fiber cables. 1. Route the single-mode fiber jumper for the primary PON Protection Group primary connection from the designated PON port to the #1 input on the splitter shelf (refer to the illustration).
  • Page 35 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide 4. At the OLT supplying the primary input, clean the connected fiber, according to local practices, and insert the fiber into the designated PON port. An audible click is heard when the connector is completely inserted.
  • Page 36 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide WARNING!  The equipment in the following procedures shall be installed in a restricted access location from the general public.  Only trained personnel shall be allowed access to perform maintenance functions after the equipment is installed and energized.

  • Page 37: Replace A Tellabs® 1131

    The customer will contact the Tellabs® Technical Assistance Center (TAC), if the Tellabs® 1131 becomes inoperable or if there is any damage to the unit after arrival. The Tellabs® 1131 will be boxed and shipped back to Tellabs for maintenance or a new replacement.

  • Page 38: Replace The Ac-Dc Rectifier

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Replace the AC-DC Rectifier Replace the AC-DC Rectifier · Remove the AC-DC Rectifier · Install the AC-DC Rectifier · This section provides basic instructions for removing and replacing an inoperable AC - DC rectifier from the Tellabs®...
  • Page 39 Note: The customer will purchase a new rectifier from Tellabs®. Contact the Tellabs Technical Assistance Center (TAC), for instructions. 1. If the 1131 unit is already rack mounted, slide the unit forward a couple of inches or remove it from the rack to gain access to the faceplate screws.
  • Page 40 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide 6. Remove the rectifier from the slot. 7. If the rectifier is not going to be shipped back to Tellabs, dispose of the rectifier ac- cording to local practices or regulations.
  • Page 41 Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide 3. If no damage is noted, open the package and examine the rectifier for any apparent damage. 4. If damage is noted, contact Tellabs Technical Assistance Center for assistance and additional instructions.
  • Page 42 12.Using the Phillips screwdriver, tighten the two screws (one on each side) to hold the handles in the locked position. 13.Locate the rectifier cover plate on the left side of the 1131 faceplate. 14.Replace the rectifier cover plate. 15.Tighten the two screws on the top and the bottom of the rectifier cover plate.

  • Page 43: Tellabs Technical Assistance Center

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Tellabs Technical Assistance Center Tellabs TAC is available 24X7X365.  Our team is comprised of Support Engineers with years of telecommunications and networking experience, holding a variety of networking certifications in addition to the Tellabs Certification for the product(s) they support.

  • Page 44: Tellabs Warranty & Repair Center

    Tellabs® 1131 Optical Line Terminal Description, Installation, and Turn Up Guide Tellabs Warranty & Repair Center The Tellabs Repair Center is staffed Monday-Friday 6:00 AM-4:00 PM CT, excluding Tellabs company holidays.  If you have a technical or hardware emergency after hours, please contact the Tellabs TAC.
