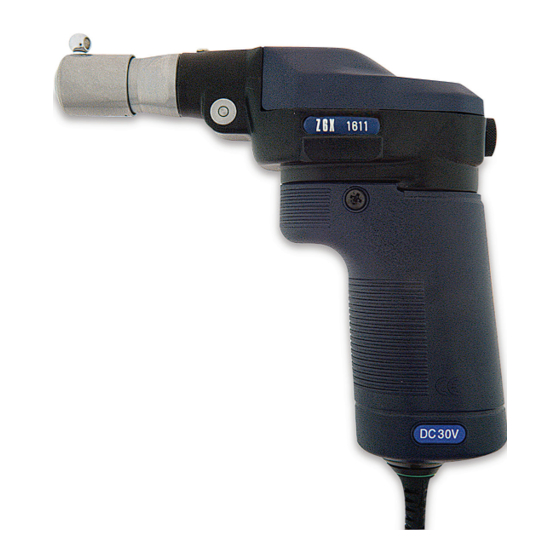

Gesswein POWER HAND 2X Z-6X Instruction Manual

Recipro handpiece
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

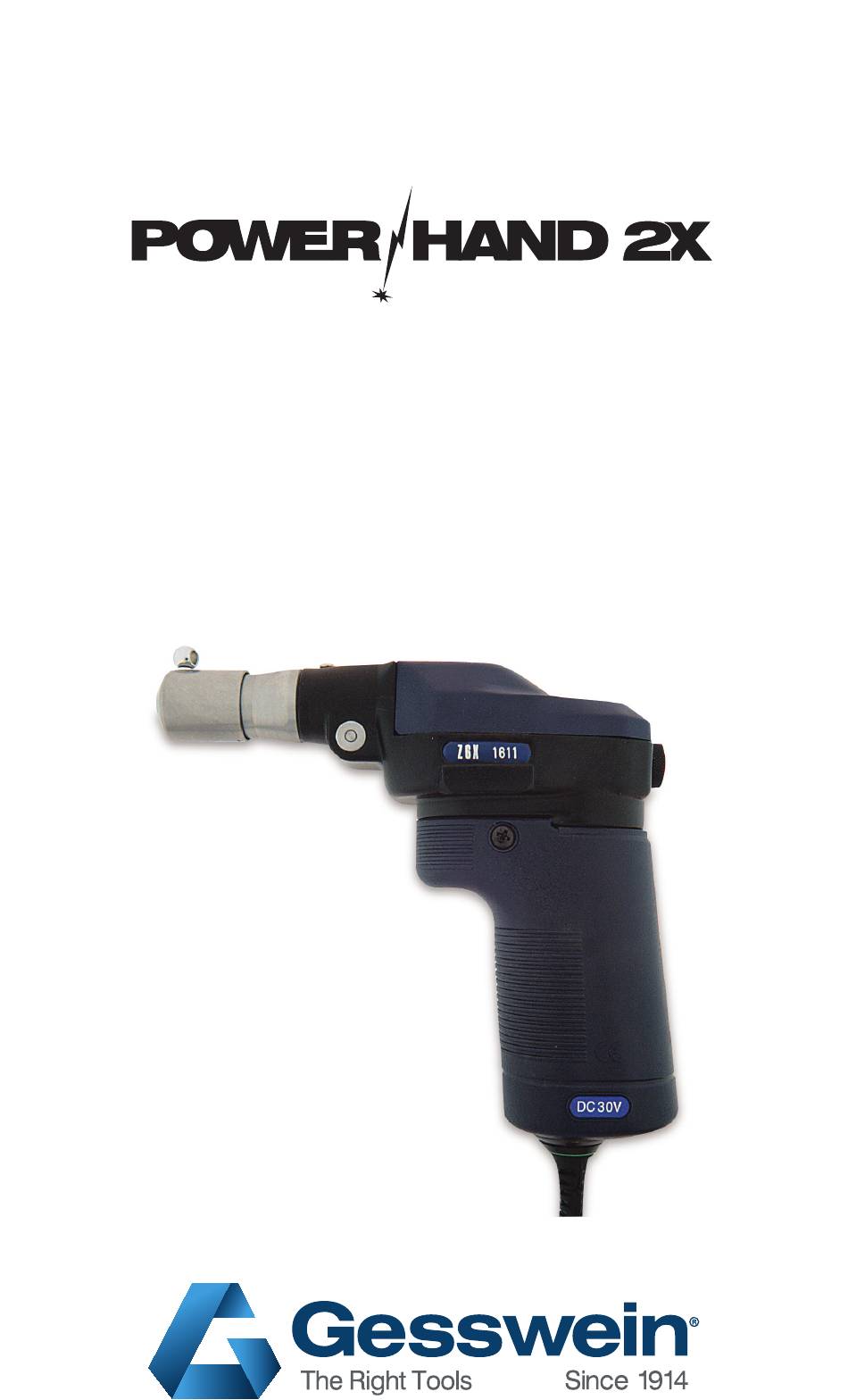

Instruction Manual
for
®
Recipro Handpiece
Model: Z-6X
#510-2160

Advertisement

loading

Related Manuals for Gesswein POWER HAND 2X Z-6X

Summary of Contents for Gesswein POWER HAND 2X Z-6X

  • Page 1 Instruction Manual ® Recipro Handpiece Model: Z-6X #510-2160...

  • Page 2: Specifications

    B. One Allen Wrench C. One Bottle Spindle Oil This DC electrically driven Recipro handpiece is designed to be used with Gesswein Power Hand 2X Single, Standard, Dual, Jewelers’ Micromotor, Power Carver II and D. One Assortment of Tool Holders, Bamboo Laps, PSA Chips and Felt Pads Bright-Cutting Controllers.

  • Page 3: General Use

    Parts Nomenclature General Use Tool Holder 1. Spindle The Recipro handpiece Spindle is designed to Tighten 2. Tool-Securing Screw accept tools with shank diameters from 1.5 to 4.0mm. To insert the desired polishing tool into 3. Lubrication Hole Loosen the spindle aperture, turn the Tool-Securing Screw 4.

  • Page 4: Operating Procedure

    With your Recipro handpiece adjusted for stroke and with a selected tool fitted, connect the Gesswein Power Hand Controller to an electrical supply and the Recipro to Controller. It is necessary to lubricate the Recipro head assembly parts engaged in reciprocating action.
  • Page 5 Z-6X Parts List When ordering spare parts, always specify part# (or item# if applicable) and description. Part# Item# Description Z-6X-101 8960108 Body Z-6X-102 8960109 Spindle Metal 8960110 Z-6X-103 Lubricant Hole Screw Z-6X-104 8960111 Clip Ring 8960112 Spacer Z-6X-105 8960113 Body Cover 8960114 Z-6X-106 Cover Set Screw...
  • Page 6 Parts List, continued When ordering spare parts, always specify part# (or item# if applicable) and description. Part# Item# Description Z-6X-600 8960155 Motor Complete 8960156 Z-6X-601 E-Type Clip Ring 8960157 Z-6X-602 Pulley Z-6X-603 8960158 Motor Case Z-6X-604 8960159 Countersunk Head Screw Z-6X-605 8960160 O-Type Rubber Ring...

  • Page 7: Component Selection

    If symptoms appear, seek medical advice immediately. 201 Hancock Ave. Bridgeport, CT 06605, USA orders 800.243.4466 | 203.366.5400 | fax 203.366.3953 email info@gesswein.com | www.gesswein.com...

This manual is also suitable for:

510-2160
