Summary of Contents for Gesswein Z-ANX
-

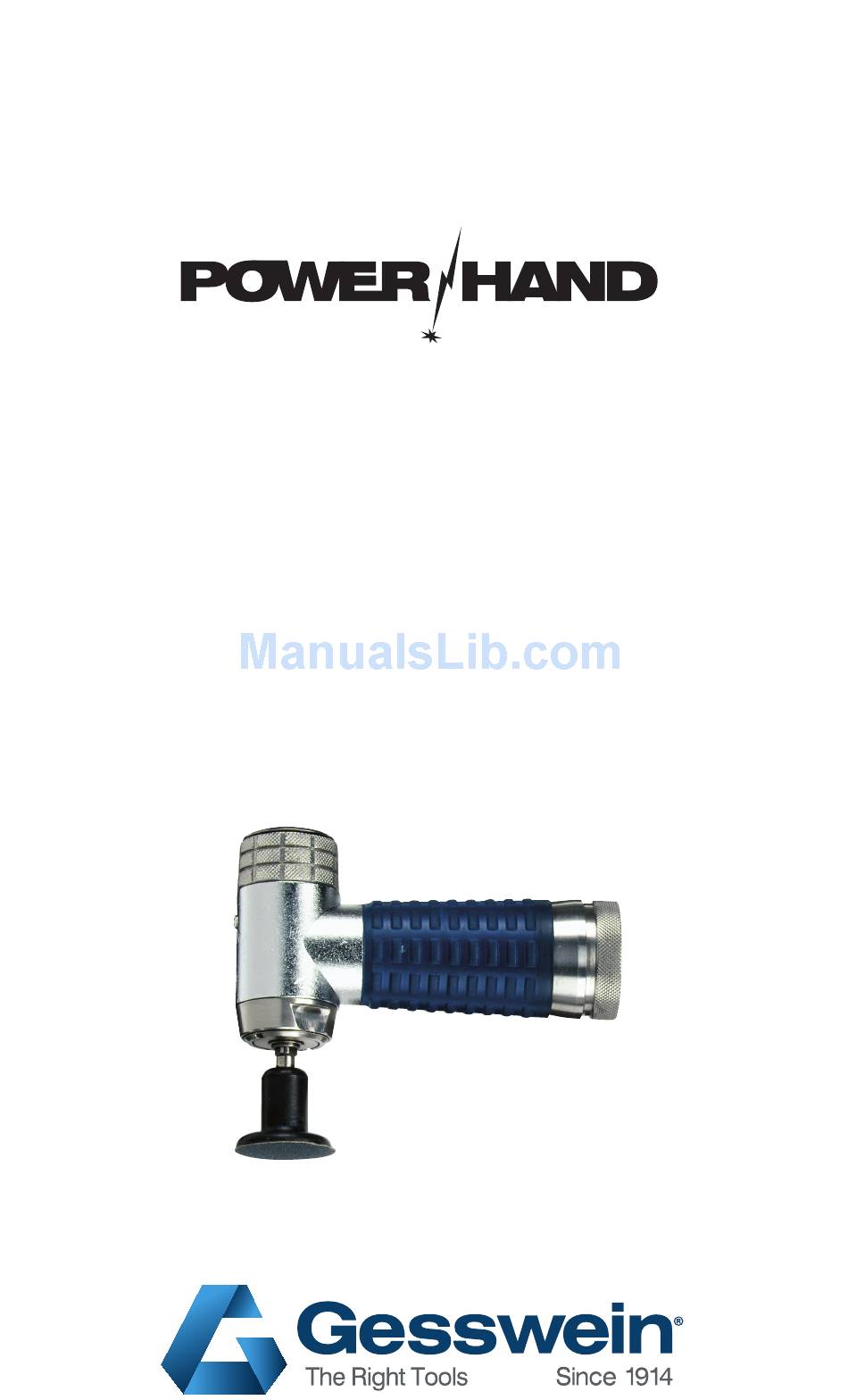

Page 1: Instruction Manual
Instruction Manual ® 90° Angle Head Assembly Model: Z-ANX #510-2240... - Page 2 Introduction The Gesswein Power Hand Z-ANX Head Assembly is engineered and manufac- tured to a high degree of precision and will give you many years of trouble-free service. Backed by a limited warranty that covers wear parts for 90 days and overall balance of parts for six months.
-
Page 3: Optional Accessories
Accessories Included Accessories A. One ⁄ " (2.35mm) Collet (reorder #501-0100) B. One ⁄ " (3.2mm) Collet (reorder #501-0105) C. One Collet Wrench (reorder #510-0180) Optional Accessories A. Handpiece Extension Cord (#510-1120): adds 6 feet, or almost 2 meters, to the 1.7-meter rotary handpiece cord B. - Page 4 Z-ANX Parts List When ordering spare parts, always specify part# (or item# if applicable) and description. Part# Item# Description KU-234 8960265 Name Plate JR21-110 8960266 8960076 GA8-220 Retainer 8960267 JR21-250 Set Ring JR21-209 8960268 Roller 8960269 JR21-109 Roller Shaft 8960270...
- Page 6 General Description of Use Tool Changing The Gesswein Power Hand Angle Rotary Handpiece uses a quick-tool-release mech- Secure anism that allows for rapid tool changes. To Release operate, turn the Collet Release Ring coun- terclockwise toward the arrow pointing to the “R”...
- Page 7 If the collet cannot be loosened by hand using the Collet Wrench, additional torque may be required. To use the Collet Wrench, place the triangular cutout in the wrench over the collet and turn counterclockwise to loosen and clockwise to tighten the collet. If more torque is required, hold the handpiece with the Collet Wrench secure on the collet, and tap the wrench with a solid tool (see...
- Page 8 • A selection of 8 heads • Two reciprocating profilers • One side-to-side profiler • Belt Sander 201 Hancock Ave. Bridgeport, CT 06605, USA orders 800.243.4466 | 203.366.5400 | fax 203.366.3953 email info@gesswein.com | www.gesswein.com #890-2059/0817...
