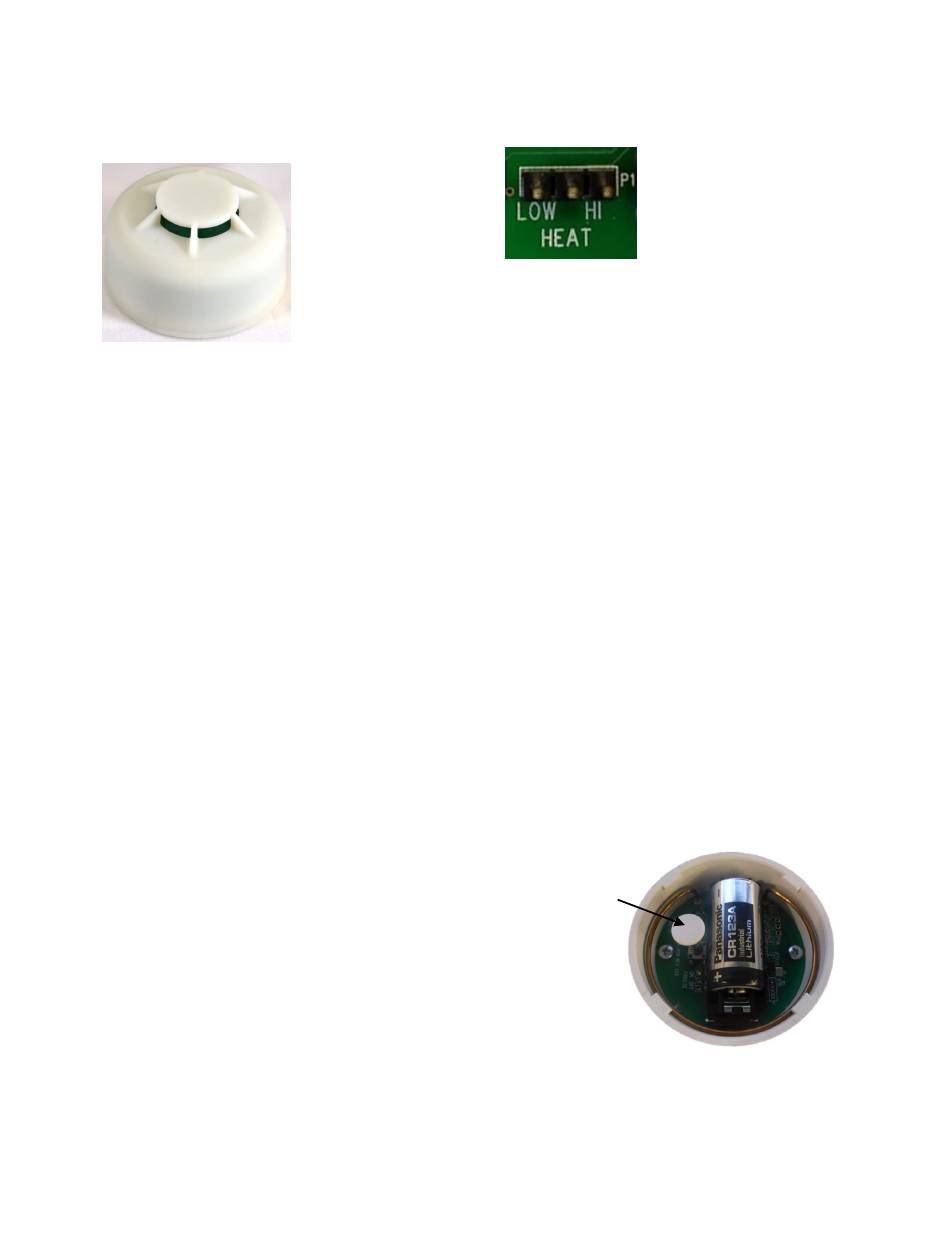

Maxouttech RF-ROR-135S-345-NN Manual

RF-ROR-135S-345-NN
Wireless Rate of Rise Heat Detector
RF-ROR – Wireless Rate of Rise Heat Detector

Product Summary

The Wireless Rate of Rise sensor uses a built-in
thermistor to sample and report on a specific set
temperature or a sudden rise in temperature.
Heat – selectable 135F or 200F
Rate of Rise – rapid temp rise 12F per
minute
Note: The device is powered by a 3V lithium
battery providing up to 10yrs of battery life.

Installation:

Heat sensors are normally installed in areas that are
prone to smoke as kitchens and garages.
Avoid areas that may have rapidly increasing
temperatures as, fireplaces, stoves, heaters, etc.
When mounting the sensor should be placed on a
ceiling at least 4 inches away from any wall. If
placed on a wall the sensor must be within 6 inches
if the ceiling
If using as a 135F make sure the ceiling location
does not exceed this temperature

Setup:

The sensor can be setup to detect a fixed
temperature of either 135F or 200F.
Use the jumper to select Low or Hi:
Rev A
Fixed Temperature
Low – 135F
High – 200F
Note: if no jumper is installed the detector is set to
200F

Programming:

Enrolling
The panel must learn (program) the detector ID
code in order to respond to detector signals. For
complete programming information, refer to the
specific control panel documentation.
To add the sensor to panel memory:
1. Place the panel in program mode.
2. Proceed to the Learn Sensors menu.
When the panel prompts you for a sensor
group number, select the proper fire
group
3. Select the desired sensor number. When
the panel prompts you to trip the sensor,
remove the battery pull tab. (If pull tab is
already removed, press and then release
the tamper switch until the panel beeps,
indicating successful programming.)
Tamper Switch
4. Exit program mode

Mounting the Detector

Page 1 of 3
