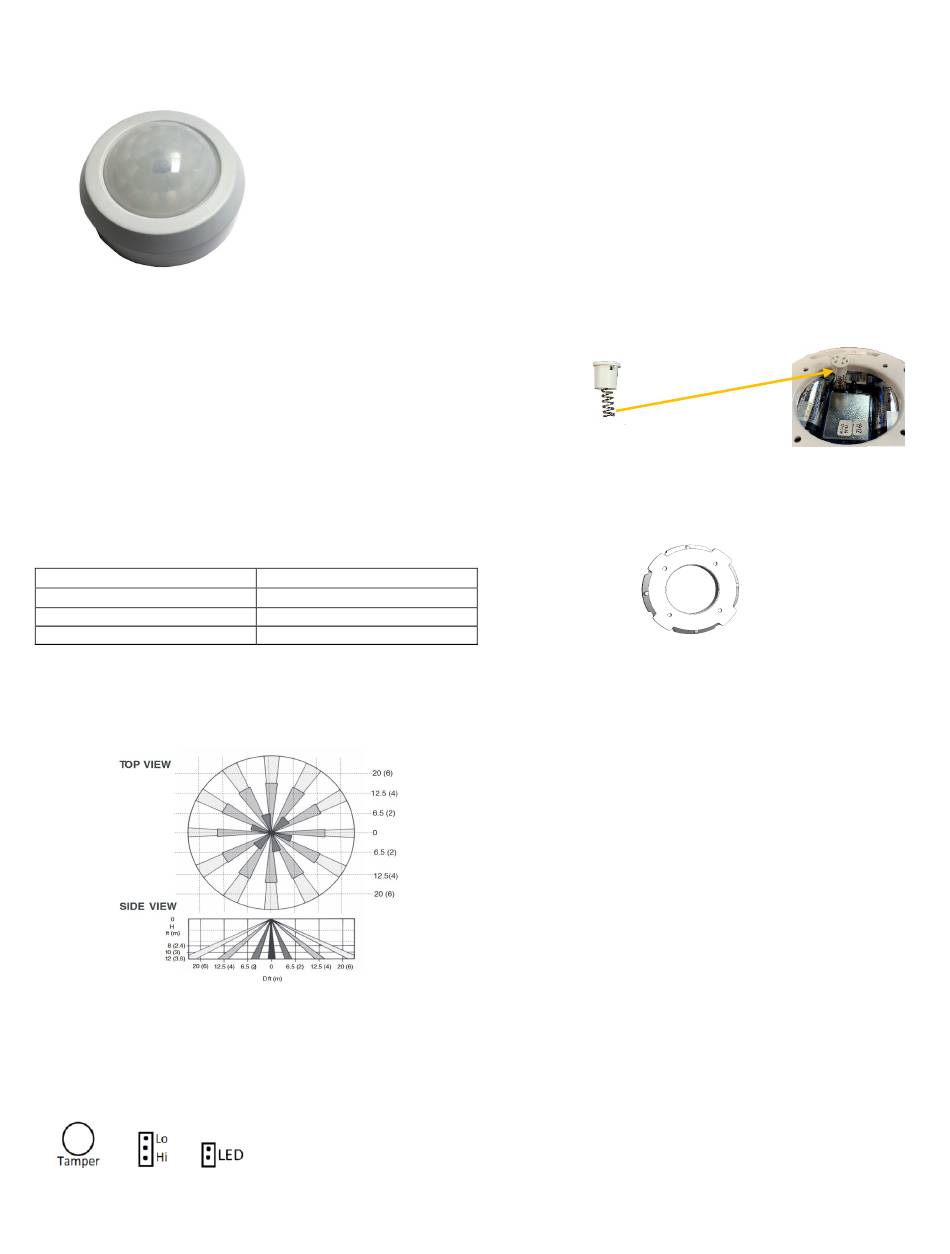

RF-CPIR-319-NN Installation Instructions

Installation

The motion detector is designed for a ceiling mount
application that provides a 360
Do not mount outdoors
Avoid areas with pets
Do not mount near ceiling fans or heating ducts
Avoid looking directly at windows and direct sunlight

Mounting Location

The coverage pattern is dependent on the mounting height
of the detector, areas cans be masked off to prevent
unwanted detection.
Mounting Height
8 ft
10 ft
12 ft
Also, the detectors sensitivity can be set to allow for
harsher
environments where movement or
temperatures can vary.

Sensitivity setting:

Low – recommended setting, allows for some
environmental movement.
High – quick response, used for quiet areas that do not
expect environmental noise.
RF-CPIR-319-NN Rev.3 Oct. 2020
page.
The RF-CPIR is a 360
0
passive infrared motion
detector designed for ceiling
mount applications.
The compact design allows
for an easy installation. The
sensitivity setting also
provides for different types
for environments.
detection range.
0
Detection Area
20 ft
30 ft
45 ft
For updated Installation Manual Revision go to Maxouttech.com and select Documentation
- Lo Sensitivity – move jumper to top two pins
- Hi Sensitivity – move jumper to bottom 2 pins
- LED – jumper installed across pins, LED will light when
movement is detected.
Note: Leaving the LED jumper installed will greatly reduce
the detector's battery life.

Mounting

Attach tamper spring to plastic foot, see photo 1, and
attach to tamper switch, see photo 2.
Photo 1.
Ceiling Mounting:
• Remove the housing base from the detector.
• Using anchors and screws securely mount the base to
the ceiling.
• The detector base will twist onto the base when
installed.

Panel Enrollment

The following steps describe the general guidelines for
programming the sensor into panel memory. Refer to the
specific panel's documentation for complete programming
details.
1. Set the panel to the program mode.
2. Proceed to the SENSORS menu.
3. Select the appropriate sensor group and sensor
number assignments.
4. When prompted by the panel to trip the sensor for
learning, remove the sensor cover and if present pull
the battery pull tabs. The system should acknowledge
learning the sensor by touchpad display and/or audio
(depending on the panel).
5. Exit program mode.

Testing

1. Press the tamper on the motion board to enter walk test
mode – during this mode the detector will transmit a RF
signal to the control panel whenever it detects motion.
2. Place the jumper across the LED pins, this will allow the
LED to light when motion is detected.
Photo 2.
