RF-Panic-One-Button-319-NN – Wireless Panic

Description

The RF-Panic-One-Button-319-NN is a wireless
handheld or mounted device that when pressed
sends a wireless signal to the alarm panel.
The panic sensor can be used as a police,
medical or auxiliary alarm activation. The
sensor is powered by a replaceable 3-VDC,
lithium coin-cell battery.

General Information

The RF-Panic-One-Button-319-NN is a
lithium battery powered operated panic
device for an alarm system. The Panic
provides the user: (specific programming
required for operation)
Police alarm sounds.
Medical reporting.
Silent alarm reporting.
Auxiliary (local only sounds).
Note: In programming, the sensor should be
enrolled in a supervised group, this
maintains integrity between the panel and
device.

Accessories

The RF-Panic-One-Button-319-NN includes:
RF-Panic-One-Button
Belt Clip
Lanyard Clip
Manual
RF-PANIC-One-Button-319-NN Rev.5 10/4/2021

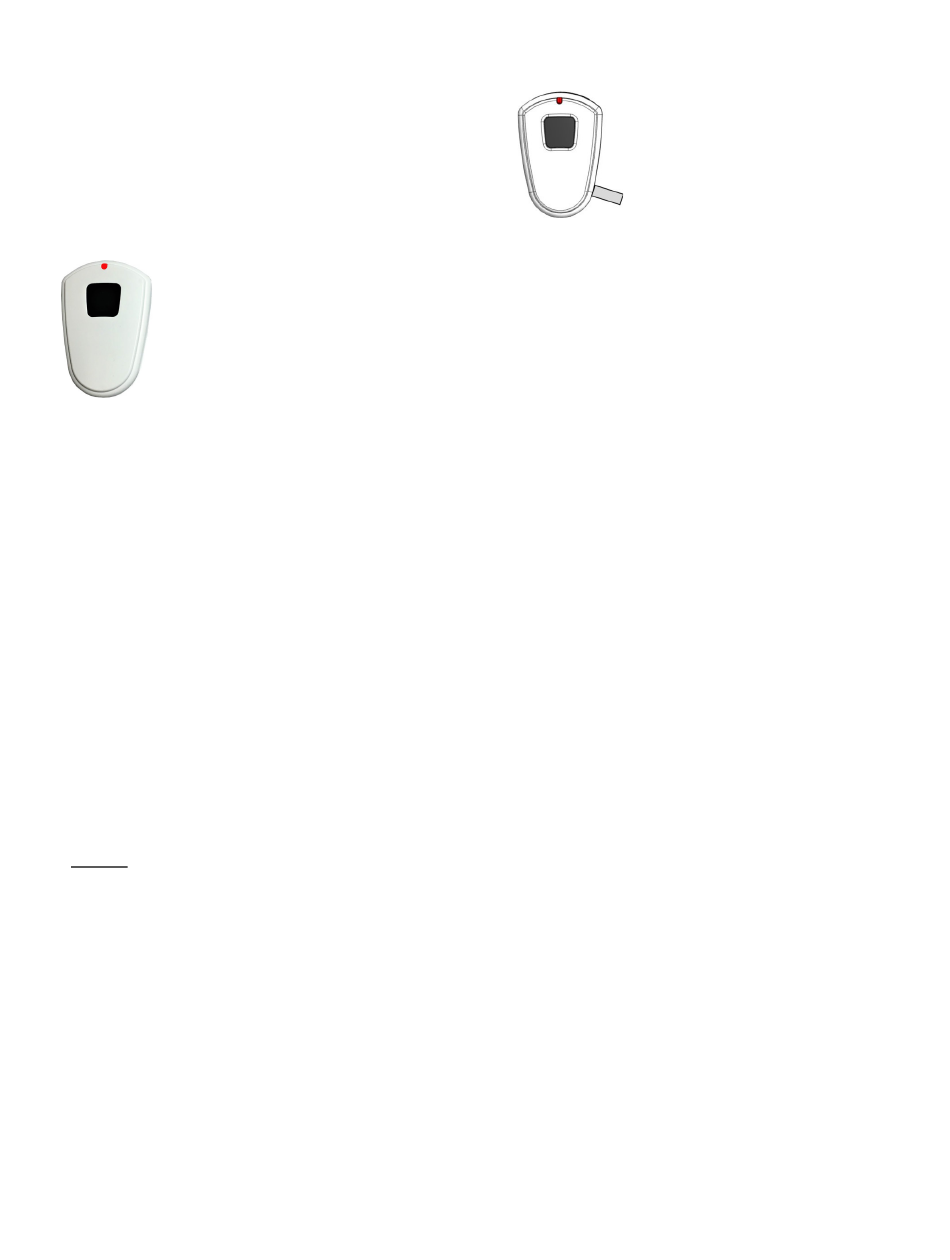

Battery Tab

Pull out battery tab for
operation.
Note: Tighten bottom
screw after removing

Programming

battery tab
The following steps describe the general guidelines for
programming the sensor into panel memory. Refer to
the specific panel's documentation for complete
programming details.
1.
Enter panel learn-in/enrollment mode.
2.
Select sensor number
3.
Select sensor type (specific for panel
type)
4.
When the panel request sensor
activation, Press the Panic button.
5.
Exit program mode.

Testing and the Sensor

Sensor should be tested for both operation and
range.

Operational Testing

Press the panic button, the specific
alarm sound should immediately
sound.
Disarm the system to silence the
alarm.

Wireless Testing

Wireless testing provides a baseline for the
distance the panic will operate away from the
control panel.
Enter dealer sensor test at the
control panel.
Press the panic and verify panel
acknowledgement
Walk away from the panel and test at various
locations making sure the panel
acknowledges.
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-Panic-One-Button-319-NN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maxouttech RF-Panic-One-Button-319-NN

  • Page 1 RF-Panic-One-Button-319-NN – Wireless Panic Battery Tab Description The RF-Panic-One-Button-319-NN is a wireless handheld or mounted device that when pressed Pull out battery tab for sends a wireless signal to the alarm panel. operation. The panic sensor can be used as a police, Note: Tighten bottom medical or auxiliary alarm activation.
  • Page 2 RF-Panic-One-Button-319-NN – Wireless Panic Mounting Bracket Specifications Model no.: The mounting bracket can be used for a RF-PANIC-ONE-BUTTON-319 permanent or temporary mount for the panic. RF frequency: Using screws mount the bracket in any 319.5 MHz orientation. Compatibility: Interlogix Learn Mode Panels and Receivers –...
  • Page 3 RF-Panic-One-Button-319-NN – Wireless Panic cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute...
