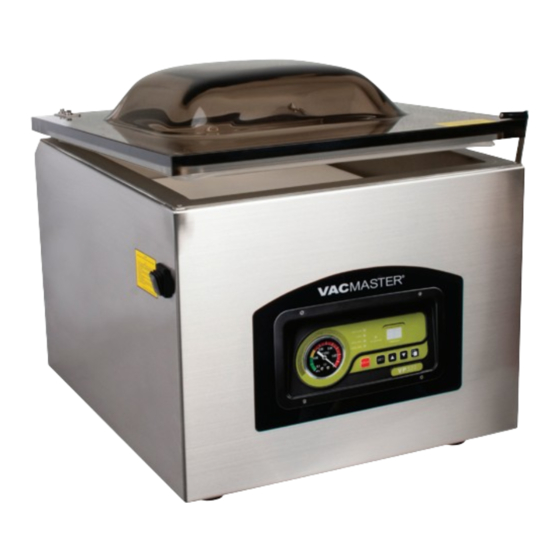

Chamber vacuum sealer
Hide thumbs Also See for VP320:

Advertisement

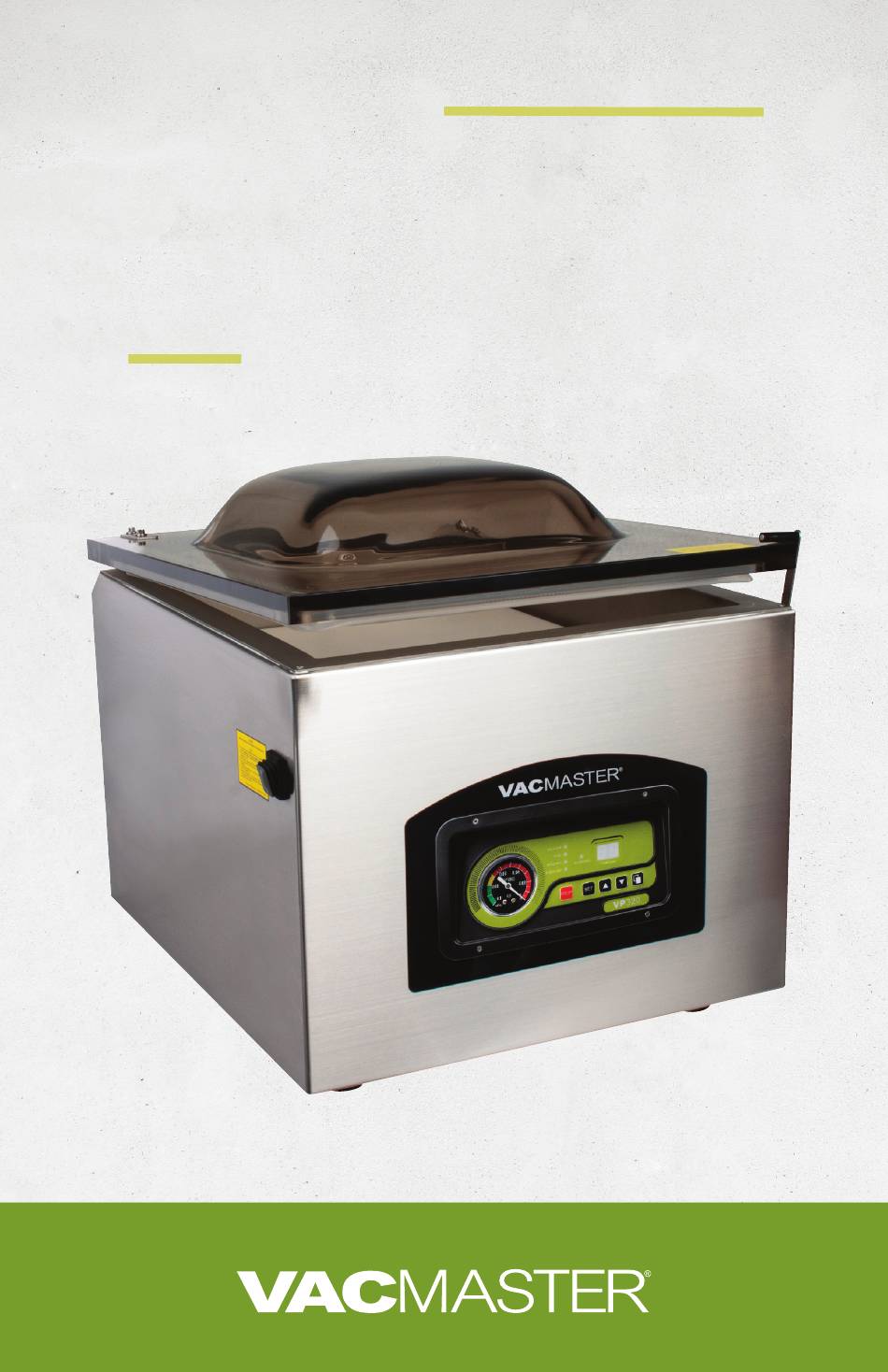

VP320
USER GUIDE
Chamber Vacuum Sealer
v2018–08.20
VP320 Chamber Vacuum Sealer | User Guide
1
v2018–08.20
ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP320 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vacmaster VP320

  • Page 1 P320 V VP320 USER GUIDE 20 VP Chamber Vacuum Sealer P320 V 20 VP v2018–08.20 VP320 Chamber Vacuum Sealer | User Guide v2018–08.20 ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 2: Table Of Contents

    ® You are about to use one of the most powerful vacuum sealers available. With the help of the VP320, you will now be able to keep food fresh for longer, deliver consistent portion control, and streamline your operations with programmable seal and vacuum time settings.
  • Page 3 Read and complete the following to prevent any damage. Oil must be added to the vacuum pump before using. VacMaster model VP320 uses an oil vacuum pump. ® For shipping purposes there is no oil in the pump. Oil must be added.
  • Page 4: Safeguards

    45 minutes. 15. This appliance is for commercial use only. VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 5: Tips

    ▫ Delicate foods can be frozen prior to packaging to protect them from getting crushed by the vacuum. ▫ Use VacMaster® Bone Guards to cover an item’s sharp edges to prevent pouch punctures. ▫ Allow foods and liquids to cool to room temperature before vacuum packaging.
  • Page 6: Features

    When more space is occupied, there is less air to be removed from the chamber. VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 7: Control Panel

    Program Button - Use to program 10 unique vacuum and seal time cycles VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 8: How To

    Do not use machine until oil has been added. Vacuum Pump Maintenance The VP320 vacuum pump requires periodic oil changes. Required oil change schedule: ▫ First oil change: 1 week after use. ▫ Future oil changes: every 3 months or 250 cycles.
  • Page 9 To power OFF, press "O" on the power switch. Set Up - Adjusting the VP320 Timing Controls NOTE: All timing adjustments must be made with the lid lock off and the lid open. To adjust/set the timing controls, press the SET button on the control panel until the required label (Vacuum, Sealing or Cooling) is illuminated.
  • Page 10 COOLING is illuminated and then use the UP/DOWN buttons to adjust the cooling time accordingly. NOTE: The VP320 settings will always default to the most recently used settings on the machine To prolong the life of your seal bar, set the TIP: cooling time to twice the sealing time.
  • Page 11 Lid Release Runs for a set time - counting down to zero Indicates the end of the process. VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 12 How to Use Programmable Vacuum Cycle Instructions This VacMaster chamber vacuum sealer is now equipped with a new feature that allows you to program and store up to 10 different seal cycle settings. Changing from liquids to solids to delicate items has never been easier to get that perfect amount of vacuum and a double seal for an additional layer of protection.
  • Page 13 Please scan the QR code for an instructional video on the programmable functions. VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 14: Troubleshooting

    Vacuum pouch loses vacuum after being sealed - ▫ Sharp items can poke small holes in pouches. To prevent this, cover sharp edges with VacMaster" Bone Guard and vacuum in a new pouch. ▫ Some fruits and vegetables can release gases (outgassing) if not properly blanched or frozen before packaging.
  • Page 15: Cleaning And Storage

    Wipe the gasket clean. c. Wipe the seal area clean. ▫ Do not store the VP320 outside. 65° to 75° recommended. ▫ DO NOT use any acetone-based or abrasive cleaners on the lid or other plastic parts. Only clean lid with a damp cloth and mild soap.
  • Page 16: Maintenance

    VacMaster vacuum oil. ® NOTE: The VP320 vacuum pump requires periodic oil changes. Follow this oil change schedule to ensure proper maintenance of your VP320. • First oil change: one week after use. • Future oil changes: every 3 months, or 250 cycles; whichever comes first.
  • Page 17 Remove the exhaust filter Install new filter Reassemble all of the pieces in reverse order! Plate Screws (Step #4) VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 18: Vacuum Packaging Guidelines

    NOTE: ▫ All perishable foods must be refrigerated or frozen. VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 19: Parts

    Lid Gasket 979426 Lid Gasket (2nd op- 979263 tion) Warning label Top Bar 979305 Seal Pad 979417 VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 20 Microswitch 977482 Seat,microswitch 979399 Right fixation shaft 979357 Short shaft 979358-8 Right hinge 979352 979353 Cover, nozzle VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 21 Cover, for Oil Drain 979136 Relay 976155 Cover, for Fill Hole Relay seat Adhesive label Installation board 979139 Control transformer VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 22: Packaging Info

    Packaging Information With the VP320, you can easily package a wide variety of sizes and shapes. You can also prep and store smaller individual serving portions as well as bulk items. ▫ Keeps food fresh 3-5 times longer than conventional storage bags.
  • Page 23: More Resources

    ® Check out our Blog vacmasterfresh.com/fresh-bites-blog/ We’re also on Facebook: https://www.facebook.com/vacmasterfresh Twitter: https://twitter.com/VacMasterFresh Instagram: https://www.instagram.com/vacmasterfresh/ VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 24: Specs

    • 20 (8” X 12") • 20 (10" X 13") 2 Filler Plates Maintenance Kit User’s Guide VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 25: Warranty And Registration

    Register your product and get technical support at: www.vacmasterfresh.com/product-registration/ vacmasterfresh.com/contact-us/ VP320 Chamber Vacuum Sealer | User Guide ARY, Inc. | 11880 College Blvd Suite 550 Overland Park, KS 66210 | www.VacMasterFresh.com | 800-821-7849...
  • Page 26 A Product of P.O. Box 412888 Kansas City, MO 64141 VacMasterFresh.com 800.821.7849 All Rights Reserved. VacMaster is a trademark or registered trademark of ARY, Inc. in the United States and other countries. ®...
