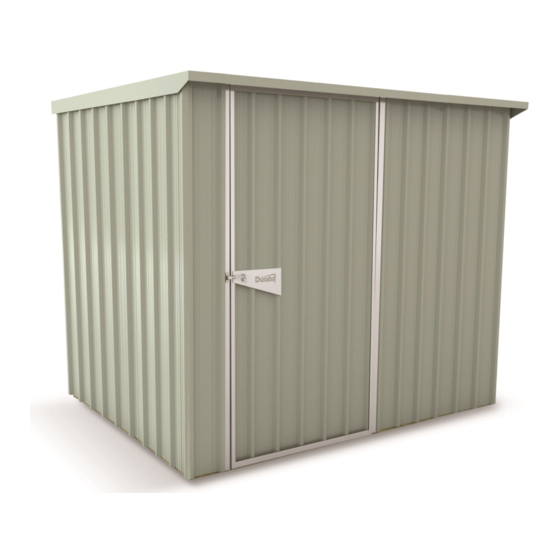

Duratuf GL75 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Duratuf Manuals
  4. Outdoor Storage
  5. GL75
  6. Assembly instructions manual

Duratuf GL75 Assembly Instructions Manual

Base size: 2.190m x 1.520m
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
GL75
BASE SIZE: 2.190m x 1.520m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratuf GL75

Summary of Contents for Duratuf GL75

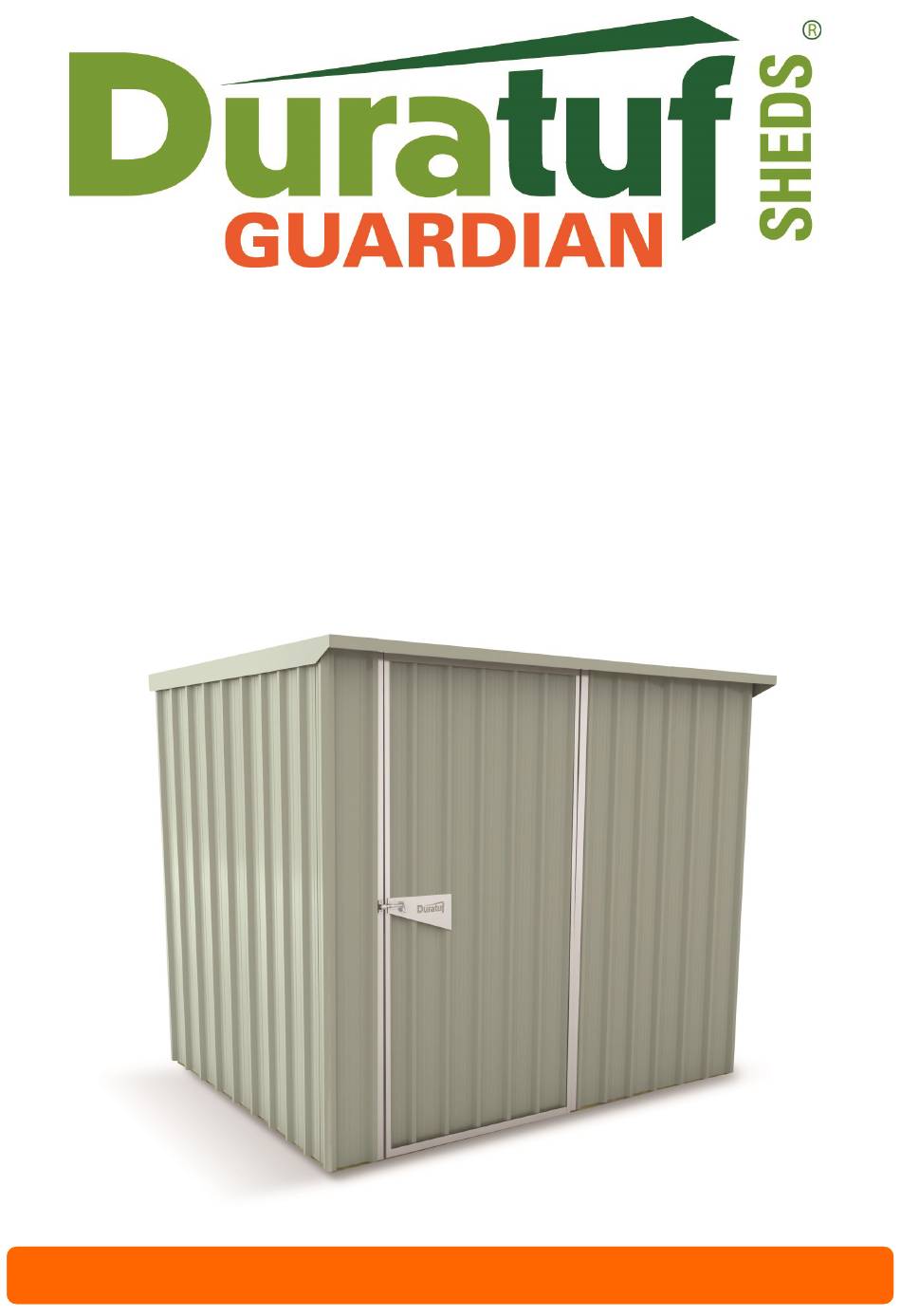

  • Page 1 ASSEMBLY INSTRUCTIONS GL75 BASE SIZE: 2.190m x 1.520m...
  • Page 2 Giving you visual guidance through sections that seem tricky on pa- per, and helping you achieve a flawless end result. To view the video visit www.duratuf.co.nz/guardian-assembly Note: Assembly video features a GL57. But can be used for reference for any other Guardian model.

  • Page 3: Before You Start

    HEX DRIVE SKILL SAW (timber floor only) WARRANTY REQUIREMENTS: The following maintenance process needs to be adhered to, to qualify for the steel warranty of your Duratuf Guardian shed. • Wash all surfaces annually using a hose and soft nylon brush.
  • Page 4 GL75 PARTS LIST CLADDING + FLASHING + HARDWARE PACK 1 DESCRIPTION DIAGRAM CHECKED Front Wall - 1.980m Front Wall 1Pan Sheet - 1.980m Back Wall - 1.890m Back Wall 1Pan Sheet - 1.890m Side Wall Angle- 1.965m Side Wall Angle- 1.935m Side Wall Angle- 1.905m...
  • Page 5 GL75 PARTS LIST PACK 2 TIMBER DESCRIPTION DIAGRAM CHECKED Front/Back Bottom Plates - H4 (Green) 2.190 m Front/Back Top Plate - H1 (Red) 2.190 m Side Wall Bottom Plates - H4 (Green) 1.520 m Side Wall Top Plates - H1 (Red) 1.522m...

  • Page 6: Parts Location

    PARTS LOCATION Roof Sheets 4 Sheets + 1Pan Sheet Barge Flashing Spouting Back Wall Sheets Top Plate Side 4 Sheets + 1Pan Sheet Top Plate Front Top Plate Back Front Wall Sheets Hinge Door Brace Door Sheets Door Jambs Padbolt Support Side Wall Sheets Bottom Plate Front Door Side Flashing...
  • Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 8 ASSEMBLE DOOR SELECT: 2 x 1.940 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 1.940 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.200 m Door Brace Flashings 59 x Rivets fig.3 STEP 1: NARROW PANS...
  • Page 9 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 2 x 1.905 m Side Wall Sheets (Angled) 2 x 1.935 m Side Wall Sheets (Angled) For sheds with Raised Base Plate option only (see page 6), deduct 2 x 1.965 m Side Wall Sheets (Angled) 30mm from measurement shown between Top and Bottom Plates on 2 x 1.522 m Top Plates (Red)
  • Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 4 x 1.890 m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.890 m 1Pan Wall sheet 30mm from measurement shown between Top and Bottom Plates on 1 x 2.190 m Top Plate (Red) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 2 x 1.980 Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.980 1Pan Wall Sheet 30mm from measurement shown between Top and Bottom Plates on 1 x 2.190 Top Plate (Red) all wall panels, so cladding protrudes 20mm below bottom plate 1 x 2.190 Bottom Plate (Green)

  • Page 12: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels SIDE 16 x 40mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE STEP 1: BACK WALL • Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels while they are screwed together.

  • Page 13: Roof Assembly

    ROOF ASSEMBLY IMPORTANT SELECT: Use 50mm Clouts only on outside ribs covered by Barge flashings. Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs. 4 x 1.720 m Roof Sheets 1 x 1.720 m 1Pan Roof Sheet IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL 1 x 2.225 m Spouting 2 x 1.720 m Barges...
  • Page 14 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.

  • Page 16: Year Warranty

    20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Guardian shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
