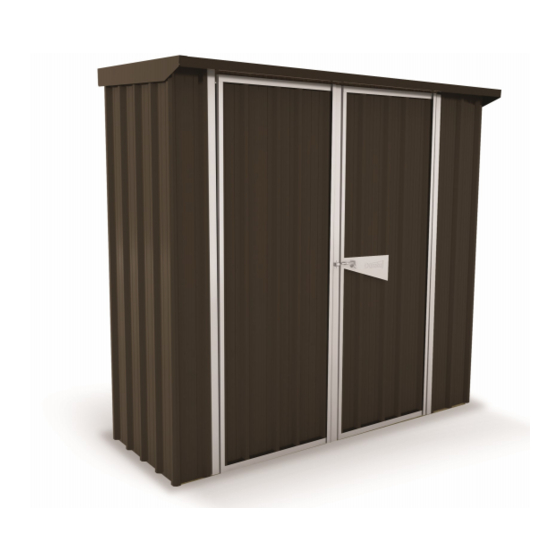

Duratuf GS72 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Duratuf Manuals
  4. Outdoor Storage
  5. GS72
  6. Assembly instructions manual

Duratuf GS72 Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

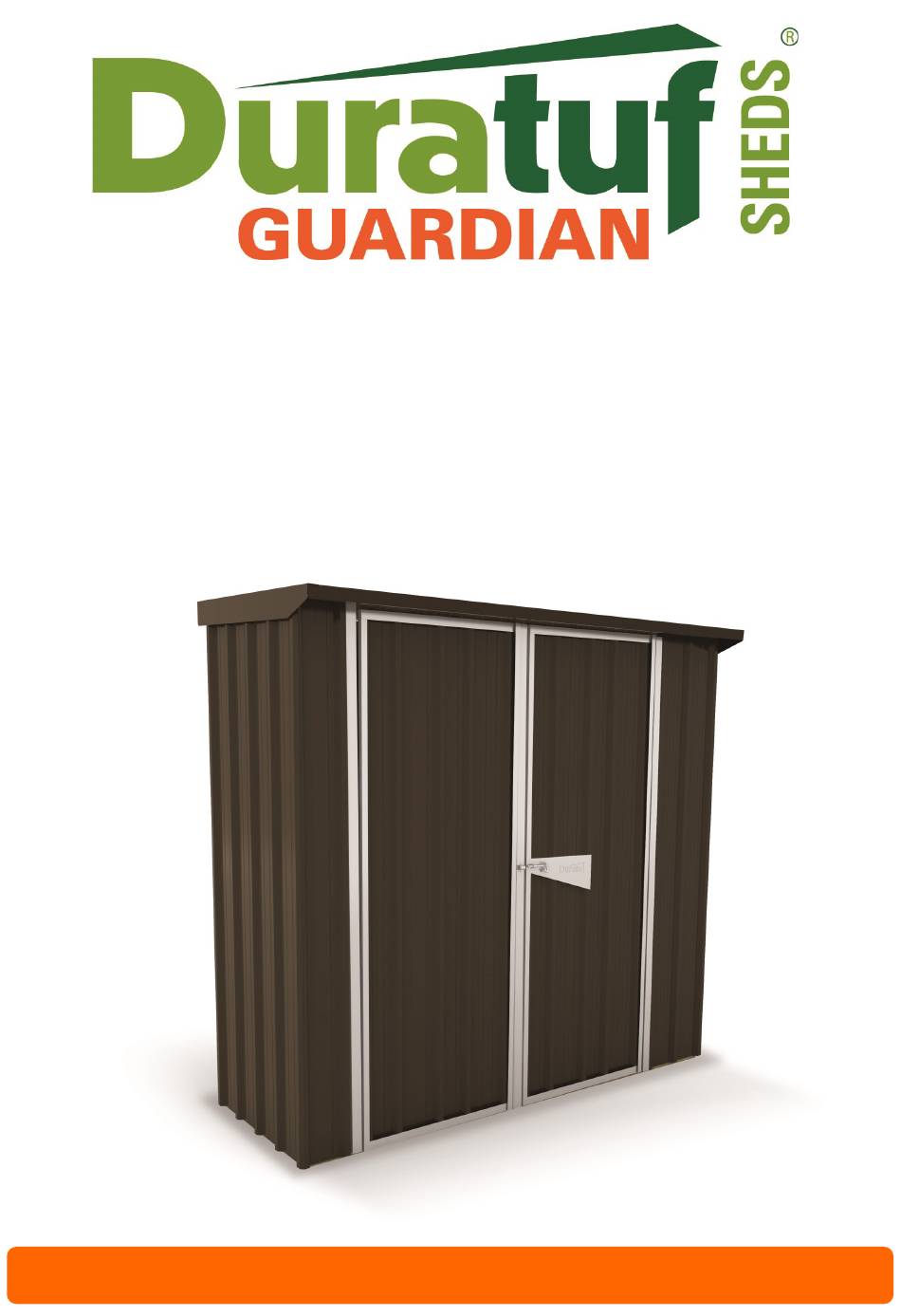

ASSEMBLY INSTRUCTIONS
GS72
BASE SIZE: 2.190m x 0.685m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS72 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratuf GS72

Summary of Contents for Duratuf GS72

  • Page 1 ASSEMBLY INSTRUCTIONS GS72 BASE SIZE: 2.190m x 0.685m...

  • Page 3: Before You Start

    HEX DRIVE SKILL SAW (timber floor only) WARRANTY REQUIREMENTS: The following maintenance process needs to be adhered to, to qualify for the steel warranty of your Duratuf Guardian shed. • Wash all surfaces annually using a hose and soft nylon brush.
  • Page 4 GS72 PARTS LIST PACK 1 CLADDING + FLASHING + HARDWARE DESCRIPTION DIAGRAM CHECKED Front Wall 2 Pan - 1.890m Back Wall - 1.930m Side Wall Angle- 1.915m Roof - 0.770m Side Wall 1 pan Angle- 1.895m Door Sheet - 1.850m Door Sheet 1 pan - 1.850m...
  • Page 5 GS72 PARTS LIST PACK 2 TIMBER DESCRIPTION DIAGRAM CHECKED Front/Back Bottom Plates - H4 (Green) 2.190 m Front/Back Top Plate - H1 (Red) 2.190 m Side Wall Bottom Plates - H4 (Green) 0.685 m Side Wall Top Plates - H1 (Red) 0.687m...

  • Page 6: Parts Location

    PARTS LOCATION Roof Sheets Ridge Flashing Barge Flashing Spouting Top Plate Side Back Wall Top Plate Front Sheets Top Plate Back Door Brace Padbolt Support Door Jambs Door Sheets Door Side Flashing Bottom Plate Front Door Top/Bottom Flashing Side Wall Sheets Front Wall Sheet Bottom Plate Side QUICK OVERVIEW...
  • Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 8 ASSEMBLE DOOR SELECT: 2 x 1.850m Door Sheets 2 x 1.850m Door Sheets 1 pan 4 x 0.715m Door Top/Bottom Flashings 4 x 1.850m Door Side Flashings 1 x 1.850m Weatherstrip 6 x Hinges 1 x Padbolt Support Flashing 2 x 1.025m Door Brace Flashings 108 x Rivets fig.3 STEP 1:...
  • Page 9 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 2 x 1.915 m Side Wall Sheets (Angled) 2 x 1.895 m Side Wall 1 pan Sheets (Angled) For sheds with Raised Base Plate option only (see page 6), deduct 2 x 0.687m Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 0.685m Bottom Plates (Green)
  • Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 4 x 1.930 m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.930 m 1 Pan Wall Sheet 30mm from measurement shown between Top and Bottom Plates on 1 x 2.190 m Top Plate (Red) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 2 x 1.890 2 Pan Wall Sheet For sheds with Raised Base Plate option only (see page 6), deduct 1 x 2.190 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.190 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...

  • Page 12: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels SIDE 16 x 40mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE STEP 1: BACK WALL • Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels while they are screwed together.

  • Page 13: Roof Assembly

    ROOF ASSEMBLY IMPORTANT SELECT: Use 50mm Clouts only on outside ribs covered by Barge flashings and back wall top plate. Use Roofing Screws on all other ribs. Predrill holes using a 4 x 0.770 m Roof Sheets 3.5mm drill bit. Ensuring screws are not overtightened as this can damage the 1 x 2.225 m Spouting 1 x 2.225m Ridge seal and cause the shed to leak.
  • Page 14 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then at- tached to the Base Plate with stainless steel screws. A Guardian timber floor can then be fitted on top of the Base Plate if required.
  • Page 15 Using 10mm drill bit, drill hole into top and bottom timber plates. IMPORTANT— CLEAN UP REMOVE ALL DRILL FILINGS FROM ROOF, WALLS AND CHANNELS THOROUGHLY. FAILURE TO DO THIS WILL RESULT IN CORROSION AND COULD THEREFORE VOID THE WARRANTY YOUR DURATUF GUARDIAN SHED IS NOW COMPLETE. RELAX…...

  • Page 16: Year Warranty

    20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Guardian shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
