AOC LE43U7970 User Manual page 127

1 2 3 4 5 6 7 8 9 10 11 12
A
B
C
D
E
F
H
I
1 2 3 4 5 6 7 8 9
G
A
B
C
D
E
F
H
G
10 11 12
COMPLY WITH
DATE
DRAWN
CHECK
DATE
2D_PRT_AS1_Ver001.A
I

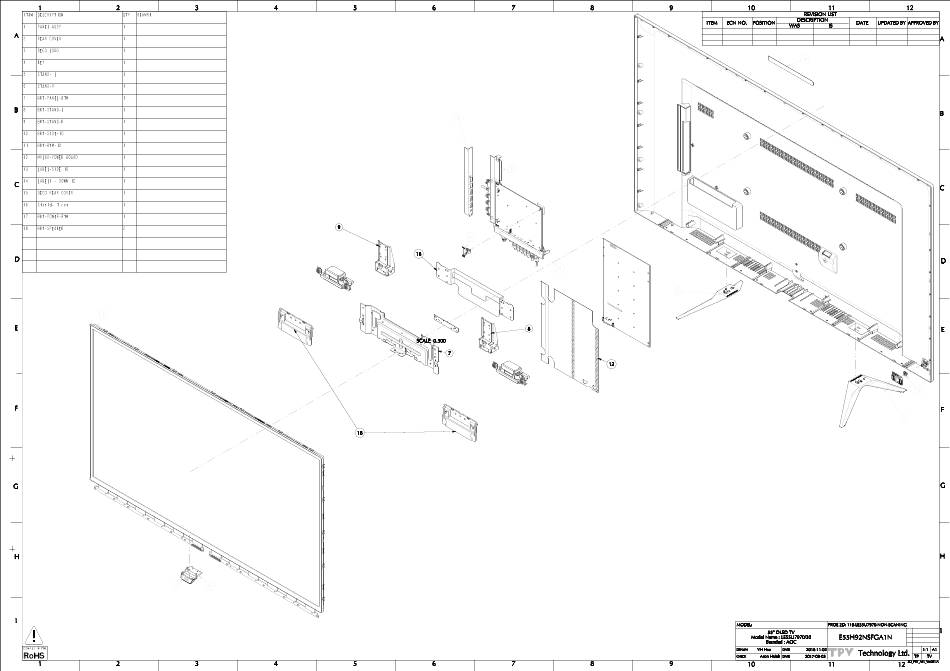

ITEM DESCRIPTION QTY REAMRK
1 PANEL ASSY 1
2 REAR COVER 1
3 DECO LOGO 1
4 KEY 1
5 STAND- L 1
6 STAND-R 1
7 BKT-PANEL-BTM 1
8 BKT-STAND-L 1
9 BKT-STAND-R 1
10 BKT-SIDE-IO 1
11 BKT-BTM-IO 1
12 MYLAR-POWER BOARD 1
13 LABEL-SIDE IO 1
14 LABELl - DOWN IO 1
15 DECO REAR COVER 1
16 Shield- T con 1
17 BKT-POWER-BTM 1
18 BKT-SPEAKER 2
RoHS
MODEL: PROE 2D: 110-LE55U7970-NON-SCANING
55" DLED TV
Model Name : LE55U7970/30
Branded : AOC
E55H92NSFGA1N
YH Hsu 2016-11-02
Technology Ltd.
1-1 A1
Aron Hsieh 2017-03-03 TP TV
REVISION LIST
ITEM ECN NO. POSITION
DESCRIPTION
DATE UPDATED BY APPROVED BY
WAS IS
18
4
1
3
15
5
6
10
11
14
13
17
16
7
9
8
12
SCALE 0.300
