Summary of Contents for AOC LE22H067

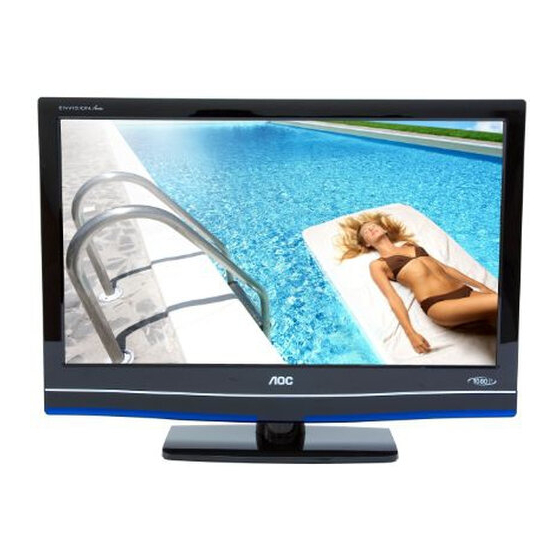

- Page 1 LED TV User Manual LE22H067 LE24H067 INTERFACE MULTIMÉDIA HAUTE DÉFINITION TÉLÉVISION À HAUTE DÉFINITION www.aoc.com 2010 AOC. All Rights Reserved.
- Page 2 This manual provides as an operational guide to user. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be, representations or warranties concerning the products described.
-
Page 3: Table Of Contents
PC Connection ..............................................14 External sound Connection ...........................................14 PC INPUT SIGNAL REFERENCE CHART ........................15 VIDEO INPUT SIGNAL REFERENCE CHART ....................... 15 USING AOC TV ................................. 16 Turning the TV On and Off ............................................16 Initial Setting ................................................16 Viewing Mode Selection ............................................21 Switching Input Source ............................................22... -
Page 4: Important Information
Use the Wall-Mount bracket or TV stand which was recommended by to avoid injury from tip-over. AOC, and please consult your dealer for detailed information. Use with other Wall-Mount Bracket or TV stand may cause instability and possibly result in injury. -
Page 5: Usage Instructions
If the AC power cord is damaged, it may result in a fire or Outdoor Use an electric shock. Stop using it and ask your dealer or AOC service center to exchange it. Do not install this TV outdoors. If the TV is exposed to rain, it may result in a fire or an electric shock. -
Page 6: Lcd/Led Screen
LCD/LED Screen Electric Shock Do not touch the AC power cord or the TV with a wet hand. If you Although the LCD/LED screen is made with high-precision plug/unplug the AC power cord from the TV with a wet hand, it may technology and has effective pixels of 99.99% or more, black dots cause electric shock. -
Page 7: Optional Equipment
Optional Equipment Batteries Do not install optional equipment too close to the TV set. Keep Do not dispose of batteries in a fire. optional equipment at least 11.875 inches (30 cm) away from the TV Do not short circuit, disassemble or overheat the batteries. set. -
Page 8: Sound
Install on the wall Sound 11 7/8 inches If a snapping or popping sound from the TV is continuous or frequent 30 cm while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for some TV’s to make occasional snapping or popping sounds, particu larly when being turned on or off. -
Page 9: Volume Adjustment
Ask a qualified service technician to dispose of the Thank you for purchasing this AOC high-definition television. The quality of the image you see on your AOC TV is only as good as the quality of the signal it receives. To experience the stunning detail of your new AOC TV, you need access to HD programming. -
Page 10: Contents In The Box
Contents in the Box After unpack the TV box, please check the TV and all accessories are well presented and undamaged. AOC HDTV Base Remote Control User Manual AAA Battery x 2 User Manual Quick Start Guide Warranty Card Warranty Card... -
Page 11: Controls & Connections
Controls & Connections VOL + Press to increase the sound volume level. Volume + Volume - VOL - Press to decrease the sound volume level. Channel CH ▲ Press to select the next higher program number. Channel CH ▼ Press to select the next lower program number. Menu Press to open or exit the OSD (on-screen display) MENU... - Page 12 Buttons located at the right side of the TV will operate the same as these buttons on the remote control. Button Description POWER Press to turn on and off the TV. TV/ AV/ COMP/ HDMI/ Press TV, AV, COMP or HDMI/PC separately to select the input directly. COMP Press 0-9 to select a channel;...
-
Page 13: Set-Up
Bracket model for your TV. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight. For product protection and safety reasons, AOC strongly recommends that you use the Wall-Mount Bracket model designed for your TV and the Wall-Mounting of your TV should be performed by AOC dealer or licensed contractor. -
Page 14: Connecting Tv
Connecting TV Cable System or VHF/UHF Antenna System You can enjoy standard-definition and high-definition digital programming (if available in your area), along with standard-definition analog programming. This TV is capable of receiving unscrambled digital programming for both cable and external VHF/UHF antenna. It is strongly recommended that you connect the antenna/cable input using a 75-ohm coaxial cable to receive optimum picture quality. -
Page 15: Composite/ S-Video Signal Connection
External sound Connection Turn off the AOC HDTV and Sound Device and connect the Audio Out jack or SPDIF jack on the rear of AOC HDTV. Connect an audio cable to the audio output connectors associated with the Audio Out (R/L) and SPDIF on the TV Set and connect the other end to the audio connectors associated with the Audio input of the External Sound. -
Page 16: Pc Input Signal Reference Chart
PC Input Signal Reference Chart After connecting the PC to the TV, set the output signal from the PC according to the chart below. Presetting PC Mode Standard Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) VESA 640 x 480 31.469 59.94 VESA 800 x 600... -
Page 17: Using Aoc Tv
Navigate: Select: Initial Setting When you first start up this AOC HDTV set, please follow the Initial Wizard to your AOC HDTV. 1. Selecting Language. Select your preferred language: English, Spanish or French Press ▲/▼ to select “Language”, and press OK. - Page 18 A. Selecting Time Zone. Inital Wizard (3/8) Please select Time Zone... AKST Previous Cancel Navigate: Select: Press ▲/▼/◄/► to select “Time Zone” which you located then press OK.
- Page 19 B. Manually enter the time. Initial Wizard (3/8) Please enter the time... Year 2010 Month Time 12:02 AM Previous Cancel Navigate: Select: Year Press ▲/▼ to select “Year” then press OK. Press ◄/► to adjust then press OK. Month Press ▲/▼to select “Month” then press OK. Press ◄/►...
- Page 20 3. Select “Eco” mode or “Vivid” mode. When you turn on TV in the first time, you can choose “Eco” mode to decrease backlight level to save the power consumption or “Vivid” mode to enhance picture contrast and sharpness. Initial Wizard (4/8) Please select Eco/Vivid mode...
- Page 21 5. Search TV channel Initial Wizard (6/8) Please check if RF cable is connected properly... Start Previous Cancel Navigate: Select: OK Press ▲/▼ to select “Previous” or “Cancel” for RF Tuning setting. Press OK will execute channel searching. Initial Wizard (7/8) Searching, Please wait...
-
Page 22: Viewing Mode Selection
Viewing Mode Selection For TV input with SD programs Normal Mode Zoom1 Mode Suitable for viewing conventional 4:3 programs in Use these aspect modes to zoom in and to reduce their normal format. the black bars. Wide Mode Zoom2 Mode The original content in this mode has to fill the Use these aspect modes to zoom in and to reduce entire screen of the display. -
Page 23: Switching Input Source
Switching Input Source On AOC TV, you can choose signal source on the remote control directly, or press “Source” to choose the signal source on the display menu. When choosing signal source on the remote control directly: Press the following keys to switch input source. -
Page 24: Osd Manual Setting
OSD Manual Setting Channel Search CHANNEL Cable Tuning Band Channel Strength Auto CH Search Add on CH Search Channels List Channel Labels FAV Channel Setting Move Select Return Exit MENU /Exit Press MENU to call out MENU. / Exit Press ▲/▼ to select “Channel” , and press OK. - Page 25 Changing Channel/Flashback On AOC TV, you can change channel on the remote control directly, or press CH ▲/▼ on the side of the TV to choose the channel. Press the number keys directly to change the channel. Press the CH to change channel.
-
Page 26: Changing Volume, Mute And Sound Mode
Changing Volume, Mute and Sound Mode Press VOL to change the volume. Press MUTE to mute the TV. Press Audio to change surround mode: Music, Speech and Personal. For more details, please refer to “Adjust Audio Setting”. -
Page 27: Adjust Video Setting
Adjust Video Setting VIDEO Picture Mode Brightness Contrast Sharpness Color Tint Color Temp Cool Move Select Return Exit MENU /Exit Press MENU/EXIT to call out MENU. / Exit Press ▲/▼ to select “VIDEO” , and press OK. Press ▲/▼ to select Video Settings: Picture Mode, Brightness, Contrast, Sharpness, Color, Tint, Color Temp, Noise Reduction, Adaptive Contrast, DCR, Backlight, Aspect Ratio, Preset, and press OK to enter. -
Page 28: Adjust Audio Setting
Adjust Audio Setting AUDIO Personal Sound Mode Bass Treble Balance Audio Source Stereo SPDIF Speaker Move Select Return MENU Exit /Exit Press MENU/EXIT to call out MENU. / Exit Press ▲/▼ to select “Audio” , and press OK. Press ▲/▼ to select Audio Settings Sound Mode, Bass, Treble, Balance, Audio Source, Audio Language, SPDIF, Speaker, Multi Language, AVL, Preset, and press OK to enter. -
Page 29: Adjust Pc Setting
Adjust PC Setting This setting is only available in PC mode. H-Position V-Position Clock Phase Auto Adjust Preset Move Select Return MENU Exit /Exit Press MENU/EXIT to call out MENU. / Exit Press ▲/▼ to select “PC” , and press OK. Press ▲/▼... -
Page 30: Feature Setup
Feature Setup FEATURE English Menu Language Time Password Setting Parental Control Closed Captions Analog Captions SERVICE1 Digital Captions Move Select Return Exit MENU /Exit Press MENU/EXIT to call out MENU. / Exit Press ▲/▼ to select “Setup” , and press OK. Press ▲/▼... - Page 31 Press ◄/► to adjust Auto or Manual setting for Time Mode and press OK. Press ▲/▼ to select “Time Zone”. Press ◄/► to adjust Time Zone which you located and press OK. Press ▲/▼ to select “Daylight Savings”. Press ◄/► to on/off Daylight Savings and press OK. For manually Time Mode setting, press ▲/▼...
- Page 32 Parental Control: FEATURE Parental Control Button Lock Block Unrated TV USA Parental Locks Canadian Parental Locks Open V-Chip Move Select Return MENU Exit /Exit Provide the Parental Control (V-chip) function setting. Before entering the Parental Control sub-menu, user has to key in the password first. Enter the Parental Lock item, then the user can modify the restricted table about MPAA or TV Rating respectively.
- Page 33 HDMI CEC: Set the HDMI Control to ON and this feature will enable the HDMI CEC function and your AOC HDTV will discover and communicate automatically with other compatible HDMI interfaced devices. Select ODD to disable this option. FEATURE HDMI CEC...
-
Page 34: Jpeg Viewer
JPEG Viewer After plugging USB storage device into USB port, Multimedia List menu will display, or press “Photo” on the remote control after you plugging USB storage device. Image Delay Normal Start Slide Show Filename Filename Filename Rotate Photo Back To Upper Folder Filename Filename Back To Root Folder... -
Page 35: Troubleshooting
Troubleshooting Condition Explanation / Solution No picture No picture Check the Power Saving settings. Make sure the power cord is connected securely. Turn on the power of the TV. Cannot receive any channels Check antenna/cable connections. Make sure the Cable setting is correct for your TV signal source. TV is locked to one channel Perform Auto Program to add receivable channels that are not present in the TV’s memory. -
Page 36: Dimensions & Specifications
LE22H067: 527 x 395 x 150 (with base and stand) (mm) LE24H067: 579.2 x 419.7 x 160 LE22H067: 3.75 Kg (with stand) / 3.5 Kg (w/o stand and base) Weight LE24H067: 4.2 Kg (with stand) / 3.9 Kg (w/o stand and base) -
Page 37: Index
Index Panel size, 35 PC Connection, 14 PC Setting, 28 Adaptive Contrast, 26 Personal, 25 Antenna, 6, 35 Phase, 10, 28, 34 Aspect Ratio, 26 Picture Mode, 34 Audio, 25, 27, 34 Picture Setting, 26 Audio Language, 27 Power, 4, 5, 34 Audio Setting, 25, 27 Preset, 15, 26 Audio Source, 27...
