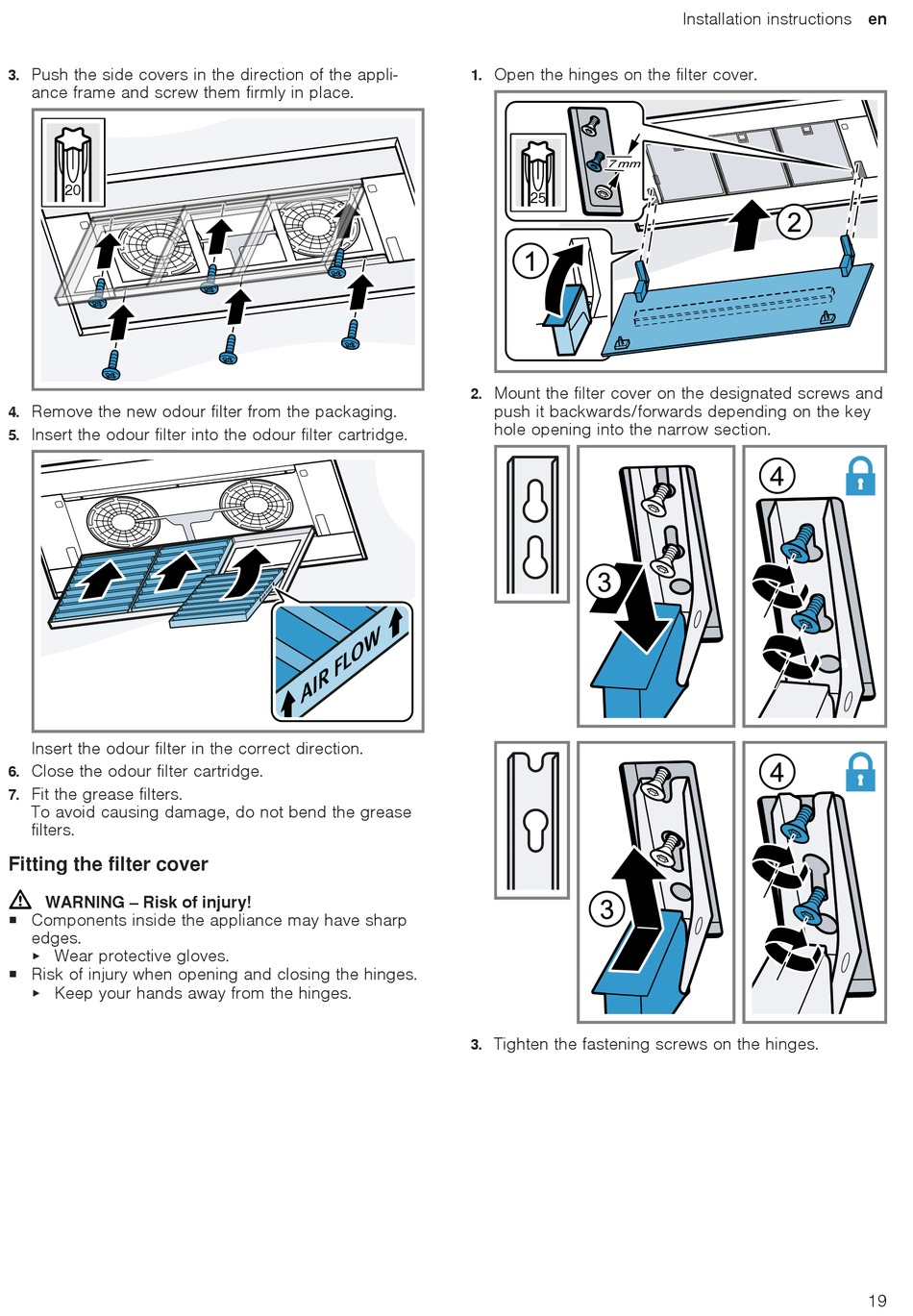

Push the side covers in the direction of the appli-
3.
ance frame and screw them firmly in place.
20
Remove the new odour filter from the packaging.
4.
Insert the odour filter into the odour filter cartridge.
5.
Insert the odour filter in the correct direction.
Close the odour filter cartridge.
6.
Fit the grease filters.
7.
To avoid causing damage, do not bend the grease
filters.
Fitting the filter cover
WARNING ‒ Risk of injury!
¡ Components inside the appliance may have sharp
edges.
Wear protective gloves.
▶
¡ Risk of injury when opening and closing the hinges.
Keep your hands away from the hinges.
▶
Open the hinges on the filter cover.
1.
25
Mount the filter cover on the designated screws and
2.
push it backwards/forwards depending on the key
hole opening into the narrow section.
Tighten the fastening screws on the hinges.
3.
Installation instructions en
19
