NEFF T48CB1AX2 Manual

N 50, I n duction hob w i th in t eg r a t ed v entilation syste m, 80 cm
T48CB1AX2
Optional accessories
Z811DU0 : Acoustics Filter , Z821PD0 : Basic kit (partly-)ducted
recirculation , Z821UD0 : Kit Unducted Recirculation , Z821VR0 :
cleanAir recirculation replenishment fil , Z861SB1 : 90° flat duct
bend horizontal , Z861SB2 : 90° flat duct L vertical , Z861SB3 : 90°
flat duct M vertical , Z861SB4 : 90° flat duct S vertical , Z861SI0 :
Adapter round-flat , Z861SI1 : 90° Adapter round-flat , Z861SM1 :
Straight tube 500mm , Z861SM2 : Straight tube 1000mm , Z861SS1 :
Connector sleeve (female) , Z861SS2 : Flex sleeve (female) ,
Z943SE0 : Set of 2 pots and 1 pan
1/8

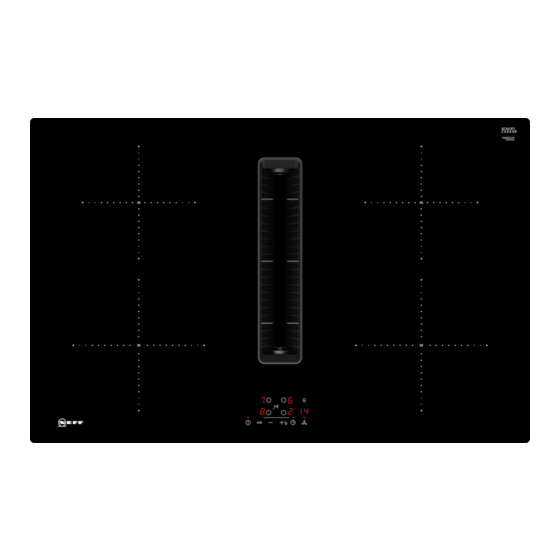

This induction hob with integrated ventilation combines two
appliances in one for a clear view while cooking.
√ Touch Control – a convenient way to control hobs with just one
touch and a timer if needed.
√ High Extraction Rate – ensures a clear view while cooking thanks
to efficient motor technology.
√ Reduced Noise – our optimized motor guarantees a quiet cooking
experience.
√ Space-saving Installation – room for pull-out drawers thanks to
the installation of the extractor duct in a lower cabinet.
√ Power Boost – optimized power level function for more flexible
and even faster heating.
Features
Technical Data
Product name/family : Cooking zone ceramic
Construction type : Built-in
Energy input : Electric
Required niche size for installation (HxWxD) : 223 x 750-750 x
490-490
Width of the appliance : 802
Dimensions : 223 x 802 x 522
Dimensions of the packed product (HxWxD) (mm) : 430 x 940 x 670
Net weight (kg) : 25.045
Gross weight (kg) : 29.9
Residual heat indicator : without
Location of control panel : Hob front
Basic surface material : Ceramic
Color of surface : Black
Approval certificates : CE, VDE
Length of electrical supply cord (cm) : 110
Sealed Burners : No
heating with booster : All
Power of heating element (kW) : 2.2
Power of 3rd heating element (kW) : 1.8
Power of 5th heating element (kW) : 1.8
Power of 3rd heating element (kW in boost) : [3.1]
Maximum output air extraction (m3/h) : 500
Boost position output recirculating (m3/h) : 565.0
Maximum output recirculating air (m3/h) : 555
Boost position air extraction (m³/h) : 575
Noise level (dB(A) re 1 pW) : 68
Odour filter : No
Operating Mode : Convertible
Delay Shut off modes : 30
Electrical connection rating (W) : 7400
Voltage (V) : 220-240/380-415
Frequency (Hz) : 50; 60
Main colour of product : Black
Approval certificates : CE, VDE
Length of electrical supply cord (cm) : 110
Required niche size for installation (HxWxD) : 223 x 750-750 x
490-490
Dimensions : 223 x 802 x 522
Dimensions of the packed product (HxWxD) (mm) : 430 x 940 x 670
Net weight (kg) : 25.045
Gross weight (kg) : 29.9
