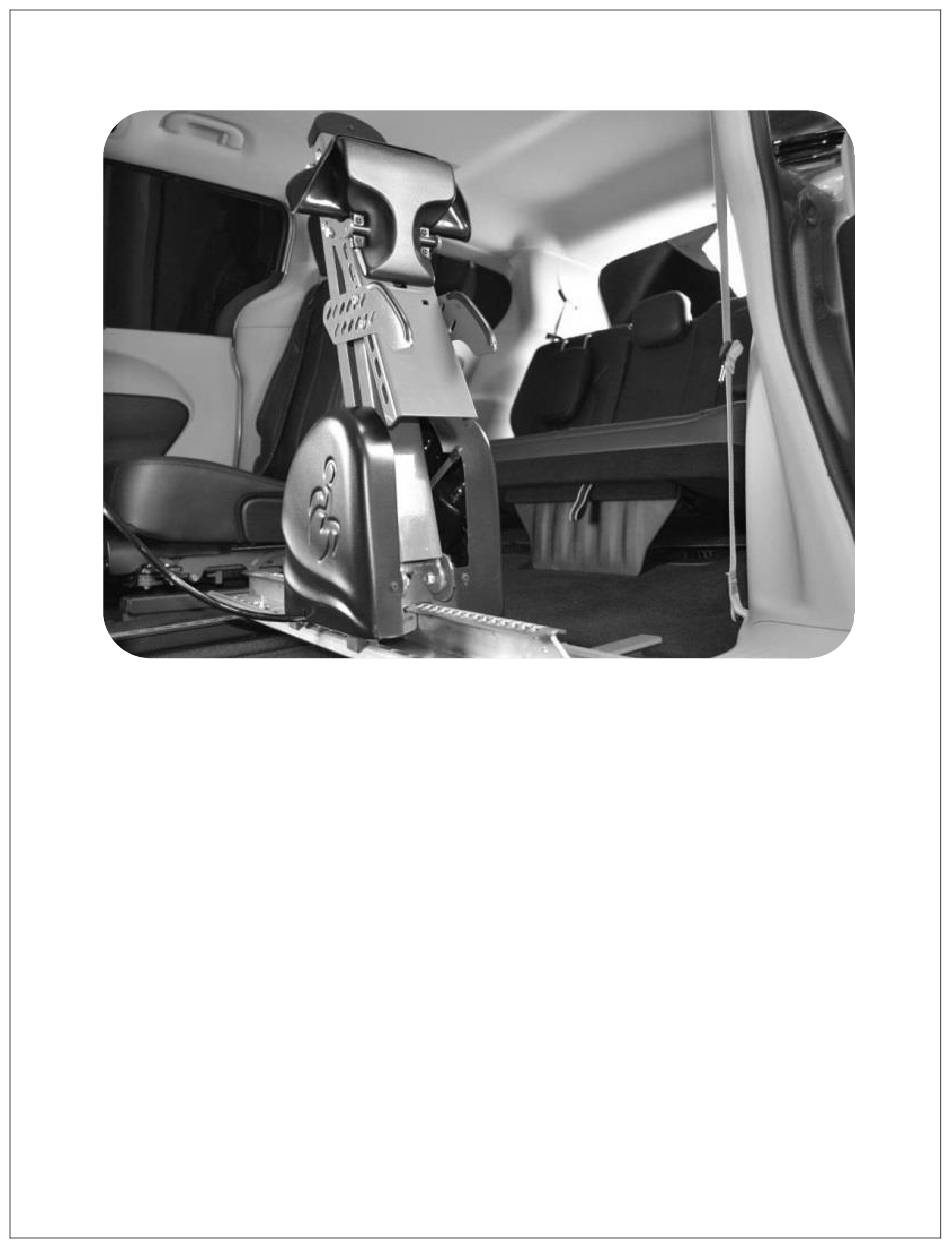

- Page 1 SPEEDY-LIFT INSTALLATION MANUAL SP-CHR01 DODGE CARAVAN/CHRYSLER TOWN&COUNTRY 2001-2007...

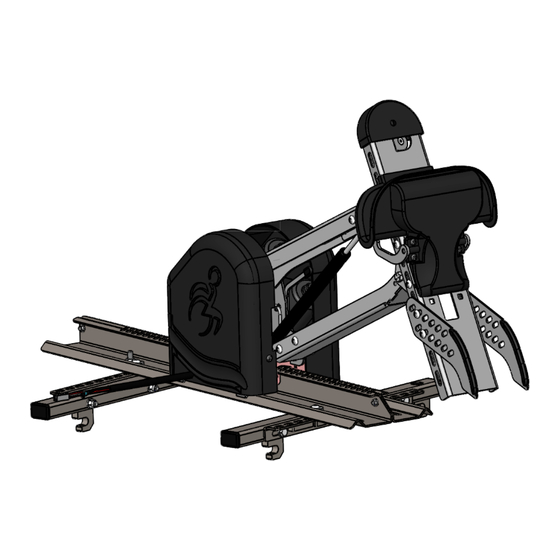

- Page 2 ITEM PART NUMBER DESCRIPTION SPEEDY-LIFT 2 DODGE CARAVAN 2001 - 2007 SP000 Mechanism Assembvly SP100-01 Rail Assembly SP600B Housing Cover Assembly -Black- SP700B Hook Assembly -Black- SP740 Wheelchair support SL800 Electrical Kit -Alone- PRD 110-104 Round washer head tapping screw #8 x 1/2...
- Page 3 SPEEDY-LIFT 2 DODGE CARAVAN 2001 - 2007 SL-CHR01-01 Floor adapter Dodge Caravan 2001 - 2007 SL-EQRS145 Adaptor for the SPEEDY-LIFT rail on the floor adaptors AP S5-8A Sheet metal plug - flush Ø0.625" Black PRD 149-554P Socket set screw cone point zinc plated 5/16-18 x 3/4...
- Page 4 ITEM PART NUMBER DESCRIPTION SPEEDY-LIFT 2 DODGE CARAVAN 2001 - 2007 SP000 Mechanism Assembvly SP100-01 Rail Assembly SP600B Housing Cover Assembly -Black- SL-UNI-07 Nut for SPEEDY-LIFT rail SL-UNI-08 Rail Spacer SL-UNI-09 Rail Spacer Washer PRD 110-104 Round washer head tapping screw #8 x 1/2...
- Page 5 ITEM PART NUMBER DESCRIPTION SPEEDY-LIFT 2 DODGE CARAVAN 2001 - 2007 SP700B Hook Assembly -Black- PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 SCALE 1:6 SCALE 1:5 PART NUMBER SP-CHR01 DESCRIPTION Speedy-Lift 2 Dodge Caravan 4 of 5 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax...
- Page 6 ITEM PART NUMBER DESCRIPTION SPEEDY-LIFT 2 DODGE CARAVAN 2001 - 2007 SP740 Wheelchair support PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 PRD 2946 Flange Locknut Zinc Plated 5/16-18 SCALE 1:5 SCALE 1:4 PART NUMBER SP-CHR01...
- Page 7 1. Start by removing or stowing the seat in the position you want to install the SPEEDY- LIFT. 2. Pre-assemble the floor adaptor kit. Secure the slotted angle adaptors SL-EQRS145 to the floor adaptors (tubing) using 5/16” X 2 1/4” bolts. NOTE: DO NOT FULLY TIGHTEN THE BOLTS. 3.
- Page 8 TO MOVE FROM SIDE TO SIDE. THIS IS NORMAL AT THIS STAGE OF THE INSTALLATION. 5. Place the SPEEDY-LIFT in the vehicle on the floor adaptors using the plastic shims between the SPEEDY-LIFT and the floor adapters. Center the SPEEDY-LIFT in the door opening. Place the...
- Page 9 To reengage, lift up the lever. You may have to move the arm and the unit back and forth. 7. Place the washer over the SPEEDY-LIFT track and use the 5/16” X 1 1/4” button head bolts to line up the washer plate, the SPEEDY-LIFT track and the black plastic shim. Secure the SPEEDY-...
- Page 10 ELECTRICAL INSTALLATION FOR SPEEDY-LIFT. 9. Power the SPEEDY-LIFT all the way out. Attach the wheelchair hook and support assembly SP700 to the head of the SPEEDY-LIFT. The height of the hook assembly may need to be adjusted depending on the height or style of wheelchair.
- Page 11 11. Press the ‘OUT’ button on the hand held pendant until the upper wheelchair support bracket is positioned 1/4” to 1/2” below the rigidizer bar on the wheelchair. Adjust the stop down bolt so that the arm stops in this position. 12.
- Page 12 NOTE: The SPEEDY-LIFT must be in the full up position. Proper adjustment will ensure that the locking mecanism and cable will not fail. If the cable is adjusted with the SPEEDY-LIFT not in the full up possition, the cable will fail and the locking mecanism will no longer work.
-
Page 13: Warning Decals
WARNING DECALS After completing the installation of the SPEEDY LIFT, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface. Start by locating a position to install the decals. ... -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES Bad electrical connections. Check and clean corrosion from all connections including the car’s battery cable connections. Hand pendant wire problem. Check hand pendant wire to make sure it is properly plugged. Check the wire for any cuts. If so, replace the wire. - Page 15 ELECTRICAL INSTALLATION FOR SPEEDY-LIFT 1. Thread the lead power cable (red +) under the doorstep molding and through the firewall. WARNING: Pass through a grommet in the firewall to prevent the cable from chaffing. 2. Install the circuit breaker near the battery and then connect the battery to the circuit breaker.
- Page 16 ELECTRICAL BOX CONNECTIONS ASENTO SPEEDY LIFT with...
- Page 17 SPEEDY LIFT ALONE SPEEDY LIFT CORD RED = 12 V POWER SUPPLY BLACK = GROUNDED TO THE CHASSIS...
-
Page 18: Year Limited Warranty
Adapt-Solutions # 1 Ltd. (Adapt Solutions), warrants to the original purchaser of an XL-BASE, XL-SEAT, HI-LIFT, SPEEDY-LIFT, XL-BOARD, POWER-PULL or ASENTO that the equipment is free from defects in material and workmanship for a period of three years from date of purchase.
