- Page 1 SPEEDY-LIFT INSTALLATION MANUAL SP-CHRHY17 CHRYSLER PACIFICA HYBRID 2017 & UP CHRYSLER VOYAGER 2020 & UP...

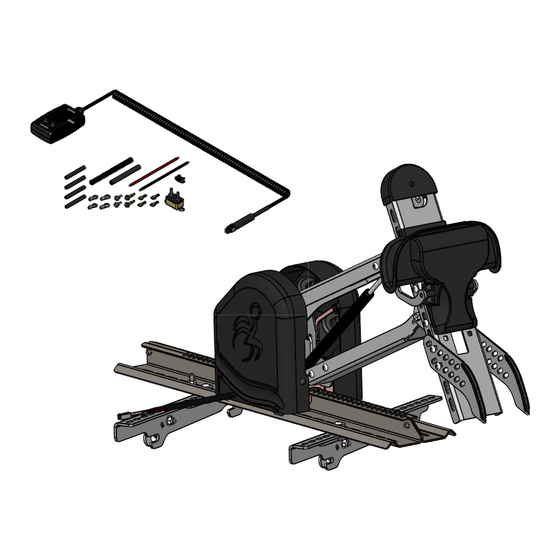

- Page 2 SP740 Wheelchair support SL800 Electrical Kit -Alone- SP-CHRHY17-00 SPEEDY-LIFT Kit Chrysler Pacifica Hybrid 2017 & Up PRD 110-104 Round washer head tapping screw #8 x 1/2 PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 PRD 2946...
- Page 3 Flat Washer Zinc Plated I.D. 1/4 USS SCALE 1:9 PRD BSHCS51618114P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1 1/4 SCALE 1:5 PART NUMBER SP-CHRHY17 DESCRIPTION SPEEDY-LIFT Chrysler Pacifica Hybrid 2017 & Up 2 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 4 SPEEDY-LIFT CHRYSLER PACIFICA HYBRID 2017+ SP700B Hook Assembly -Black- PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 SCALE 1:6 SCALE 1:5 PART NUMBER SP-CHRHY17 DESCRIPTION SPEEDY-LIFT Chrysler Pacifica Hybrid 2017 & Up 3 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 5 Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 PRD 2946 Flange Locknut Zinc Plated 5/16-18 SCALE 1:6 SCALE 1:4 SCALE 1:4 PART NUMBER SP-CHRHY17 DESCRIPTION SPEEDY-LIFT Chrysler Pacifica Hybrid 2017 & Up 4 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...

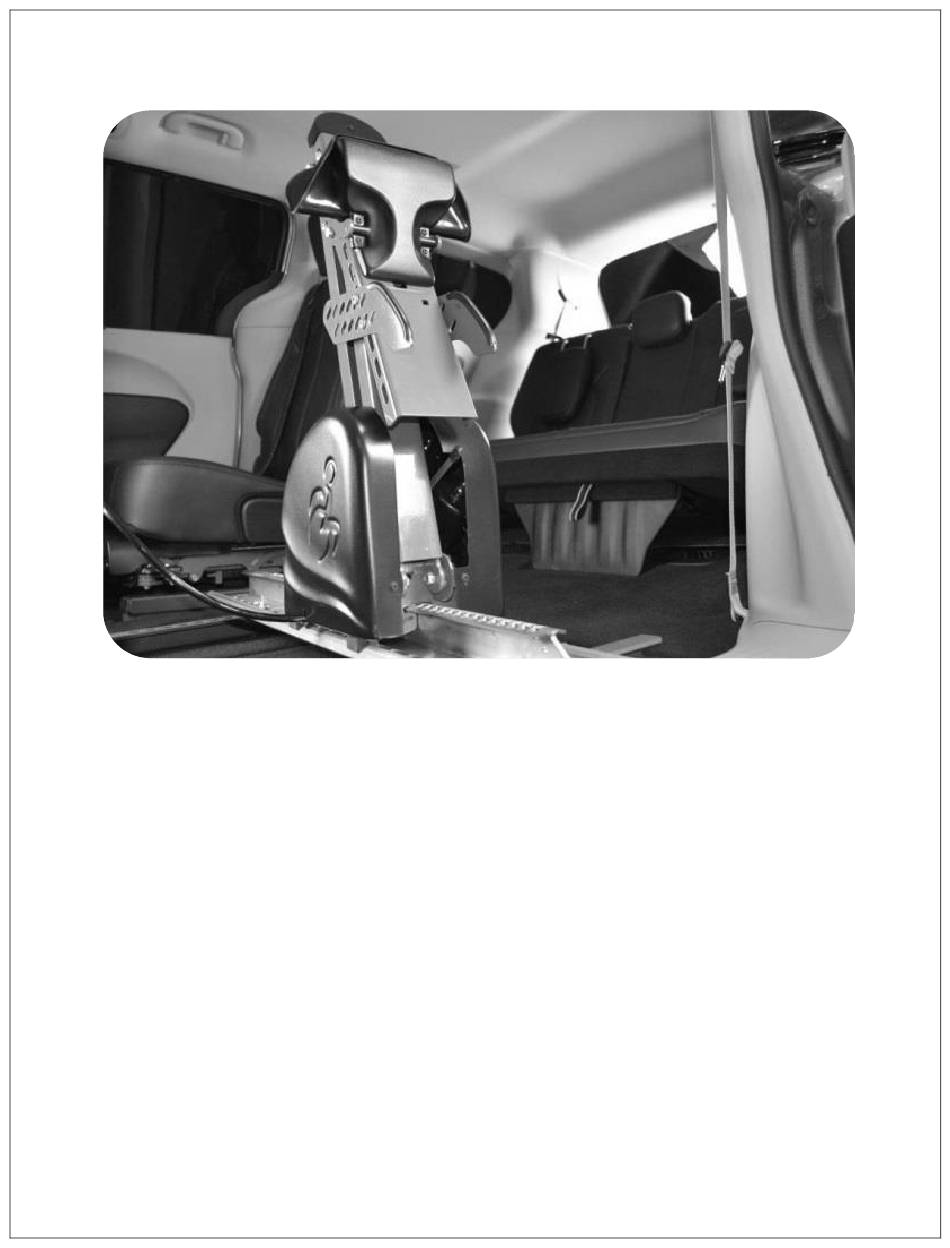

- Page 6 1. Remove the second row seat. 2. Install the exterior floor adapter using the floor adapter fixing plate # SP-CHRHY17-01 # SP-HDA18-03 to lock it in place. Pry with a screwdriver to remove any slack and then tighten down. Use the...
- Page 7 LIFT in and out and move the arm up and down. NOTE; when disengaing the arm it will spring up as the arm of the SPEEDY-LIFT is aided by a 100 lbs gas shock hold the arm firmly when disengaging. To disengage move the handle to the right and push down this will disengage the two motors and the arm will spring up.
- Page 8 3. Place the washer over the SPEEDY-LIFT track and use the 5/16” X 1 1/4” button head bolts to lign up the washer plate, the SPEEDY-LIFT track and the black plastic shim. Secure the SPEEDY- LIFT to the floor adaptors using the threaded blocks SL-UNI-07.
- Page 9 6. The stop up and stop down height may be ajusted using the bolts in the slotted holes on the up down gear. NOTE: stop up bolt is pre ajusted for maximum travel. STOP UP STOP DOWN 7. Press the ‘OUT’ button on the hand held pendant until the upper wheelchair support bracket is positioned 1/4”...
- Page 10 8. To properly position the lower support arms, back the wheelchair up over the upper wheelchair support bracket. Press and hold the ‘IN’ button until the wheelchair barely starts lo to lift off the ground. Then ajust the lower support arms to the wheelchair. Adjust the liftting angle of the wheelchair by sliding the lower supports forward or back.
- Page 11 NOTE: The SPEEDY-LIFT must be in the full up position. Proper adjustment will ensure that the locking mecanism and cable will not fail. If the cable is adjusted with the SPEEDY-LIFT not in the full up possition, the cable will fail and the locking mecanism will no longer work.
-
Page 12: Warning Decals
WARNING DECALS After completing the installation of the SPEEDY LIFT, please take the time to install the warning decals. NOTE: The surface must be clean, dry and an ambient temperature for the sticker to stick to the surface. Start by locating a position to install the decals. ... -
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES Bad electrical connections. Check and clean corrosion from all connections including the car’s battery cable connections. Hand pendant wire problem. Check hand pendant wire to make sure it is properly plugged. Check the wire for any cuts. If so, replace the wire. - Page 14 ELECTRICAL INSTALLATION FOR SPEEDY-LIFT 1. Thread the lead power cable (red +) under the doorstep moulding and thru the firewall. WARNING: Pass thru a grommet in the firewall to prevent the cable from chaffing. 2. Install the circuit breaker near the battery and then connect the battery to the circuit breaker.
- Page 15 ELECTRICAL BOX CONNECTIONS ASENTO SPEEDY LIFT with...
- Page 16 SPEEDY LIFT ALONE SPEEDY LIFT CORD RED = 12 V POWER SUPPLY BLACK = GROUNDED TO THE CHASSIS...
- Page 17 Adapt-Solutions # 1 Ltd. (Adapt Solutions), warrants to the original purchaser of an XL-BASE, XL-SEAT, HI-LIFT, SPEEDY-LIFT, XL-BOARD, POWER-PULL or ASENTO that the equipment is free from defects in material and workmanship for a period of three years from date of purchase.
