SUNWARD SWE18UF Manual

Crawler-type hydraulic excavator operation & maintenance
Hide thumbs Also See for SWE18UF:
Table of Contents

Advertisement

Quick Links

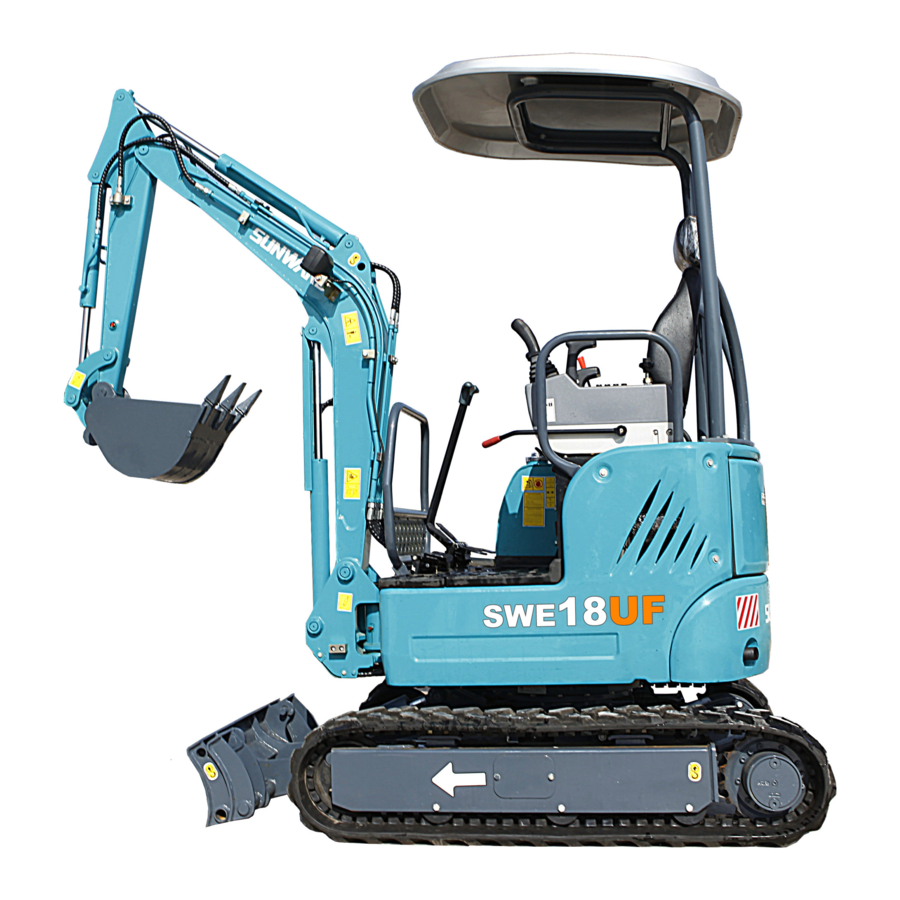

SWE18UF
Crawler-type Hydraulic Excavator
Operation & Maintenance
Manual
2001#
Sunward Intelligent Equipment Co., Ltd.
April, 2021
© All rights reserved by Sunward Intelligent Equipment Co., Ltd.
I
