Amax ASC-2080 - COMPACT HD VIDEO DRONE WITH WIDE ANGLE LENSE Manual

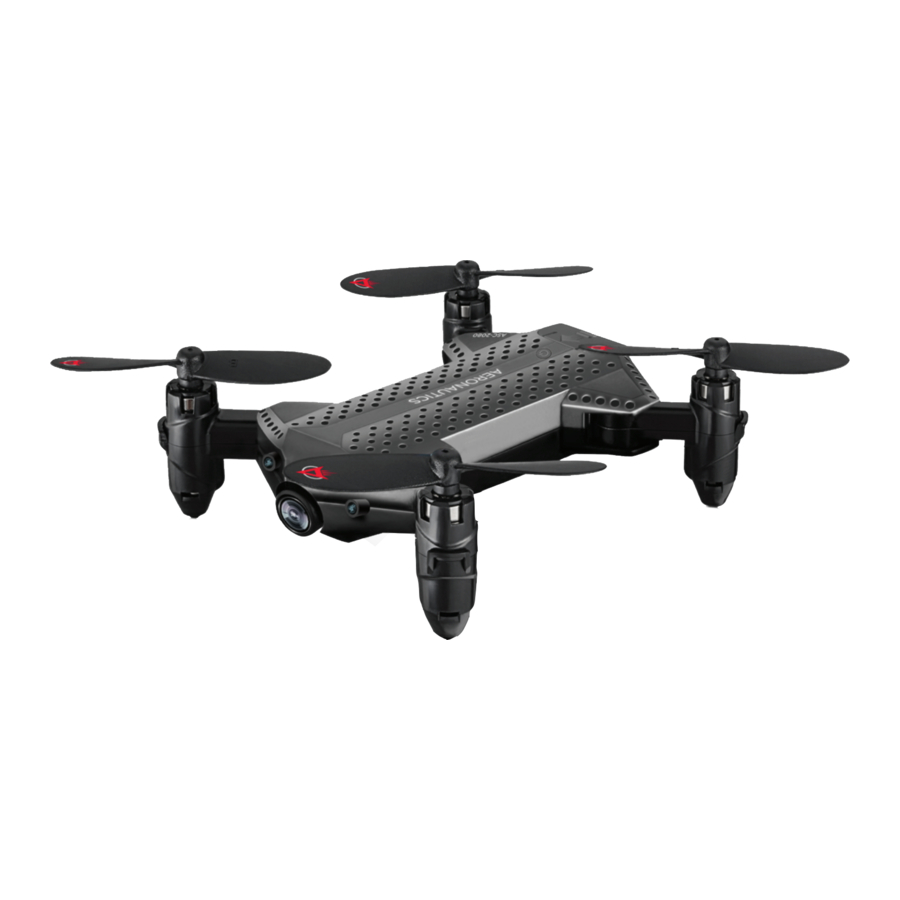

ASC-2080 DIAGRAM

CONTROLLER DIAGRAM

WARNING

DO NOT FLY YOUR ASC-2080 IN FOUL WEATHER!

FLIGHT PREPARATION

1. Verify that there are 3 "AAA" batteries inside the remote control unit and the ASC-2080 battery has been fully charged.
2. Make sure to be in a large open space preferably a field or a park with an open radius of at least 200 feet.
3. Make sure to start your drone on a clean flat level surface before take-off.
4.
   Until you have experience in flying your ASC-2080, it is not advised to use in any rate of wind. Pick a day with zero wind or extremely light wind condition when learning how to fly.

SYNCING YOUR ASC-2080

When syncing your ASC-2080 with the controller always make sure that the drone is on a flat level surface and that your digital trim settings are in the center position.

1. Before starting, make sure that the power on your controller is off and the battery is removed from the ASC-2080.
2. Insert the battery into the ASC-2080 and set it down on a flat level surface. Press down the power button and hold for a few seconds (see diagram F).The LED lights on the drone should begin to flash.

3. Quickly turn ON the remote and you will notice that the top red LED light on the face of the controller.
4. Push the throttle stick all the way up until it stops and then pull it back all the way down to the bottom(see diagram below). When pushing the stick up or pulling the stick down you should hear a high-pitched beep both ways. If the indicator lights on the drone and controller stop flashing and stay solid on. You have successfully synced your ASC-2080 and are ready to fly. Ifthis doesn't happen, repeat steps 1-4 again.

   Move the control stick all the way up and all the way down, you should hear two beeps.


   The flashing red LED light will become solid when you are synced.
   • TIP 1: Try not to leave too much time between turning your drone on and turning on the controller, or your syncing window will time-out.
   • TIP 2: Syncing your drone indoors or in the shade will make it easier to see the LED light indicators on both the controller and the drone.

NOW YOU ARE READY TO FLY!

If you have successfully synced your ASC-2080 to your controller as explained you are now ready to fly. Before beginning to fly your drone you should familiarize yourself with how to start and stop the rotors, how to use your auto land feature and how the controls work so please carefully read and familiarize yourself with the various control features explained in the next. Once again as a beginner pilot you should learn how to control your drone in a large open field or park on a day with zero or very light wind. Do not try to fly your ASC-2080 too high until you become a more experience pilot.

RECOGNIZING THE FRONT & REAR OF THE ASC-2080

Even though the ASC-2080 has four rotors there is still a front or "forward" facing direction and "rear" or backwards facing direction. The front and forward facing direction of the ASC-2080 is the side with a camera. The rear and backward facing direction ofthe drone is the side with a red light (see diagram G).

AUTOMATICALLY TAKE OFF / LAND

Make sure you have properly synced The ASC-2080.

• simply press the Auto Start/Land button, your ASC-2080 will automatically take off.
• To stop or land the ASC-2080 just Press the Auto Start/Land button again and the ASC-2080 will descend and land automatically (see diagram HI).


Tips: You also can move the two control sticks simultaneously down inside or outside corners, hold them till the blades start spinning. Release the control sticks and push the throttle stick slowly to take off manually (see diagram H2).

SPEED SELECT BUTTON

The ASC-2080 has 4 speed settings; T(Training),1 (SLOW), 2 (MEDIUM) and 3 (HIGH). The Default setting when you first turn on your ASC-2080 is the 1 (SLOW) speed mode. To increase the speed simply trigger the speed setting button (see remote diagram) you will hear beeping sounds of the controller will show you what speed setting you are on. Speed settings can be set before flight or during the flight.

T (Training)MODE & OBSTACLE AVOIDANCE TRAINING FEATURE

Simply press and hold the Speed Button for 2 seconds, you will hear a long beep indicating you are in T Mode. T mode allows you to learn how to operate your ASC-2080 at a very slow speed. Also there are maximum and minim height limits set to avoid crashing into the ceiling or floor.

New obstacle avoidance training feature will cause the drone to automatically circumvent walls and other obstructions so new pilots can get the hang of flying. Set the ASC-2080 speed in the T(Training) speed mode and the obstacle avoidance feature will start working.

Note: the obstacle avoidance feature only works for T(Training) mode.

FLIGHT CONTROL

Below is a list of basic flight functions for your long-range remote to control the ASC-2080. While learning to fly your ASC-2080 it is best to start in a large space with the drone facing away from you until you get used to the basic controls. As you master flying your ASC-2080 you can move to more advanced maneuvering techniques. Practice makes perfect!

Move the left Throttle stick up to increase the propeller speed and the ASC-2080 will ascend.

Move the left Throttle stick down to decrease the propeller speed and the ASC-2080 will descend (see diagram l).

While in the air, move the left throttle stick directly left and the ASC-2080 will rotate horizontally left (counter clockwise)

Move the left throttle stick directly right and the ASC-2080 will rotate horizontally right (see diagram J).

While in the air, move the right direction control stick forward and the ASC-2080 will move forward.

Move the right direction control stick backwards and the ASC-2080 will move backward (see diagram K).

While in the air, move the right direction control stick to the left and the ASC-2080 will bank/sweep to the left.

Move the right direction control stick to the right and the ASC-2080 will bank/sweep to the right (see diagram L).

FLIGHT PRACTICE

To master flying your ASC-2080 drone try practicing the exercises shown below, start with simple vertical takeoffs, landings, and left/right turning and rotating. Once those are mastered move on to square and cross maneuvers. Good luck and have fun!

Forward/Backward Trim

• If your ASC-2080 drifts forwards or backwards while in the air, counter the movement by using your forward /backward trim buttons (see diagram M).


Banking Left/Right Trim

• If your ASC-2080 drifts to the left or right while in the air, counter the movement by using your left / right trim buttons (see diagram N)


NOTE: The use of the Trim buttons utilizes sounds. A single long Beep indicates the product is center trimmed. When there's no sound when press the trim means the product is trimmed to the maximum on a particular side.

CALIBRATING THE ASC-2080

NOTE: Your ASC-2080 comes pre-calibrated out of the box so you are ready to fly.

After several crashes and shocks to your gyro sensors, you may notice that your drone is drifting and cannot hold its center position while hovering as well as it used to.

This most likely means that you need to recalibrate your ASC-2080. Please follow the simple instructions below.

1. Place the ASC-2080 on a flat level surface
2. Make sure the ASC-2080 is on and that the controller is synced. Do not start the blades. Instead move both the throttles and control stick down and to the right corner (see diagram R). You will see the lights on the drone rapidly flash and stop. Once the lights stop flashing you have completed your calibration and are ready to fly!


TROUBLE SHOOTING: If you do not see the lights flash, remove the battery from the drone then turn off your controller and start over. Always make sure to put your battery in before turning on your controller.

Push the left throttle stick all the way up and then down touching the top and bottom of the controller. When you hear the beep the ASC-2080 is re-synced to the controller and you are ready to calibrate.

ABOUT 360⁰ STUNT FLIPS

Once you have the confidence in controlling your drone you may begin to execute 360 degree stunts. Your ASC-2080 is tuned to execute flips without the weight of the blade guards. Remove your blade guards for the best performance and remember to operate your ASC-2080 in a large open field or other large open area. Note when doing 360 degree stunts you will be using bursts of energy that may affect the overall flight time of your drone. The more you flip the shorter your overall flight time. When the battery gets low, red and white lights will flash on the body and the flip mode will be automatically disabled to conserve energy for normal flight.

STEPS TO EXECUTING A STUNT FLIP

Performing 360⁰ stunt flips with the ASC-2080 is as easy as 1-2-3:

1. Hover the ASC-2080 in still position making sure that you have at least 5 feet of clearance above and below the quadrocopter. Set the speed settings to mode 2 or 3, (the ASC-2080 can not do the stunt in T(Training) mode and speed 1 SLOW).

2. First press the 360 stunt button on the right top side ofthe controller and you will enter the "stunt roll mode" which is indicated by a rapid beeping sound(see diagram S).

3. Next, using the right control stick, push directly to the right for a "right side roll" or directly to the left for a "left side roll" (see diagram T). Remember to always use caution when performing stunts.


NOTE: To exit the stunt roll mode without flipping simply press the stunt button again and the beeping sound will stop indicating you have exited "stunt mode"

RECORDING VIDEOS AND TAKING PHOTOS WITH YOUR ASC-2080 DRONE

Your ASC-2080 comes equipped with an onboard HD digital camera that takes both video and still photographs.

Your ASC-2080 has the ability to record Video and Photos in two places simultaneously! When using the

ASC-2080 App you will be able to Stream and Record both Videos and Still Photos directly to your mobile device while at the same time recording Videos and Still Photos in even greater definition directly to a Micro-SD card installed on the drone. Note the Micro SD card is not included and will need to be purchased separately.

WHAT YOU WILL NEED TO RECORD ON A microSD CARD (this is the highest definition)

1. One microSD card reader (included).
2. One microSD card (not included).
3. A Computer with a USB port and Windows Media Player or other Media player that can play mp4 files.

FORMATTING YOUR microSD CARD

Before you can begin to take videos or digital photographs you must first format your microSD card. To format your microSD card simply place the microSD card into the included USB SD card reader and plug it into your computers USB port (see diagram UI and U2 below). After a few moments an icon will appear on your Desktop. Right click on the Icon and follow instructions to format your microSD card.

INSTALLING THE microSD CARD IN YOUR ASC-2080 DRONE

• Place the formatted microSD card into the ASC-2080 SD card port (see diagram U3 below). Push gently until you hear and feel the microSD card "click" into the SD card slot.

• Turn the ASC-2080 on and make sure that it is both fully charged and properly synced to the controller.

TAKING DIGITAL PHOTOS

To take photographs short press the CAMERA button ofthe controller, when you push the button you will hear a "beep" and the red and white led lights on the drone will flash one time indicating that a picture has been. taken.

RECORDING VIDEOS

To begin recording a video, long press the CAMERA button for 2-3 seconds. You will hear 2 "beeps" and the red and white LED lights on the body will begin to rapidly flash. The flashing LEDs indicate that you have begun recording video. To stop recording and Exit Video mode, simply depress the Camera Button once again. You will hear 2 beeps and the LED lights on the body should stop flashing and become solid.

It's recommend to test your camera functions before flying. REMOVING YOUR microSD CARD

To remove your microSD Card push in gently on the back of the SD card with your thumb or forefinger until you hear and feel a "clicking sound". The microSD card will "pop-out" slightly and is ready for removal. Simply grab and pull gently away from the ASC-2080's camera port to remove the card. Always store your microSD card in a clean, safe and cool environment.

DOWNLOADING AND CLEARING SPACE ON YOUR microSD CARD

Plug your microSD card into the microSD card reader and connect to your computer. It is best to always download all your videos and pictures on to your computer and not store this data on your microSD card. After downloading your photos and videos, follow your computers instructions to "delete" files on your microSD card.

INSTALLING YOUR PHONE HOLDER

Installing your phone holder is required to use your ASC-2080 drone's camera. To install your phone holder, turn your controller around to the back side with the battery compartment facing you and start by clicking in the top "two teeth" into the two holes on the top of the controller and then proceed to click in the bottom (see diagram U4).
To remove, pull from the bottom first.

CAMERA VIDEO AND PHOTO STREAMING SETUP

Your ASC-2080 comes equipped with an on-board digital camera that takes both video and still photographs and streams them to your mobile device.

WHAT YOU WILL NEED TO GET STARTED USING YOUR CAMERA

1. One Apple or Android Smart phone* (Phone not included).
2. The ASC-2080 App successfully downloaded and installed on your mobile device.
   Note instructions on using the App are in the application tutorial
3. To Download the ASC-2080 App, scan the appropriate QR code below which will link to the App on either the Android Play Store or Apple Store. If you are not able to scan the QR code, manually enter the web address located under the appropriate QR code for your phone.


4. After the ASC-2080 App is installed, it should create an icon on your screen (see icon below). Click the icon to run the App and make sure that it has installed correctly on your device. If not, please delete and repeat the process again.

5. Follow the "TUTORIAL" for instructions on connecting/pairing your ASC-2080 drone to the App and using the App for recording film and still photos.
   Apple0 iOS Android OS http://qr03.cn/Bn4HaO http://qr03.cn/FqBpEP
   * Apple@ devices require the use of i0S 10.0 or higher.
   ANDROID^TM devices require the use of OS 4.2.2 or higher.
   If you're still encountering difficulties downloading the ASC-2080 App, please contact our customer service department at www.amaxbrands.com

TROUBLESHOOTING YOUR ASC-2080

REPLACING THE PROPELLER BLADES

Your ASC-2080's propeller system is a precision instrument that may need repair or replacement from time to time for optimal flight function. Crash landing at high-speed may cause damage to your ASC-2080's propellers.

1. The ASC-2080 has four sets blades, two sets blades with indication number A & B on front, and two sets blades with indication number B & A on the rear (see the diagram V).

2. When replacing the propeller blades, make sure to match the indication markings on the blades.
3. Unscrew and take off the damaged blade.
4. Replace with new correct blade.
   Blade Front Left = A
   Blade Front Right = B
   Blade Back Left = B
   Blade Back Right = A

BLADES GUARD INSTALLATION

Your ASC-2080 come with the blade guard for safety flight, it is recommended for beginners.

Simply attached the 4 blade guards to each of landing gear (see the diagram W).

ASC-2080 WARNING

The ASC-2080 is designed for INDOOR & OUTDOOR use. The ASC-2080's blades revolve at high speeds and can cause damage to the user, spectators and animals. Stand away from the ASC-2080 to reduce the risk of getting into the flight path. Warn spectators that you will be flying your ASC-2080 so that they are aware of its position. Before flight, inspect the rotor blades to make certain that the blades are securely fastened to the ASC-2080.

• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power ASC-2080 is turned to the ON position.
• Turn off the transmitter and ASC-2080 when not in use.
• The included charger is built specifically for the ASC-2080 Li-Poly battery. Do not use it to charge any other battery.
• New alkaline batteries are recommended for maximum performance.
• Parental supervision recommended when flying ASC-2080.

BATTERY WARNINGS

RECHARGEABLE BATTERY

This ASC-2080 uses a Li-Poly rechargeable battery. If battery no longer stays charged, dispose of battery properly according to local disposal requirements.

CONTROLLER BATTERIES

Remote control requires 3 "AAA" batteries (not included).

Please read the important battery safety warning below.

• Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel Metal Hydride).
• Do not mix old and new batteries.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the item before being charged (if removable).
• Rechargeable batteries are only to be charged under adult supervision.
• Exhausted batteries should be removed immediately and must be recycled or disposed of properly according to state or local government ordinances and regulations.
• The supply terminals are not to be short-circuited.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity (see inside booklet for diagram).
• Do not dispose batteries in a fire - batteries may leak or explode.

CARE AND MAINTENANCE

• Always remove the batteries from the wireless remote control when it is not being used for an extended period of time.
• To clean, gently wipe the remote control and ASC-2080 with a clean damp cloth.
• Keep the toy away from direct heat or sunlight.
• Do not submerge the toy into water. This can damage the unit beyond repair.
• Parental guidance recommended when installing or replacing the batteries.
• Always avoid manned aircraft.
• Never operate in a careless or reckless manner.
• Keep your drone within sight. If you use First Person View or similar technology, you must have a visual observer always keep your drone within unaided sight (for example, no binoculars).
• You cannot be a pilot or visual observer for more than one drone operation at a time.
• Do not fly a drone over people unless they are directly participating in the operation.
• Do not operate your drone from a moving vehicle or aircraft unless you are flying your drone over a sparsely populated area and it does not involve the transportation of property for compensation or hire.
