12.Remove the 4 screws mounting the fan shroud to the
evaporator plate.
13.Remove and replace fan. Take special care to properly
route fan wire.
NOTICE
Fan must be oriented to pull air in through lower
evaporator plate vents and push air out at fan
mounting location.
14.Installation is the reverse of removal.
15.Use seanant gum to seal any holes in the rear of the
unit before replacing the rear cover.
16.Reinstall the unit taking care to level, center and
secure as you found it.

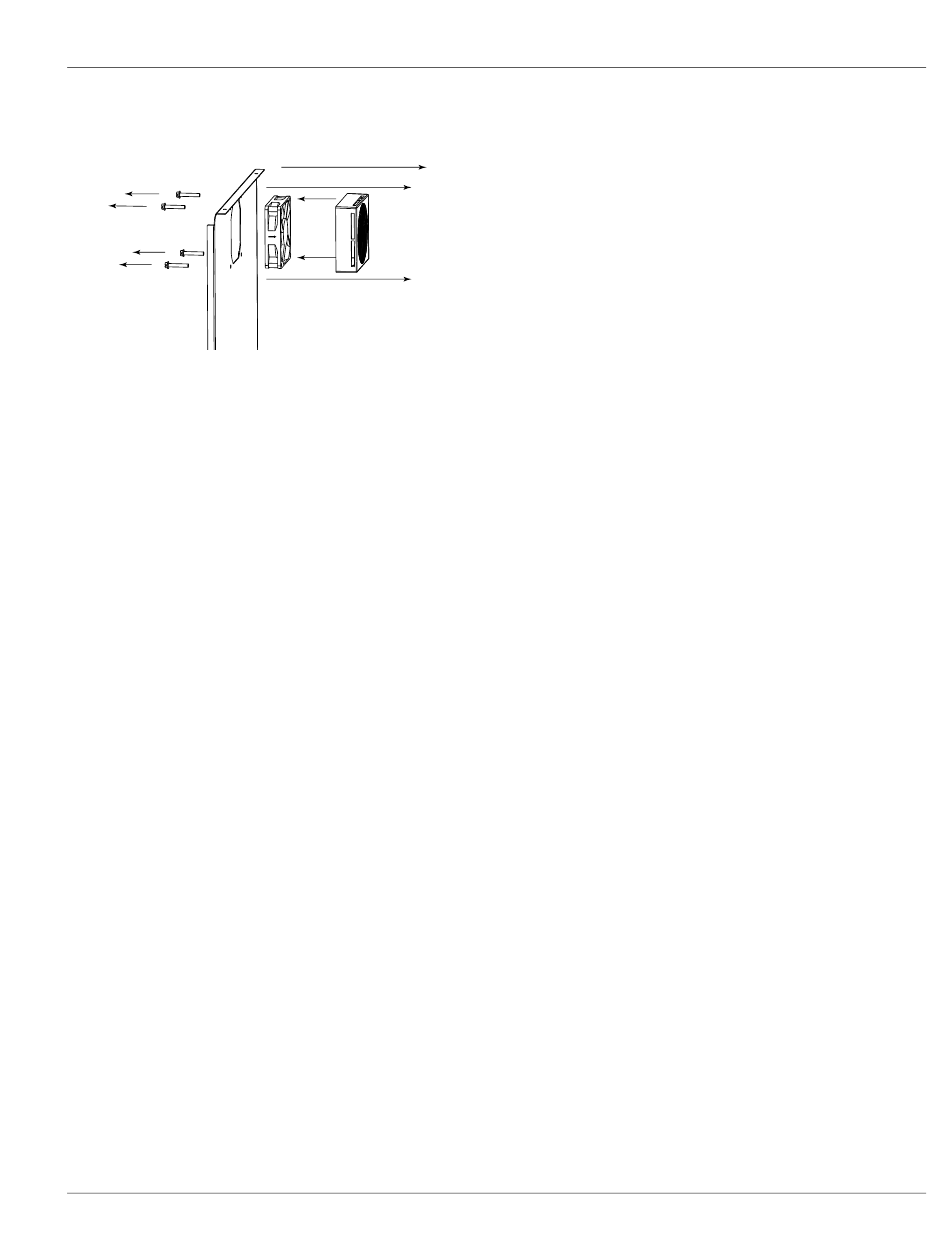

Remove Fan and Cover
Air Flow
43
