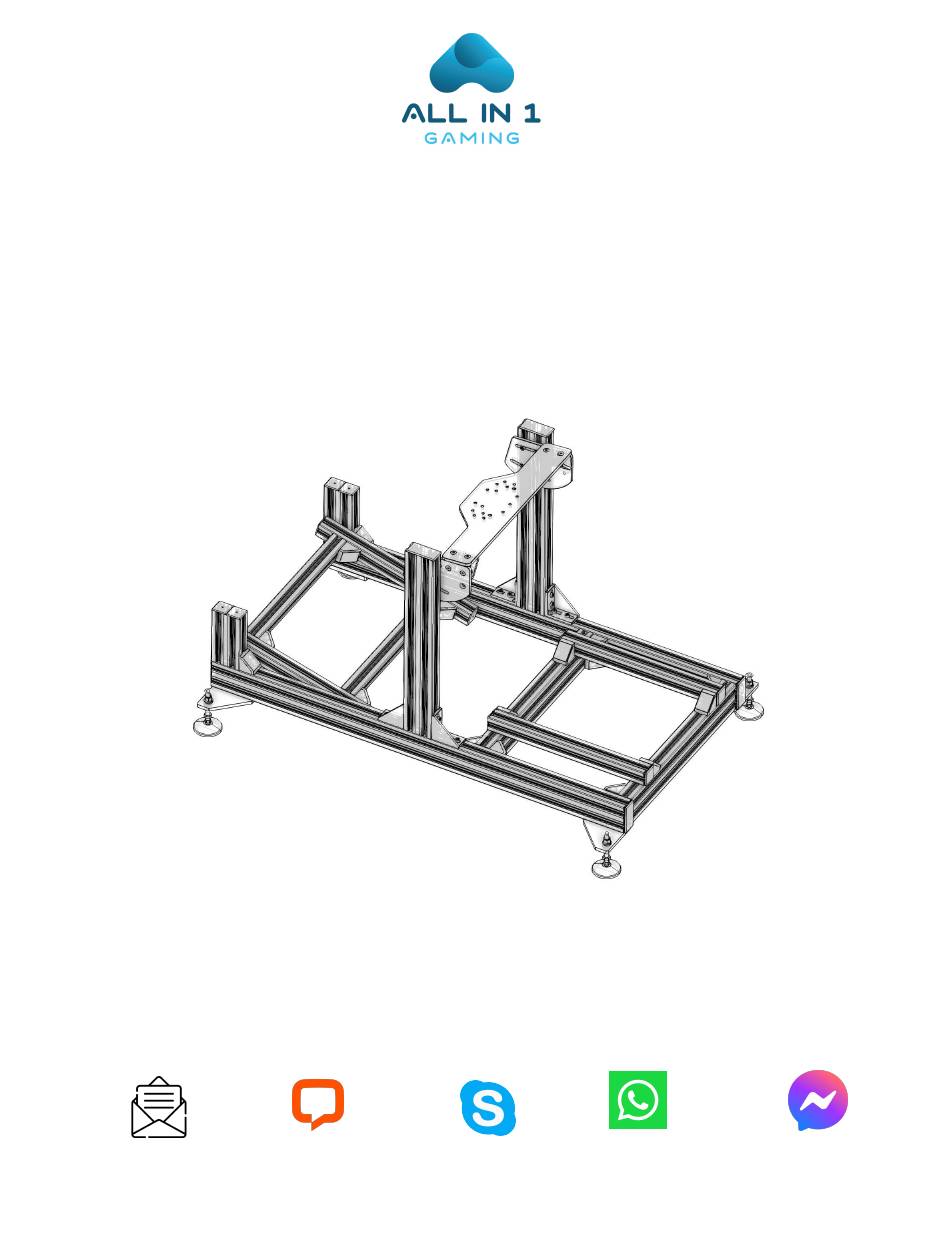

- Page 1 Pro Series Phantom SE Assembly Instructions Our Support Team is here for you. Feel free to reach out to us and we will be happy to help. WhatsApp Messenger Skype Web Chat Email Address : Info@allin1gaming.com...
- Page 2 Unboxing ■ Open every box first. Each group or section of the whole of a whole was seperatley packed. ■ Consider placing the flattened cardboard boxes on the floor under your components to prevent them from getting scratched during assembly. ■...
- Page 3 Phantom SE Assembly Instructions Step 1: Base Assembly spreader profile long profile spreader profile long profile Repeat for remaining positions 2x x Spreader Profile 1515 Corner Bracket Long Profile 16mm Bolt M8 T-Nut...
- Page 4 Phantom SE Assembly Instructions Step 2: Feet Assembly M8 T-Nut Rubber Feet 16mm Bolt...
- Page 5 Phantom SE Assembly Instructions Step 2a:Optional Base Plate Assembly Please flip unit over to complete assembly. 12 x 4 4 4 4 x x x x 12 x 8x x 4 4 4 4 x x x x BasePlate 20mm Bolt M8 T-Nut Leveling Foot M12 Nut...
- Page 6 Step 3: Upright Assembly Phantom SE Assembly Instructions Repeat for remaining sides 16 x T-Nuts Wheel Uprights 20mm M8 Bolt 1.5x3 Corner Brackets...
- Page 7 Phantom SE Assembly Instructions Step 4: Side Shifter Assembly 16mm M8 Bolt Corner Bracket M8 T-Nut Side Mount Side Mount Upright...
- Page 8 Phantom SE Assembly Instructions Step 4a: optional DELUXE SIDE MOUNT Repeat step 1 for the remaining 4 brackets. Add 4 t- nuts into the slots of the 180mm profiles to match with the hole locations of your shifter (or other). WITH SHIFTER PLATE DELUXE SIDE MOUNT Cross Profiles...
- Page 9 Phantom SE Assembly Instructions Step 5a: Front Wheel Mount Front Wheel Mount 1515 Bracket M8 Nut 30mm M8 Flathead Bolt Side Mount Right Side Mount Left...
- Page 10 Phantom SE Assembly Instructions Step 5b: Wheel Deck Mount 30mm M8 Flathead Bolt M8 Nut Wheel Deck Mount 1515 Bracket Side Mount Right Side Mount Left...
- Page 11 Phantom SE Assembly Instructions Step 5c: Fanatec Wheel Mount do step 3 after 1 /2 om the following page for Fanatec DD1/DD2 only: Use 4 x M8 Washers (spacers) on top and bottom and tighten. Left Fanatec M8 Washer Right Fanatec Fanatec 25mm M8 Right Side...
- Page 12 Phantom SE Assembly Instructions Step 6: Wheel Side Mount M8 T-Nut 20mm M8 Bolt...
- Page 13 Phantom SE Assembly Instructions Step 7: Seat Rail Assembly Repeat for 3 remaining corners Optional -With Undermount Seating Kit 12 x 12 x Corner Bracket 16mm M8 Bolt Seat Rails M8 T-Nut...
- Page 14 Phantom SE Assembly Instructions Step 8a: SE Pedal Assembly Pedal Side Pedal Spreader Pedal Spreader Pedal Side Repeat for other corners Add the bracket to both sides and leave slightly loose 14 x 14 x M8 T-Nut Corner Bracket 16mm M8 Bolt Pedal Side Pedal Spreader...
- Page 15 Step 8b: SE Pedal Assmebly Phantom SE Assembly Instructions Leave slightly loose. Repeat for other side 16mm M8 Bolt Pedal Upright Corner Bracket M8 T-Nut...
- Page 16 Phantom SE Assembly Instructions Step 8c: SE Pedal Assembly Connect both sides, leave loose, adjust to desired angle and tighten 16mm M8 Bolt M8 T-Nut...
