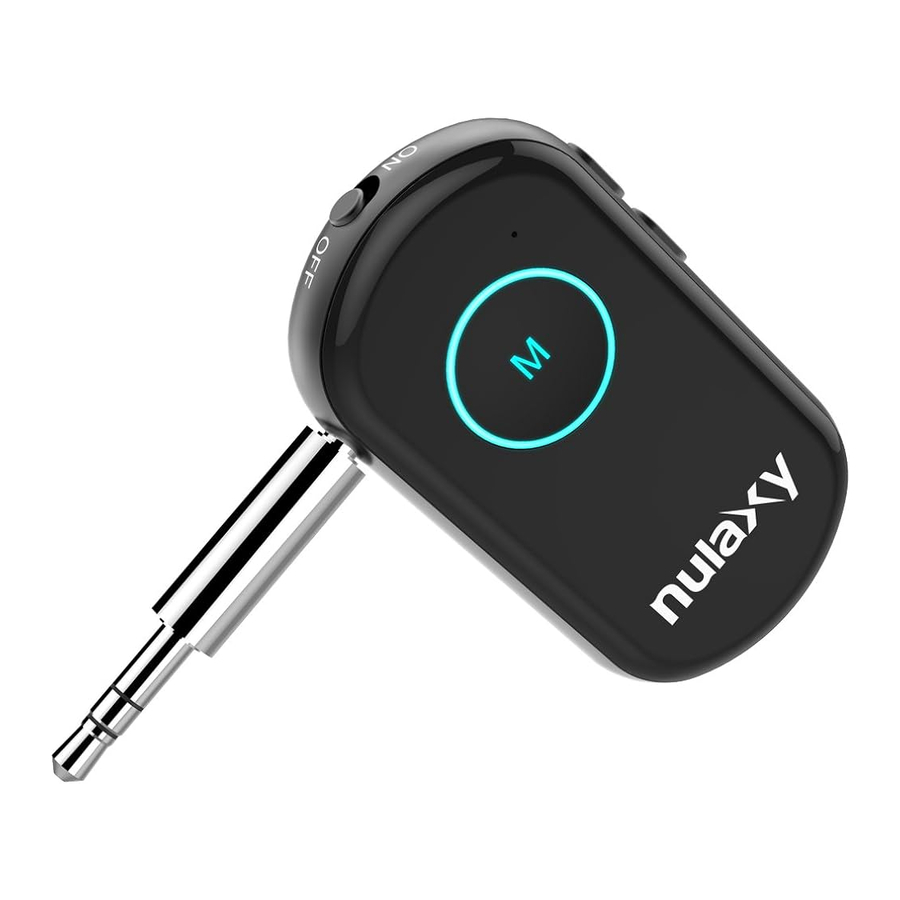

Nulaxy BR01 - Portable Audio Receiver Manual
PRODUCT FUNCTIONS
- Power On/Off Button
- 3.5 mm Audio Port
- Multifunction Button
- LED Indicator
- Microphone
- Volume +/ Next button
- Volume -/ Previous button
- Charge Port
Package Contents
* 1 Bluetooth Receiver
* 3.5mm Audio Adapter
* 1 Charge Cable
* User Manual
* 1 3.5mm Audio Cable
How to use
- Use enclosed micro USB cable to charge BR01 before use;
- Connect the BR01 to your audio device using the aux cable or adapter;
- Switch the device to the Power ON position;
- The green and blue lights start flashing, indicating that it is ready for pairing;
- Find Nulaxy BR01 in the bluetooth search of your phone and chose to pair.
* To connect two devices, you have to disable Bluetooth of the first device, and then establish pair to the second device. At last turn on Bluetooth of your first device.
CONTROL FUNCTIONS
| Power on/off | Turn the device on and off with the button |
| Play/Pause/Answer/Hang up phone calls | Press the M button once |
| Reject phone calls | Press the M button and hold for 2 seconds |
| Redial | Press twice the M button |
| Volume +/- | Press the Volume +/- button |
| Previous/ Next Track | Press the Previous / Next button |
| Reset to factory configuration | Press Volume + and - together and hold for 2 seconds |
| * Siri Function ( iOS devices only) | Press the M button and hold for 2 seconds |
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
