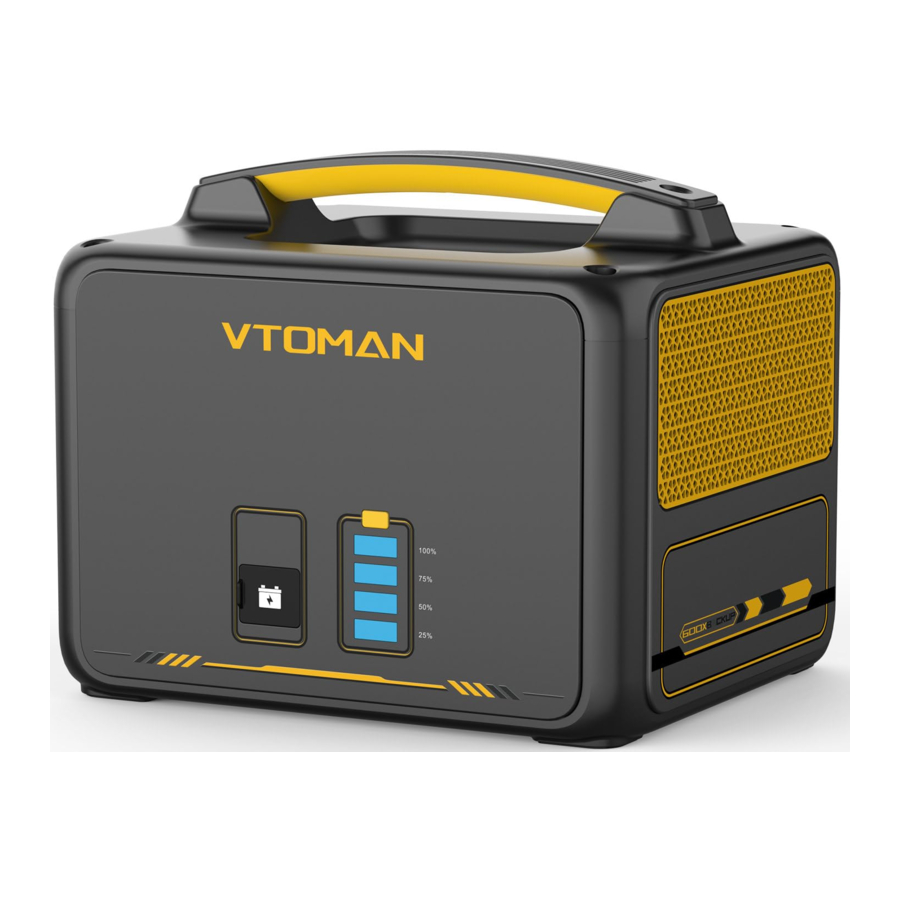

VTOMAN Jump 600X Extra Battery, PB-23 - Portable Power Station Extra Battery Manual

Product Function Overview

Instructions

According to the pictures above, use the CP3500 cable to connect the power station and extra battery.
When without the charger plugged in, the extra battery have output priority. When the power of the extra battery is exhausted, it will automatically switch to the main battery to continue output, and the output will not be interrupted in the middle.
When charging and discharging at the same time, if the main battery is not full, the main battery will be charged and discharged first. If the main battery is fully charged, it will automatically switch to the extra battery for charging and discharging.
When charging, the power of the main battery is displayed as the remaining power of the main battery. The extra battery displays the remaining power of the extra battery.
When discharging, the main battery displays the power of the main battery plus the power of the secondary battery, and the extra battery displays the power of the extra battery itself.
Note: When the main and extra battery are working, do not directly cut off the connection between the main and extra battery, which may cause the current output to be interrupted.

The CP3500 cable will generate high temperature during work, please do not touch it to avoid scalding!

Technical Parameter

Product Name	Jump 600X Extra Battery
Model No.	PB-23
Battery Capacity	640Wh
Battery Type	LiFePO4
Operating Temperature	-20°C~55°C (-4°F to 131°F)
Charging Temperature	0°C~55°C (32°F to 131°F)
Product Weight	8.1KG(17.8 lbs)
Product Size	260220215mm(10.28.78.6 inch)

Packing List

Jump 600X Extra Battery x1, CP3500 cable x1,User manual X 1

Name and content of toxic and hazardous substances or elements

Product name	Toxic and harmful substances or elements
Product name	Pb	Hg	Cd	CrVi	PBB	PBDE
Power station	0	0	0	0	0	0
0: Indicates that the content of the hazardous substance in all materials of the part is below the limit requirement of the 2002/95/EC (RoHS) standard.

Major Troubleshooting

Trouble phenomenon	Trouble shooting	Solution
The product cannot be charged	The product input interface is not connected well, and the charging indicator light is off.	Reconnect the product input interface
	The connection is good, but the charging indicator does not light.	The charger is damaged. Contact after-sales service.
	The charging indicator is on, but cannot be charged.	If the product is damaged, please contact after-sales service.
The product cannot be output	The main battery and the extra battery are not properly connected.	Connect the main battery and extra battery correctly.
	The battery is too low.	Use the main battery with a charger to charge it.
	The power of the equipment exceeds the scope of application of this product.	Replace the product with a larger power battery or reduce the load power
	Tried all of the above and failed to eliminate the fault.	The product is damaged, please contact the after-sales service.
The output is interrupted during use	The power of the equipment exceeds the scope of this product.	Replace the product with a larger specification
	The power of the device is too small, causing the product to fail to identify. Automatically turn off the output.	Restart
	Tried all of the above and failed to eliminate the fault.	The product is damaged, please contact the after-sales service.

Warnings and Precautions

Please read the manual carefully before using this product;
Please do not use other electronic products that exceed the battery specifications to avoid electric shock and product damage;
Please do not use damaged output cables or plug-in terminals to use the battery to avoid electric shock and product damage;
Please keep the battery dry, do not place it in water or damp places, to avoid electric shock and product damage;
Please do not insert foreign objects into the input and output ports to avoid damage to the product;
Please keep the product under well ventilated conditions;
Please prevent the product from falling from a height;
Please don't use it in an environment with too high or too low temperature, it may cause the product function failure, shorten the life span or damage;
Please do not expose the product to fire or a temperature higher than 140°F, otherwise it may cause the product to catch fire, explode and other safety accidents;
Do not expose the battery to rain, snow, frost, greasy and other harsh environments, which may cause the product to fail, shorten its lifespan, or be damaged;
Do not try to disassemble the battery or allow non-professional technical personnel to disassemble, otherwise it may cause unknown risks such as electric shock, fire or even explosion;
When not in use for a long time, please charge the battery every 12 months to prevent insufficient power;
Please keep away from children to reduce possible risks;
Under extreme conditions, battery leakage may occur. If your hands or other exposed parts of your body accidentally come into contact with them, please wash them off with soap and water immediately. If they get into your eyes, immediately rinse your eyes with cold water for at least 10 minutes, and then seek medical attention immediately.
Please dispose of lithium battery products according to local laws and regulations at the end of the product life.
