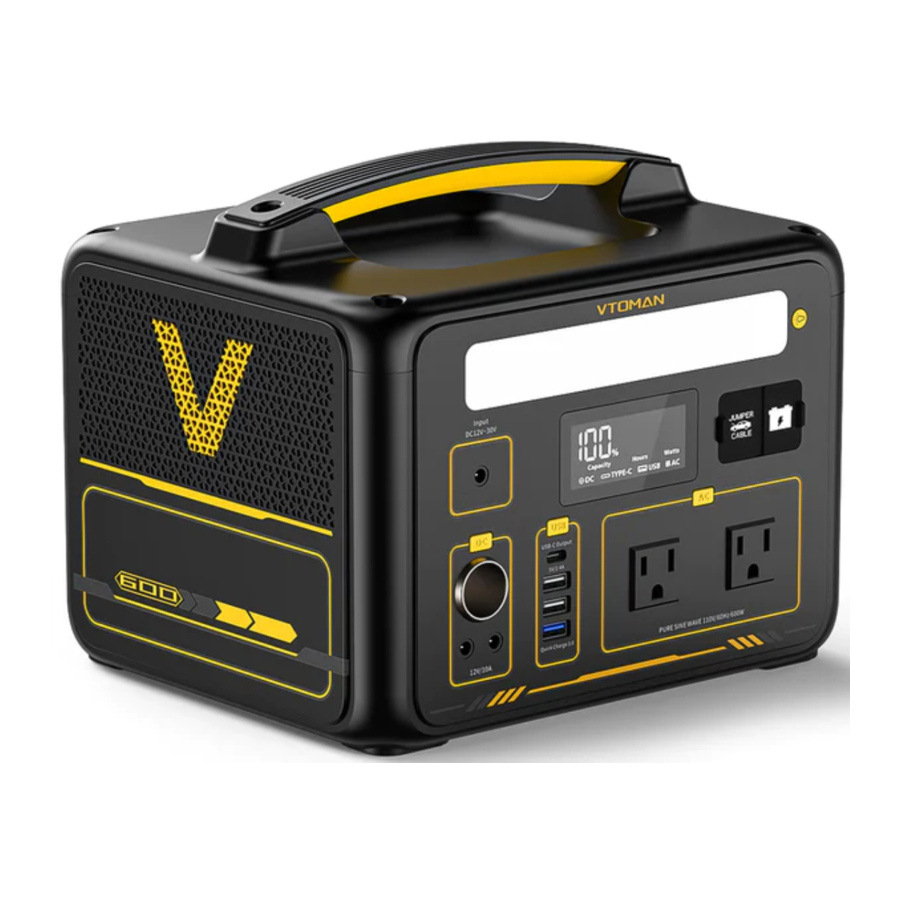

VTOMAN JUMP 600 - Portable Power Station Manual

TECHNICAL SPECIFICATIONS

Product Model	Jump 600
Battery Capacity	640Wh
Battery Type	LiFePO4
DC Input	12-30V(Max 65W)
2xAC Output	Total 600W (Peak 1200W) 110V~60Hz Pure Sine Wave
3xDC Output	1x Car Charger(12V 10A) + 2x DC5521(12V 10A)
2xUSB-AOutput	5V2.4A
1xUSB-AQC3.0 Output	5V 3A/9V 2A/12V 1.5A(Max 18W)
1xUSB-CPD Output	5V 3A/9V 3A/12V 3A/15V 3A/20V 3A(Max 60W)
1x 12V Jump Starter Output	Start current: 500A; Peak current: 2000A
LED Light Power	12w
Operating Temp	-4°F~131°F (-20°C~55°C)
Charging Temp	32°F~131°F (0~55°C)
Product Size	10.4x8.7x8.5in (264X 220X 216mm)
Net Weight	15.4 b (6.99Kg)

Instruction of Usage

Power on - Press any button on the state of standby.
Power off - Close all outputs by manual operation, into the state of standby after 30 mins.
Power off in 6 hours.
The last time open any output, continue 8 hours, if the output loading, current lower than the setting current, it will be power off after 30 min later, or after 6 hours the loading current higher than the setting value, the output will be keep on until the loading current lower than the setting value.
The over high temperature or the over low temperature both will be effect on the battery's capacity, the unit allows charging under the temperature within 0-55°C, supply the power under the temperature within -20°C-55°C.
Advise to full charge before the first time using to avoid the lack of power make you worse usage experience.

Jump Start 12V Vehicle Instruction

Plug the blue end of the jumper cable into the jump start port on the power station, and make sure the cable indicator is off.
Connect the red clamp to the positive(+) of battery terminal, and black clamp to the negative (-) of the battery terminal.
Perform the following operations according to the different states of the indicator lights on the jumper cable:

GREEN LIGHT on: Telling the connection is correct and the circuit is working, you can turn on the engine to jump-start directly.

GREEN LIGHT blinking: Saying the vehicle battery is low, press the "BOOST" button, wait GREEN LIGHT becomes solid, then turn on the engine within 30s.

RED LIGHT on with buzzing: Telling the connection is wrong, and buzzing to alarm to correct the clamps as step 2 mentioned above, wait until the GREEN LIGHT is on to turn on the engine.

No Lights on, No buzzing: Saying the vehicle's battery maybe damaged, after confirm the clamps connection is correct, press the "BOOST" button, wait GREEN LIGHT is on, and then turn on the engine within 30s.

Start your vehicle. And when the vehicle is started, please remove the jumper cable from the vehicle battery, and leave the vehicle's engine running.

If you need this jumper cable, please go to VTOMAN store to buy it.

Lighting Opening Method

Click the lightswitch button, the display is lit, and it is in low light mode; click the LED lightswitch again to switch from low light to medium light mode; click the LED light switch again to switch from medium light to intensity light Mode; click the LED light switch again to enter the burst flash mode; click the LED light switch again to enter the SOS mode; in the SOS mode, click the light button to turn off the light.
