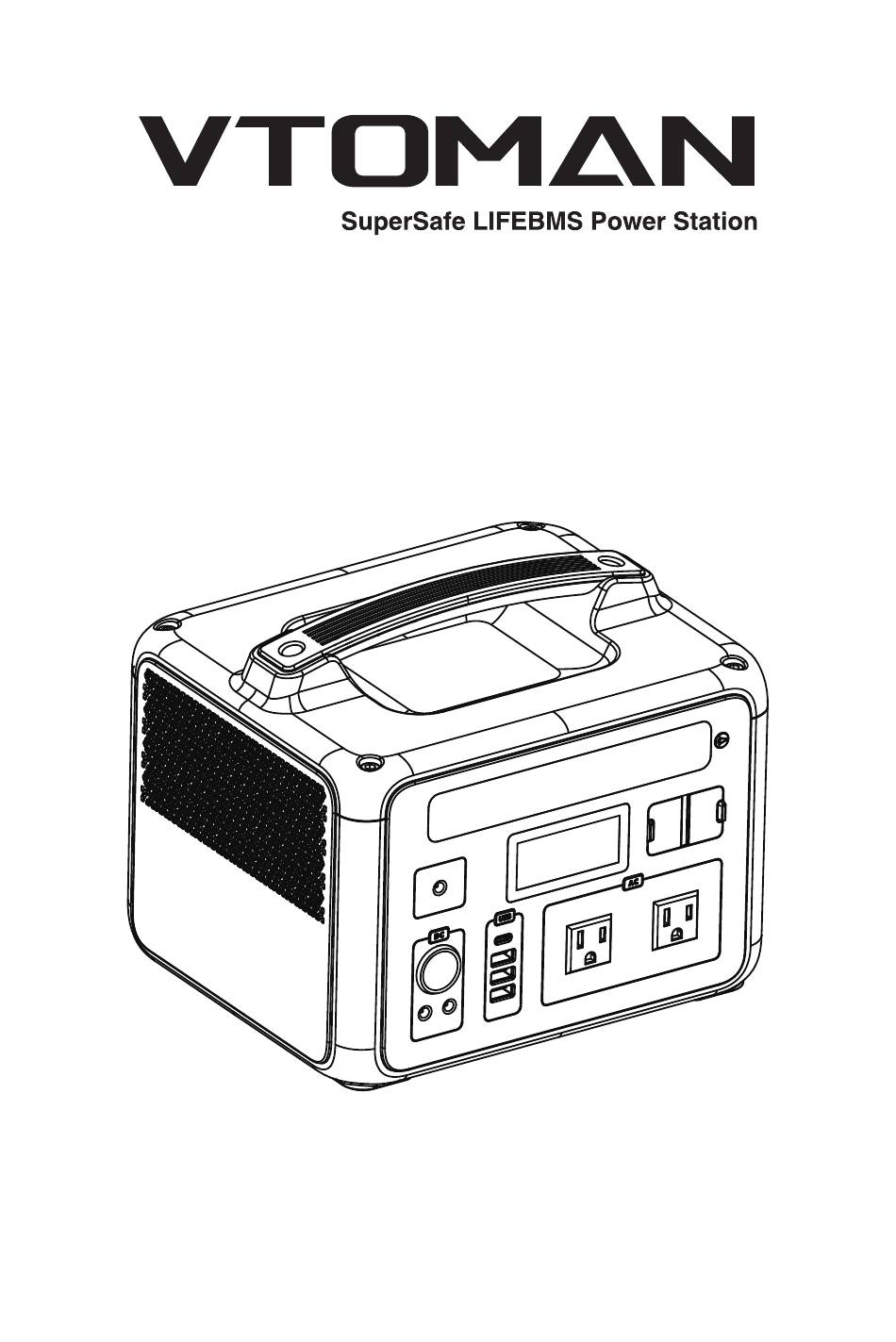

- Page 1 Jump 600X Portable Power Station User Manual Thank you for choosing Vtoman portable power station. ● Please read the user manual carefully and follow the instructions ● in the manual to use the product correctly. Model No.: PB-20...
-
Page 2: Table Of Contents
CONTENTS 1.Specifications 2.Package List 3.Safety Instructions 3.1 Usage 3.2 Personal Precautions 3.3 Disposal Guide 4.Product Features 4.1 Product Details 4.2 LCD Screen Introduction 5.Product Operating Instructions 5.1 Power & Function On/Off 5.2 Recharge Methods & Recharge Time 5.3 Battery Capacity Expansion 5.4 Use of LED Flashlight 6.FAQs 7.Troubleshooting... -
Page 3: Specifications
1.Specifications General Info Product Name Jump 600X Power Station Net Weight 6.64 KG (14.8 lbs) Dimensions 260*220*215 mm (10.2*8.7*8.6 inch) Certification FCC, RoHS, UN38.3, CE Battery Info Capacity 299Wh Battery Type LiFePO4 Cycle Life 3000 cycles to 80% Output Ports... -
Page 4: Package List
Cigarette lighter to DC5521 User Manual English version Please kindly check all accessories are complete. If any parts missing, please feel free to contact us at service.us@vtoman.com. 3.Safety Instructions 3.1 Usage When using this product, basic precautions should always be followed, including the following: 1.Read all the instructions before using the product. -
Page 5: Personal Precautions
3.Do not put fingers or hands into the product. 4.Use of an attachment not recommended or sold by power pack manufacturer may result in a risk of fire, electric shock, or injury to persons. 5.To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the power pack. -
Page 6: Disposal Guide
Liquid ejected from the battery may cause irritation or burns. 8.Do not expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 265°F(130°C) may cause explosion. 9. Have servicing performed by a qualified repair person using only identical replacement parts. -
Page 7: Product Features
4.Product Features 4.1 Product Details LCD Display LED Light DC Input 12-30V Backup battery port DC Output 12V/10A USB-C Output / 60W Max AC Output USB-A Output / 12W Max 110V/600W USB-A Output / 12W Max USB-A Output / 18W Max 4.2 LCD Screen Introduction Remaining Battery Percentage Remaining Charge/Discharge Time... -
Page 8: Product Operating Instructions
2.V-Beyond Technology: It allows you to run devices over 600 watts but no more than 1200 watts on Jump 600X power station. It would lower the output voltage to bring the power back down without tripping the overload protection, so that yo can continue to run those devices. -
Page 9: Recharge Methods & Recharge Time
3.Recharge by Car Charger You can recharge the Jump 600X power station through the DC Input Port with a car charger. Jump 600X supports 12V car char- gers, and the recharging time is about 3-3.5 hours. 4.Recharge by Solar Panel You can connect a Vtoman VS110 110W Solar Panel to recharge Jump 600X power station, the recharge time is about 3.5-4.5... -
Page 10: Battery Capacity Expansion
The CP3500 cable will get hot during work,please DO NOT touch the CP3500 cable in avoid of scalding！ 5.4 Use of LED Flashlight The Jump 600X Power Station features a LED flashlight with 5 mode. Please follow the instructions below to enter different modes:... -
Page 11: Faqs
Press the LED button again to turn the light off. 6.FAQs 1. What devices can the Jump 600X power? With 600W rated power and 1200W peak power, Jump 600X can normally power devices with rated power no more than 600W. Besides, with Vtoman's V-Beyond Technology, Jump... - Page 12 5.Can the Jump 600X be used as a UPS? No, the Jump 600X can't be used as UPS, because you need to press the button manually to turn on the AC/DC/USB output, it cannot turn on automatically. 6.Are the DC output ports regulated 12V? Yes, 2 DC5521 output ports and 1 cigarette lighter are regulated 12V voltage, the specifications are 12V/10A, the maximum output...
-
Page 13: Troubleshooting
. Connection is well, but Please contact with the charger indicator is Vtoman customer off. Charger is broken. service. 8.Storage & Maintenance 1.Before storing, please turn off the product first, and then store it in a dry, ventilated place at room temperature, away from water, heat, and other metal objects. -
Page 14: Warranty
"Warranty Period" section below, subject to the "Exclusions" clause below. Warranty Period The warranty period of the VTOMAN portable power station is 24 months. Consumers need to provide a sales receipt for the first purchase or other reasonable documentary proof to determine the start date of the warranty period. -
Page 15: Contact Us
Refund VTOMAN provides a 30-day money-back guarantee for products purchased directly from VTOMAN. If you are not satisfied for any reason, just let us know within 30 days. Once we receive the product and confirm its validity, we will refund the full amount. - Page 16 華佳商事 株式会社 MADE IN CHINA...
