For more information contact our team: service.ec@foagroup.com
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
Assembly Instructions
CM3324PT/BT -VN
DIFFICULT
Tools Required For Assembly:
Allen Wrench
2 PERSONS RECOMMENDED
Page 1 of 5
(Included)
Rev: 1 9 - 01 - 16
Advertisement

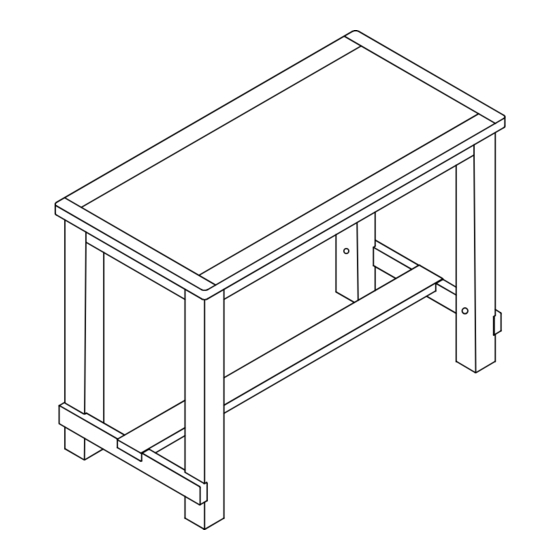

Related Manuals for Furniture of America Sania CM3324PT-VN
Summary of Contents for Furniture of America Sania CM3324PT-VN
- Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM3324PT/BT -VN ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being Allen Wrench easy and 5 being difficult).
- Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #A x 1pc #1 x 1pc Allen Wrench M5 Table Top #2 x 2pcs #B x 10pcs Left Leg Bolt Ø5/16"...
- Page 4 #B x 8pcs #D x 8pcs #E x 8pcs Align legs (#2,3) to the table top (#1), then secure by using bolts (#B) with washers (#D,E). # C x 4pcs #D x 4pcs #E x 4pcs #F x 4pcs #G x 4pcs Insert dowels (#G) to the holes of the side panels (#4).
- Page 5 Align side panel support (#5) to the side panels (#4), then secure by using bolts (#B) with washers (#D,E). # B x 2pcs #D x 2pcs #E x 2pcs ASSEMBLY IS COMPLETED Page 5 of 5...
