Summary of Contents for Furniture of America CM3324PC-2PK

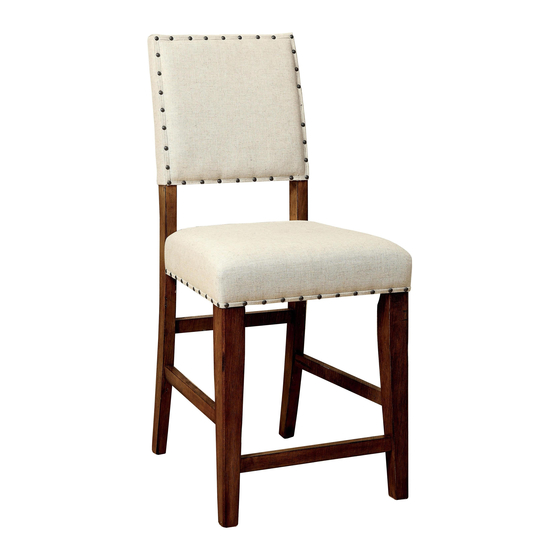

- Page 1 CM3324PC-2PK Rev.16-02-23...
- Page 4 I. Align the seat (#2) to the backrest with legs (#1). II. Prepare 2 bolt assemblies by FIRST inserting the lock washer (#B) onto the bolt (#D) then the flat washer (#A) onto that SAME bolt (#D). Secure using the Allen wrench (#F). Prepare 4 bolt assemblies by FIRST inserting the lock washer (#B) into the bolt (#C) then the flat washer (#A) onto that SAME bolt (#C).
- Page 5 I. Insert the front legs (#3) into the front corners of the seat (#2). II. Prepare 4 bolt assemblies by FIRST inserting the lock washer (#B) onto the bolt (#E) then the flat washer (#A) onto that SAME bolt (#E). Secure using the Allen wrench (#F). Note: Make sure to insert the leg supports as you install the legs.
