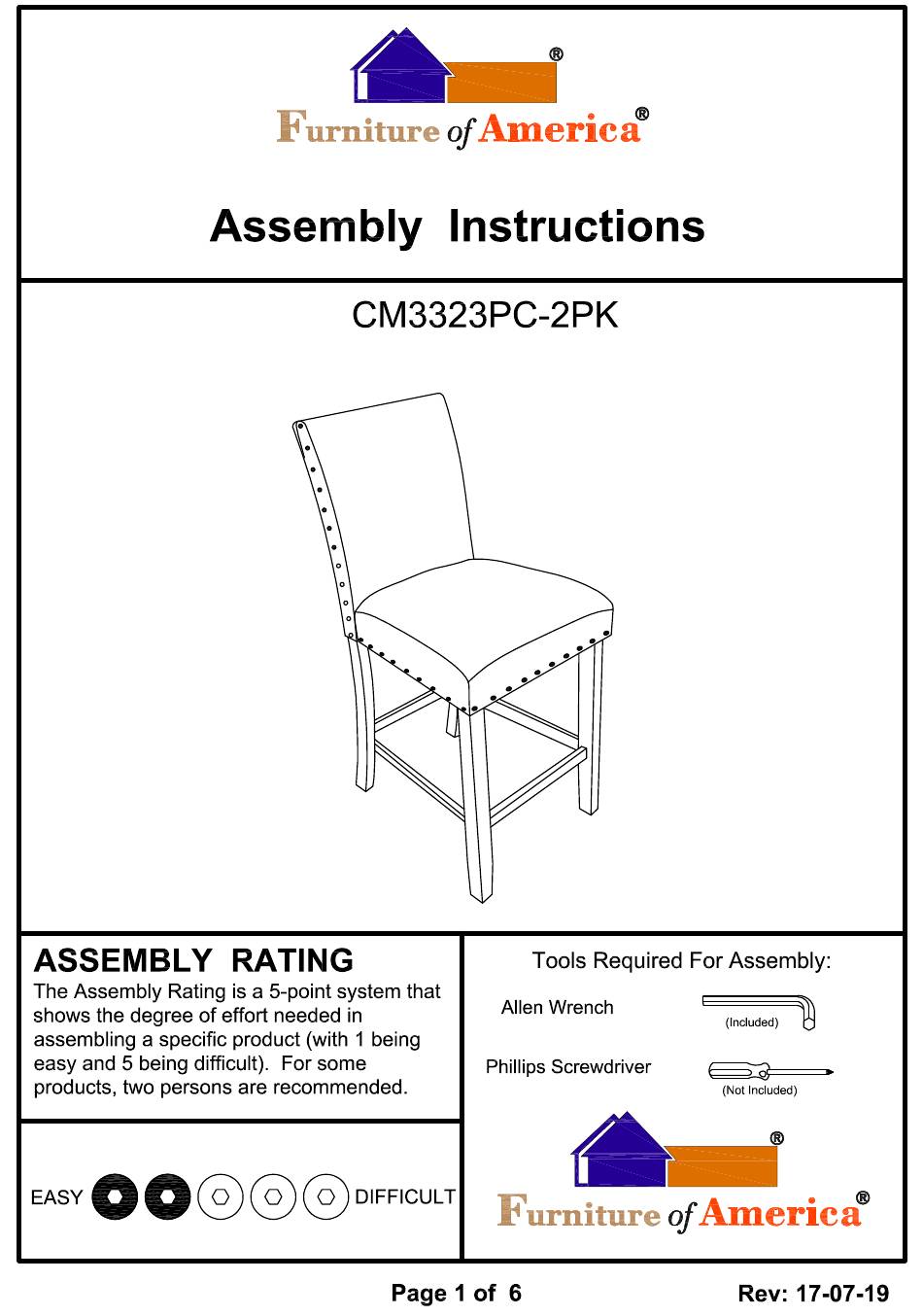

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 1) Prepare 1 bolt assembly by inserting lock washer (#B), then flat washer (#A) onto bolts (#D). Insert dowels (#H) to the holes of the chair back. Align chair seat (#2) onto to holes of the chair back (#1), then secure center hole with bolts (#D). 2) Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#A) onto bolts (#C).Secure corner holes of the chair seat (#2) with bolts (#C).
- Page 5 Align side stretchers (#4R/L) to the gaps of the chair back (#1). Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#A) onto bolts (#E). Align front legs (#3R/L) to the chair seat (#2), front stretcher (#5), and side stretchers (#4R/L). Secure front legs (#3R/L) to chair seat (#2) with bolts (#E).
- Page 6 Secure stretchers by using screws (#G).
