Summary of Contents for Furniture of America Bridgette CM3325PT-5PK

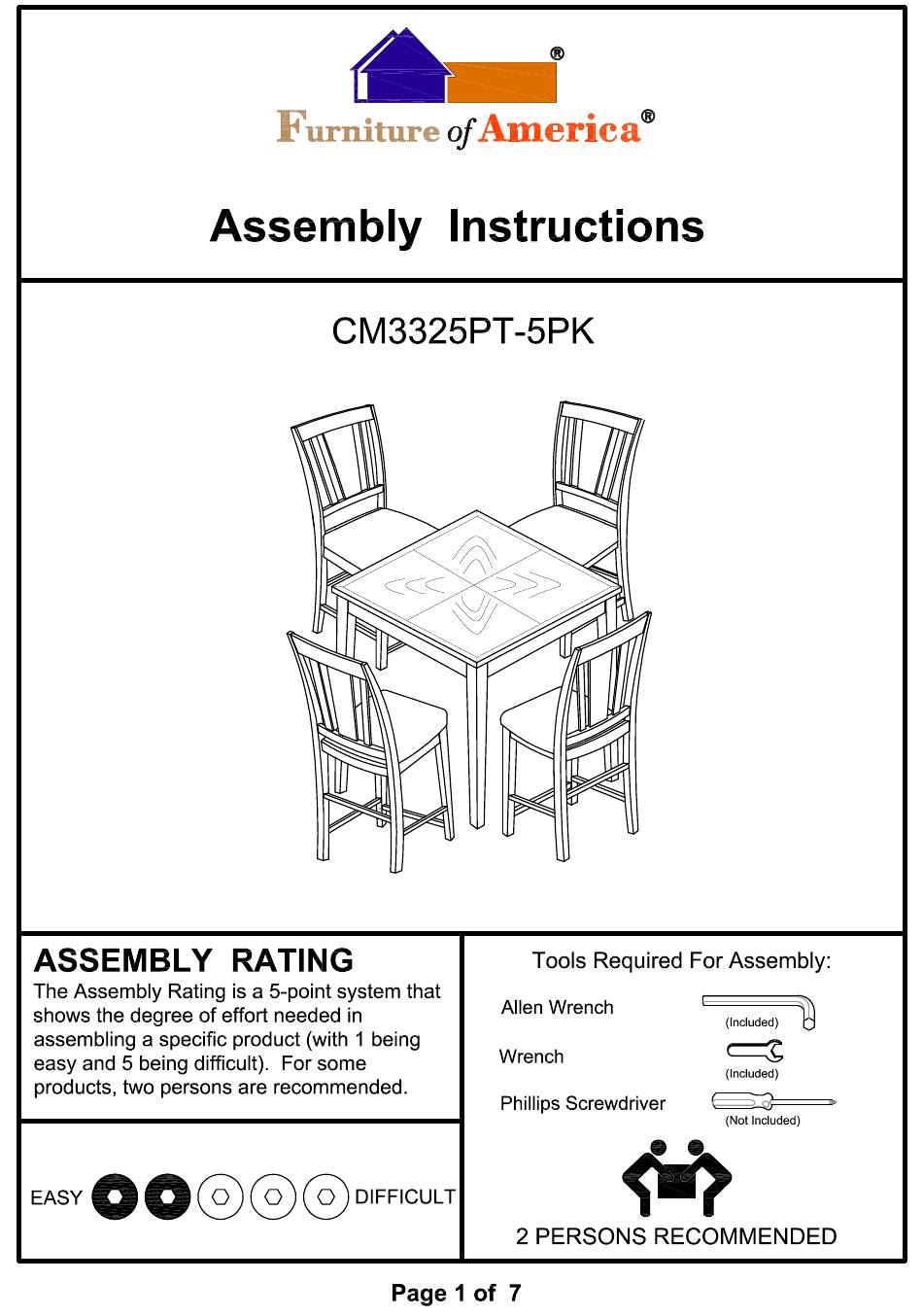

- Page 1 Rev: 15-05-08...
- Page 4 I. With the help of another person, carefully place the table top (#1) facing down on a protected surface. II. Align the legs (#2) to the pre-drilled holes on the table top (#1). III. Prepare 8 bolt assemblies by FIRST inserting the lock washer (#B) onto the bolt (#A) then the flat washer (#C) onto that SAME bolt (#A), in that order.
- Page 6 Carefully place the backrest with legs (#1) on a protected surface. II. Align the seat (#2) to the pre-drilled holes on the backrest with legs (#1). III. Prepare 2 bolt assemblies by FIRST inserting the lock washer (#D) onto the bolt (#C) then the flat washer (#E) onto that SAME bolt (#C), in that order.
- Page 7 I. Align the front right leg (#3R) and left leg (#3L) to the seat (#2). II. As you align the legs, insert the front leg support (#5) and leg supports (#4R/L) into the designated slots along the legs. III. Prepare 4 bolt assemblies by FIRST inserting the lock washer (#D) onto the bolt (#B) then the flat washer (#E) onto that SAME bolt (#B), in that order.
