2.1. Fitting your Quiet Knight to 4', 4'6" and 5' wide beds (1220 mm, 1375 mm and
1524 mm wide beds) only:
Firstly, remove the four pin clips which secure the two chromium plated side
extenders on the top of the unit. Pull out to the extenders so that they are level with
the edge of the bed ensuring that you do not exceed the last punched hole on the
Quiet Knight frame. Refix the pin clips to secure ensuring that they pass completely
through the frame and extension bars.
2.2. Fitting to 2'6" and 3' beds, (724mm and 915mm beds) only. You do not need to
adjust the chromium plated extenders.
2.3. The extension bars to the rear of the Quiet Knight base are packed for transit. Pull
out the bars to the desired width and turn the tubes so that the triangular sections
are pointing downwards. Insert the two pin clips provided.
3. Fitting the two sideways base straps:

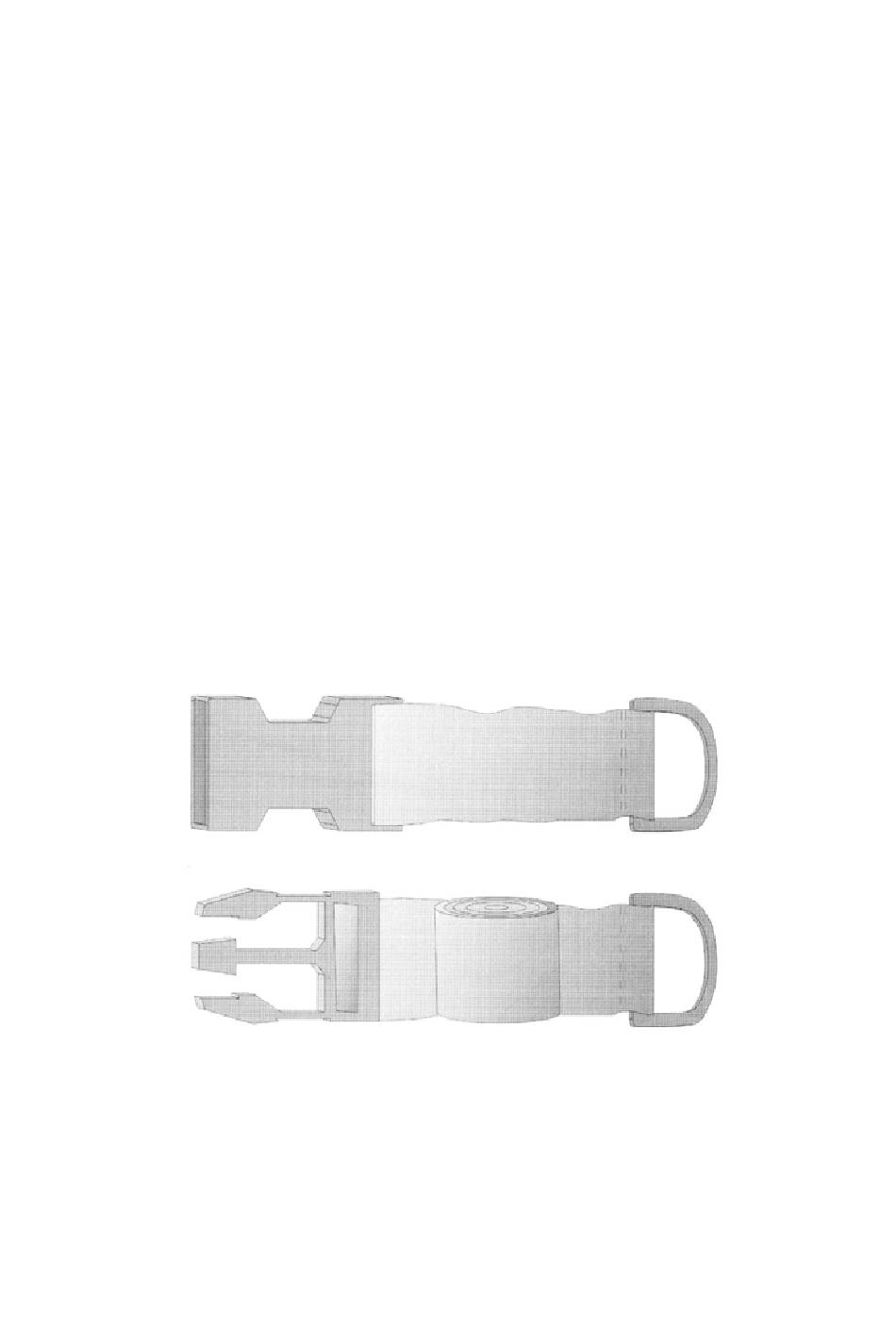

Firstly take the small strap section (approximately 285 mm long) comprising buckle,
strap and plastic loop. Pass the first small strap through the triangular part of chromium
extender piece and pass the buckle back through the plastic loop, so as to tie the small
strap to the triangular extender piece.
Repeat the above operation but, pass the small strap through the elongated slot on the
base of the elevator.
Now, using the long straps, (locking buckle, long strap and small loop), repeat the first
steps but fitting the long strap to the opposite triangular part of the strap and to the
opposite integral slot. Pass the long straps traversley (side to side) under the bed base,
bringing them up to clip into the small straps. Tighten off by pulling the strap through the
locking buckle.
Once tight, tie off for extra security.
4. Fitting the length-way strap:
Firstly take the short strap and pass through the integral painted metal rectangular loop
located centrally at the rear of the unit, then pass the strap back through the plastic
strap loop to secure. Then, take the long strap and attach to the centre of the front of
base frame, repeating the action of the small strap.
Pass the fixed strap lengthways under the bed base, bringing it up to secure with the
buckle end secured to the rear of the elevator tighten off and knot off to secure.
