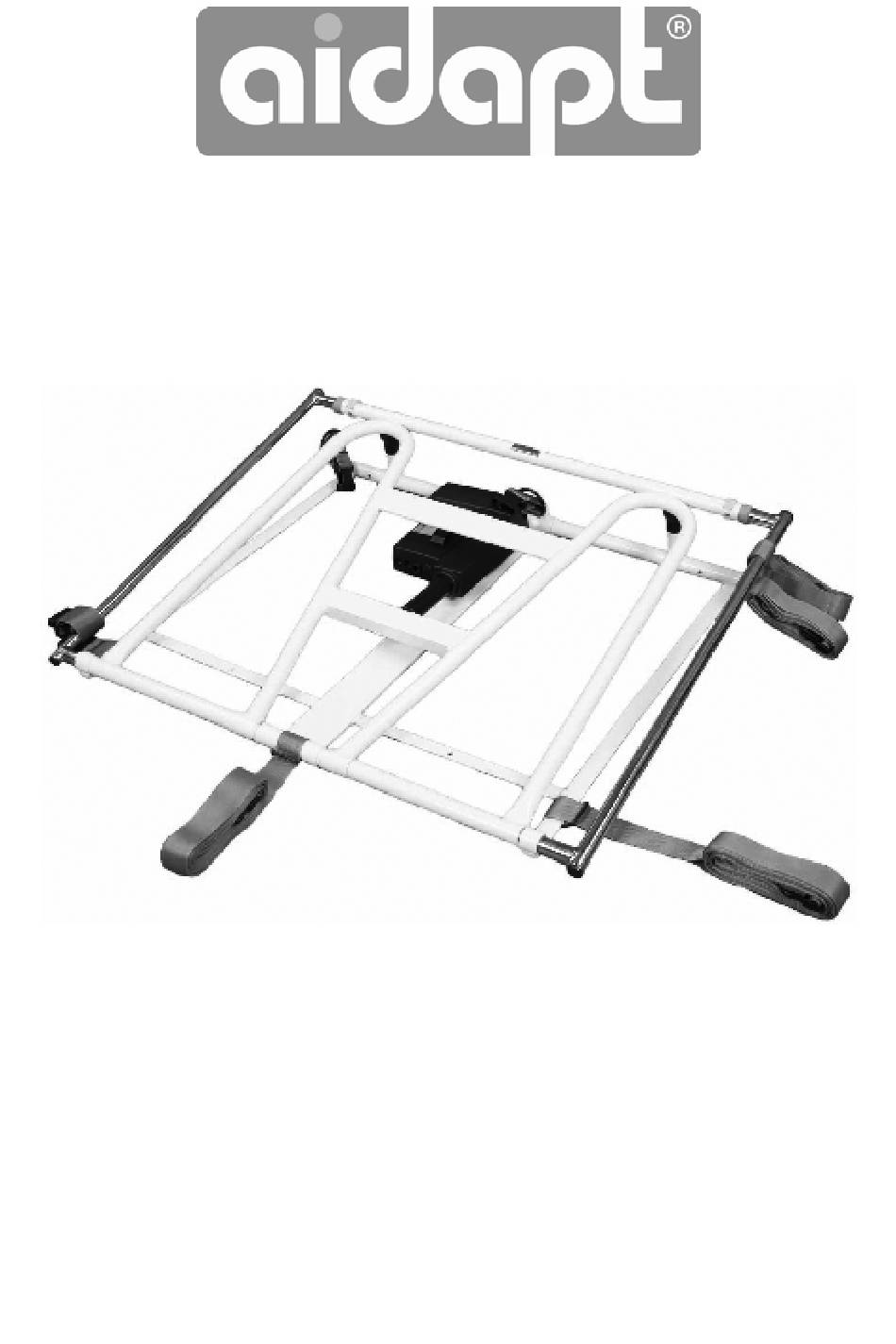

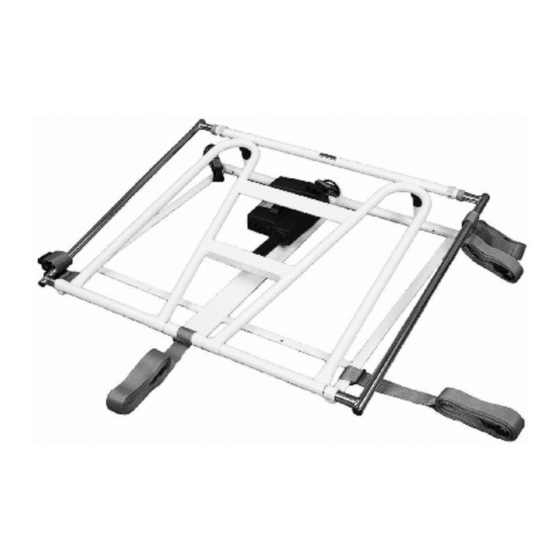

- Page 1 Quiet Knight Mattress Raiser VG812A Fitting and Maintenance Instructions...
-
Page 2: Limitations Of Use
INTRODUCTION Thank you for deciding to purchase the Quiet Knight powered, width adjustable mattress elevator from Aidapt. The Quiet Knight Mattress Raiser is manufactured from the finest materials and components available. When used correctly it is designed to give many years of reliable, trouble-free service. - Page 3 BEFORE USE/UNPACKING YOUR QUIET KNIGHT Firstly please check that the box contains all the components required which are as follows: Quiet Knight Mattress Variator with chrome plated extending sides and base, complete with: • Actuator control box • Handset with cable •...
- Page 4 2.1. Fitting your Quiet Knight to 4’, 4’6” and 5’ wide beds (1220 mm, 1375 mm and 1524 mm wide beds) only: Firstly, remove the four pin clips which secure the two chromium plated side extenders on the top of the unit. Pull out to the extenders so that they are level with the edge of the bed ensuring that you do not exceed the last punched hole on the Quiet Knight frame.
- Page 5 How to fit the mattress strap: Take the small strap and loop around the chrome extender side pieces. Repeat the action on the opposite chrome extender. Place the mattress back onto the top section of the elevator. Pass the strap over the mattress and secure into the small strap, tighten and knot for additional safety.
- Page 6 Fig 1c. Fig 1d. The sequence below illustrates how to attach the long straps to the variator frame. (Please note the buckle must be removed from the strap prior to fitting the long strap to the frame): Fig 2a. Fig 2b. Usage and Maintenance Instructions Ver.
- Page 7 Fig 2c. Fig 2d. Usage and Maintenance Instructions Ver. 2 07/2012 (1005)
- Page 8 The sequence below illustrates how to attach the buckle to the strap: Fig 3a. Fig 3b. Fig 3c. Fig 3d. The image below displays where each strap is to be attached to the variator frame, Repeat steps 1, 2 and 3 when attaching all straps/buckles and ensure the straps are tight and have sufficient tension to keep the frame in place once the buckles are secured: Usage and Maintenance Instructions...
- Page 9 Usage and Maintenance Instructions Ver. 2 07/2012 (1005)
- Page 10 FITTING THE HANDSET AND 3 PIN MAINS PLUG TO THE ACTUATOR Plug in the actuator to the transformer control box provided. Plug in the handset provided. Plug in the mains 13 Amp 3 pin plug fused to 3 A maximum provided. See Fig.
-
Page 11: Fault Finding
Mattress strap is not tight Tighten mattress strap enough Mattress stopper could be Install Aidapt mattress stopper needed Mattress is orthopaedic type Install Aidapt mattress stopper Usage and Maintenance Instructions Ver. 2 07/2012 (1005) -
Page 12: Spare Parts List
• Replacement handset • Mains lead • Replacement actuator and control box combined • Aidapt mattress stopper with fixing strap and buckle TECHNICAL INFORMATION Product title Quiet Knight Mattress Variator Weight without box 14 kg (31lb) Maximum user weight 190 kg (30 stone) uniformly distributed, fully opened... - Page 13 The information given in this instruction booklet must not be taken as forming part of or establishing any contractual or other commitment by Aidapt Bathrooms Limited, Aidapt (Wales) Ltd or its agents or its subsidiaries and no warranty or representation concerning the information is given.
