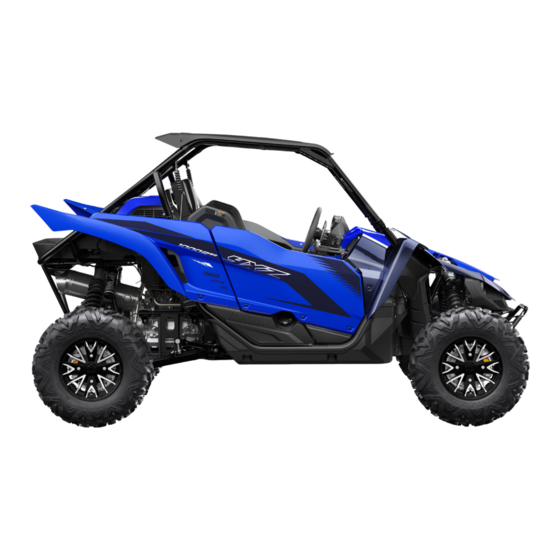

Yamaha YXZ 1000R SS 2022 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
READ THIS MANUAL CAREFULLY!
It contains important safety information.
NOTICE: The removal or modification of evaporative
emission-related parts on this OHRV is illegal.
Violators may be subject to civil and/or criminal
penalties as provided under California and federal law.
OWNER'S MANUAL
YXZ10YEXN/YXZ10YEZN
LIT-11626-35-60
BAS-F8199-12

Advertisement

Table of Contents
loading

Related Manuals for Yamaha YXZ 1000R SS 2022

Summary of Contents for Yamaha YXZ 1000R SS 2022

  • Page 1 READ THIS MANUAL CAREFULLY! It contains important safety information. NOTICE: The removal or modification of evaporative emission-related parts on this OHRV is illegal. Violators may be subject to civil and/or criminal penalties as provided under California and federal law. OWNER’S MANUAL YXZ10YEXN/YXZ10YEZN LIT-11626-35-60 BAS-F8199-12...
  • Page 2 EBU31032 Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your...
  • Page 3 Congratulations on your purchase of the Yamaha YXZ10YEXN / YXZ10YEZN. It represents the result of many years of Yamaha experience in the production of fine sporting, touring, and pace- setting racing vehicles. With the purchase of this Yamaha, you can now appreciate the high de- gree of craftsmanship and reliability that have made Yamaha a leader in these fields.
  • Page 4 EBU31080 IMPORTANT MANUAL INFORMATION EBU31070 FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERI- OUS INJURY OR DEATH. Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to poten- tial personal injury hazards.
  • Page 5  This vehicle complies with all state off-highway noise level and spark arrester laws and regulations. EBU31111 YXZ10YEXN / YXZ10YEZN OWNER’S MANUAL ©2022 by Yamaha Motor Corporation, U.S.A. 1st edition, November 2021 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Corporation, U.S.A.

  • Page 6: Table Of Contents

    On–Command drive knob EBU31120 CONTENTS “2WD/4WD/DIFF. LOCK” ....5-21 Accelerator pedal ....... 5-22 VEHICLE IDENTIFICATION ..... 1-1 Brake pedal ........5-22 Identification numbers......1-1 Parking brake lever ......5-23 YCC-S system........5-23 LOCATION OF THE WARNING AND Drive select lever and shift paddles ... 5-24 SPECIFICATION LABELS .......
  • Page 7 Auxiliary DC jack ........ 5-49 OPERATION ..........7-1 Yamaha Adventure Pro powered by Engine break-in........7-1 ® Magellan (for USA) ......5-50 Starting the engine .......7-2 Shifting and reverse driving ....7-3 FOR YOUR SAFETY – Dynamic clutch engagement ....7-7 PRE-OPERATION CHECKS....6-1 Launch system operation .....7-7 Front and rear brakes ......6-3...
  • Page 8 Transmission oil ......... 9-28 Parking brake lever free play Final gear oil ........9-30 adjustment ........9-51 Differential gear oil ......9-33 Brake light switch .......9-52 Coolant ..........9-35 Cable inspection and lubrication ..9-52 Axle boots .......... 9-37 Pedal lubrication .........9-53 Checking the spark plugs ....
  • Page 9 Brake/tail light ........9-68 YAMAHA EXTENDED SERVICE Interior lights (YXZ10YEZN)....9-68 (Y.E.S.) (for USA).......12-7 Troubleshooting ......... 9-68 INDEX ............13-1 Troubleshooting charts ...... 9-69 CLEANING AND STORAGE ....10-1 Cleaning ..........10-1 Storage ..........10-2 SPECIFICATIONS ......... 11-1 CONSUMER INFORMATION ....12-1 Vehicle Emission Control Information label ..........

  • Page 10: Vehicle Identification

    EBU38890 VEHICLE IDENTIFICATION EBU32781 EBU32800 Vehicle identification number Identification numbers The vehicle identification number is stamped Record the vehicle identification number, into the frame. model label information and key identification number in the spaces provided below. VEHICLE IDENTIFICATION NUMBER: MODEL LABEL INFORMATION: 1.
  • Page 11 * * * * - * * * 1. Model type code 2. Production code 1. Model label 3. Color code Your specific model can be identified by EBU32790 Key identification number checking the model type code found on the The key identification number is stamped on model label.
  • Page 12 1. Key identification number...

  • Page 13: Location Of The Warning And Specification Labels

    EBU31130 LOCATION OF THE WARNING AND SPECIFICATION LABELS...
  • Page 15 Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label is available from your Yamaha dealer.
  • Page 16 WARNING WARNING • Improper tire pressure or overloading this vehicle may This unit contains high pressure nitrogen gas. cause severe injury or death from loss of control or Mishandling can cause explosion. rollover. Read owner’s manual for instructions. • Never set or allow tire pressure to be below the minimum. Do not incinerate, puncture or open.
  • Page 17 ISO3471 Never carry in severe injury or passengers death from loss of YAMAHA MOTOR CORPORATION U.S.A. in cargo bed. control, overturn or 6555 Katella Avenue, Cypress, other accidents. California 90630-5101, U.S.A. BAS-F4164-00...
  • Page 18 Ne pas faire fonctionner le moteur si le carter de CANISTER protection est déposé. THROTTLE BODY 2HC-77762-01 TO ATMOSPHERE BAS-F1684-00 YAMAHA MOTOR CORPORATION U.S.A. certifies this ROV complies with the American National Standard for Recreational Off-Highway Vehicles, ANSI/ROHVA-1-2016 Standard. B4J-F4163-01...
  • Page 19 Do not hold the cage and door. BAS-F1568-01...
  • Page 20 11 YXZ10YEZN 12 YXZ10YEZN B4J-F8459-00...

  • Page 21: Safety Information

    EBU38981 Be a responsible owner As the vehicle’s owner, you are responsible for the safe and proper operation of your Yamaha YXZ10YEXN / YXZ10YEZN. While understanding all parts of this manual are important for vehicle ownership, be sure to read this chapter and the instructions in Chapter 8 before operating your Yamaha YXZ10YEXN / YXZ10YEZN.
  • Page 22 Before you operate your Yamaha YXZ10YEXN / YXZ10YEZN  Prepare yourself and your passenger: • This vehicle is intended for use only by an operator 16 or older with a valid motor vehicle li- cense. Check local laws for minimum age requirements.
  • Page 23 • Do not drive or ride as passenger after using drugs or alcohol. Prepare your vehicle Perform the pre-operation checks each time you use the vehicle to make sure it is in safe oper- ating condition. Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
  • Page 24 While using your Yamaha YXZ10YEXN / YXZ10YEZN  Keep your body completely inside the vehicle at all times. Keep both hands on the steering wheel. Be sure the passenger is seated, belted, and holding onto the passenger handhold. Close doors before driving. Any part of your body (arms, legs, and head) outside the vehicle can be struck by objects your vehicle is passing or crushed by the vehicle itself in a rollover accident.
  • Page 25 • Drive straight up and down inclines, not across them. If crossing a hill is unavoidable, drive slowly and turn downhill immediately if you feel the vehicle may tip. • Avoid paved surfaces. Turn gradually and go slowly if you must drive on pavement. This vehicle is designed for off-road use only.
  • Page 26  Do not operate the vehicle in fast-flowing water or water deeper than 40 cm (16 in). If you must cross shallow, slow-moving water, choose your path carefully to avoid sharp drop-offs, large rocks, or slippery surfaces. Operating this vehicle through deep or fast-flowing water can lead to loss of control or overturn.
  • Page 27 Many companies with no connection to Yamaha manufacture parts and accessories or offer oth- er modifications for Yamaha vehicles. Yamaha is not in a position to test the products that these aftermarket companies produce. Therefore, Yamaha can neither endorse nor recommend the use of accessories not sold by Yamaha or modifications not specifically recommended by Yamaha, even if sold and installed by a Yamaha dealer.
  • Page 28 Aftermarket tires and rims The tires and rims that came with your YXZ10YEXN / YXZ10YEZN were designed to match the performance capabilities and to provide the best combination of handling, braking, and comfort. Other tires, rims, sizes, and combinations may not be appropriate. Refer to page 9-57 for tire specifications and more information on replacing your tires.

  • Page 29: Description

    EBU31170 DESCRIPTION EBU31180 Left view 1. Winch (YXZ10YEZN) 8. Coolant reservoir 2. Front shock absorber 9. Air filter 3. Brake fluid reservoir 10.Cargo bed 4. YCC-S clutch fluid reservoir 11.Muffler 5. Door 12.Exhaust pipe 6. Shoulder bolster 13.Engine 7. Driver seat belt 14.Transmission...

  • Page 30: Right View

    EBU31190 Right view 3 4,5,6 1. Rear shock absorber 2. Engine oil tank 3. Passenger seat belt 4. Battery 5. Fuses 6. Interior light (YXZ10YEZN) 7. Sun top (YXZ10YEZN) 8. Rearview mirror (YXZ10YEZN) 9. Auxiliary light (YXZ10YEZN) 10.Headlight 11.Fuel tank cap...

  • Page 31: Controls And Instruments

    EBU31200 Controls and instruments 13 11,12 1. Steering wheel 9. Interior light switch (YXZ10YEZN) 2. Shift paddle “ ” 10.Passenger handhold 3. Multi-function meter unit 11.Helmet reminder light 4. Shift paddle “ ” 12.Seat belt reminder light 5. Main switch 13.Light switch 6.

  • Page 32: Instrument And Control Functions

    EBU3121D INSTRUMENT AND CONTROL The operation of the indicator and warning FUNCTIONS lights, and the multi-function meter can be EBU31221 confirmed at this time. Main switch EBU31241 Off position “ ” All electrical circuits are switched off. The key can be removed. EBU31251 Start position “...

  • Page 33: Indicator Lights And Warning Lights

    EBU31269 Indicator lights and warning lights 2 3 4 5 6 7 8 9 1. Helmet reminder light “ ” 2. Seat belt reminder light “ ” 1. Shift light EBU35450 2. Electric Power Steering warning light “EPS” Neutral indicator light “N” 3.
  • Page 34 EBU34910 EBU34922 Parking brake indicator light “(P)” Drivetrain icon “ / ” This indicator light comes on when the park- The drivetrain icon indicates what type of ing brake is applied. drive mode is currently selected. When 2WD is selected, the icon will turn off. When 4WD EBU36450 is selected, “...
  • Page 35 “ ” (on), or if the light remains on, stop the vehicle as soon as it is safe to do on, have a Yamaha dealer check the electrical so and allow the engine to idle for about 10 circuit.
  • Page 36 (see page off. If the warning light does not come on at 5-18). Have a Yamaha dealer check the self- all, comes on in red or blue, or if the warning diagnostic system.
  • Page 37 EPS system. the indicator light does not come on and then The electrical circuit of the warning light can go off, have a Yamaha dealer check the elec- be checked by turning the key to “ ” (on). If trical circuit.
  • Page 38 ” (on). If the warning light does not the indicator light does not come on and then come on and then go off, have a Yamaha go off, have a Yamaha dealer check the elec- dealer check the electrical circuit.
  • Page 39 Stop the vehicle on level ground safely off the main trail, and have the YCC-S system serviced by a Yamaha dealer before further operation. 1. Shift arm pivot If shifting into neutral is impossible using the 2.
  • Page 40 Yamaha cle movement is secured by other dealer check the electrical circuit.

  • Page 41: Multi-Function Meter Unit

     tachometer EBU36537 Multi-function meter unit  odometer  two tripmeters  clock  hour meter  voltage display  coolant temperature display  fuel gauge  transmission gear display  shift light control mode  error code display 1. Tachometer 2.
  • Page 42 Speedometer Tachometer 1. Speedometer 1. Tachometer 2. Tachometer red zone The speedometer shows the vehicle’s travel- The tachometer shows the engine speed in ing speed. The speedometer can be set to crankshaft revolutions per minute (r/min). “MPH” or “km/h”. This also changes the When the vehicle is first powered on, the ta- odometer and tripmeter units between miles chometer needle will sweep once across the...
  • Page 43 Red zone: 10500 r/min and above Push the “SELECT” button to switch between the odometer “ODO” and the tripmeters “TRIP A” and “TRIP B” in the following order: Odometer and tripmeters ODO → TRIP A → TRIP B → ODO To reset a tripmeter, set the display to the tripmeter you want to reset, then push the “RESET”...
  • Page 44 Clock, hour meter, voltage display and Push the “MODE” button to switch between coolant temperature display the clock “CLOCK”, the hour meter “HOUR”, the voltage display “VOLTAGE”, and the coolant temperature display in the following order: CLOCK → HOUR → VOLTAGE → coolant temperature →...
  • Page 45 If the voltage display indicates “LO” or “HI”, there may be trouble with the battery charging circuit or the battery may be faulty. If this occurs, have a Yamaha dealer check or repair the vehicle. Coolant temperature display 1. Voltage display This display shows “...
  • Page 46 low, “LO” will be displayed. When the coolant Fuel gauge temperature rises, the coolant temperature display will begin to flash. If the coolant tem- perature continues to rise, the message “HI” will flash.  The coolant temperature display can be set to “°C”...
  • Page 47 This fuel gauge is equipped with a self-diag- nostic system. If a problem is detected in an electrical circuit, the fuel gauge will flash re- peatedly. If this occurs, have a Yamaha deal- er check the electrical circuit. Transmission gear display 1.
  • Page 48  Deactivation point: this function allows you  Off: the shift light is deactivated; in oth- to select the engine speed at which the light er words, it does not come on or flash. is deactivated. (The shift light will confirm this setting by flashing once every two seconds.) To enter the shift light control mode 2.
  • Page 49 1. Push the “RESET” button to select the 1. Push the “RESET” button to select the desired engine speed for activating the desired engine speed for deactivating the shift light. shift light. 2. Push the “MODE” button to confirm the 2.

  • Page 50: Light Switch

     If the display indicates an error code, note 1. Light switch “ ” the code number and have a Yamaha deal- Set the switch to “ ” to turn on the low er check the vehicle.

  • Page 51: Interior Light Switch (Yxz10Yezn)

    that the electric starter will not have enough power to crank the engine. If this should happen, remove the battery and re- charge it. EBU36942 Interior light switch “ ” (YXZ10YEZN) 1. Interior light switch “ ” EBU38922 Winch switch “ ”...

  • Page 52: On-Command Drive Knob "2Wd/4Wd/Diff. Lock

    This switch is used when operating the winch drive with differential lock. Select the appro- (page 5-48). Read this manual and the Winch priate drive according to the terrain and driv- Owner’s Manual completely before operating ing conditions.  “2WD” (two–wheel drive): Power is sup- the winch switch.

  • Page 53: Accelerator Pedal

    EBU31413 EBU31421 Accelerator pedal Brake pedal 1. Accelerator pedal 1. Brake pedal Press the accelerator pedal to increase en- Press the brake pedal to slow or stop the ve- gine speed and thus vehicle speed. Release hicle. the accelator pedal and spring tension will re- turn the pedal to idle position.

  • Page 54: Parking Brake Lever

    Parking brake lever brake engaged, a buzzer will sound. EBU36633 YCC-S system This vehicle is equipped with the Yamaha Chip Controlled-Shift system (YCC-S) with AUTO DOWNSHIFT. YCC-S allows the driver to operate the man- ual transmission without having to operate the clutch.

  • Page 55: Drive Select Lever And Shift Paddles

    engaged once the engine is running at proper EBU36652 Drive select lever and shift paddles speed. Clutch engagement is controlled by the MCU according to engine speed and oth- er driving conditions.  This is not an automatic transmission, only the clutch system is automatic.

  • Page 56: Fuel Tank Cap

    EBU31451 Fuel tank cap – 1. Shift paddle “ ” 2. Shift paddle “ ” 1. Fuel tank cap Use the shift paddles to shift through the for- Remove the fuel tank cap when refueling. To ward gears. Pull and release the shift open, turn counterclockwise.

  • Page 57: Seats

    To open a door, pull the handle. To close a door, push or pull the door inward until it is securely latched. Be sure the door is SE- CURELY LATCHED AFTER CLOSING IT. 1. Driver seat cushion 1. Door 2. Handle EBU33461 Seats To remove a seat cushion, lift the front of the...

  • Page 58: Adjusting The Driver Seat Position

    To install a seat cushion, insert the projec- EBU34993 Adjusting the driver seat position tions on the rear of the seat cushion under the The driver seat position can be adjusted to seat frame, and then insert the projection on suit the driver’s preference.

  • Page 59: Adjusting The Steering Wheel Position

    Adjust the driver seat position and make sure it is locked in place before starting off. EBU35002 Adjusting the steering wheel position The steering wheel position can be adjusted to suit the driver’s preference. WARNING! Never adjust the steering wheel position while operating the vehicle, otherwise the 1.

  • Page 60: Rearview Mirror (Yxz10Yezn)

    EBU36953 EBU36184 Rearview mirror (YXZ10YEZN) Seat belts 1. Rearview mirror (YXZ10YEZN) 1. Seat belt Always wear the seat belts properly while rid- ing in the vehicle. (See page 8-5.) Adjust the rearview mirror before starting off.  If the vehicle is driven without the driver seat belt fastened, a buzzer will sound.

  • Page 61: Glove Compartment

    EBU31503 ECB02071 NOTICE Glove compartment To protect from damage, do not put metal items, like tools, or sharply edged items di- rectly in the glove compartment. If they must be stored, wrap them in appropriate cushioning material. EBU40450 Storage compartment 1.

  • Page 62: Cup Holders

    When storing any documents in the storage ers may be thrown about and break, and compartment, be sure to wrap them in a plas- possibly injure people in the vehicle dur- tic bag so that they will not get wet. When ing sudden braking or an accident.

  • Page 63: Cargo Bed

    For additional loading information, see page EBU35022 Cargo bed 7-12. EWB03250 WARNING EBU35660  Never carry passengers in the cargo Flag pole bracket bed. This model is equipped with a flag pole brack-  Do not exceed the specified maximum load limits.

  • Page 64: Front Shock Absorbers

    Notes on adjusting the suspension  High speed compression damping force  A special wrench and special tool can be adjusting bolt obtained at a Yamaha dealer to make the  Low speed compression damping force spring preload or crossover setting adjust- adjusting screw ment.
  • Page 65 ECB00091 NOTICE Never turn an adjusting mechanism be- yond the minimum and maximum settings. Spring preload 1. Elevate the vehicle and place a suitable stand under the frame. 2. Loosen the locknut. 3. Turn the spring preload adjusting nut in 1.
  • Page 66 4. Tighten the locknut to the specified Spring preload setting: torque. NOTICE: Always tighten the Minimum (soft): locknut against the adjusting nut, and Distance A = 496.6 mm (19.55 in) then tighten it to the specified torque. Standard: [ECB00082] Distance A = 483.9 mm (19.05 in) Tightening torque: Maximum (hard):...
  • Page 67 90˚ 1. Distance B 1. Special tool 2. Spring retainer 2. 3/8 inch (9.5 mm) drive wrench 3. Crossover locknut 3. Crossover locknut 4. Crossover adjusting nut 2. Turn the crossover adjusting nut in direc- 1. Loosen the crossover locknut as shown. tion (a) to increase the crossover setting and in direction (b) to decrease the cross- over setting.
  • Page 68 3. Tighten the locknut to the specified torque. NOTICE: Always tighten the locknut against the adjusting nut, and then tighten it to the specified torque. [ECB00082] Tightening torque: Locknut: 41 N·m (4.1 kgf·m, 30 lb·ft) 1. Distance B 2. Spring retainer 3.
  • Page 69 Rebound damping force Rebound damping setting: Turn the rebound damping force adjusting Minimum (soft): screw in direction (a) to increase the rebound 26 click(s) in direction (b) Standard: damping force and thereby harden the damp- 12 click(s) in direction (b) ing, and in direction (b) to decrease the re- Maximum (hard): bound damping force and thereby soften the...
  • Page 70 Low speed compression damping force To increase the compression damping force and thereby harden the low speed compres- sion damping, turn the compression damping force adjusting screw in direction (a). To de- crease the compression damping force and thereby soften the low speed compression damping, turn the adjusting screw in direction (b).

  • Page 71: Rear Shock Absorbers

    Standard: out shock absorber assembly yourself. 2 turn(s) out from the fully turned in posi- Take the shock absorber assembly to a tion Yamaha dealer for any service. Maximum (hard): Adjusting screw fully turned in EBU38970 Rear shock absorbers EWB00411...
  • Page 72  A special wrench and special tool can be 2. Loosen the locknut. obtained at a Yamaha dealer to make the 3. Turn the spring preload adjusting nut in spring preload or crossover setting adjust- direction (a) to increase the spring pre- ment.
  • Page 73 Spring preload setting: Minimum (soft): Distance A = 610.9 mm (24.05 in) Standard: Distance A = 598.2 mm (23.55 in) Maximum (hard): Distance A = 585.5 mm (23.05 in) 1. Locknut 2. Spring preload adjusting nut 3. Special wrench The spring preload setting is determined by measuring distance A, shown in the illustra- tion.
  • Page 74 4. Tighten the locknut to the specified torque. NOTICE: Always tighten the locknut against the adjusting nut, and then tighten it to the specified torque. [ECB00082] Tightening torque: Locknut: 41 N·m (4.1 kgf·m, 30 lb·ft) 1. Distance B Crossover setting 2.
  • Page 75 90˚ 1. Special tool 1. Distance B 2. 3/8 inch (9.5 mm) drive wrench 2. Spring retainer 3. Crossover locknut 3. Crossover locknut 4. Crossover adjusting nut 2. Turn the crossover adjusting nut in direc- tion (a) to increase the crossover setting Crossover setting: and in direction (b) to decrease the cross- Minimum (soft):...
  • Page 76 3. Tighten the locknut to the specified Rebound damping force torque. NOTICE: Always tighten the Turn the rebound damping force adjusting locknut against the adjusting nut, and screw in direction (a) to increase the rebound then tighten it to the specified torque. damping force and thereby harden the damp- ing, and in direction (b) to decrease the re- [ECB00082]...
  • Page 77 Rebound damping setting: Minimum (soft): 26 click(s) in direction (b) Standard: 12 click(s) in direction (b) Maximum (hard): 1 click(s) in direction (b) Compression damping force High speed compression damping force 1. High speed compression damping force adjusting bolt To increase the compression damping force High speed compression damping setting and thereby harden the high speed compres- Minimum (soft):...
  • Page 78 Low speed compression damping force Low speed compression damping setting To increase the compression damping force Minimum (soft): and thereby harden the low speed compres- 4 turn(s) out from the fully turned in posi- tion sion damping, turn the compression damping Standard: force adjusting screw in direction (a).

  • Page 79: Winch (Yxz10Yezn)

    Take the shock absorber assembly to a and anchor point. Do not use the winch un- Yamaha dealer for any service. less all bystanders are a safe distance away. Use hook strap to keep hands away...

  • Page 80: Auxiliary Dc Jack

    2. Turn the headlights off. (See page 5-19.) EBU35057 Auxiliary DC jack 3. Open the auxiliary DC jack cap. 4. Make sure the accessory is off. 5. Insert the accessory power plug. 6. Turn the accessory on.  Turn off the accessory before plugging in- to/unplugging from the jack.

  • Page 81: Yamaha Adventure Pro Powered By Magellan ® (For Usa)

    EBU38032 Yamaha Adventure Pro powered by ® Magellan (for USA) This vehicle is equipped with a connector for a GPS and navigation display. See your Yamaha dealer or visit shopyamaha.com for details. 5-50...

  • Page 82: For Your Safety - Pre-Operation Checks

    Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. Do not operate the vehicle if you find any problem. If a problem can- not be corrected by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Pre-operation checklist ITEM...
  • Page 83 ITEM ROUTINE PAGE 6-6, 6-6, 6-6, 9-28, • Check front differential, transmission case, and rear final Drivetrain gear for leakage. 9-30, 9-33 • Check coolant level in reservoir. Coolant 6-6, 9-35 • Fill with coolant if necessary. Accelerator pedal • Check free play and for proper operation. Seat belts •...

  • Page 84: Front And Rear Brakes

    Apply the brakes firmly for one minute. If there  Check that there is no free play in the brake is any leakage, have the vehicle inspected by pedal. If there is free play, have a Yamaha a Yamaha dealer. dealer check the brake system. (See page 9-50.)
  • Page 85 EWB02522 EWB02532 WARNING WARNING Gasoline and gasoline vapors are ex- Gasoline is poisonous and can cause inju- tremely flammable. To avoid fires and ex- ry or death. Handle gasoline with care. plosions and to reduce the risk of injury Never siphon gasoline by mouth. If you when refueling, follow these instructions.

  • Page 86: Engine Oil

    If you carry a portable fuel container in the  Do not use oils with a diesel specifica- your Yamaha YXZ10YEXN / tion of “CD” or oils of a higher quality YXZ10YEZN, be sure to secure it with the cap than specified.

  • Page 87: Transmission

    EBU36030 pushed firmly. Wash off any dirt or mud that Differential gear could affect operation. Have a Yamaha dealer Make sure there is no oil leaking from the dif- repair as necessary for proper operation. ferential gear case.

  • Page 88: Passenger Handhold

    Always check the tightness of chassis and Yamaha dealer repair as necessary for proper wheel fittings and fasteners before starting operation. off. Take the vehicle to a Yamaha dealer or re- EBU36691 fer to the Service Manual for correct tighten- Drive select lever and shift paddles ing torque.

  • Page 89: Instruments, Lights And Switches

    Tire pressure EBU31840 Instruments, lights and switches Check that all instruments, lights and switch- es are working properly. Correct if necessary. EBU31851 Control cables When driving in cold weather, always make sure all control cables work smoothly before starting off. WARNING! Control cables can freeze in cold weather and you could be unable to control the vehicle.
  • Page 90 Make two measurements of the tire pressure OPERATING TIRE PRESSURE (cold): and use the second reading. Dust or dirt in VEHICLE LOAD of 0.0–195.0 kg (0–430 lb) the gauge could cause the first reading to be FRONT: (Recommended) 114.0 kPa (1.140 kgf/cm², 16.5 psi) incorrect.
  • Page 91 Tire inspection 1. Tire tread depth When the tire tread depth has worn to 3 mm (0.12 in) replace the tire. If the tire has a nail or glass fragments in it, or if the sidewall is cracked, replace the tire. 6-10...

  • Page 92: Operation

    If any abnormality is noticed EBU35721 during this period, consult a Yamaha dealer. Engine break-in There is never a more important period in the 0–8 hours: life of your vehicle than the period between 0 Avoid prolonged operation above 5300 r/min.

  • Page 93: Starting The Engine

     When the transmission is in the neutral 8–15 hours: Avoid prolonged operation above 6300 r/min. position, the transmission gear display shows “N” and the neutral indicator After break-in: light should come on. The vehicle may now be operated normally. ...

  • Page 94: Shifting And Reverse Driving

    For maximum engine life, never accelerate hard when the engine is cold! EBU36723 Shifting and reverse driving This vehicle is equipped with a 5-speed for- ward and 1-speed reverse manual transmis- sion with YCC-S (see page 5-23). The transmission allows you to control the 1.
  • Page 95 ECB03370 NOTICE  To use the drive select lever, you must be Even with the transmission in the neutral pressing the brake pedal and be stopped position, do not coast for long periods of (be traveling less than 5 km/h [3 mph]), and time with the engine off.
  • Page 96 5. When vehicle speed has sufficiently in- cause loss of control, an accident and inju- creased, use the shift paddle “ ” to shift ry. It could also cause engine or drivetrain into second gear (“2”). damage. 6. Follow the same procedure when shifting to the next higher gear.
  • Page 97 To drive in reverse EWB03300 WARNING Before you shift into reverse, make sure there are no obstacles or people behind you. When it is safe to proceed, go slowly. Hitting an obstacle or person could result in serious injury or death. 1.

  • Page 98: Dynamic Clutch Engagement

     Dynamic clutch engagement works in 1st 5. Check behind you, then release the brake pedal and press the accelerator pedal gear only.  Time to engagement will vary depending on gradually. 6. Continue to watch to the rear while driv- conditions.
  • Page 99  the engine is not warmed up or is overheat- ing.  the driver seat belt is not latched.  the differential gear is locked (“DIFF. LOCK” is selected) or the differential gear lock indicator is flashing.  the parking brake is applied. ...
  • Page 100  If the indicator light is flashing, release the accelerator pedal and let the engine return to idle speed. When the indicator light goes off, you may start off normally or retry acti- vating the launch system. 5. When ready, release both shift paddles at the same time and further press the ac- celerator pedal to launch the vehicle.

  • Page 101: Selecting The Drive Mode

    EBU39161 Selecting the drive mode The vehicle handles differently in each of the drive modes: “2WD”, “4WD” and “DIFF. LOCK”. For example, the vehicle requires more effort to turn in “DIFF. LOCK” than in “2WD”. Always stop the vehicle before changing the position of the On-Command drive knob. The drive mode icon changes according to the selected drive mode.
  • Page 102  When the knob is set to “DIFF. LOCK” or “4WD”, the drive mode icon and the indicator light will flash until the differential gear is completely locked or unlocked.  Turning the steering wheel back and forth will help the differential gear lock to engage or dis- engage.

  • Page 103: Parking

    Cargo bed EBU35441 Parking Use the hooks equipped on the cargo bed When parking, shift into first or reverse gear, (page 5-32) to tie down loads. Make sure the stop the engine, and then apply the parking load is securely fastened down, centered in brake.
  • Page 104 EWB04340 WARNING Improper loading or pulling, or any towing will increase the risk of loss of control, an overturn, or other accident:  Do not pull objects, other vehicles, or tow a trailer—this vehicle is not de- signed for such operation. ...

  • Page 105: Basic Guide For Safe Use

    EBU31950 EBU33494 KNOW YOUR VEHICLE BASIC GUIDE FOR SAFE USE This off-road vehicle will handle and maneu- ver differently from cars, ATVs, go-carts, golf- EBU31962 cars and grounds-keeping vehicles. The As a YXZ10YEXN / YXZ10YEZN owner you YXZ10YEXN / YXZ10YEZN higher are responsible for the safe and proper oper- ground clearance and other features to han-...
  • Page 106 As the owner/operator, it is your responsibility to protect yourself and your passenger from accidents, including rollovers. DRIVER YXZ10YEXN / YXZ10YEZN has many fea- tures, including a protective structure and UNDER seat belts, to help protect occupants, but the best way to avoid injuries is to avoid acci- dents.
  • Page 107  Do not allow children who need child safety tomobiles, to promote safe driving behaviors, you should supervise younger drivers and seats or booster seats in the YXZ10YEXN / consider setting rules and putting limits on YXZ10YEZN. The seat belt is not designed how, when, and where the YXZ10YEXN / to restrain automotive child safety seats.
  • Page 108 Occupant protection system EWB03350 WARNING Do not make changes to the occupant pro- tection system. If you install aftermarket products or have your vehicle modified, you may put yourself and others at greater risk of serious injury or death. You are re- sponsible for any such changes to the ve- hicle.
  • Page 109 Protective structure Seat belts The vehicle cage/frame provides a protective Seat belts should be worn by the driver and structure that helps limit intrusions by branch- passenger. The driver must be sure that the es or other objects and may reduce your risk passenger is belted before driving.
  • Page 110 A crash can damage the restraint systems in 1. Hold the latch plate as you pull the belt your vehicle. A damaged restraint system across your lap and chest. Make sure the may not properly protect the person using it, belt is not twisted and is not caught on resulting in serious injury or death in a crash.
  • Page 111 6. Check if the seat belt shoulder position suits the size of the driver and passenger. To lower the belt, insert the belt into the seat belt height adjuster slot as shown. To raise the belt, remove the belt from the height adjuster slot.
  • Page 112 Doors Passenger handhold The doors are designed to reduce the likeli- The passenger handhold is provided to grip hood that you will stick your leg out to stop during operation to maintain proper position the vehicle from tipping over or for any other and balance.
  • Page 113 2. Slide the handhold to the desired position and align the holes in the handhold bar with the holes in the handhold supports. Adjust the handhold position as follows. 1. Remove the locking pins. 1. Handhold support 2. Handhold bar 3.
  • Page 114 1. Wire loop Floorboard Seat and shoulder bolsters The floorboard allows you to brace your feet, The seats and shoulder bolsters are designed which helps you keep your body in the vehicle to help keep you in the vehicle. Do not put in the event of an accident or rollover.
  • Page 115 the steering wheel could briefly jerk in one di- CORRECT GRIP EXAMPLE rection or back and forth as the tires and ve- hicle respond to the obstacle. This quick motion could injure your thumbs or wrist if your thumbs or hand(s) are inside the steering wheel.

  • Page 116: Learning To Operate Your Vehicle

     Eye protection (goggles, helmet face shield, EBU36754 LEARNING TO OPERATE YOUR VEHI- or protective eyewear)  Over-the-ankle boots, gloves, long-sleeved shirt or jacket, and long pants Personal protective equipment An approved helmet and other personal pro- tective equipment can help in a variety of ways, including: ...
  • Page 117 Practice for new Yamaha YXZ10YEXN / YXZ10YEZN users Become familiar with the performance char- acteristics of the vehicle in a large, flat area that is free of obstacles and other vehicles. Practice controlling the accelerator pedal, brakes, steering, and shift paddles. Drive at slow speeds with gradual acceleration and smooth turns.
  • Page 118 Getting ready to ride If you think or feel that the vehicle may tip or Perform the pre-operation checks on page roll, keep your body completely inside the 6-1. Follow the instructions on page 7-2 when protective structure of the vehicle: ...
  • Page 119 Braking Leaving the vehicle When slowing down or stopping, take your Do not get out of the vehicle while the engine foot off the accelerator pedal and press the is running. Take the key with when you leave brake pedal smoothly. Abrupt or improper the vehicle.
  • Page 120 Parking on a slope The parking brake is located on the rear drive You may need to turn the steering wheel left shaft. When the drivetrain is in “2WD” mode, and right to help the differential lock into pla- only the rear wheels will be locked. Therefore, switch the drive mode to “DIFF.
  • Page 121 See page Your Yamaha YXZ10YEXN / YXZ10YEZN has 5-32. higher ground clearance and other features to handle rugged terrain, and as a result, can...
  • Page 122 sense and remember that some hills are too over. Practice first on gentle slopes before at- steep for you to climb or descend. Use proper tempting steeper hills. Always check the driving techniques to avoid rearward, for- terrain carefully before attempting any hill. ward, or sideways rollovers on hills and To climb a hill, you need traction, momentum, slopes.
  • Page 123 then begin to coast down the hill. Use engine If you are sliding or skidding, try to steer in the braking as much as possible, gently applying direction the vehicle is sliding, to regain con- the brakes when necessary. trol. For example, if you feel the back of the vehicle start to slide to your right, steer to the Downhill right.
  • Page 124 Pavement Wet brakes may have reduced effectiveness. This vehicle is designed for off-road use only. After leaving the water, test the brakes. If nec- Avoid paved surfaces. Turn gradually and go essary, apply the brakes several times to let slowly if you must drive on pavement. friction dry them out.
  • Page 125 If you feel the vehicle begin to slide sideways muffler or exhaust pipe, or next to other hot or fishtail (rear-wheel sliding), steer into the di- parts. Check under the vehicle after operating rection of the slide if possible, to regain direc- in areas where combustible materials may tional control.
  • Page 126 If there is any question about your ability to maneuver safely over the obstacle, you should turn around if the ground is flat and you have the room or back up until you find a less difficult path. 8-22...

  • Page 127: Periodic Maintenance And Adjustment

    To avoid death during service or while using the ve- possible burns, let brake components cool hicle. If you are not familiar with vehicle before touching them. service, have a Yamaha dealer perform the service.

  • Page 128: Owner's Manuals

    Manual (YXZ10YEZN) in a vinyl bag and al- eration requiring one, take your vehicle to a ways carry them in the glove compartment as Yamaha dealer to check the torque settings shown. and adjust them as necessary. 1. Owner’s Manual...

  • Page 129: Maintenance Charts

    Even if the vehicle isn’t driven for the stated mileage or engine hours, the month maintenance intervals should still be followed. Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills. EBU35773...
  • Page 130 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours • Check for leakage. • Check for looseness and tighten all screw √ √ √ Exhaust system clamps and joints if necessary. •...
  • Page 131 EBU35804 General maintenance and lubrication chart INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours • Check coolant leakage. √ √ √ √ √ • Repair if necessary. Cooling system •...
  • Page 132 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours √ √ √ √ √ • Check oil level. Differential gear √ √ • Change. • Check operation and for fluid leakage. √...
  • Page 133 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours • Check balance, runout, and for damage. • Replace if necessary. √ √ √ √ • Replace wheel if damaged or if runout is 14 * Wheels over specified limits.
  • Page 134 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours Drive shaft uni- √ √ √ 21 * • Lubricate with lithium-soap-based grease. versal joint • Check for cracks or other damage, and re- 22 * Drive shaft seal Every 1000 km (600 mi)
  • Page 135  The service items contained herein should not be considered exhaustive, therefore: • have your YXZ10YEXN / YXZ10YEZN checked and serviced by your Yamaha dealer at reg- ular intervals. • replace any damaged or visibly worn part immediately.

  • Page 136: Hood

    EBU35080 Hood To remove Remove the bolts, and then pull the hood off as shown. EBU36932 Panels The panels shown need to be removed to perform some of the maintenance jobs de- scribed in this chapter. Refer to this section each time a panel needs to be removed and 1.
  • Page 137 Panel A To remove the panel 1. Unhook the projections as shown. 1. Panel A 2. Panel B 1. Panel A 2. Projection 2. Disconnect the interior light couplers (YXZ10YEZN), and then remove the pan- 1. Panel C 2. Panel D 9-11...
  • Page 138 YXZ10YEZN 1. Interior light coupler Panel B To install the panel To remove the panel 1. Connect the interior light couplers. 1. Remove the hood. (See page 9-10.) (YXZ10YEZN) 2. Remove panel A. 2. Place the panel in the original position. 3.
  • Page 139 1. Top cover 1. Passenger seat 2. Bolt 2. Bolt 3. Quick fastener screw 3. Seat belt 4. Remove the passenger seat cushion. 6. Remove the quick fastener screws and (See page 5-26.) the bolts, and then pull the panel off as 5.
  • Page 140 1. Panel B 1. Panel B 2. Quick fastener screw 2. Install the passenger seat by installing the 3. Bolt bolts, and then tighten them to the spec- To install the panel ified torque. 1. Place the panel in the original position, and then install the bolts and the quick Tightening torque: Passenger seat bolt:...
  • Page 141  Place the passenger seat belt in the original position. 3. Install the passenger seat cushion. 4. Install the top cover by installing the bolts and quick fastener screw. 5. Install panel A and the hood. Panels C and D To remove a panel 1.
  • Page 142 2. Remove the panel as shown. To install a panel 1. Place the panel in the original position. 1. Panel C 1. Panel C 1. Panel D 1. Panel D 9-16...

  • Page 143: Engine Oil And Oil Filter

    2. Turn the panel lock 1/4 turn counter- ECB03020 NOTICE clockwise, and then push the tab on the  Do not use oils with a diesel specifica- panel lock down so that it is pointing rear- tion of “CD” or oils of a higher quality ward.
  • Page 144 4. Remove the engine oil tank filler cap and wipe the dipstick with a clean rag. Add oil a little at a time so as not to overfill be- yond the maximum level mark. 7. Check the O-ring for damage, and re- place it if necessary.
  • Page 145 1. Engine oil tank cover 1. Engine oil tank filler cap 2. Bolt 4. Start the engine, warm it up for several minutes, and then turn it off. 5. Remove the engine oil tank filler cap and the cylinder head cap. 1.
  • Page 146 7. Remove the oil tank drain bolt and used gasket. 1. Engine oil drain bolt 2. Gasket 3. “ ” mark 1. Engine oil tank drain bolt 2. Gasket 8. Place an oil pan under the engine to col- A “ ”...
  • Page 147 Tightening torques: Engine oil drain bolt: 10 N·m (1.0 kgf·m, 7.4 lb·ft) Engine oil tank drain bolt: 16 N·m (1.6 kgf·m, 12 lb·ft) 11. Add 2.00 L (2.11 US qt, 1.76 Imp.qt) of the recommended engine oil to the oil tank.
  • Page 148 Be sure to wipe off spilled oil on any parts af- ter the engine and exhaust system have cooled down. 16. Install and tighten the engine oil tank filler cap. 17. Start the engine and let it idle for several minutes.
  • Page 149 1. Rear bottom panel 1. Center bottom panel 2. Bolt 2. Bolt 4. Remove the bolts, and then slide the cen- 5. Follow steps 2–9 of the “To change the ter bottom panel rearward to remove it. engine oil” section for the oil draining pro- cedure.
  • Page 150 An oil filter wrench is available from a Yamaha dealer. 1. O-ring 8. Install the new oil filter cartridge, and then tighten to the specified torque. Tightening torque: 1. Oil filter cartridge 2. Oil filter wrench Oil filter cartridge: 17 N·m (1.7 kgf·m, 13 lb·ft) 7.
  • Page 151 1. Torque wrench 1. Center bottom panel 9. Follow steps 10–20 of the “To change the engine oil” section for the oil filling proce- dure. 10. Slide the front portion of the center bot- tom panel into place as shown, and then hook the left and right sides of the center bottom panel into place.
  • Page 152 1. Bolt A 1. Bolt A 2. Bolt B 2. Bolt B 3. Bolt C 3. Bolt C Tightening torques: Bolt A: 7 N·m (0.7 kgf·m, 5.2 lb·ft) Bolt B: 7 N·m (0.7 kgf·m, 5.2 lb·ft) Bolt C: 7 N·m (0.7 kgf·m, 5.2 lb·ft) 12.

  • Page 153: Why Yamalube

    Bolt B: Why Yamalube 7 N·m (0.7 kgf·m, 5.2 lb·ft) YAMALUBE oil is a Genuine YAMAHA Part born of the engineers’ passion and belief that 13. Install the side panel bolts, and then tight- engine oil is an important liquid engine com- en them to the specified torque.

  • Page 154: Transmission Oil

    If necessary, Yamalube mineral, semisynthetic and syn- clean the filler cap and surrounding area. thetic oils have their own distinct characters and value. Yamaha’s experience gained over Recommended oil: many years of research and development into YAMALUBE oil since the 1960’s helps make Yamalube the...
  • Page 155 Add a sufficient amount to raise to the maxi- mum level mark, but do not overfill. 5. Check the O-ring for damage, and re- place it if necessary. 6. Install the transmission oil filler cap. 7. Install the panel. To change the transmission oil 1.

  • Page 156: Final Gear Oil

    Tightening torque: Transmission oil drain bolt: 20 N·m (2.0 kgf·m, 15 lb·ft) 6. Check the O-ring for damage, and re- place it if necessary. 7. Refill the transmission with the specified amount of the recommended oil. 8. Install the transmission oil filler cap. 9.
  • Page 157 ECB03590 NOTICE When checking or changing the final gear oil, make sure that no foreign material en- ters the final gear case. If necessary, clean the final gear oil filler bolt and surrounding area. Recommended oil: YAMALUBE 1. Final gear oil SAE 80W-90 API GL-5 Hypoid gear oil 2.
  • Page 158 4. Install the drain bolt and its new gasket, Tightening torque: and then tighten the bolt to the specified Final gear oil filler bolt: torque. 22 N·m (2.2 kgf·m, 16 lb·ft) Tightening torque: Changing the final gear oil Final gear oil drain bolt: 1.

  • Page 159: Differential Gear Oil

    2. Remove the differential gear oil filler bolt EBU36065 Differential gear oil and its gasket, and then check the oil lev- Check the oil level and change the differential el. It should be up to the brim of the filler gear oil at the intervals specified in the period- hole.
  • Page 160 5. Install the differential gear oil filler bolt and its gasket, and then tighten the bolt to the specified torque. Tightening torque: Differential gear oil filler bolt: 23 N·m (2.3 kgf·m, 17 lb·ft) Changing the differential gear oil 1. Park the vehicle on a level surface. 1.

  • Page 161: Coolant

    7. Install the differential gear oil filler bolt and its gasket, and then tighten the bolt If genuine Yamaha coolant is not available, to the specified torque. use an ethylene glycol antifreeze containing corrosion inhibitors for aluminum engines and Tightening torque: mix with distilled water at a 1:1 ratio.
  • Page 162 If water has been added to the coolant, have a Yamaha dealer check the antifreeze content of the coolant as soon as possible, otherwise the ef- fectiveness of the coolant will be re- duced.

  • Page 163: Axle Boots

    To change the coolant The coolant must be changed at the intervals specified in the periodic maintenance chart. Have a Yamaha dealer change the coolant. WARNING! Never attempt to remove the radiator cap when the engine is hot. [EWB04250] EBU32400 Axle boots Check the axle boots for holes or tears.
  • Page 164 Do not attempt to diagnose such problems yourself. Instead, have a Yamaha dealer check the vehicle. 1. Spark plug gap If a spark plug shows signs of electrode ero- Spark plug gap: sion and excessive carbon or other deposits, 0.7–0.8 mm (0.028–0.031 in)

  • Page 165: Air Filter Maintenance

    300–600 km (200–400 mi). The secondary air filter is more difficult to ac- cess, cannot be cleaned, and should be re- placed by a Yamaha dealer every 2000–5000 km (1200–3000 mi). 9-39...
  • Page 166 Additionally, the fuel injection system would be affected, resulting in poor engine Service the air filters more frequently when performance and possible overheating. operating in wet or dusty environments. Clean the primary air filter as follows. Whenever air filter maintenance is performed: 1.
  • Page 167 1. Foam air filter 1. Air filter case cover lock 2. Air filter case cover 3. Remove the foam air filter element from 3. Match mark the air filter frame. 2. Remove the foam air filter. 9-41...
  • Page 168 1. Foam air filter element 6. Wash the foam material in warm soapy 2. Air filter frame water to remove remaining solvent, then 4. Wash the foam material gently but thor- rinse thoroughly with plain warm water. oughly parts cleaning solvent.

  • Page 169: Cleaning The Air Filter Case Check Hoses

    9. Thoroughly apply Yamalube foam air filter oil (or other quality liquid foam air filter— Make sure that the match mark on the cover do not use a spray-type product) to the lock is aligned with the close match mark on foam material.

  • Page 170: Cleaning The Spark Arrester

    EBU35141 Cleaning the spark arrester EWB03370 WARNING Hot exhaust system may cause burns. To avoid burns or fires, make sure that the en- gine is stopped and the exhaust system is cool before cleaning the spark arrester. Do not start the engine while cleaning the ex- haust system.
  • Page 171 2. Remove the tailpipe bolts. 1. Gasket 2. Spark arrester 1. Tailpipe bolt 3. Tailpipe 3. Remove the tailpipe by pulling it out of 5. Install the gasket, and then insert the tail- the muffler, and then remove the gasket. pipe into the muffler and align the bolt 4.

  • Page 172: Valve Clearance

    To prevent this, the valve clear- 1.0 mm (0.04 in), have a Yamaha dealer re- ance must be adjusted regularly. This adjust- place the brake pads as a set.

  • Page 173: Checking The Parking Brake Pads

    If a brake pad has worn to the level marks. Replenish the brake and YCC-S point that the wear indicator groove has al- clutch fluids if necessary. most disappeared, have a Yamaha dealer re- place the brake pads as a set. 9-47...
  • Page 174 EWB04160 WARNING Improper maintenance can result in loss of braking ability or YCC-S clutch operation. Observe these precautions:  Insufficient brake or YCC-S clutch fluid may allow air to enter the brake or YCC-S clutch system, reducing braking or YCC-S clutch performance. ...

  • Page 175: Brake And Ycc-S Clutch Fluid Replacement

     Be careful that water or dust does not suddenly, have a Yamaha dealer check and enter the brake or YCC-S clutch fluid repair the vehicle before any further opera- reservoir when refilling. Water will signif- tion. icantly lower the boiling point of the fluid EBU36550 and may result in vapor lock.

  • Page 176: Checking The Brake Pedal

    Yamaha dealer check the YCC-S clutch. EBU32531 Checking the brake pedal Have a Yamaha dealer check the brakes at the intervals specified in the periodic mainte- nance chart. There should be no free play in the brake pedal. The brakes should operate smoothly and there should be no brake drag.

  • Page 177: Parking Brake Lever Free Play Adjustment

    1. Accelerator pedal 1. Parking brake lever free play 2. Accelerator pedal free play 3. Remove panel B. (See page 9-10.) 4. Release the parking brake lever. EBU35195 Parking brake lever free play adjust- 5. Slide the rubber cover back on the park- ment ing brake cable.

  • Page 178: Brake Light Switch

    The brake light, which is activated by the brake pedal, should come on just before braking takes effect. Since the brake light switch is a component of the YCC-S system, it must be adjusted by a Yamaha dealer, who has the necessary professional knowledge and experience. EBU32561 1.

  • Page 179: Pedal Lubrication

    Lubricate the cable ends. If the cables do not Recommended lubricant: operate smoothly, ask a Yamaha dealer to re- Lithium-soap-based grease place them. EBU32583 Checking the stabilizer bushes Recommended lubricant: Yamalube LubezAll The stabilizer bushes must be checked for cracks or damage at the intervals specified in EBU36760 the periodic maintenance chart.

  • Page 180: Upper And Lower Arm Pivot Lubrication (Left And Right)

    Rear Front Rear EBU35211 Upper and lower arm pivot lubrication (left and right) Lubricate the upper and lower arm pivots with a grease gun. Recommended lubricant: Lithium-soap-based grease 9-54...

  • Page 181: Rear Knuckle Upper And Lower Pivot Lubrication (Left And Right)

    EBU32590 Rear knuckle upper and lower pivot lu- brication (left and right) Lubricate the knuckle upper and lower pivots with a grease gun. Recommended lubricant: Lithium-soap-based grease EBU32600 Steering shaft lubrication Lubricate the pivot points. Recommended lubricant: Lithium-soap-based grease Recommended lubricant: Lithium-soap-based grease EBU35220 Drive shaft universal joint lubrication...

  • Page 182: Wheel Removal

    1. Wheel nut EBU32610 Wheel removal EBU35833 Checking and tightening the bead lock 1. Loosen the wheel nuts. (YXZ10YEZN) 2. Elevate the vehicle and place a suitable Check the bead lock at the intervals specified stand under the frame. in the periodic maintenance chart and when- 3.

  • Page 183: Tire Replacement

    Never replace just one tire. EWB03390 WARNING 1. Bead lock Installing improper tires on your Yamaha 2. Bolt YXZ10YEXN / YXZ10YEZN can affect han- Tighten the bead lock bolts to the specified dling and stability. This can cause a loss of torque in a crisscross pattern.

  • Page 184: Wheel Installation

    EWB03400 Front tire: WARNING Size: Do not reverse the rims on your Yamaha 29 x 9.00R-14NHS YXZ10YEXN / YXZ10YEZN to widen the Manufacturer/model: track width. Installing wheels improperly MAXXIS/M917 / BIGHORN (YXZ10YEXN) MAXXIS/ML19A CARNAGE increases the risk of wheel failure and ac- (YXZ10YEZN) cidents.
  • Page 185 EWB03410 EWB03420 WARNING WARNING Avoid battery contact with skin, eyes, or Batteries may produce explosive gases. clothing. Shield eyes when working near Ventilate when charging or using in a batteries. Keep out of reach of children. closed space. Keep batteries away from You could be poisoned or severely burned sparks, flames, cigarettes, or other sourc- by the sulfuric acid in battery electrolyte.
  • Page 186 [ECB01002]  Select a suitable charger and follow the manufacturer’s instructions, or have a Yamaha dealer charge it for you. 9-60...
  • Page 187  Keep in mind that the battery tends to dis- ECB00942 NOTICE charge more quickly if the vehicle is  Always keep the battery charged. Stor- equipped with optional electrical accesso- ing the battery in a discharged state for ries. an extended period of time will cause ECB00933 NOTICE...

  • Page 188: Jump-Starting

    EBU35244 Jump-starting Jump-starting the vehicle should be avoided. The battery should be removed and charged instead. EWB03430 WARNING To avoid battery explosion and/or serious damage to the electrical system:  Do not connect the negative lead of the jumper cable to the negative terminal of 1.
  • Page 189 4. Using a charged 12-volt battery, connect face of the passenger seat frame near the the positive lead of the jumper cable to center console in the YXZ10YEXN / the positive terminal of the battery in the YXZ10YEZN. YXZ10YEXN / YXZ10YEZN and the other end of the positive lead to the positive terminal of the charged battery.

  • Page 190: Fuse Replacement

    EBU35255 Fuse replacement The main fuse, the fuel injection system fuse, the EPS fuse, and the fuse box are located under panel A. (See page 9-10.) 1. Headlight fuse “HEAD” 2. Signaling system fuse “SIGNAL” 3. Four-wheel-drive motor fuse “DIFF” 4.
  • Page 191 ECB00641 Specified fuses: NOTICE Main fuse: To prevent accidental short-circuiting, 50.0 A turn off the main switch when checking or Fuel injection system fuse: replacing a fuse. 15.0 A Headlight fuse: 2. Remove panel A. (See page 9-10.) 15.0 A 3.

  • Page 192: Headlights

    There are no user replaceable bulbs. If one or more headlights do not come on, check for a loose connection, check the headlight fuse, and then have a Yamaha dealer check the ve- hicle.  When the headlights are set to low beam, only the top half of each lamp will illuminate.

  • Page 193: Headlight Beam Adjustment

    EBU32681 Headlight beam adjustment ECB00691 NOTICE It is advisable to have a Yamaha dealer make this adjustment. 1. Headlight beam adjusting screw To raise the beam, turn the headlight beam adjusting screw in direction (a).

  • Page 194: Brake/Tail Light

    If your vehicle EBU37910 Brake/tail light requires any repair, take it to a Yamaha deal- This model is equipped with an LED brake/tail light, there are no replaceable bulbs. The skilled technicians at a Yamaha dealer-...

  • Page 195: Troubleshooting Charts

    Remove the spark plugs and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the compression. 4. Compression The engine does not start. There is compression.
  • Page 196 Restart the engine. If the engine overheats again, ask a Level is OK. Yamaha dealer to inspect and/or repair the cooling system.  Tap water can be used in an emergency. Change to the recommended coolant as soon as possible.

  • Page 197: Cleaning And Storage

    may have reduced stopping ability, in- EBU32720 CLEANING AND STORAGE creasing the chance of an accident. NOTICE: Excessive water pres- EBU35922 [EWB03471] Cleaning sure may cause water seepage and Frequent, thorough cleaning of your vehicle deterioration wheel bearings, will not only enhance its appearance but will brakes, transmission seals and electri- improve its general performance and extend cal devices.

  • Page 198: Storage

    Do not apply oil to for storage as follows: any rubber parts or the seat covers. 1. Fill the fuel tank with fresh fuel and add the specified amount of Fuel Med Rx, available from your Yamaha dealer, or 10-2...
  • Page 199 30 °C [90 °F] or less than 0 °C [32 °F]). Use of Fuel Med Rx or another high-quality fuel stabilizer eliminates the need to drain the fuel system. Consult a Yamaha dealer if the fuel system needs to be drained. 10-3...

  • Page 200: Specifications

    EBU32751 SPECIFICATIONS Dimensions: Valve train: DOHC Overall length: Cylinder arrangement: 3147 mm (123.9 in) (YXZ10YEXN) Inline 3252 mm (128.0 in) (YXZ10YEZN) Number of cylinders: Overall width: 3-cylinder 1626 mm (64.0 in) (YXZ10YEXN) Displacement: 1636 mm (64.4 in) (YXZ10YEZN) 998 cm³ Overall height: Bore ×...
  • Page 201 Recommended engine oil grade: Final gear oil: API service SG type or higher, JASO standard MA Type: SAE 80W-90 API GL-5 Hypoid gear oil 130 ˚F Quantity: 0.47 L (0.50 US qt, 0.41 Imp.qt) SAE 5W-30 Differential gear oil: Type: SAE 10W-30 SAE 80W-90 API GL-5 Hypoid gear oil SAE 10W-40...
  • Page 202 2nd: Rear suspension: 1.545 (34/22) Type: 3rd: Double wishbone 1.192 (31/26) Electrical system: 4th: System voltage: 0.962 (25/26) 12 V 5th: Battery: 0.806 (25/31) Model: Front tire: U1-H11L Size: Voltage, capacity: 29 x 9.00R-14NHS 12 V, 28.0 Ah Manufacturer/model: Lights: MAXXIS/M917 / BIGHORN (YXZ10YEXN) Headlight: MAXXIS/ML19A CARNAGE (YXZ10YEZN)

  • Page 203: Consumer Information

    EBU32775 CONSUMER INFORMATION EBU32820 EBU38940 Vehicle Emission Control Information Emission Regulation (California) label An add-on or modified part must be compli- The Vehicle Emission Control Information la- ant with applicable ARB evaporative emission bel is affixed at the location in the illustration. control standards.
  • Page 204 Policy. Privacy Policy https://yamaha-motor.com/privacy-policy (for USA) Yamaha will not disclose this data to a third party except in the following cases. In addi- tion, Yamaha may provide vehicle data to a contractor in order to outsource services re- lated to the handling of vehicle data. Even in...

  • Page 205: Noise Regulation (For Usa)

    EBU32831 NOISE REGULATION (for USA) TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED: Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering in- operative by any person other than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

  • Page 206: Maintenance Record

    EBU35843 MAINTENANCE RECORD Copies of work orders and/or receipts for parts you purchase and install will be required to do- cument maintenance done in accordance with the warranty. The chart below is printed only as a reminder to you that the maintenance work is required. It is not acceptable proof of mainte- nance work.

  • Page 207: Yamaha Motor Corporation

    EBU32856 YAMAHA MOTOR CORPORATION, U.S.A. 2020 AND LATER MODEL SIDE-BY- SIDE LIMITED WARRANTY (for USA) Yamaha Motor Corporation, U.S.A. hereby warrants THE CUSTOMER’S RESPONSIBILITY under this YAMAHA MOTOR CORPORATION, U.S.A. MAKES that new Yamaha Side-by-Side models purchased warranty shall be to:...

  • Page 208: Warranty (For Usa)

    Attention: Warranty Department 3. Each Yamaha Side x Side dealer is held responsible for his setup, service and war-ranty repair work. This will ensure that Yamaha Motor Corporation, U.S.A. has an up-to-date registration record in accordance with federal law.

  • Page 209: Yamaha Extended Service (Y.e.s.) (For Usa)

    This excellent Y.E.S. plan coverage is only available to dealer to see how comfor ting uninterr upted factor y- Yamaha owners like you, and only while your Yamaha is still backed protection can be. within the Yamaha Limited Warranty period. So visit your authorized Yamaha dealer to get all the facts.
  • Page 210 Yamaha. See your dealer today! A special note: YAMAHA EXTENDED SERVICE If visiting your dealer isn’t convenient, contact Yamaha with your Vehicle Identification Number. We’ll be happy to help you get the Y.E.S. coverage you need. Yamaha Service Marketing P.O. Box 6555...

  • Page 211: Index

    INDEX Data recording, vehicle ..........12-1 Differential gear lock indicator light ....... 5-3 Differential gear oil, Periodic maintenance ....9-33 Accelerator pedal ............5-22 Differential gear, Pre-operation check ......6-6 Accelerator pedal, checking ........9-50 Doors ................5-25 Accelerator pedal, Pre-operation check ......6-6 Drive mode, selecting ..........
  • Page 212 Maintenance record ............. 12-4 Model label ..............1-1 Glove compartment .............5-30 Multi-function meter unit ..........5-10 Half clutch indicator light ..........5-6 Neutral indicator light ............. 5-2 Headlight beam, adjusting ...........9-67 Noise regulation (for USA) ..........12-3 Headlights ..............9-66 Helmet reminder light .............5-9 High beam indicator light ..........5-3 Owner’s Manuals ............
  • Page 213 Spark arrester, cleaning ..........9-44 Spark plugs, checking ..........9-37 Yamaha Adventure Pro powered by Magellan® Specifications .............. 11-1 (for USA) ..............5-50 Stabilizer bushes, checking ......... 9-53 Yamalube ..............9-27 Starting the engine ............7-2 YCC-S clutch ............... 9-49 Steering, Pre-operation check ........
  • Page 215 EBU32880 For your best ownership experience, think Genuine Yamaha! Genuine Yamaha Parts – Genuine Yamaha replacement parts are the exact same parts as the ones originally equipped on your vehicle, providing you with the performance and durability you have come to expect.
  • Page 216 PRINTED IN USA 2022.01-0.3×1 CR (E)

This manual is also suitable for:

Yxz10yexnYxz10yezn

Table of Contents
