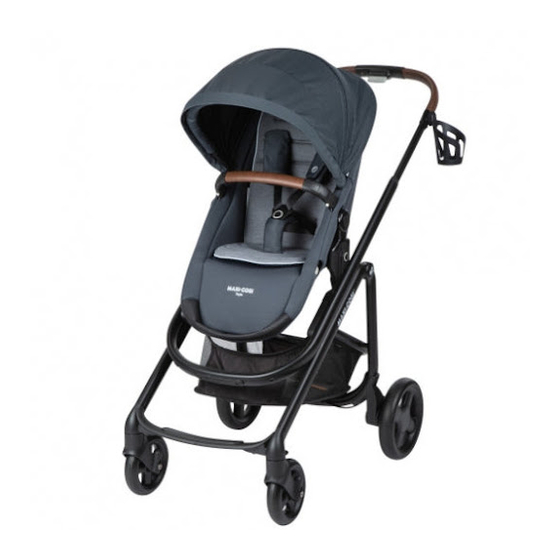

Maxi-Cosi Tayla CV369 Instructions Manual

Maxi-Cosi Tayla CV369 Instructions Manual

Modular strolle

Advertisement

Quick Links

Tayla
TM
Modular Stroller
Max 50 lb (22.67 kg)
Instructions
CV369, TR428
4358-7811 3.16.20
KEEP INSTRUCTIONS FOR FUTURE USE.
Read all instructions before using this stroller.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tayla CV369 and is the answer not in the manual?

Questions and answers

Summary of Contents for Maxi-Cosi Tayla CV369

  • Page 1 Tayla Modular Stroller Max 50 lb (22.67 kg) Instructions CV369, TR428 4358-7811 3.16.20 KEEP INSTRUCTIONS FOR FUTURE USE. Read all instructions before using this stroller.
  • Page 2 Safety Information WARNINGS FOR THE SAFETY OF YOUR CHILD, PLEASE READ THE FOLLOWING WARNINGS AND ASSEMBLY INSTRUCTIONS AND KEEP FOR FUTURE REFERENCE. • Adult assembly required. CAUTION: Keep small parts away from children during assembly. • NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when in stroller. •...
  • Page 3 • NEVER place or hang parcels, bags, or accessories on the handle or canopy. The stroller may tip over or the canopy may collapse. • This product will become unstable if a parcel bag or rack is used when there is no provision for one.
  • Page 4: Table Of Contents

    Contents Parts of Stroller ........Adjusting Canopy & Footrest ..... Installing Wheels ........Privacy Shade & Storage Basket Use ..Unfolding Stroller Frame ......Adjusting Stroller Seat Harness Straps ..Adjusting Handle ........Securing Child in Stroller Seat ....Using Parking Brake and Folding Stroller ........
  • Page 5: Parts Of Stroller

    If any parts are missing, do not • Phone: 1-800-951-4113 return this product to the • Text: 1-812-652-2525 It is located on a label on the place of purchase. stroller frame. • Chat: www.maxi-cosi.com...
  • Page 6: Installing Wheels

    Installing Wheels Front Swivel Wheels Rear Wheels click! click! Attach the front Attach the rear wheels. Finished! swivel wheels. NOTE: Pull out on the wheels to make sure they are secured.
  • Page 7: Unfolding Stroller Frame

    Unfolding Stroller Frame Release Buttons • Slide the stroller frame release button to either the left or right. • Then squeeze the handle adjustment button. • Hold them together. click! Place your foot on the storage basket frame. • Push your foot down to start Finished! unfolding.
  • Page 8: Adjusting Handle

    Adjusting Handle This stroller’s handle is adjustable and has 5 positions: 4 strolling heights and 1 storage. Adjust to a strolling height that is comfortable for you. Handle Height Adjustment Button Squeeze the handle Lift or lower the handle DO NOT use with the adjustment button and to your desired position.
  • Page 9: Using Parking Brake And Locking Swivel Wheels

    Using Parking Brake & Locking Swivel Wheels Rear Wheels To Lock Parking Brake To Release Parking Brake Front Swivel Wheels To Lock Swivel Wheels To Release Swivel Wheels click! click! • The wheels must face forward • Firmly pull the lock tabs as shown.
  • Page 10: Attaching Car Seat To Stroller Frame

    Attaching Car Seat to Stroller Frame Illustrations show a generic car seat icon. Seat Receivers Car Seat Adapters click! click! Install the seat receivers to the stroller frame fi xtures. Match the Match the colored dots on the adapters with the colored dots on the receivers with the colored dots on the fi...
  • Page 11: Removing Car Seat From Stroller Frame

    Removing Car Seat from Stroller Frame Illustrations show a generic car seat icon. Locate the stroller release buttons on the car While holding the stroller seat and hold them in. release buttons in, lift the car seat off the stroller frame. Please review your car seat’s instruction manual to locate the stroller release buttons.
  • Page 12: Attaching Stroller Seat Forward-Facing

    Attaching Stroller Seat Forward-Facing click! Seat Receivers Install the seat receivers to the stroller frame fi xtures. Match the colored dots on the receivers with the colored dots on the fi xtures. click! click! Attach the seat Attach the bumper bar to the receivers.
  • Page 13: Removing Stroller Seat From Stroller Frame

    Removing Stroller Seat from Stroller Frame Removing Stroller Seat from Receivers Press each of the release buttons and lift the stroller seat up to remove it from the stroller. Removing Seat Receivers from Stroller Frame You can fold and store the stroller frame with the receivers still attached. Press and hold the release buttons in while lifting the receivers up to remove them from the stroller frame.
  • Page 14: Attaching Stroller Seat Rear-Facing

    Attaching Stroller Seat Rear-Facing click! Press each of the release buttons and lift the Turn the stroller seat stroller seat up to remove it from the stroller. rear-facing and reattach it to the receivers. Finished!
  • Page 15: Reclining Stroller Seat

    Reclining Stroller Seat This stroller seat has multiple recline positions. Adjust to a position that is comfortable for your child. Extend the stroller handle to one of the 4 strolling Lift the recline lever to heights that is comfortable for you. recline the stroller seat.
  • Page 16: Adjusting Canopy & Footrest

    Adjusting Canopy & Footrest Adjusting Canopy Pull the canopy forward. Lift the fabric to access the Peek-a-Boo window. Adjusting Footrest The footrest does not lock into the lowest position. To lower footrest, press the footrest adjustment buttons To raise footrest, pull the and push down on the footrest.
  • Page 17: Privacy Shade & Storage Basket Use

    Privacy Shade & Storage Basket Use Unzip the storage pocket in the canopy and pull Pull the privacy shade down and tuck it around the privacy shade out. the front of the stroller seat footrest. Storing Privacy Shade Storage Basket Fold the privacy shade up and tuck into the storage pocket in the canopy.
  • Page 18: Adjusting Stroller Seat Harness Straps

    Adjusting Stroller Seat Harness Straps As your child grows, you will need to adjust the harness strap height. Harness System Press the buttons Unbuckle. From the back of the on both sides of the seat, unzip the stroller bumper bar to remove. seat’s back panel.
  • Page 19 WARNINGS STROLLER mode is for use with children who can sit up unassisted and is NOT recommended for newborns. NEVER use stroller without the harness system. Zip the back panel. To Shorten Harness Strap To Lengthen Harness Strap Hold the long end of the strap Hold the short end of the strap and then push it up.
  • Page 20: Securing Child In Stroller Seat

    Securing Child in Stroller Seat Unbuckle. Place your child in the Fit the top buckle tongue stroller seat. over the bottom buckle tongue. Hold them together. WARNINGS • NEVER LEAVE CHILD UNATTENDED. Always keep child in view when in stroller. • AVOID SERIOUS INJURY from falling or sliding out.
  • Page 21: Folding Stroller

    Folding Stroller Sliding Stroller Release Button • Slide the stroller frame release button to either the left or right. Handle Adjustment • Then squeeze the handle adjustment button. Button • Hold them together until the stroller starts to fold. • Then release the sliding stroller release button, but continue to squeeze the handle adjustment button and lower the handle to the storage position.
  • Page 22: Removing & Installing Stroller Seat Pad

    Removing & Installing Stroller Seat Pad The stroller seat pad is reversible. One side is for colder weather and the other for hotter weather. Press the buttons Unbuckle. Undo the harness From the back of the on both sides of the straps from the seat, unzip the stroller bumper bar to remove.
  • Page 23 Push the harness covers’ Pull the harness cover Undo the fastening strip Pull the seat pad out of retainers through the out of the harness slot. on the harness straps. the stroller seat. harness slots. Thread the harness Attach the fastening Flip the pad to the straps through the slots strip on the harness...
  • Page 24 Pull the buckle through Push the harness Pull the harness covers’ the slot in the seat pad. covers’ retainers into retainers through the the harness slot closest harness slots. to your child’s shoulders. Attach the harness Zip the back panel. Attach the bumper bar.
  • Page 25: Accessoy Use & Care

    Accessory Use & Care Rain Shield Cup Holder todmU Secure the cup holder to the attachment. Spot clean Hand wash Machine wash 30°C, gentle Do not wash Do not bleach Do not tumble dry Do not iron Do not dry clean WARNINGS •...
  • Page 26: Wash & Care Of Stroller Parts

    Wash & Care of Stroller Parts Spot clean Hand wash Machine wash 30°C, gentle Do not wash Do not bleach Do not tumble dry Do not iron Do not dry clean...
  • Page 27: Dorel Juvenile Group Information

    Text: 1-812-652-2525 If you have questions or any concerns with this stroller, please contact our Consumer Care Department. Chat: www.maxi-cosi.com For parts availability and questions, please contact us via phone, text, or chat. Hours of Operation: Include the model number and manufacture date...
  • Page 28 Max 50 lb (22.67 kg) ©2020 Dorel Juvenile Group, Inc. (800) 951-4113 www.maxi-cosi.com. Styles and colors may vary. Les styles et les couleurs peuvent varier. Made in CHINA. Fabriqué en CHINE. Distributed by (distribué par) Dorel Juvenile Group, Inc., 2525 State St., Columbus, IN 47201-7494. Dorel Juvenile Canada, 2855 Argentia Road, Unit 4, Mississauga, ON L5N 8G6.
