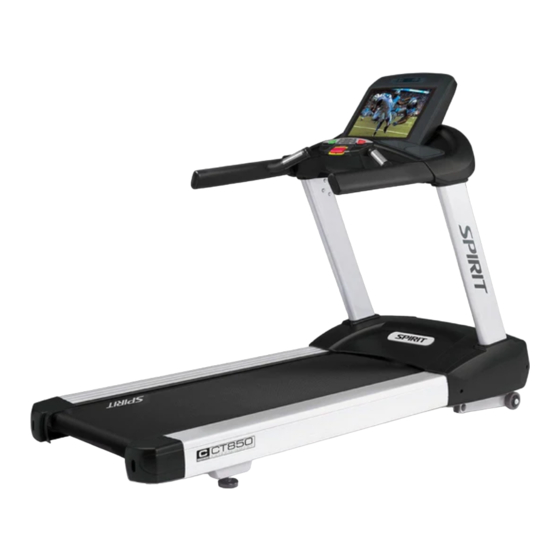

Page 1 CT850ENT TREADMILL OWNER’S MANUAL...
Page 2 Spirit Fitness...
Page 3: Table Of Contents
TABLE OF CONTENTS PRODUCT REGISTRATION IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS CT850ENT ASSEMBLY INSTRUCTIONS CONSOLE OPERATION TOUCH SCREEN OPERATION ENTERING PROGRAMS PROGRAM DISPLAY HEART RATE PROGRAMS GENERAL MAINTENANCE TROUBLESHOOTING MANUFACTURER’S LIMITED WARRANTY EXPLODED VIEW PARTS LIST Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual.
Page 4 Congratulations on your new Treadmill and welcome to the Spirit Fitness family! Thank you for your purchase of this quality Treadmill from Spirit Fitness. Your new Treadmill was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Page 5 RECORD YOUR SERIAL NUMBER Serial Number Location Please record the serial number of this fitness product in the space provided below. Serial Number: REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to Spirit Fitness.
Page 6: Important Safety Instructions
IMPORTANT SAFETY Keep children away from the treadmill. There are obvious • pinch points and other caution areas that can cause harm. INSTRUCTIONS Keep hands away from all moving parts. • WARNING Never operate the treadmill if it has a damaged cord or plug. •...
Page 7: Important Electrical Instructions
under your warranty. If you suspect the voltage or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the is low, contact your local power company or a appliance by a person responsible for their safety. licensed electrician for proper testing.
Page 8: Important Operation Instructions
GROUNDING INSTRUCTIONS grounded outlet is not available. The temporary This product must be grounded. If the treadmill adapter should be used only until a properly should malfunction or breakdown, grounding grounded outlet, (shown below) can be installed provides a path of least resistance for electric by a qualified electrician.
Page 9 adjustment button. The computer will obey the command gradually. Use caution while participating in other activities while • on your Treadmill; such as watching television, reading, etc. These distractions may cause you to lose balance which may result in serious injury. Do not use excessive pressure on console control •...
Page 10 CT850ENT PRE-ASSEMBLY UNPACKING TOOLS INCLUDED: ‰ 3/8”Allen Wrench 1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over ‰ 10mm Allen Wrench the unit and unpack. ‰ Phillips Screwdriver 2. Locate the hardware package. The hardware is separated into four steps. Remove the tools first.
Page 11 CONSOLE CONSOLE FAN HAND PULSE SENSORS CUP HOLDER HANDRAILS SAFETY KEY CONSOLE MAST MOTOR COVER SIDE RAILS RUNNING BELT/DECK TREAD-BELT TRACKING www.spiritfitness.com...
Page 12 CT850ENT STEP ONE HARDWARE FOR STEP 1 PART TYPE DESCRIPTION Flat Washer Ø3/8” × 35 × 2.0T Split Washer Ø10 × 2T Philips Head Screw M5 × 12m/m Button Head Socket Bolt 3/8” × 3” 1. Thread the all Cables (No.53/80/82/84) up through the center of the Right Upright Column (No.9).
Page 13 CT850ENT STEP TWO HARDWARE FOR STEP 2 PART TYPE DESCRIPTION Flat Washer Ø3/8” × Ø25 × 2.0T Ø10 × 2T Split Washer Button Head Socket Bolt 3/8” × 3/4” Socket Head Cap Bolt M8 × 12m/m Ø8 × Ø16 × 2T Flat Washer On the underside of the Console Support (No.5) is where...
Page 14 CT850ENT STEP THREE HARDWARE FOR STEP 3 PART TYPE DESCRIPTION Split Washer Ø10 × 2T Button Head Socket Bolt 3/8” × UNC16 × 1-1/4” Curved Washer Ø10 × Ø23 × 1.5T Round Cap 1. Further secure the uprights by inserting a Button Head Socket Bolt (No.154) through a Split Washer...
Page 15 CT850ENT STEP FOUR HARDWARE FOR STEP 4 PART TYPE DESCRIPTION Split Washer 5/16” × 1.5T Phillips Head Screw M5 × 12m/m Flash Washer Ø8 × Ø16 × 2T M8 × P1.25 × 20L Socket Head Cap Bolt 1. Place the Console Assembly (No.38) onto the Console Support (No.5).
Page 16: Console Operation
CT850ENT CONSOLE OPERATION Spirit Fitness...
Page 17 Touchscreen Adjustable fan angle Tablet-friendly USB Charging reading rack port Cell Phone Convenient Ledge accessory trays Small Tray Storage Start, Stop, Speed, and Contact Heart Safety Key Incline controls Rate Grips www.spiritfitness.com...
Page 18 STARTING OPERATION • Plug in the power cord and switch on the main power switch located at the front of the treadmill. Make sure the safety key is inserted (machine will not operate without the presence of the safety key.) •...
Page 19 FUNCTIONS OF THIS TREADMILL The touchscreen is used for operating most functions of the treadmill. You can directly touch any button on the screen, or use the Quick Operating Buttons to control the treadmill’s various functions. The Speed ▲/▼ buttons control the speed, the Start button begins the workout, the Stop button will pause or stop the workout, and Incline ▲/▼...
Page 20 Pulse values are displayed anytime the computer is receiving a signal from the hand pulse sensors. You may use the hand pulse sensors while in Heart Rate Control. The CT850ENT will also pick up wireless heart rate transmitters that are Polar and Bluetooth compatible.
Page 21: Touchscreen Operation
TOUCHSCREEN OPERATION LANGUAGE There are 13 languages to choose from. Select your desired language by tapping it on the screen. Once selected, the system will return to the Home Screen with your new language being used. To return to the Home Screen with- out selecting a new language, press the Home button in the upper left corner of the screen.
Page 22 ENTERTAINMENT OPTIONS From the Home Screen, tap Entertainment to go to the entertainment menu. You will be given the options of Screen Mirroring and TV mode interface. TV Mode When properly connected to the Set-Top Box (STP) via the HDMI port and TV mode selected, you can enjoy TV programs after selecting TV mode from the Entertainment screen on your treadmill.
Page 23 SCREEN MIRRORING When Screen Mirroring is selected from the Entertainment screen, you may begin pairing your device. Screen Mirroring displays your phone's screen on the touchscreen of the treadmill. Please note that your device must be running iOS 8 or higher. 1.
Page 24 SCREEN MIRRORING Android Screen Mirroring displays your phone's screen on the touchscreen of the treadmill. 1. Connect your phone or tablet to the facility’s WiFi. 2. Scan the QR code or search for “Spirit Mirroring” in the Google Play store on your phone or tablet.
Page 25: Entering Programs
ENTERING A PROGRAM & CHANGING SETTINGS When the Exercise Programs button is selected from the Home Screen, the screen displays a menu of the different programs available: Manual, Hill, Fat Burn, Cardio, Interval, Heart Rate 1, Heart Rate 2, Custom, 5k Run, 10k Run, HIIT, and Fitness Test. To select and start a preset program: 1.
Page 26 Spirit Fitness...
Page 27 EXERCISE PROGRAM CHANGING THE WORKOUT DISPLAY During your workout, you may change the display based on the view that works best for your needs. Once your workout begins, you will see 3 preset views available at the bottom of the screen: Simple, Track, and Dashboard.
Page 28 EXERCISE PROGRAM DASHBOARD To switch the display to Dashboard view, simply tap the Dashboard button at the bottom of the screen. This view shows a virtual dashboard mimics a typical treadmill display with information that corresponds with the current workout. Metrics such as elapsed Distance, Calories/Hr, Calories, Total Time, Heart Rate, and Pace are displayed as well as other exercise data.
Page 29 PRESET PROGRAMS SPEED/INCLINE SETTINGS The preset program Speed and Incline levels are shown in the chart below. The Speed numbers shown in the chart indicate a percentage of the top speed of the program. For instance, the first Speed setting for HILL (Program 1, HILL) shows the number 20.This means that this segment of the program will have a speed that is 20% of the top speed for the program (The user sets the top speed in the procedure above).
Page 30 MANUAL Both Speed and Incline are controlled by the user. Increase or decrease levels at any time during your workout. Spirit Fitness...
Page 31 HILL Speed: This program follows a triangle or pyramid type of gradual progression from approximately 10% of maximum effort (the level that you choose before starting this program) up to a maximum effort which lasts for 10% of the total workout time, then a gradual regression of Speed back to approximately 10% of maximum effort Incline: The deck elevation is a more gradual and...
Page 32 CARDIO Speed: This program presents a quick progression up to near maximum speed level (default or user input level). It has slight fluctuations up and down to allow heart rate to elevate, and then recover repeatedly, before beginning a quick cool down. This will build up your heart muscle and increase blood flow and lung capacity.
Page 33 INTERVAL Speed: This program takes you through high levels of intensity followed by recovery periods of low intensity. This program utilizes and develops your “Fast Twitch” muscle fibers which are used when performing tasks that are intense and short in duration.
Page 34 CUSTOM You will create the desired speed and incline levels for each of the 20 segments of the program using the keyboard on the screen. You may change these levels at any time during the workout. TO BEGIN A CUSTOM PROGRAM: 1.
Page 35 HIIT PROGRAM The HIIT, or High Intensity Interval Training, program takes advantage of the latest trend in fitness. During the program you will perform short bursts of high intensity sprinting followed by short rest periods. HIIT is a fully customizable interval training program. You can enter the number of intervals, time of each interval Sprint and Rest periods and the work intensity of the levels.
Page 36 FITNESS TEST When the Fitness Test button is selected from the Exercise Programs Menu screen, the screen displays the different preset tests available: Coast Guard, Navy, Air Force, Army, Gerkin, Marine Corps, and Physical Efficiency Battery (PEB). Tap the test you would like to begin. Before the Test: During the GERKIN Test: Make sure you are in good health;...
Page 37 AIR FORCE A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test is shown on the table: For more detailed information, visit: http://bit.ly/SF-AirForce ARMY A timed 2 mile run. You control the speed manually. Maximum time allowed to pass the test is shown on the table.
Page 38 NAVY A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test is shown on the table: For more detailed information, visit: http://bit.ly/SF-Navy MARINES A timed 3 mile run. You control the speed manually. Maximum time allowed to pass the test is shown on the table: For more detailed information, visit: http://bit.ly/SF-Marines...
Page 39 GERKIN The Gerkin protocol, also known as the fireman’s protocol, is a sub-max VO2 (volume of oxygen) test. The test will increase speed and elevation alternately until you reach 85% of your Max heart rate. The time it takes for you to reach 85% determines the test score (VO2max) as shown in the chart below.
Page 40 GERKIN VALUE TABLE Spirit Fitness...
Page 41 What Your Score Means: VO2MAX CHART FOR MALES AND VERY FIT FEMALES www.spiritfitness.com...
Page 42 PEB (PHYSICAL EFFICIENCY BATTERY) FOR U.S. FEDERAL LAW ENFORCEMENT A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test is shown on the table: For more detailed information, visit: https://www.fletc. gov/peb-scores-age-and-gender COAST GUARD A timed 1.5 mile run.
Page 43: Heart Rate Programs
HEART RATE PROGRAMS Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate via information from pulse grips or wireless chest strap (sold separately). Increases and decreases in elevation affect heart rate much more efficiently than changes in speed alone. The HRC program automatically changes elevation gradually to achieve the programmed target heart rate.
Page 44 RATE OF PERCEIVED EXERTION There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout. The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish physiologist G.A.V.
Page 45 TARGET HEART RATE The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.
Page 46 If you enter your age during programming the console will perform this calculation automatically. Entering your age is used for the Heart Rate programs. After calculating your MHR you can decide upon which goal you would like to pursue. The two most popular reasons for, or goals, of exercise are cardiovascular fitness (training for the heart and lungs) and weight control.
Page 47 WEARING THE CHEST STRAP (SOLD SEPARATELY) 1. Attach the transmitter to the elastic strap using the interlocking button. 2. Adjust the strap as tightly as possible while ensuring it is still comfortable. 3. Position the transmitter with the logo centered in the middle of your torso facing away from your chest (some people must position the transmitter slightly left of center).
Page 48 ERRATIC OPERATION Caution! Do not use this treadmill for Heart Rate programs unless a steady, solid Actual Heart Rate value is being displayed. High, wild, random numbers being displayed indicate a problem. Areas to look for interference which may cause erratic heart rate: 1.
Page 49 SAFETY TETHER CORD A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It is for your safety should you fall or move too far back on the treadbelt. Pulling this safety tether cord will stop treadbelt movement.
Page 50: General Maintenance
GENERAL MAINTENANCE Unplug treadmill before performing any maintenance. Semi- Task How To Daily Weekly Monthly Annually Annually Damp cloth w/ Wipe Down Unit water Clean Under Belt Towel or vacuum Check Belt Tension/Tracking Feel/Visual Clean Under Motor Cover Vacuum carefully Check Hardware Wrench Inspect for Deck Wear...
Page 51 BELT ADJUSTMENTS Belt tension is not critical for most users. It is very important though for joggers and runners in order to provide a smooth, steady running surface. Adjustment must be made from the rear roller with the 8mm Allen wrench provided in the parts package. The adjustment bolts are located at the end of the step rails as shown in the diagram below.
Page 52 TREADBELT TRACKING ADJUSTMENT The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary.
Page 53 CALIBRATION PROCEDURE 1. Remove the safety button. 2. Press and hold down the Start and Fast + buttons and replace the safety button. Continue to hold the Start and Fast button until the window displays “Factory settings”, then press the Enter button. 3.
Page 54: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE Display does not light 1. Tether cord not in position. 2. Circuit breaker on front grill tripped. Push circuit breaker in until it locks. 3. Plug is disconnected. Make sure plug is firmly pushed into115 VAC wall outlet. 4.
Page 55 TREADMILL WARRANTY EFFECTIVE SEPTEMBER 1, 2020 Spirit Fitness warrants all its treadmill parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date.
Page 56 EXCLUSIONS This warranty does not cover the following: CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
Page 57 SERVICE Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined by the serial number establishes the labor warranty period should service be required.
Page 58 NOTES Spirit Fitness...
Page 59 NOTES www.spiritfitness.com...
Page 60 Spirit Fitness...
Page 61 Rack Top Cover CT850ENT Part List_SPIRIT Rack Bottom Cover Main Frame Console Cover Incline Bracket Adjustment Rail Pad Locking Plate Assembly ( R ) Rubber Foot Pad Locking Plate Assembly ( L) 300m/m_Ground Wire Console Support Handpulse End Cap Handle Bar (R)
Page 62 900m/m_Connecting Wire(Upper) M8 × P1.25 × 55L_Flat Head Countersink Bolt 2400m/m_Connecting Wire(Lower) M8 × 35m/m_Flat Head Countersink Bolt board M3 × 50m/m_Phillips Head Screw Power Adaptor M3 × 5T_Nylon Nut 200m/m_Connecting Wire (White) Ø10 × 2T_Split Washer 200m/m_Connecting Wire (Black) 3/8"...
Page 63 www.spiritfitness.com...
