CT850ENT

TREADMILL

OWNER'S MANUAL

Table of Contents

Need help?

Do you have a question about the CT850ENT and is the answer not in the manual?

Questions and answers

Summary of Contents for Spirit Commercial CT850ENT

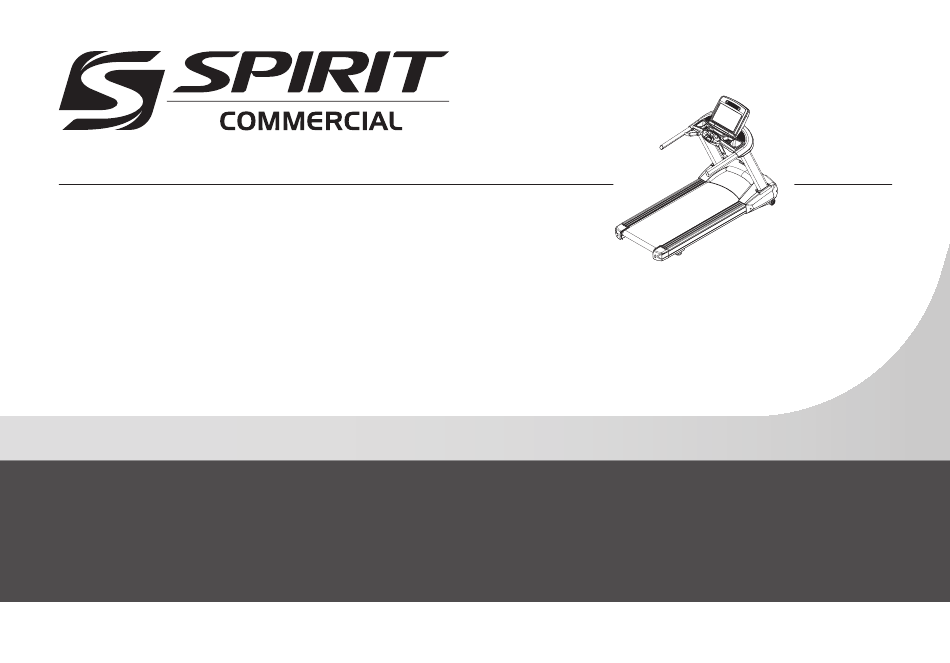

Page 1 CT850ENT TREADMILL OWNER’S MANUAL...
Page 2 Spirit Fitness...
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS PRODUCT REGISTRATION CT850ENT ASSEMBLY INSTRUCTIONS CONSOLE OPERATION TOUCH SCREEN OPERATION PROGRAMMABLE FEATURES GENERAL MAINTENANCE TROUBLESHOOTING MANUFACTURER’S LIMITED WARRANTY Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual.
Page 4 Congratulations on your new Treadmill and welcome to the Spirit Fitness family! Thank you for your purchase of this quality Treadmill from Spirit Fitness. Your new Treadmill was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Page 5: Important Safety Instructions
IMPORTANT SAFETY Never operate this appliance if it has a damaged • cord or plug, if it is not working properly, if it as been INSTRUCTIONS dropped or damaged, or dropped into water. Return the appliance to a service center for examination and WARNING repair.
Page 6: Important Electrical Instructions
or more, the performance of your treadmill may be Keep children under the age of 13 away from this • machine. affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, ASTM F2115-05 Specifications 6.1.2.11 The •...
Page 7 Examples: Grainger part # 1D237, or available This product is for use on a nominal 110-volt/15 online at www.squared.com part #QO120HM. plug amp dedicated circuit, and has a grounding The electrical outlet used should have a dedicated that looks like the plug illustrated below. A 15 amp circuit breaker.
Page 8: Important Operation Instructions
IMPORTANT OPERATION INSTRUCTIONS NEVER operate this Treadmill without reading and • completely understanding the results of any operational change you request from the computer. Understand that changes in speed or incline do • not occur immediately. Set your desired speed or incline level on the computer console and release the adjustment button.
Page 9 RECORD YOUR SERIAL NUMBER Serial Number Location Please record the serial number of this fitness product in the space provided below. Serial Number: REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to Spirit Fitness.
Page 10 CT850ENT PRE-ASSEMBLY UNPACKING TOOLS INCLUDED: ‰ 3/8”Allen Wrench 1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over ‰ 10mm Allen Wrench the unit and unpack. ‰ Phillips Screwdriver 2. Locate the hardware package. The hardware is separated into four steps. Remove the tools first.
Page 11 CONSOLE FAN CONSOLE READING RACK HEART RATE GRIPS DRINK BOTTLE HOLDER HANDRAILS SAFETY BUTTON CONSOLE MAST MOTOR COVER SIDE RAILS RUNNING BELT/DECK TREAD-BELT TRACKING www.spiritfitness.com...
Page 12 CT850ENT STEP ONE HARDWARE FOR STEP 1 PART TYPE DESCRIPTION FLAT WASHER 3/8”X35X2T SPLIT WASHER 3/8”X16.5X2.0T SCREW M5X12MM BOLT 3/8”X3” 1. The RIGHT UPRIGHT (34) has a preinstalled Lower COMPUTER CABLE (42) TV SIGNAL (153), CONSOLE POWER (155), NETWORK (157), CSAFE (159), and HDMI CABLE (161).
Page 13 CT850ENT STEP TWO HARDWARE FOR STEP 2 PART TYPE DESCRIPTION M5X20 SCREW 1. Connect the Upper COMPUTER CABLE (41), TV SIGNAL (152), CONSOLE POWER (154), NETWORK (156), CSAFE (158), and HDMI CABLE (160). HAND PULSE WIRE (39)(40) and GROUND WIRE (162) to the BOARD on the back of the CONSOLE (28).
Page 14 CT850ENT STEP THREE HARDWARE FOR STEP 3 PART TYPE DESCRIPTION 3/8”X16.5X2.0T SPLIT WASHER FLAT WASHER 3/8”X25X2T BOLT 3/8”X3/4” BOLT M8X12 1. Use 6 SOCKET HEAD CAP BOLTS (146) to secure the console onto the LEFT AND RIGHT MOUNTING BRACKETS (3-L, 4-R). See photo below.* 2.
Page 15 CT850ENT STEP FOUR HARDWARE FOR STEP 4 PART TYPE DESCRIPTION SPLIT WASHER 3/8”X16.5X2.0T 3/8”X16X1 - 3/4” BOLT CURVED WASHER 10X23X1.5T 1. Slide 2 CURVED WASHERS (163) and 2 SPLIT WASHERS (117) onto 2 BUTTON HEAD SOCKET BOLTS (162). Slide the BOLTS through the holes on the console masts an tighten.
Page 16: Console Operation
CT850ENT CONSOLE OPERATION Spirit Fitness...
Page 17 Fan to keep you cool Large touch-screen LCD Twelve innovative programs offer a variety of workouts Convenient cargo compartment for buttons, phone, or MP3 player Easy-touch control buttons www.spiritfitness.com...
Page 18 STARTING OPERATION Plug in the power cord located at the front base of the unit. When the power is turned on, the screen will show the initial image and then enter the Home screen. Home Screen: Begin operation by touching the icons. Quick operating buttons are conveniently located for basic treadmill functions.
Page 19 SETTINGS Press the “Home” icon ten consecutive repetitions to enter the Maintenance suite. The two most commonly used menus for setting up the exercise machine are described below; the TV Setup and Maintenance menus. For information on other sections of the Maintenance suite refer to the technical service manual or call Spirit service.
Page 20 TV SETUP 1. Begin by selecting either TV or HDMI as the tuner source. 2. Press OSD Menu. The first highlighted item on the menu is Air/Cable and then Cable or Air afterward. Press the OSD Enter to change the selection between Cable and Air Signal source (usually Cable).
Page 21 MAINTENANCE MENU • The Default language setup allows you to select the main language that will be shown when the console is turned on. You are able to select the language in the Home menu, but once the user finishes using the machine the console will return to this default language.
Page 22 INTERNET MANAGER 1. Remove a link by pressing the icon of the site you want to remove for two seconds. A pop-up window will ask you to confirm the removal. 2. To add a website press the dotted outline box. A pop-up window will ask you to enter the web address and upload a picture for the final button if you wish.
Page 23 WIFI/ETHERNET SETUP Press the desired button for setting up Wifi or Ethernet. WIFI SETUP Turn Wifi on and press scan for available Wifi connections. Press desired connection and follow the on-screen directions. ETHERNET SETUP Press Ethernet Configuration to set Select DHCP to search for connection up a new connection.
Page 24 BLUETOOTH PAIRING PROCEDURE 1. Press the Blue Tooth (BT) icon on the bottom left of the screen. 2. The BT pop-up screen will appear. Turn on Phone/tablet BT and then press Pair Mode on ENT Menu. 3. The menu with show Entering Pairing mode and the phone will show A2DP as an available device.
Page 25: Touch Screen Operation
TOUCH SCREEN OPERATION LANGUAGE When you press the Language button on Home screen, it enters the menu with all language options. There are 12 languages to choose from. Touch the desired language and the system will return to the Home screen which will now be in the chosen language.
Page 26 When the TV button on the Home screen is pressed, it directly enters TV interface. Now you can enjoy TV programs. If you want to enjoy TV while exercising, press Start button at front of the treadmill to initiate Quick Start or press Programs to select a workout. You can change the TV channels by pressing the channel up/ down buttons on the right side of the screen.
Page 27 INTERNET When the Internet button on the Home page is pressed, you are directed to Internet interface. There are 6 basic internet sites to choose from. You may change or add other sites through the Maintenance program (more on this later in the manual in the System Maintenance Suite section).
Page 28 FUNCTIONS OF THIS TREADMILL The Touch-control screen is used for operating all functions of the treadmill. You can directly touch any button on the screen or through quick buttons on the forward pod to control functions. On the forward pod, there are Fast/Slow buttons to control the speed, Start button to begin the workout, Stop button to pause/ stop running, Incline Up/Down buttons to control the incline of the treadmill.
Page 29 PAUSE/STOP/RESET When the treadmill is running the pause feature may be utilized by pressing the red Stop button once. This will slowly decelerate the treadbelt to a stop. The incline will go to zero percent. The Time, Distance and Calorie readings will hold while the unit is in the pause mode.
Page 30 DISPLAY OPTIONS SIMPLE The default display at the start of a program is a Simple display. The profile window shows the work level graphically. All your workout values are displayed on the bottom of the screen. Some of the data windows have a + sign at the top indication more data available.
Page 31 DASHBOARD The Dashboard display shows a larger display area of key information. STOP BUTTON When using the Stop button to end the program, it enters the summary screen. On the summary screen, all accumulated values concerning the workout are displayed. You can touch the Home button at left top or press Stop button to return to the home screen.
Page 32 Pulse values are displayed anytime the computer is receiving a Grip pulse signal. You may use the Grip pulse feature while in Heart Rate Control. The CT850ENT will also pick up wireless heart rate transmitters that are Polar compatible. TO TURN TREADMILL OFF: The screen will automatically turn off (go to sleep) after 30 minutes of inactivity.
Page 33: Programmable Features
PROGRAMMABLE FEATURES Each of the programs can be customized with your personal information and changed to suit your needs. Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for your Age and Weight. Entering your Age ensures that the Heart Rate bar graph shows the correct number. Your Age is also necessary during the Heart Rate control program to ensure the correct settings are in the program for your Age.
Page 34 ENTERING A PROGRAM & CHANGING SETTINGS The Spirit Fitness CT850ENT offers a variety of exercise program options to choose from: Manual, Hill, Fat Burn, Cardio, Strength, 5k Run, Interval, HR, Custom, Fitness Test (Air Force, Army, Coast Guard, Gerkin, PEB, Marine Corps, Navy, WFI), Calories, and 10k Run. To select and start a preset program: 1.
Page 35 PRESET PROGRAMS SPEED/INCLINE SETTINGS The preset program Speed and Incline levels are shown in the chart below. The Speed numbers shown in the chart indicate a percentage of the top speed of the program. For instance, the first Speed setting for P1 (Program 1, HILL) shows the number 20.This means that this segment of the program will have a speed that is 20% of the top speed for the program (The user sets the top speed in the procedure above).
Page 36 MANUAL Both Speed and Incline are controlled by the user. Increase or decrease levels at any time during your workout. HILL Speed: This program follows a triangle or pyramid type of gradual progression from approximately 10% of maximum effort (the level that you choose before starting this program) up to a maximum effort which lasts for 10% of the total workout time, then a gradual regression of Speed back to approximately 10% of maximum effort...
Page 37 CARDIO Speed: This program presents a quick progression up to near maximum speed level (default or user input level). It has slight fluctuations up and down to allow heart rate to elevate, and then recover repeatedly, before beginning a quick cool down. This will build up your heart muscle and increase blood flow and lung capacity.
Page 38 INTERVAL Speed: This program takes you through high levels of intensity followed by recovery periods of low intensity. This program utilizes and develops your “Fast Twitch” muscle fibers which are used when performing tasks that are intense and short in duration. These deplete your oxygen level and spike your heart rate, followed by periods of recovery and heart rate drop to replenish oxygen.
Page 39 FITNESS TEST When the Fit test button is pressed the DM displays: GERKIN. This is the first of 8 different tests available: Air Force, Army, Coast Guard, Gerkin, PEB, Marine Corps, Navy, and WFI. The initial test is GERKIN; to select a different test press the Fitness Test button again and the next test will be shown.
Page 40 ARMY A timed 2 mile run. You control the speed manually. Maximum time allowed to pass the test. For more detailed information, visit: http://bit.ly/SF-Army NAVY A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test: For more detailed information, visit: http://bit.ly/SF-Navy Spirit Fitness...
Page 41 MARINES A timed 3 mile run. You control the speed manually. Maximum time allowed to pass the test: For more detailed information, visit: http://bit.ly/SF-Marines www.spiritfitness.com...
Page 42 GERKIN The Gerkin protocol, also known as the fireman’s protocol, is a sub-max VO2 (volume of oxygen) test. The test will increase speed and elevation alternately until you reach 85% of your Max heart rate. The time it takes for you to reach 85% determines the test score (VO2max) as shown in the chart below. Spirit Fitness...
Page 43 Before The Test: Make sure you are in good health; check with your physician before performing any exercise if you are over the • age of 35 or persons with pre-existing health conditions. Make sure you have warmed up and stretched before taking the test. •...
Page 44 What Your Score Means: VO2MAX CHART FOR MALES AND VERY FIT FEMALES VO2MAX CHART FOR FEMALES AND DECONDITIONED MALES Spirit Fitness...
Page 45 CALORIE PROGRAM Speed: This program follows a progression up to the maximum speed level (default or user inout level) that is sustained for 2/3 of the workout. This program will challenge your ability to sustain your energy output for an extended period of time.
Page 46 HEART RATE PROGRAM Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate via information from pulse grips or wireless chest strap. Increases and decreases in elevation affect heart rate much more efficiently than changes in speed alone.
Page 47 6. Now Message window is showing ADJUST BODY WEIGHT THEN PRESS ENTER with Incline Window blinking. Use Up/Down buttons or numeric keys to adjust. After the weight is set, press Enter button again. 7. Now Message window is showing ADJUST HEART RATE THEN PRESS ENTER with Speed Window blinking. Use Up/Down buttons or Numeric keys to adjust.
Page 48: General Maintenance
GENERAL MAINTENANCE Unplug treadmill before performing any maintenance. Semi- Task How To Daily Weekly Monthly Annually Annually Damp cloth w/ Wipe Down Unit water Clean Under Belt Towel or vacuum Check Belt Tension/Tracking Feel/Visual Clean Under Motor Cover Vacuum carefully Check Hardware Wrench Inspect for Deck Wear...
Page 49 BELT ADJUSTMENTS Belt tension is not critical for most users. It is very important though for joggers and runners in order to provide a smooth, steady running surface. Adjustment must be made from the rear roller with the 8mm Allen wrench provided in the parts package. The adjustment bolts are located at the end of the step rails as shown in the diagram below.
Page 50 TREADBELT TRACKING ADJUSTMENT The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary.
Page 51 CALIBRATION PROCEDURE 1. Remove the safety button. 2. Press and hold down the Start and Fast + buttons and replace the safety button. Continue to hold the Start and Fast button until the window displays “Factory settings”, then press the Enter button. 3.
Page 52: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE Display does not light 1. Tether cord not in position. 2. Circuit breaker on front grill tripped. Push circuit breaker in until it locks. 3. Plug is disconnected. Make sure plug is firmly pushed into115 VAC wall outlet. 4.
Page 53 TREADMILL WARRANTY EFFECTIVE JANUARY 1, 2017 Spirit Fitness warrants all its treadmill parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date.
Page 54 EXCLUSIONS This warranty does not cover the following: CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
Page 55 SERVICE Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined by the serial number establishes the labor warranty period should service be required.
