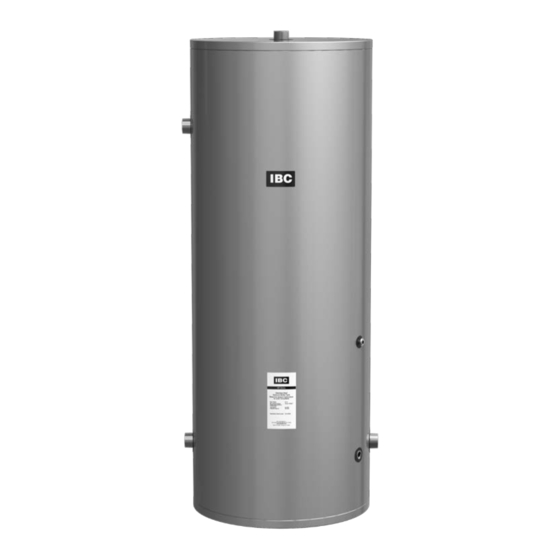

- Page 1 Installation & Operating Manual BUFFER TANK IBT 25 IBT 52...
- Page 3 IBT Buffer tanks Safety Information Danger Warning Points out an immediate hazardous Points out a potential hazardous situation that must be avoided to situation that must be avoided to prevent serious injury or death. prevent serious injury or death. Caution Note Points out a potential hazardous Points out installation, maintenance and situation that must be avoided to...
- Page 4 Section: IBT Buffer tanks Caution To reduce the risk of excessive pressures and temperatures, install pressure protective equipment as required by local codes, but no less than a relief valve certified by a nationally recognized testing laboratory that maintains periodic inspection of production of listed equipment or materials, as meeting the requirements for Relief Valves and Automatic Shutoff Devices for Hot Water Supply Systems, ANSI Z21.22-latest edition.
- Page 5 Dimensions and Capacity Figure 1 IBT 25 Dimensions Figure 2 IBT 52 Dimensions Dimensions (cm / " ) Model Height Diameter IBT 25 74 / 29.1 48.3 / 19 20.3 / 8 5 / 2 19.3 / 7.6 34.3 / 13.5 55 / 21.7 2.5 / 1 IBT 52 144 / 56.7...
- Page 6 Section: IBT Buffer tanks Warning Use this vessel only in hydronic systems. The installer must comply with all plumbing codes. Do not operate above the temperature or pressure specified on the rating plate. Failure to comply may result in personal injury, property damage, or death. Warning Do not use in potable water systems.
- Page 8 604-877-0295 856-735-5584 Toll Free: 1-844-HEAT-IBC/ 1-844-432-8422 www.ibcboiler.com Information in this document is subject to change without notice. IBC assumes no responsibility for changes made to the manual due to clerical errors, to regulation changes, or to product development. 120-369E (R2) March, 2021 ©...
