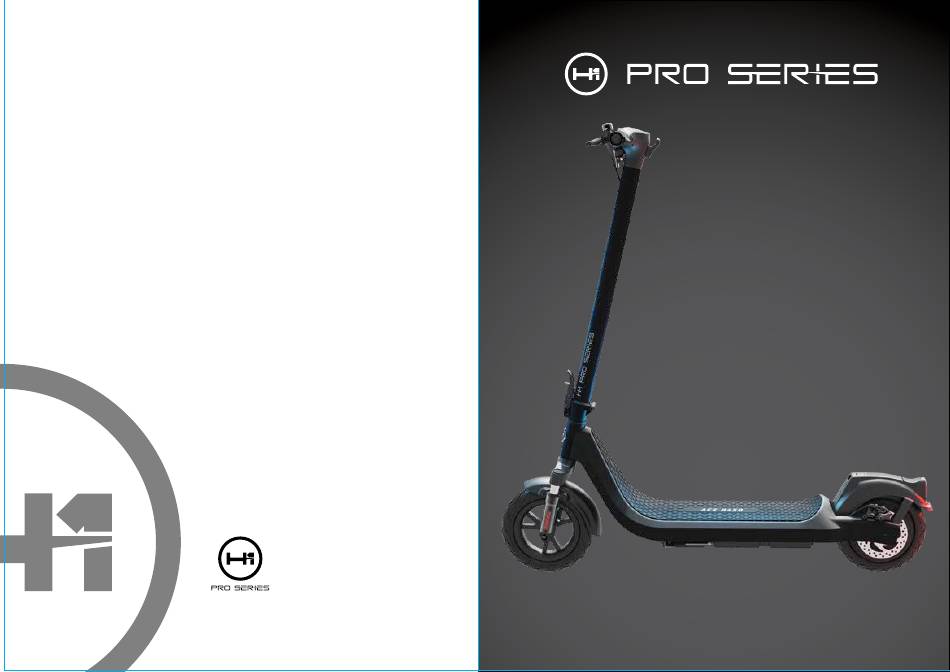

- Page 1 2045 Lincoln Highway O w n e r ’ s M a n u a l Edison, NJ 08817 A s s e m b l y & M a i n t e n a n c e support@hover-1.com | hover-1.com...
- Page 2 (particularly the parts that had to be manually hover1rideables installed). Remember to always use your best judgment while riding and obey all traffic laws. @ridehover1 hover-1 support@hover-1.com DGL Group 866.831.1520 2045 Lincoln Highway www.hover-1.com Edison, NJ 08817, United States...
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS SPECIFICATIONS 05. BASICS Speci ications Model: H1 ACE4 Diagram of the Ace Net Weight: 41.67 lbs (19 kg) General Symbols Max Supported Weight: 264 lbs (120 kg) Safety Advice Min Supported Weight: 40 lbs (18 kg) 09. SAFETY PRECAUTIONS Max Speed: Up to 20 mph (32 km/h) 13. -
Page 4: Basics
BASICS D I A G R A M O F T H E A C E Folding Hook LED Display Thumb Throttle Handlebar Foot Deck Brake Lever/Bell (L) Rear Fender Headlight Taillight Front Shocks Kickstand Folding Hinge Motor Disc Brake... -
Page 5: General Symbols
GENERAL SYMBOLS • Do not use and/or leave the charger outdoors in hot or wet weather conditions. • Do not ride up or down extremely steep inclines. DANGER • Do not touch the body of the motor immediately after riding, as the surface may be hot. -
Page 6: Safety Precautions
SAFETY PRECAUTIONS LOW TEMPERATURE WARNING PLEASE READ THE OPERATION MANUAL THOROUGHLY. Low temperatures will affect the lubrication of moving parts inside the Ace, Failure to follow the basic instructions and safety precautions listed in the increasing internal resistance. Additonally, the discharge capacity and capacity of operation manual can lead to damage to your Ace, property damage, the battery will be significantly decreased. - Page 7 WARNING Do not allow hands, feet, hair, body parts, clothing, or similar articles to come in • contact with moving parts, wheels, or the drivetrain while the Ace is running. • When you ride in low-visibility conditions such as fog, dusk, or night, you might be difficult to see, which could lead to a collision.
-
Page 8: Assembly & Parts
Take pictures if you suspect rough handling and contact: support@hover-1.com D. Hex Keys (2) & M5 Screws (6) If you require additional assistance, please reach out to support@hover-1.com for more information. We often update user guides based on the feedback we receive from our customers. -
Page 9: Setting Up Your E Scooter
SETTING UP YOUR E SCOOTER Attaching the Handlebar Assembly Folding & Unfolding Your E Scooter Attach the handlebar assembly by placing it into the steering column. Align To fold your Ace, pull the folding hinge release button up and push the the front and back screw holes, and tighten the 6 screws into place using folding hinge down. -
Page 10: Safety Checklist
5. Lighting 5. Lighting Check if the headlight and taillight are working properly. Please be sure all the items you installed are properly torqued, tightened, and connected! If you have any questions, please contact us: support@hover-1.com NOTICE NOTICE NOTICE NOTICE... -
Page 11: Safety Precautions
SAFET Y PRECAUTIONS • The first rule of safe riding is to use common sense. • Do not ride above your skill level. Ensure you have had enough practice with all functions and features of your Ace. • Different localities and countries have different laws about riding electric •... - Page 12 • Do not travel up or down steep hills. • Do not operate in or near puddles of water, mud, sand, stones, gravel, debris, or near rough and rugged terrain. • The Ace is intended for use by a single individual, DO NOT attempt to operate the Ace with two or more people.
- Page 13 • There may be additional risk to injury if you use your E-Scooter incorrectly. This includes, but is not limited to: • Jumping your E-Scooter • Riding over debris or obstacles • Performing stunts • Riding in off-road terrain • Riding fast •...
-
Page 14: Operations
OPERATIONS PRE RIDE CHECKLIST • Ensure that your Ace is in proper working order each and every time you ride. If a part of the Ace does not function correctly, please contact our Customer BEFORE RIDING Support Center. Before each operation, the operator shall perform the pre-operation checks specified below: •... -
Page 15: Cruise Control
Quickly press the power button six times to switch between the odometer and the trip mileage. Cruise control comes preset as active with the Hover-1 Ace. To engage cruise control, press the throttle down and maintain a constant speed for 6 seconds;... - Page 16 H 1 PRO SERIES APP • Weight: A lighter user will have higher operating range than a heavier user. Connect the Device • Ambient temperature: Please ride and store the E-Scooter in recommended • Open Apple’s App Store or the Google Play Store and search “H-1 Pro Series.” temperatures.
-
Page 17: Led Display
LED DISPLAY ERROR CODES The electronics system has the ability to self-diagnose and report a limited set of CRUISE CONTROL errors. Errors will appear on the screen as error codes. HEADLIGHT SPEED KICK TO START MODE The chart below explains the meaning of each error code: ADVANCED MATRIX DISPLAY ERROR CODE CHART SPORT MODE... -
Page 18: Maintenance
MAINTENANCE BATTERY SPECIFICATIONS • To avoid damage to the Ace’s internal circuitry, do not expose it to liquid, Battery Type: Rechargeable lithium-ion battery moisture, or humidity. Charge Time: Up to 8.0 hours • Do not use abrasive cleaning solvents to clean the Ace. Battery Voltage: 36.5Vdc Battery Capacity: 10.4Ah •... -
Page 19: Charging Your Ace
CHARGING YOUR ACE WARNING • Ensure that the charging port is clean and dry. Failure to follow the safety precautions listed below could lead to serious • Make sure that there is no dust, debris or dirt inside the port. bodily injury or death. -
Page 20: Fcc Statement
FCC STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 21: Warranty
WARRANTY This warranty is non-transferable and is limited to the original purchaser only. 3. Overcharging or damages due to improperly maintaining the lithium-ion It is not transferable to any subsequent purchaser. The manufacturer warranty battery installed in the unit. only applies to products purchased through an authorized H-1 Pro Series retailer. 4. - Page 22 Submitting a warranty claim 1. To take advantage of your warranty services, please submit a ticket to the H-1 Pro Series Customer Support by visiting www.hover-1.com REGISTER YOUR ACE 2. H-1 Pro Series will attempt to diagnose and resolve your issue. H-1 Pro Series may require photos and/or videos to properly diagnose the issue AT HOVER 1.COM...
