Hover-1 H1 Manual

Electric scooter with bluetooth speaker & app
Hide thumbs Also See for H1:
Table of Contents

Advertisement

Quick Links

Download this manual
H1
E L E C T R I C S C O O T E R
W I T H B L U E T O O T H S P E A K E R & A P P

Advertisement

Table of Contents
loading

Related Manuals for Hover-1 H1

Summary of Contents for Hover-1 H1

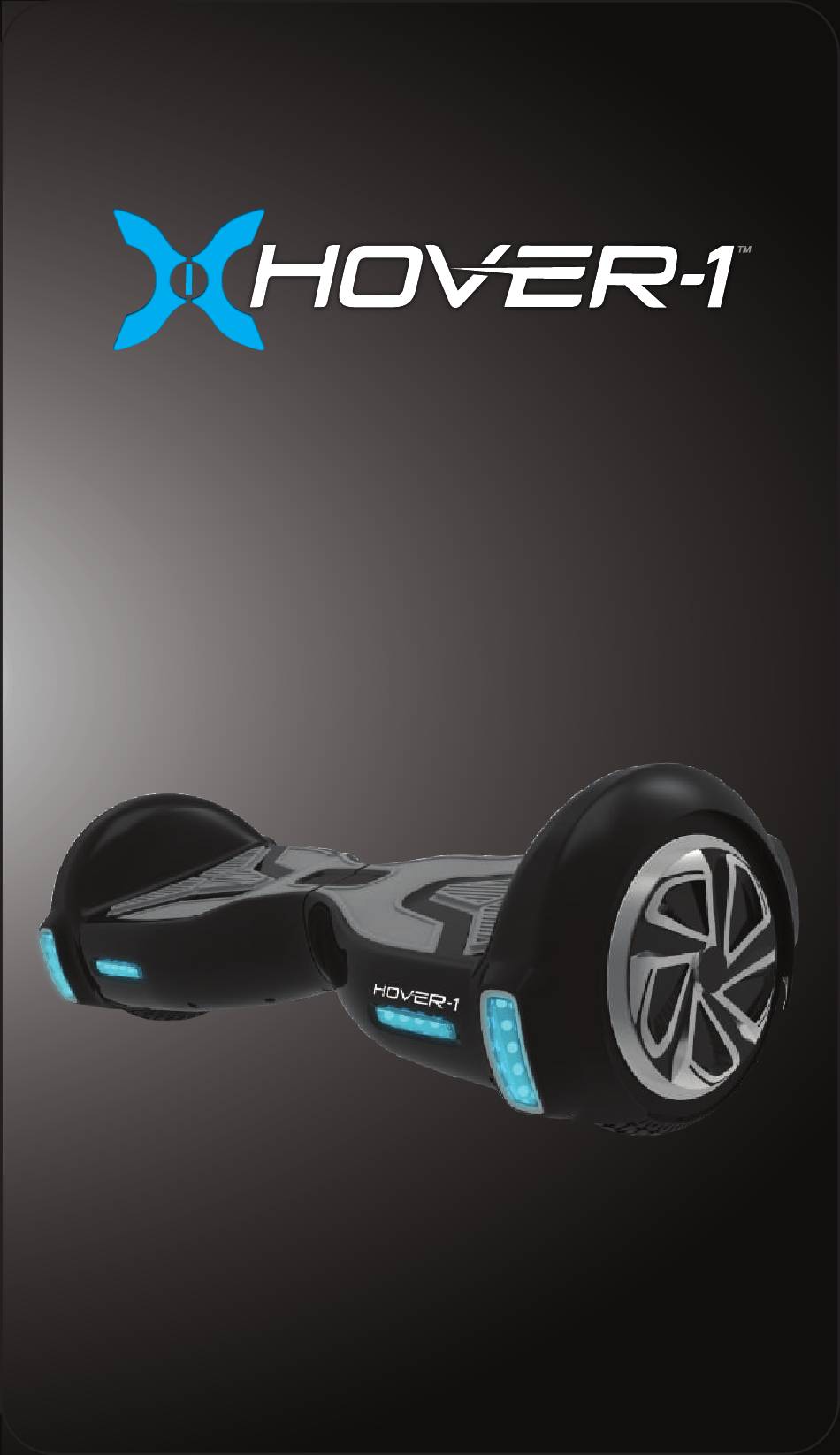

  • Page 1 E L E C T R I C S C O O T E R W I T H B L U E T O O T H S P E A K E R & A P P...
  • Page 2 HELMETS SAVE LIVES! Always wear a properly tted helmet that complies with CPSC or CE safety standards when you ride your scooter. Correct Fitting: Make sure your helmet covers your forehead. Incorrect Fitting: Forehead is exposed and vulnerable to serious injury.
  • Page 3 Charger Manufacturer: SHENZHEN FUYUANDIAN POWER CO LTD Model: FY0634201500 2. The operating temperature range of the H1 is 32-104° F (0-40° C). 3. Do not ride on icy or slippery surfaces. 4. Read the user manual and warning labels before riding.
  • Page 4 LOW TEMPERATURE WARNING Low temperature will affect the lubrication of moving parts inside the H1 scooter, increasing internal resistance. At the same time, in low temperatures, the discharge capacity and the capacity itself of the battery will be significantly decreased.
  • Page 5 • Do not operate or allow others to operate the H1, until the user understands all instructions, warnings and safety features described in this manual. • Check with your doctor if you have a medical condition that could affect your ability to use the H1.
  • Page 6 H1 scooter. Operating the H1 without following the contents of this manual may lead to damage to your H1, or bodily injury. This manual is designed to give you the information you need for the safe operation and maintenance of your H1.

  • Page 7: Specifications

    WARNING Any Hover-1 H1 that does not work properly can cause you to lose control and fall. Inspect the entire device thoroughly before every ride, and do not ride it until any problems have been corrected.

  • Page 8: Controls And Display

    Power Off: Press the power button once. MAT SENSOR There are four sensors under the foot mats on your H1. When the user steps off the scooter mats, it will automatically initiate self-calibration. When riding the scooter, you must ensure you are stepping on the foot mats.

  • Page 9: Bluetooth Speaker

    8) If pairing is unsuccessful, turn off the H1 first and re-pair following the aforementioned steps. 9) If your smart phone is out of range, or the battery is low on your H1, your speaker may disconnect from your smart device, and the H1 will say “Disconnected.”...

  • Page 10: Smart Phone App

    SMART PHONE APP Your H1 is an App-enabled scooter that works with Apple iOS and Android devices. Download the free Hover-1 App in order to access certain features of your H1 such as headlight colors and skill mode. Using a QR code reader, hold the camera on your smartphone over the below QR code to download the Hover-1 App.

  • Page 11: Before Riding

    BEFORE RIDING It is important that you fully understand all elements of your H1. If these elements are not used correctly, you will not have full control of your H1. Before you ride, learn the functions of the various mechanisms on your scooter.

  • Page 12: Safety Precautions

    Hover-1 is not liable for tickets or violations given to riders who do not follow local laws and regulations. • For your safety, always wear a helmet that meets CPSC or CE safety standards.
  • Page 13 • Do not operate the H1 when you are restless or sleepy. • Do not ride your H1 off of curbs, ramps, or attempt to operate in a skate park, empty pool, or in any way similar to a skateboard or scooter.
  • Page 14 • Do not ride your H1 near motor vehicles or on public roads. • Do not travel up or down steep hills. • The H1 is intended for use by a single individual, DO NOT attempt to operate the H1 with two or more people.
  • Page 15 • Do not turn sharply, especially at high speeds. • Do not step on the fenders of the H1. • Avoid driving the H1 in unsafe places, including near areas with flammable gas, steam, liquid, dust, fiber, which could cause fire and explosion accidents.
  • Page 16 Imagine climbing stairs, one foot, then the other. Look up once your feet are even. The H1 may vibrate or spin in one direction, if weight and pressure are applied to only one foot mat. THIS IS NORMAL.
  • Page 17 The H1 is an incredibly intuitive device; it senses even the slightest bit of motion, so having any anxiety or reservation about stepping on may cause you to panic and trigger unwanted movement. When you first begin using your device, the fastest way to move in your desired direction is to focus in that direction.
  • Page 18 Failure to do so may send the H1 into a tailspin. WEIGHT AND SPEED LIMITATIONS Speed and weight limits are set for your own safety. Please do not exceed the limits listed here in the manual.

  • Page 19: Balance & Calibration

    OPERATING RANGE The H1 can travel a distance up to 9 miles on a fully charged battery in ideal conditions. The following are some of the major factors that will affect the operating range of your device.

  • Page 20: Safety Alerts

    SAFETY ALERTS While riding your H1, if there is a system error or illegal operation performed the device will prompt the user in a variety of ways. You will notice the Running Indicator Light will turn RED and you will hear a beep sound alerting you to take precaution and cease operation, which may make the device stop suddenly.
  • Page 21 When the H1 turns off during a Safety Alert, all operation systems will halt. Do not continue attempting to ride the H1 when the system initiates a stop. Turn your H1 off and back on to unlock it from a Safety Lock.

  • Page 22: Battery Care / Maintenance

    • Connect the cable with the power supply (100V ~ 240V; 50, 60 Hz). • Align and connect the 3-pin charging cable into the charging port of the H1. DO NOT FORCE OR BEND THE CHARGING CABLE INTO THE CHARGING PORT, AS IT MAY CAUSE THE PRONGS TO BEND OR BREAK.
  • Page 23 • The battery contains dangerous substances, do not open the battery, or insert anything into the battery. • Please only use the charger provided by Hover-1. • Do not attempt to charge the device if the battery has discharge or emits any substances. In that case, immediately distance yourself from the battery in case of fire or explosion.

  • Page 24: Fcc Statement

    FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 25 • Do not allow the device fall from high places, as doing so may damage the internal circuitry. • Do not attempt to disassemble the device. • Use only the charger provided by Hover-1. WARNING Avoid using water or other liquids for cleaning.

  • Page 26: Warranty

    WARRANTY For warranty information, Please visit us at: www.hover-1.com Affix Serial Number Label Here:...
  • Page 27 DESIGN Hover-1 H1 is designed to be easily controlled, providing a safe stable form of travel. With a zero degree turning radius, you can operate the H1 in narrow spaces without moving forward at all. The built-in sensors are responsive with a balancing system.

This manual is also suitable for:

Hy-h1
