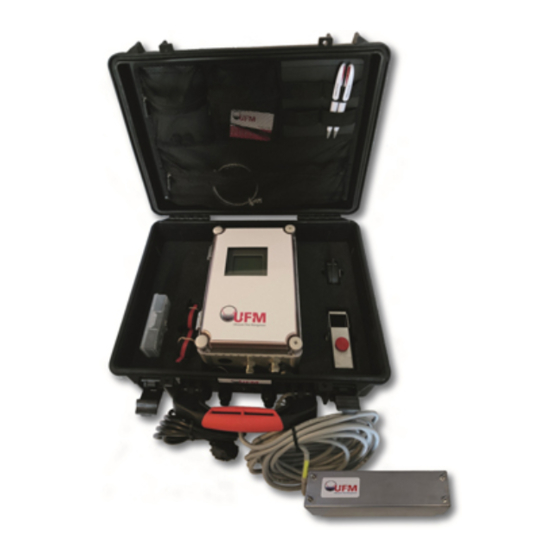

UFM -50 Installation & Operating Instructions Manual

Ultrasonic doppler flowmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MANUAL
Installation & Operating Instructions
Ultrasonic Doppler Flowmeter
Model: UFM-50
Ultrasonic Doppler Flowmeter
T +31 (0) 165 855 655
U-F-M b.v.
Argon 24
E info@u-f-m.nl
4751 XC Oud Gastel
www.u-f-m.nl
The Netherlands
UFM-50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFM-50 and is the answer not in the manual?

Questions and answers

Related Manuals for UFM UFM-50

Summary of Contents for UFM UFM-50

  • Page 1 UFM-50 Ultrasonic Doppler Flowmeter MANUAL Installation & Operating Instructions Ultrasonic Doppler Flowmeter Model: UFM-50 T +31 (0) 165 855 655 U-F-M b.v. Argon 24 E info@u-f-m.nl 4751 XC Oud Gastel www.u-f-m.nl The Netherlands...
  • Page 2 Note: This page has been left blank intentionally.

  • Page 3: Table Of Contents

    UFM-50 Doppler Flowmeter INDEX CONNECTIONS ........................ 4 KEYPAD SYSTEM ......................6 CALIBRATION MENU ..................... 7 ICONS ..........................8 MESSAGE ICON ....................... 9 STATUS ..........................9 PASSWORD ........................10 MENU SELECTIONS ...................... 10 UNITS/MODE ........................11 CALIBRATION........................ 13 CALIBRATION (CONT.) ....................14 RELAY PARAMETERS ....................

  • Page 4: Connections

    Note: Use of instrumentation over 40°C ambient requires special field wiring. QUICK BENCH TEST: Connect Sensor as shown on next page, then Power. Test operation of the UFM-50 by holding the sensor in one hand and rubbing your thumb or fingers briskly across the face (plastic surface) of the sensor.
  • Page 5 UFM-50 Doppler Flowmeter CONNECTIONS SENSOR SERIAL COMMUNICATION OPTION RS-485 Output EXTRA RELAYS OPTION RLY3 RLY4 RLY5 RLY6 POWER INPUT – 4-20mA HEATER OPTION RLY2 RLY1 SENSOR P. 5...

  • Page 6: Keypad System

    UFM-50 Doppler Flowmeter KEYPAD SYSTEM The diagram on page 7 shows the UFM-50 menu system. Arrows show the four directions to leave a menu box. Pressing a corresponding keypad arrow will move to the next item in the direction shown.

  • Page 7: Calibration Menu

    UFM-50 Doppler Flowmeter CALIBRATION MENU --Units/Mode--------  Mode Flow Linear Volume Multiplier Decimal Velocity ft/s Flow USG/m Decimal --Calibration-------  Mode Flow 20mA 500 USG/m 0 USG/m Min Flow 5.00 USG/m Signal Cutoff Damping Mode Percent Window 1.0 ft/s --Messages---------- Pipe ID 4.03 in...

  • Page 8: Icons

    UFM-50 Doppler Flowmeter ICONS P. 8...

  • Page 9: Message Icon

    USG/m MAIN DISPLAY 0.00 The main display shows the units selected from the Units/Mode menu, flow or velocity rate being measured, totalizer and relay states. The UFM-50 will start-up with this display. 20130 USG Relays 1 2 3 4 5 6 MESSAGE ICON Press ...

  • Page 10: Password

    UFM-50 Doppler Flowmeter 24 HR LOG Press  from the main display to view a formatted flow report from instruments with a built-in data logger. Press  to scroll down one day or repeatedly to scroll to a specific date. Up to 365 days can be stored. Newest date will overwrite the oldest.

  • Page 11: Units/Mode

    UFM-50 Doppler Flowmeter UNITS/MODE --Units/Mode--------  Mode Flow Linear , press the  and then the  or  to select Flow or Velocity. Flow Mode Volume mode displays the flow rate in engineering units (e.g. gpm, litres/sec, etc.) Press Multiplier the ...
  • Page 12 UFM-50 Doppler Flowmeter UNITS/MODE (cont.) --Units/Mode--------  Mode Flow Linear , press the and then the  or  to select the engineering units for Flow Volume flow rate. Press  to store your selection then  to the next menu item.

  • Page 13: Calibration

    UFM-50 Doppler Flowmeter CALIBRATION --Calibration-------  Mode Flow Press  or  to position curser at Calibration menu, and  to enter. Use  or 20mA 500 USG/m 0 USG/m  to position cursor before each menu item and  to enter. When settings are Min Flow 5.00 USG/m...

  • Page 14: Calibration (Cont.)

    UFM-50 Doppler Flowmeter CALIBRATION (cont.) --Calibration-------  Mode Flow Damping 20mA 500 USG/m 0 USG/m Mode Choose between OFF, FIR (Default), or LOW PASS. Min Flow 5.00 USG/m Signal Cutoff Damping When measured flows are outside the Window of the...

  • Page 15: Relay Parameters

    UFM-50 Doppler Flowmeter --Relay Parameters-- RELAY PARAMETERS  Relay Function Flow Press  or  to position curser at Relay Parameters, and  to enter. Use  or  1000 USG to position cursor before each menu item and  to enter. When settings are 0.000 USG...

  • Page 16: Data Logging

    UFM-50 Doppler Flowmeter DATA LOGGING --Data Logging-------  Log Site ID Mode Flow Press  or  to position curser at Data Logging, and  to enter. Use  or  to File Format .LG2 position cursor before each menu item and to enter. When settings are...
  • Page 17 UFM-50 Doppler Flowmeter RETRIEVING LOG FILE Plug a USB Flash Memory Drive (one is included with the UFM-50) into the USB output port on the Panel of the meter. The instrument display will show the data download icon until the log file is transferred to the memory card. The USB flash drive may be removed when the icon for download successful appears.

  • Page 18: Communication (Optional)

    HART® (Highway Addressable Remote Transducer) Protocol Information: HART Version: Device DD files allow the user’s handheld HART communicator to fully configure the UFM-50. U-F-M provides DD files for the Description Files: Emerson 475 Communicator. The files are included in the USB drive provided with your UFM-50 meter.
  • Page 19 UFM-50 Doppler Flowmeter COMMUNICATION (Optional) cont. Baud rate for the MODBUS communications. Press  or  (Modbus) to select, and  to store the setting. Options: 4800, 9600, 19200, 38400, 57600, 76800, and 115200 (Default: 9600). Parity Error checking parity for the MODBUS communications.

  • Page 20: Special Functions

    UFM-50 Doppler Flowmeter SPECIAL FUNCTIONS --Special Functions-  Language English Analog Out 4-20mA Language English French Spanish Select Backlight High Reset Totalizer Analog Out Neg. Totals Select 4-20mA or 0-5V mode for the analog Rev. Flow output. Capture Par Capture WF...
  • Page 21 UFM-50 Doppler Flowmeter SPECIAL FUNCTIONS (cont.) --Special Functions-  Language English Analog Out 4-20mA Backlight High Capture WF This function should only be used when instructed Reset Totalizer by a U-F-M representative to do so. The function Neg. Totals Rev. Flow...
  • Page 22 UFM-50 Doppler Flowmeter SIMULATION --Simulation-------- Test Actual Press  or  to position curser at Simulation, and  to enter. Use  or  to Flow 250USG position cursor before each menu item and  to enter. When settings are...

  • Page 23: Sensor Mounting

    UFM-50 Doppler Flowmeter SENSOR MOUNTING LOCATION The position of the sensor is one of the most important considerations for accurate flow measurement. The same location guidelines apply to Doppler as most other types of flow meters. VERTICAL OR HORIZONTAL PIPE - Vertical pipe runs generally provide evenly distributed flow.
  • Page 24 UFM-50 Doppler Flowmeter SENSOR MOUNTING Prepare an area 2" wide by 4" long (50mm x 100mm) for sensor bonding by removing loose paint, scale and rust. The objective of site preparation is to eliminate any discontinuity between the sensor and the pipe wall, which would prevent acoustical coupling.
  • Page 25 Over time temporary coupling compounds (e.g. Petroleum Gel) may gradually sag away from the sensor resulting in reduced signal strength and finally complete loss of signal. Warm temperatures, moisture and vibration will accelerate this process. Couplants as supplied with the UFM-50 (and available from U-F-M or home improvement stores) is recommended for semi-permanent installations.
  • Page 26 UFM-50 Doppler Flowmeter SENSOR MOUNTING/COUPLING RECOMMENDATIONS P. 26...

  • Page 27: Enclosure Installation

    UFM-50 Doppler Flowmeter ENCLOSURE INSTALLATION Locate the enclosure within 20 ft (6 m) of the sensor (500 ft -150 m optional). The enclosure can be wall mounted with the four mounting screws (included) or panel mounted with Option PM Panel Mount kit from U-F-M.

  • Page 28: Field Troubleshooting

     Ensure correct power input Ground connection (<1 ohm resistance).  Ensure 4-20mA Shield connected to Instrument Ground stud. Cross talk between two or more UFM-50 flowmeters  Refer to Synchronization instructions on same pipe  Variable Speed Drive interference...
  • Page 29 UFM-50 Doppler Flowmeter Corrective Action: Possible Causes: METER READING ERRATIC  Sensor mounted too close to valve, pump or elbow Change sensor placement. Recommended 6-10 diameters from elbows, and 30 diameters from pumps, controlling valves, orifice plates, nozzles or open pipe discharge NO FLOW INDICATION ...
  • Page 30 UFM-50 Doppler Flowmeter Corrective Action: Possible Causes:  Sensor and GND wires reversed or not properly Check Sensor connections connected  Improper AC power input Ground Use direct connection with 12 AWG wire to nearest Ground pole (<1 ohm resistance).

  • Page 31: Common Questions And Answers

    UFM-50 Doppler Flowmeter COMMON QUESTIONS AND ANSWERS The pipe vibrates. Will it affect the flow meter? Common vibration frequencies are far lower than the sonic frequencies used by the flowmeter, and will not normally affect accuracy or performance. However, applications where very weak Doppler signal is present (when sensitivity is adjusted to maximum and signal strength is low), accuracy may be affected by pipe vibration, or the flow meter may show readings under no-flow conditions.
  • Page 32 (TV cable type) are not recommended for cable splices. Does the UFM-50 require periodic recalibration? UFM-50 calibration does not drift over time. The solid state sensor has no moving parts to wear and affect calibration. The Doppler flow technique generates an ultrasonic signal proportional to the velocity of flow.

  • Page 33: Warranty

    UFM-50 Doppler Flowmeter LIMITED WARRANTY _____________________________________ U-F-M B.V. (U-F-M) warrants, original purchaser, its products to be free from defects in material and workmanship for a period of one year from date of invoice. U-F-M will replace or repair, free of charge, any U-F-M product if it has been...

  • Page 34: Options

    UFM-50 Doppler Flowmeter OPTIONS EXTRA SENSOR CABLE (OPTION DXC) Each U-F-M flowmeter includes 25 ft / 7.6m (or 50 ft / 15m or 100 ft / 30m optional) continuous shielded coaxial pair cable. Additional cable and Cable Junction Box (Option JB2X) may be ordered to extend cable up to 500 ft (152m) as required during installation.
  • Page 35 UFM-50 Doppler Flowmeter SENSOR CABLE JUNCTION BOX (OPTION JB2X) Optional Watertight steel NEMA4 Junction Boxes with terminal strips are available from U-F-M. Velocity Sensor QZ02L-B (Optional) Minimum Velocity: 0.1 ft/sec (0.03 m/sec) Maximum Velocity: 20 ft/sec (6.2 m/sec) Operating Temperature: 5 to 150°F (-15 to 65°C)
  • Page 36 UFM-50 Doppler Flowmeter SENSOR INTRINSIC SAFETY (OPTION 2ISB) When connected through Intrinsic Safety Barriers, the U-F-M Sensor Model SE4 is CSA certified for installation in a hazardous location rated: Class I, Groups C,D Class II, Groups E,F,G Class III Intrinsic Safety Barriers may be ordered with the U-F-M flowmeter and are supplied mounted in the instrument's enclosure.
  • Page 37 UFM-50 Doppler Flowmeter GN SPEC ISB The intrinsic safety barrier assemblies installed in the UFM-50/ TTFM 6.1 limit the voltage and current supplied to the transducers to the values listed under ‘Barrier Specifications’. To safely install a transducer certified for use in hazardous...
  • Page 38 UFM-50 Doppler Flowmeter ENCLOSURE HEATER AND THERMOSTAT - Option TH Instruments can be factory-equipped with an Enclosure Heater and Thermostat or the module can be customer-installed. The Thermostat is factory set to turn ON at 40°F (4.5°C) and OFF at 60°F (15.5°C).
  • Page 39 Power Input card can be installed in the place of the 100-240VAC card in the field. QUICK BENCH TEST: Connect Sensor as shown below, then Power. Test operation of the UFM-50 by holding the sensor in one hand and rubbing your thumb or fingers briskly across the face (plastic surface) of the sensor.

  • Page 40: Modbus ® Communication

    UFM-50 Doppler Flowmeter ® MODBUS COMMUNICATION serial interface connections are made at the RS485 card’s terminal block if your UFM-50 ® MODBUS was ordered with this card, or if one was added after installation. Card location: SENSOR SERIAL COMMUNICATION RS-485...
  • Page 41 UFM-50 Doppler Flowmeter Transceiver: 2-wire, half-duplex MODBUS Address (MAC address) range: 1-255 (Default: 001) BAUD rates: 4800, 9600, 19200, 38400, 57600, 76800 or 115200 (Default: 9600) Data Bits: Parity: None, Even, Odd (Default: Even) Stop Bits: 1, 2 (Default: 1)
  • Page 42 Description Register Data Over Read/ Comments Address Type Range Range Write Turn coil ON (1) to reset total on UFM-50 Reset Volume Coil Read/ Total Write Turn coil to OFF (0) once reset is complete. Register Description Register Data Over...
  • Page 43 UFM-50 Doppler Flowmeter Register Description Register Format Type Comments Address Type 30113 Flow Rate - USG/day Input Register Floating Point Register (1 of 2) 30114 Flow Rate - USG/day Input Register Floating Point Register (2 of 2) 30115 Flow Rate - ft...
  • Page 44 UFM-50 Doppler Flowmeter Register Description Register Format Type Comments Address Type 30137 Flow Rate - m /min Input Register Floating Point Register (1 of 2) 30138 Flow Rate - m /min Input Register Floating Point Register (2 of 2) 30139...
  • Page 45 UFM-50 Doppler Flowmeter Register Description Register Format Type Comments Address Type 30161 Flow Rate - bbl/hr Input Register Floating Point Register (1 of 2) bbl = US Oil Barrel = 42 Gallons 30162 Flow Rate - bbl/hr Input Register Floating Point Register (2 of 2)
  • Page 46 UFM-50 Doppler Flowmeter Register Description Register Format Type Comments Address Type 30183 Previous day Average Input Register Floating Point Register (1 of 2) Flow Rate - ft3/day 30184 Previous day Average Input Register Floating Point Register (2 of 2) Flow Rate - ft3/day...
  • Page 47 UFM-50 Doppler Flowmeter Register Description Register Format Type Comments Address Type 30207 Previous day Average Input Register Floating Point Register (1 of 2) IG = Imperial Gallons Flow Rate - IG/min 30208 Previous day Average Input Register Floating Point Register (2 of 2)
  • Page 48 UFM-50 Doppler Flowmeter Register Description Register Format Type Comments Address Type 30303 Volume Total - Liters Input Register Floating Point Register (1 of 2) 30304 Volume Total - Liters Input Register Floating Point Register (2 of 2) 30305 Volume Total - ft...
  • Page 49 UFM-50 Doppler Flowmeter Register Description Register Format Type Comments Address Type 30327 Previous day Volume Input Register Floating Point Register (1 of 2) IG = Imperial Gallons Total - IG 30328 Previous day Volume Input Register Floating Point Register (2 of 2)
  • Page 50 UFM-50 Doppler Flowmeter 30947 Velocity Units Input Register Index (0 to 1) 0 = Feet per Second 1 = Meter per Second 30948 Flow Units Input Register Index (0 to 31) 0 = US Gallons per Minute 1 = Litres per Second...

  • Page 51: Hart ® Communication

    (Highway Addressable Remote Transducer) connections are made on the 4-20mA output of the UFM-50. The UFM-50 must be equipped with the optional serial communication card for the Communication menu to appear, and for the HART option to be able to be selected in the Communication menu.
  • Page 52 Connections: HART Protocol uses a digital signal superimposed on the 4-20mA output. When the 4-20mA output of the UFM-50 is connected with a load resistor (230Ω to 600Ω), the HART communicator can be connected on the loop in order to communicate.
  • Page 53 UFM-50 Doppler Flowmeter 5. Click on Utilities form the left menu pane. 6. Click on Import DDs from a local source. 7. A popup window is displayed as shown below. Navigate to the directory containing the DD files using the Browse button. Select the desired DD files that shows up for your HART device.
  • Page 54 UFM-50 Doppler Flowmeter 9. Under Connect Field Communicator, select the type of the connection your device utilizes. Then click Connect. 10. Select Field Communicator from list shown below. P. 54...
  • Page 55 UFM-50 Doppler Flowmeter 11. Once connected, click More Options. The System Software Tab Is now opened. Click the DDs tab. P. 55...
  • Page 56 UFM-50 Doppler Flowmeter 12. The newly uploaded DD from the Utilities: Import DDs from Local source. Select the DD file you wish to send to the Field communicator. If package is untested, slect Yes in the Check an untested package dialog box.
  • Page 57 UFM-50 Doppler Flowmeter 13. Click on the Transfer Button (Button with 3 arrows/Chevrons facing right). Wait until download complete dialog appears, then close out or continue with program as needed. P. 57...
  • Page 58 UFM-50 Doppler Flowmeter Device Descriptor Menu Structure Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Device Setup Process Variables PV% Range PV Loop Current Dynamic Variables Basic Setup PV Unit PV Xfer fnctn PV Damp Distributor...
  • Page 59 UFM-50 Doppler Flowmeter Device Descriptor Menu Structure (Cont.) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Flow Rate LSL Flow Rate USL Flow Rate Damp Velocity Sensor Velocity Velocity Unit Sensor Information Velocity Class Velocity PDQ...
  • Page 60 UFM-50 Doppler Flowmeter Device Descriptor Menu Structure (Cont.) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Num req preams Num resp preams Device Information Distributor Model Dev id Serial Number Relay Count Cfg chng count Long Tag...
  • Page 61 UFM-50 Doppler Flowmeter Device Descriptor Menu Structure (Cont.) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Descriptor Message Date Final asmbly num Universal rev Fld dev rev Software rev Hardware rev Poll addr Loop current mode...
  • Page 62 UFM-50 Doppler Flowmeter Device Descriptor Menu Structure (Cont.) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Logger Options Log Status Logging Log Mode Percent Log Used PV Loop Current PV LVR PV URV P. 62...

  • Page 63: Specifications

    UFM-50 Doppler Flowmeter SPECIFICATIONS 7.4 / 188 mm " Flow Rate Range: ±0.1 to 40 ft/sec, (±0.03 to 6.46 / 164 mm " 5.12 / 130 mm " 12.2 m/sec) in most applications Pipe Size: Any pipe ID from ½ " to 180"...
  • Page 64 UFM-50 Doppler Flowmeter CONVERSION TABLE CONVERSION GUIDE FROM MULTIPLY BY US GALLONS CUBIC FEET 0.1337 US GALLONS IMPERIAL GALS 0.8327 US GALLONS LITRES 3.785 US GALLONS CUBIC METERS 0.003785 LITRES/SEC 15.85 LITRES CUBIC METERS 0.001 BARRELS US GALLONS BARRELS IMPERIAL GALS 34.9726...

  • Page 65: Pipe Charts

    UFM-50 Doppler Flowmeter PIPE CHARTS Ductile Ir on Pipe - Standard Classes Size OUTSIDE Clas s Class Class C lass C lass C lass C la ss C EMEN T LIN IN G IN CH D IA. **S TD ** DOUB LE...
  • Page 66 UFM-50 Doppler Flowmeter Stainless Steel, Hastelloy "C" & Titanium Pipe Pipe Pipe Scheule 5 S (a) Schedule 10 S (a) Schedule 40 S Schedule 80 S Size O.D. I.D. WALL I.D. WALL I.D. WALL I.D. WALL ½ .840 .710 .065 .674...
  • Page 67 UFM-50 Doppler Flowmeter Cast Iron Pipe - ASA Standard Pipe Pipe Class 50 Class 100 Class 150 Class 200 Class 250 Class 300 Class 350 Size O.D. WALL I.D. WALL I.D. WALL I.D. WALL I.D. WALL I.D. WALL I.D. WALL I.D.
  • Page 68 UFM-50 Doppler Flowmeter Copper Tubing Pipe Copper & Brass Pipe Aluminum Size O.D. I.D. WALL O.D. I.D. WALL O.D. I.D. WALL O.D. I.D. WALL O.D. I.D. WALL 2" 2.125 1.959 0.083 2.125 1.985 0.070 2.125 2.009 0.058 2.375 2.062 0.157 2 ½...
  • Page 69 UFM-50 Doppler Flowmeter C900/C905 PVC AWWA Water Distribution Pipe (Blue) DR14 DR18 DR-21 DR25 Pipe Size Wall Wall Wall Wall 4.80 0.343 4.114 0.267 4.266 0.192 4.416 6.90 0.493 5.914 0.383 6.134 0.276 6.348 9.05 0.646 7.758 0.503 8.044 0.362 8.326...
