Summary of Contents for UFM CoolPoint CP2-V8

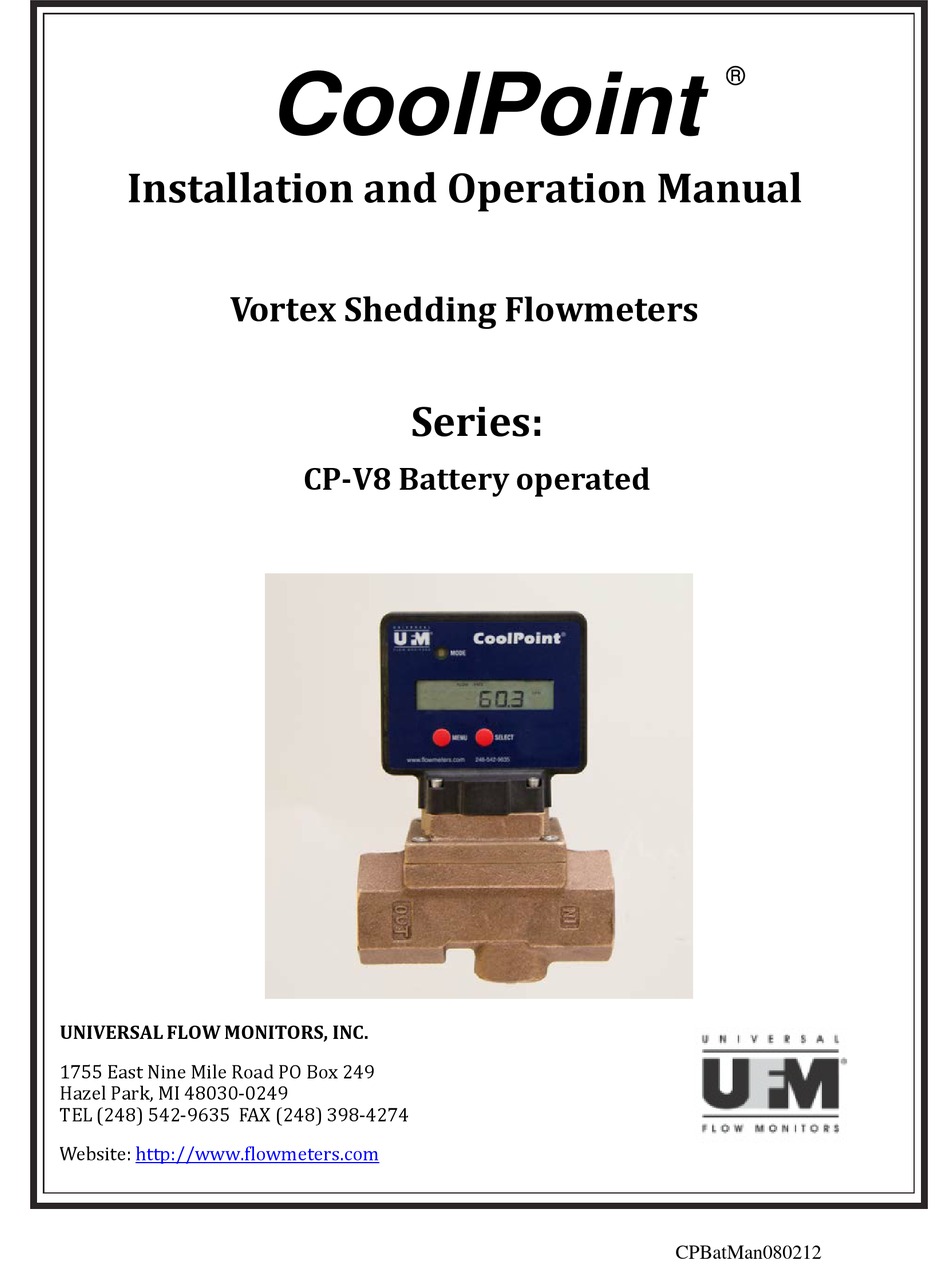

- Page 1 ® CoolPoint Installation and Operation Manual Vortex Shedding Flowmeters Series: CP-V8 Battery operated 1755 East Nine Mile Road PO Box 249 UNIVERSAL FLOW MONITORS, INC. Hazel Park, MI 48030-0249 TEL (248) 542-9635 FAX (248) 398-4274 Website: http://www.flowmeters.com CPBatMan080212...
-
Page 2: Table Of Contents
UNIVERSAL FLOW MONITORS, INC. TABLE OF CONTENTS CONTENTS TABLE OF CONTENTS............................1 PROPRIETARY NOTICE ..........................2 USING THIS MANUAL ............................2 QUICK SET UP ................................3 INSTALLATION ..............................4 GENERAL SPECIFICATIONS ........................5 OPERATION ................................6 APPLICATIONS ..............................6 MODEL CODES................................7 PRESSURE DROP CHARTS ............................ -
Page 3: Proprietary Notice
UNIVERSAL FLOW MONITORS, INC. PROPRIETARY NOTICE The information contained in this publication is derived in part from proprietary and patented data and has been prepared for the express purpose of assisting in installation, operation, and maintenance of the instruments described herein. Publication of this information does not convey any rights of use or reproduction other than in connection with the installation, operation maintenance of the equipment described herein. -
Page 4: Quick Set Up
QUICK SET UP UNIVERSAL FLOW MONITORS, INC. PIPING Install in pipe making sure to orient IN port to flow supply. 10 pipe diameters distance is required upstream and 5 down for best accuracy. Use proportional spacing if this much space is not available. 50 pipe diameters are required upstream as distance from a valve. -
Page 5: Installation
125% of maximum flow. In rare situations, the user may notice an intermittent flow display that drops off while the flow is held steady. In this case, please contact UFM to discuss the backpressure requirements. CPBatMan080212... -
Page 6: General Specifications
UNIVERSAL FLOW MONITORS, INC. GENERAL SPECIFICATIONS Maximum Operating Pressure: 300 PSIG (20.4 Bar) Minimum Operating Pressure: 10 PSI of back pressure is required for the formation of vortices. See INSTALLATION PRESSURE DROP CHARTS Maximum Operating Temperature: 130 °F (54 ºC). Rating applies to both fluid & ambient temp. Minimum Operating Temperature: 35 °F (2 ºC). -
Page 7: Operation
UNIVERSAL FLOW MONITORS, INC. OPERATION CoolPoint is an inline flowmeter that utilizes the vortex shedding principle. The fluid strikes a bluff body, generating vortices (eddies) that move downstream. The vortices form alternately, from one side to the other. A piezoelectric sensor housed in a sensor tube directly downstream of the bluff senses the pressure zones created by the vortices. -
Page 8: Model Codes
UNIVERSAL FLOW MONITORS, INC. MODEL CODES PRESSURE DROP CHARTS CPBatMan080212... -
Page 9: Dimensions
DIMENSIONS UNIVERSAL FLOW MONITORS, INC. CPBatMan080212... -
Page 10: Rma Notice Return Merchandise Authorization
Any meter returned that was previously in service must have the OSHA requirements completed and a MSDS included where applicable. An RMA number will only be issued when UFM has received a copy of the completed RMA form and any applicable MSDS. - Page 11 UFM. The customer will be advised of any non-restockable goods and will be charged the $90.00 evaluation fee plus any shipping charges if returned to the customer. If no disposition is received by UFM within 30 days, the goods will be scrapped and the $90.00 evaluation fee will be billed.
-
Page 12: Rma Form
UNIVERSAL FLOW MONITORS, INC. RMA FORM CPBatMan080212... -
Page 13: Warranty Information
UNIVERSAL FLOW MONITORS, INC. WARRANTY INFORMATION 1) ACCEPTANCE AND INTEGRATION CLAUSE: This (c) Disclaimer of Other Warranties. The express Sales Order Acknowledgment and the sales order warranty in this Acknowledgment is in lieu of any other information that Universal Flow Monitors, Inc. - Page 14 UNIVERSAL FLOW MONITORS, INC. (1) Any ground support or control equipment used with any aircraft; (2) Any article designed for installation in or on aircraft; (3) Any ground handling tools or equipment used with aircraft; (4) Any aircraft training aids, instructions, manuals, or blueprints;...
