Ceiling installation

If possible, install the device before fixing the ceiling
tiles; if this is not possible, remove the adjacent
ceiling tiles.
Use only approved and adequately sized suspen-
sion systems (fixing material is not included in the
supply package). Dimensions and weight
Ä Chapter 4 'Technical data' on page 4.
If you have to install larger devices, it is best to
either ask someone to give you a hand or use a lift.

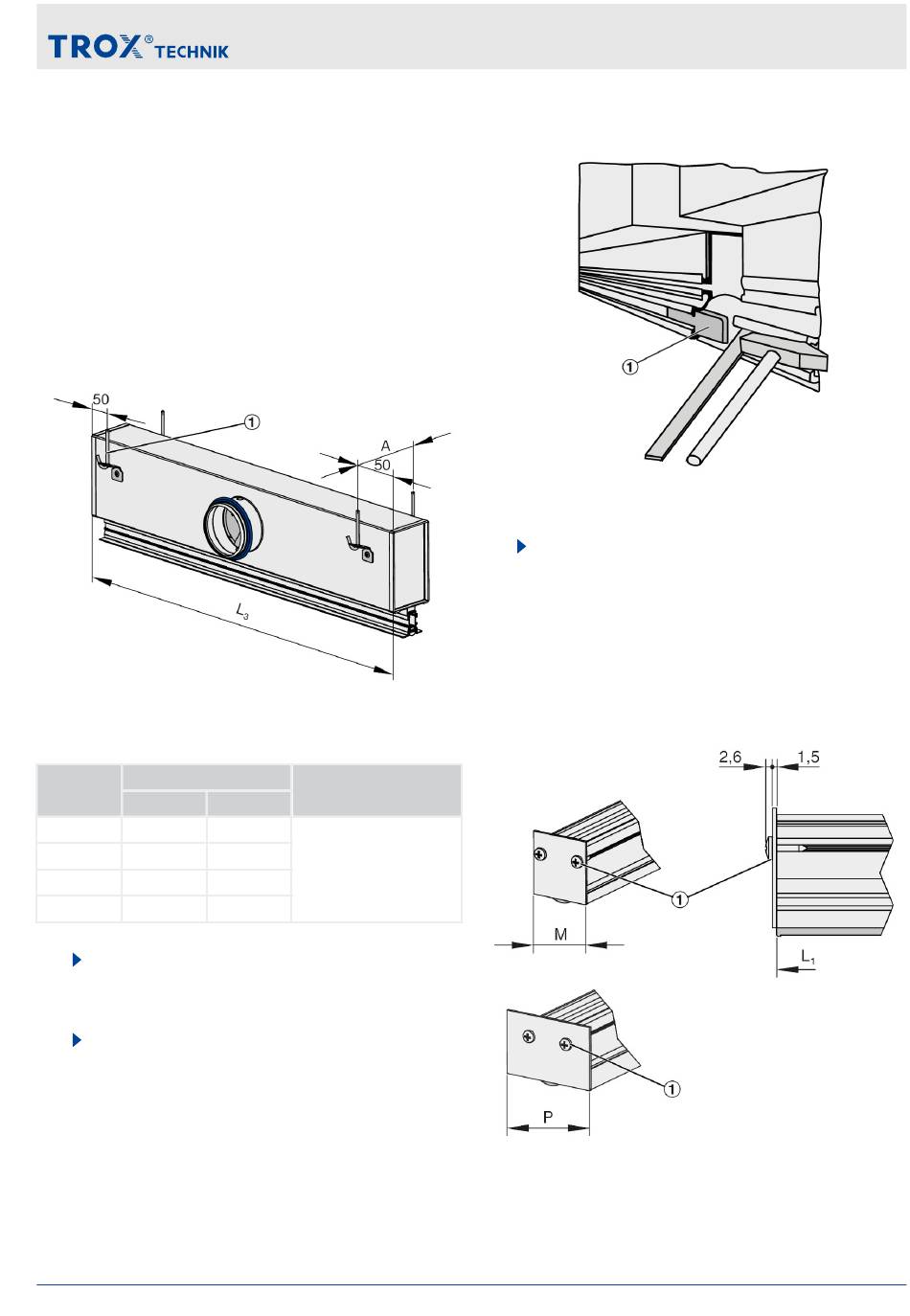

Fig. 8: Plenum box suspension
Variant A [mm]
HS/HA
PL35-1 140
PL35-2 178
PL35-3 216
PL35-4 254
1. Fix the suspension parts such as ropes,
cables or metal hangers (Fig. 8/1) to the
ceiling.
2. Use all of the available suspension points on
the plenum box.
L
3
VS
Ä Table on page 5
178
200
216
254
Air terminal devices Slot diffusers type PURELINE35
Linear runs
Fig. 9: Linking slot diffusers
3. The supplied alignment plates (Fig. 9/1) help
you align slot diffusers for a continuous
linear arrangement.
Fix an alignment plate (2 each per diffuser)
on one side, then connect the next diffuser
to it.
Fixing EP end plates
Fig. 10: EP end plate without and with extended
border
Assembly
7
