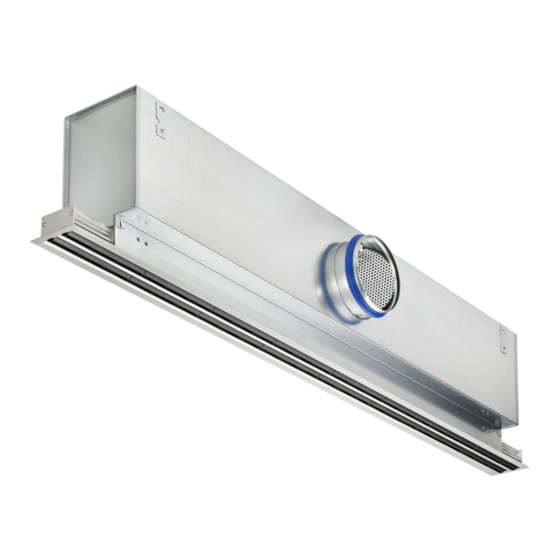

Product overview

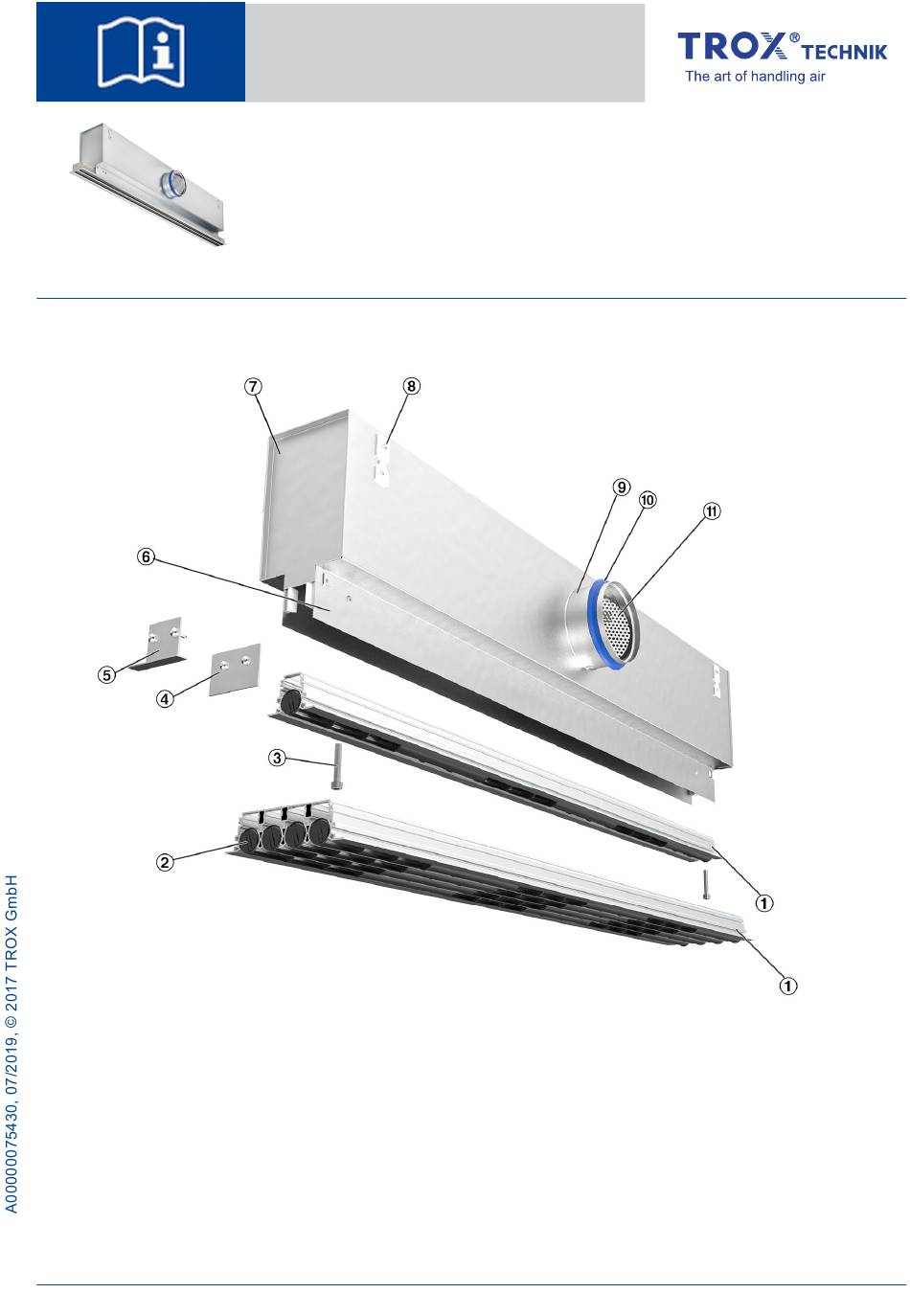

Fig. 1: Schematic illustration of PL35-*-SF
①
Diffuser face (with 1 to 4‑ slots)
②
Adjustable air control element
③
Screw fixing
④
End plate
⑤
End angle
⑥
Neck
Optional equipment: ③ ④ ⑤ ⑩ ⑪
Installation manual
Air terminal devices
Slot diffusers type PURELINE35
Air terminal devices Slot diffusers type PURELINE35
GB/en
⑦
Plenum box
⑧
Suspension lug
⑨
Spigot
⑩
Lip seal
⑪
Damper unit for volume flow rate balancing
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn
Germany
Phone: +49 (0) 2845 2020
Fax: +49 (0) 2845 202265
E-mail: trox@trox.de
http://www.troxtechnik.com
1
Advertisement
Table of Contents
Related Manuals for Trox PURELINE35
Summary of Contents for Trox PURELINE35
- Page 1 Suspension lug ③ ⑨ Screw fixing Spigot ④ ⑩ End plate Lip seal ⑤ ⑪ End angle Damper unit for volume flow rate balancing ⑥ Neck Optional equipment: ③ ④ ⑤ ⑩ ⑪ Air terminal devices Slot diffusers type PURELINE35...
-
Page 2: Important Notes
The appropriate protective equipment for a job must be worn for as long as the job takes. Air terminal devices Slot diffusers type PURELINE35... -
Page 3: Transport And Storage
Sharp edges, sharp corners and thin sheet metal parts may cause cuts or grazes. – Be careful when carrying out any work. – Wear protective gloves, safety shoes and a hard hat. Air terminal devices Slot diffusers type PURELINE35... -
Page 4: Technical Data
Fig. 2: Dimensions and spigot arrangement, * spigot arrangement for version VS Fig. 3: Plenum box variants PL35-*-HS (symmetric position of plenum box, side entry spigot) PL35-*-HA (asymmetric position of plenum box, side entry spigot) PL35-*-VS (symmetric position of plenum box, top entry spigot) Air terminal devices Slot diffusers type PURELINE35... - Page 5 166 + Y Neck extension Y = 0 / 30 / 55 / 80 / 105 / 129 ØD Variant [mm] PL35-1 PL35-2 Fig. 6: PL35-4-DF/.../B00 PL35-3 Variant [mm] PL35-4 PL35-1 PL35-2 PL35-3 PL35-4 Air terminal devices Slot diffusers type PURELINE35...
-
Page 6: Protective Equipment
Fig. 7: Position of plenum box If (L + 5) < L1, the plenum box can be positioned to the left, to the right or in the centre. Air terminal devices Slot diffusers type PURELINE35... -
Page 7: Ceiling Installation
Fix the suspension parts such as ropes, cables or metal hangers (Fig. 8/1) to the ceiling. Use all of the available suspension points on the plenum box. Fig. 10: EP end plate without and with extended border Air terminal devices Slot diffusers type PURELINE35... - Page 8 Fig. 15: Installation with extended border into a con- tinuous ceiling; required length of installation Fig. 12: Fitting a corner section with extended opening when an end angle is used: L1 + 9 border Air terminal devices Slot diffusers type PURELINE35...
- Page 9 ④ in the plenum box. Using an Allen key (SW4) simplifies the fixing procedure. To remove the diffuser face, first remove the Allen screws (SW4 Allen key). Air terminal devices Slot diffusers type PURELINE35...
- Page 10 Installation into continuous ceilings with spring clip fixing Fig. 18: Position of the spring, ceiling thickness up to 9 mm Ä ‘Diffuser Fig. 19: Position of the spring, ceiling thickness greater than 9 mm, installation dimensions faces’ on page 5 Air terminal devices Slot diffusers type PURELINE35...
-
Page 11: Initial Commissioning, Maintenance And Cleaning
– 1500 1650 1800 1950 Duct connection The plenum box has a spigot for duct connection. Variants with a double lip seal allow for a sufficiently tight connection; additional sealing is not required. Air terminal devices Slot diffusers type PURELINE35... - Page 12 Fig. 22: Setting the damper blade, e.g. with a screwdriver Move the air control element near the spigot in such a way that it is possible to insert a screw driver. Air terminal devices Slot diffusers type PURELINE35...
- Page 13 Alternating horizontal air discharge Alternating air control elements set to left-hand or right-hand air discharge Alternating angled air discharge Alternating air control elements set to left-hand or right-hand air discharge Vertical air discharge Air terminal devices Slot diffusers type PURELINE35...
- Page 14 Do not use cleaning agents that contain chlorine. Do not use equipment for removing stubborn contamination, e.g. scrubbing sponges or scouring cream, as it may damage the sur- faces. Air terminal devices Slot diffusers type PURELINE35...
- Page 15 Air terminal devices Slot diffusers type PURELINE35...
- Page 16 Air terminal devices Slot diffusers type PURELINE35...
