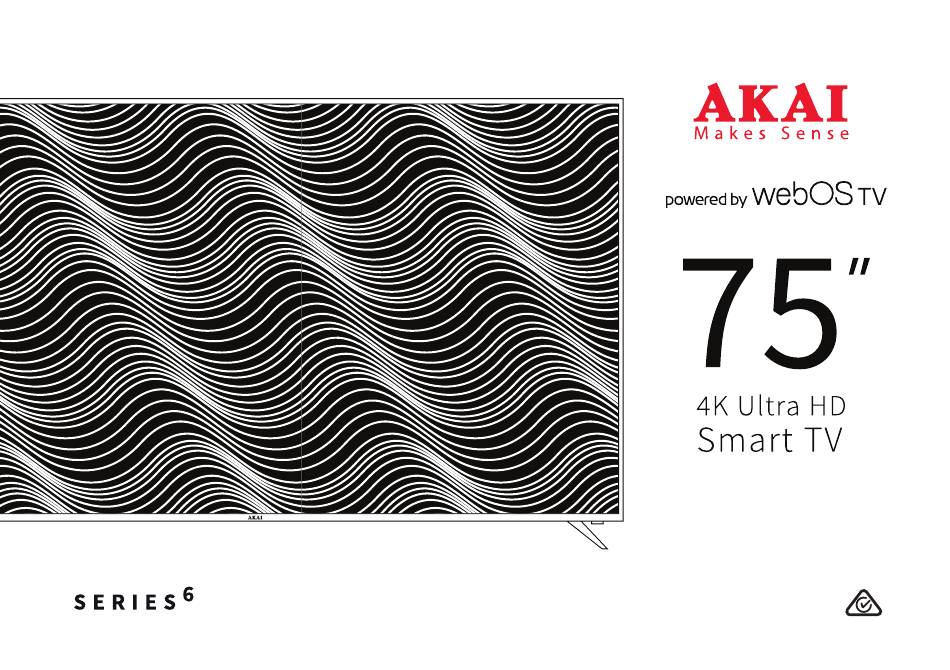

- Page 1 MODEL: AK7521S6WOS User Manual...
-
Page 2: Welcome
Please take special note of any important safety and usage information presented with the symbol. All products brought to you by AKAI are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. -
Page 3: Table Of Contents
Contents Welcome On-Screen Set Up Recording LG ThinQ App Using Instant Recording Unpack and Prepare Using the TV Scheduler Advanced Controls What's in the box Programme Scheduling (TV Setting Menus) Important Tips Manual Scheduling Picture Attaching the stand Using Live Playback Sound Wall-mounting the TV (Real-time Playback) -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before installing your new TV, check you have everything needed. In the box you will find: A. 75" 4K Ultra HD Smart TV B. Remote Control C. AAA Batteries (2) D. TV Stands (2) E. -
Page 5: Important Tips
Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 5 metres away from the TV. •... -
Page 6: Attaching The Stand
Attaching the stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • Only touch the frame, not the screen. • It is highly recommended to use safety straps for securing the TV. -
Page 7: Wall-Mounting The Tv
Wall-mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 600mm • VESA Mounting Bracket • 4 x M8*16mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included). -
Page 8: Connect To Power
Connect to power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Connect your antenna Free-to-air TV in HD (High Definition) High Definition (HD) channels... -
Page 9: Controls And Connections
Controls and Connections Get to know your TV On/Standby light and Remote sensor Buttons on the TV : Increase the volume level or move right. 2. CH + : Select the next channel or move up. 3. MENU: Enter the settings menu. CH + : Decrease the volume level or move left. -
Page 10: Ports On The Tv
Ports on the TV Plug in a USB stick/drive to PVR record and pause live TV. Play media files stored on your USB storage device (supported file codecs and extensions may vary). Update the TV software via USB. Note: Time-shift function requires a USB-HDD for storage. HDMI IN All-digital connection between the TV and any HDMI device. - Page 11 Connect to your broadband modem using an Ethernet cable (not included). DIGITAL AUDIO Connect an external digital audio device. Use an Optical cable (not included) to connect the unit with an amplifier, soundbar or OUT(OPTICAL) other audio decoding device for digital audio signal output. You can use this to connect your DVD player.
-
Page 12: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+/-) inside the compartment. Make AAA size sure the batteries are correctly aligned and properly batteries pushed into place. included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 13: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor Remote Hints and Tips at the front of the TV. The remote will not operate if its • Do not drop, step on or path is blocked. otherwise impact the remote The remote has a range of up to about 5 metres from control. -
Page 14: Buttons On The Remote
Buttons on the Remote (ON) : Switch the TV to On or Standby (SEARCH) : Search for content in the content store/web TV: Switch to TV mode CC/SUB: Enable/disable subtitles (SOURCE): Select the input source NUMBER BUTTONS: Key in a TV channel : Access TV settings, Menu number : Display additional buttons/... - Page 15 : Play selection :Go to the Home page (Smart TV) : Pause selection BACK: Return to the previous screen/menu EXIT : Exit/quit the current screen : Press the UP/DOWN/LEFT/ (OK/ENTER): Confirm your selection RIGHT buttons to navigate SAP : Enable/disable audio description INFO : Display the information : Stop playback MOVIES : Search for movies...
-
Page 16: On-Screen Set Up
On-Screen Set Up Make sure the TV is plugged in at the power socket and switched on. Press the button to turn on Make sure equipment is properly connected (as shown on pages the TV. 10-11) before connecting the TV to power. On/Standby light is RED in standby mode. -
Page 17: Lg Thinq App
LG ThinQ App You can use the LG ThinQ app to control key TV functions instead of the remote control. Note: you need an Android device running Android 4.3 or higher to use the app. 1. On your smart phone, search and download the LQ ThinQ app from the Play Store/App store (alternatively, scan the QR code below): For Android For iOS... -
Page 18: Advanced Controls (Tv Setting Menus)
Advanced Controls Once you have programmed (TV Setting Menus) any settings, the unit will retain them in its memory until you change them, even after turning the TV off. Menu Navigation Buttons Press the then button to display the TV settings menu. - Page 19 Connection Accessibility Sound • Sound Mode: • TV Name • Audio Description • Balance, Ultra Surround • Network Connection • Audio Description Sound, Equalizer, Reset Settings: Volume • Wired Connection • Sound Out • High Contrast (Ethernet), Wi-Fi Connection • Additional Settings: •...
-
Page 20: Picture
Picture BUTTON > Picture To access picture settings, navigate from > Picture Mode : Enhanced brightness with lower contrast, colour depth and edges for standing out in Vivid very bright places such as storefronts. (Auto Power Save) : Settings are optimised to reduce power consumption. : Settings are optimised for watching movies. - Page 21 Option Description Adjust the colour balance between red and green. The closer red is to 50, colour will be more Tint 'red' dominant. The closer green is to 50, colour will be more 'green' dominant. Advanced See table below for more information. Controls Colour Adjust the on-screen colour temperature.
- Page 22 Aspect Ratio Settings • Aspect Ratio: this item is used to adjust the video size. Sizes may differ between input sources. • Just Scan: turn just scan to auto/on/off. Energy Saving Adjust screen brightness to reduce power consumption (options:off/minimum/medium/maximum/screen off). Additional Settings Option Description...
-
Page 23: Sound
Sound To access sound settings, navigate from > BUTTON > Sound Option Description Sound Mode Standard (User) Cinema Clear Voice III Cricket Music Game Balance Adjust the audio output between the left and right speakers. Ultra Surround Sound Adjust surround sound effect from your TV speakers. Equalizer Adjust selected frequencies. - Page 24 Wired Headphones Connect to your wired headphones to enjoy sound only you can hear. Optical + Internal TV Sound is played through the TV's speakers and connected external audio device simultaneously. Speaker Wired Headphones + Sound is played through the TV's speakers and connected headphones simultaneously. Internal TV Speaker Additional Settings Option...
-
Page 25: Programmes
Programmes BUTTON > Programmes To access programme settings, navigate from > Programme Tuning Option Description Automatically scans all available free-to-air TV channels. Adjust settings Auto Tuning (default settings are set for Australia), select 'Search' and press OK. Manual Tuning Manually select and scan digital TV channels. Programme Mode Select channel type. - Page 26 Edit favourite programmes Option Description Select one or more programmes and then move them to the preferred Move group in favourite programme list. Change Group Change the name of the favourite programmes list. Name Sort by Programme Sort out the favourite programmes list by programme/genre. Subtitle Language Select preferred subtitle language.
-
Page 27: Connection
Connection BUTTON > Connection To access connection settings, navigate from > TV Name Show current TV name. You can also use the screen keyboard to set to your preferred name (up to 25 characters can be entered). Network Connection Settings See below. - Page 28 Device Connection Settings Option Description Auto Device Automatically allows you to control the devices connected via HDMI with the remote control. Connection SIMPLINK Manage devices (i.e. set top box or soundbar) connected to a TV via HDMI with the remote control. (HDMI CEC) Up to three devices can be connected and simultaneously used.
-
Page 29: General
General BUTTON > General To access general settings, navigate from > AI Service > AI Recommendation Option Description Content Receive content recommendations based on TV content viewing pattern. Recommendations Delete Usage Data Reset content and app usage history by deleting user data. Language Option Description... - Page 30 Location Option Description Broadcast Country Select the TVs broadcast country. Service Area Postcode Enter your postcode to set the TVs broadcast location. Setting the country Set country manually. manually must be done Services Country when not connected to a Note: setting the country manually must be done when not network.
-
Page 31: Safety
Safety Factory Password: 0000 Option Description Master Password: 0313 General Switch Turn on to enable lock function. TV Rating Locks Restrict watching programmes based on rating. Programme Locks Select the programmes to lock. Application Locks Select the applications to lock. Input Locks Select the inputs to lock. -
Page 32: Additional Settings
Home Settings Option Description Home Auto Launch Set Home to launch automatically when TV is turned on. Home Promotion Turn advertisements on the Home screen on/off. Additional Settings Option Description Settings Help Turn settings help on/off. (Turning on will show description text of each setting). Menu Transparency Turn on to make some menus (Live Menu, Search etc.) transparent. -
Page 33: Accessibility
Accessibility BUTTON > Accessibility To access accessibility settings, navigate from > Option Description Audio Description Guide menus and operations with voice for visually impaired viewers. Audio Description Audio Description (AD) provides an additional audio track for visually Volume challenged persons (DTV only, subject to program). High Contrast Turn high contrast on/off. -
Page 34: Support
Support BUTTON > Support To access support settings, navigate from > Option Description Software Update Check for system software updates and update if desired. TV Information View device name, serial number, software version and available storage. Notifications Check notifications about user settings or TV status. Additional Settings See table below. -
Page 35: High Dynamic Range (Hdr)
High Dynamic Range (HDR) About the HDR feature High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are perceived in real life by the human eye. By using this feature, the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. -
Page 36: Smart Tv
Smart TV Netflix is a streaming service that offers unlimited Before you start using apps, your TV must be connected viewing of a wide variety of award-winning TV shows, to the internet. movies and documentaries. The speed of your internet connection determines the A paid subscription is required. -
Page 37: Web Browser
View currently Block Split Zoom Exit Search Web Browser open tabs screen in/out browser Refresh Using the web browser, you can surf the Internet on the TV similar to how you would do on a PC. NOTE: Use a wired or wireless keyboard and mouse (not provided) for an easier web browsing experience. -
Page 38: Tv Guide
TV Guide (Free to air TV) To access the TV guide, press the GUIDE TV Guide Functions button on the remote. GUIDE To activate the TV Channels use the Function Remote Button buttons to select a channel in the left column, then press the BUTTON to confirm. -
Page 39: Recording
Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •... -
Page 40: Using Instant Recording
Using Instant Recording • Connect a USB HDD or USB stick to the USB port on the TV. • When watching the live programme, press the button. • Press the button on the bottom of the screen to start recording. •... -
Page 41: Programme Scheduling
Programme Scheduling LIST button on the remote, and select "Guide" on the TV screen. • Press the • Select the programme and to record the programme live, select the "Record" or "Watch" button on the screen. • For programmes yet to air, select the "Scheduled Recording" or "reminder" button on the screen. Note: scheduled recording does not guarantee the exact recording time of the programme. -
Page 42: Usb Mode
USB Mode Set up You can only play Photos in the Photo category, and Insert your USB into a USB port on the TV. Music in the Music category. Make sure you select the correct category for the file you wish to play. Press the button to select 'USB' mode. -
Page 43: Viewing Photos And Videos
Viewing Photos and Videos • Press the button on the remote control to access the HOME page. • Select and choose the storage device with the photos and videos to view. • Select and view your photos and videos. • : select viewing method and type of content. -
Page 44: Video Player
Video Player • Video player will launch when playing your videos. • : return to content list. • : display playlist. • : control video playback functions. • : rotate video. • : view 360° video (viewing on VR may distort video). •... -
Page 45: Playing Music
Playing Music • Press the button on the remote control to access the HOME page. • Select and choose the storage device. Select songs and add them to "My Playlist". Play your music. • : select type of content. • : delete song. -
Page 46: Troubleshooting
Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Make sure that the batteries are installed with their poles (+/–) in the correct direction. Remove any obstacles between the remote control and remote control sensor on the TV. - Page 47 Problem Solution Ensure that connection to the device is correct and that all cables are fully inserted. There is no picture/ Remove and reconnect all cables connected to the TV and the external devices. Try new cables if possible. sound or distorted Restart the connected devices by unplugging each device's power cord and then plugging it in again.
- Page 48 Problem Solution When using Wi-Fi, make sure the Wi-Fi password is entered correctly. Turn off the access point. Wait for 2 minutes and then turn them back on. Ensure that there are no obstacles between the TV and the access point. (The Wi-Fi strength can be decreased by appliances, cordless phones, stone walls/fireplaces, etc.) Reduce interference by not using or turning off other wireless devices.
-
Page 49: Specifications
Specifications With stand: 1679 x 1026 Active screen size 189.3cm x 292 mm (diagonal) Dimensions (W x D x H) Without stand: 1679 x 84 Resolution 3840 x 2160 x 964 mm Refresh rate 60Hz 30.1 kg Aspect ratio 16:9 Weight Gross 39.6 kg... -
Page 50: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, National Television and Computer Recycling Scheme please ensure all packaging materials are out of The careful disposal of e-waste is important... - Page 51 Notes...
- Page 52 For Technical and Warranty Support 1300 886 649 www.tempo.org info@tempo.org Distributed by Tempo (Aust) Pty Ltd, PO Box 6056, Frenchs Forest DC 2086...
