Photograph is not to scale. Specifi cation
subject to change without prior notice.
FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open fl ame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact your local dealer.

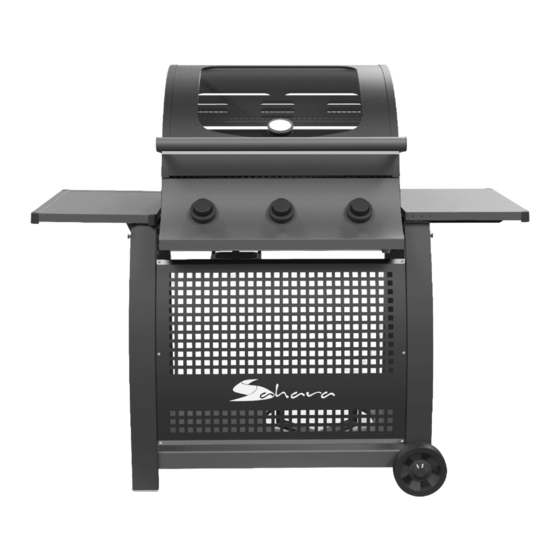

S325 Barbecue
• Use outdoors only.
• Read the instructions before using the appliance. Failure to follow
instructions could result in death, serious bodily injury, and/or
property loss.
• WARNING: accessible parts may be very hot. Keep young children
away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas cylinder after use.
• Do not modify the appliance. Misuse or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not
affect your statutory rights.
• Retain these instructions for future reference.
• Leak test your barbecue annually. Check the hose connections are
tight and leak test each time you reconnect the gas bottle.
FOR YOUR SAFETY
1. Do not store or use petrol or other fl ammable vapours or
liquids in the vicinity of this or any other appliance.
2. A gas bottle not connected for use shall not be stored in the
vicinity of this or any other appliance.
691A

Advertisement

Table of Contents
loading

Related Manuals for Sahara S325

Summary of Contents for Sahara S325

  • Page 1 S325 Barbecue 691A Photograph is not to scale. Specifi cation subject to change without prior notice. • Use outdoors only. • Read the instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 3: Parts Supplied

    Parts Supplied Ref Description Illustration Ref Description Illustration Large Side Trays Wheel Handle Side Frame Gas Hose and Regulator Base Panel Front Panel Brackets Base Trim Front Panel Cylinder Large Brackets Drip Tray Grease Cup Sink Bracket Grease Searing Grill Cooking Grill Vapourising...

  • Page 4: Tools Required For Assembly

    Fixings Supplied Ref Description Illustration Ref Description Illustration M6x12mm M4x10mm Hex Bolt Bolt M6x80mm Bolt Spacer NOTE: Fixings not shown to actual size. Tools Required For Assembly • Philips Head Screwdriver (provided) • Ball head hexagon wrench (provided) • 22mm Spanner (provided) Before You Start •...

  • Page 5: Assembly Step

    Assembly Step 1 Base Trim M6 x 12 Hex Bolt Side Frame x2 Large Wheel x2 Base Panel (ref:A) x6 Assemble barbecue frame as shown below, using 6 of the M6 x 12 Hex Bolts (ref:A) to attach the side frames and base trim to the base panel. The base trim must be positioned on the base panel before the side frames are attached.
  • Page 6 Assembly Step 2 Cylinder Brackets x2 M6 x 12 Hex Bolt (ref:A) x5 Fit the two cylinder brackets using 5 of the M6 x 12 Hex Bolts (ref:A). Page 6...
  • Page 7 Assembly Step 3 M6 x 80mm Bolt Spacer Sink (ref:C) x4 (ref:B) x4 Lay the assembled frame on a clean surface on the ground and fit the barbecue sink to the frame as shown using 4 of the M6 x 80 Bolts (ref:B) and 4 spacers (ref:C).
  • Page 8 Assembly Step 4 Searing Grill x1 Vapourising Bars x2 Cooking Grill x1 1. Place the vapourising bars into the barbecue sink as shown below. 2. Place the searing grill and cooking grill into the barbecue sink as shown. Note: Ensure that the cooking grill is positioned directly above the vapourising bars.
  • Page 9 Assembly Step 5 Barbecue Lid x1 Warming Rack x1 1. Position the barbecue lid onto the barbecue sink and align the brackets. 2. Secure on either side of the hood using the pre-fitted bolts (M6x12mm Hex Bolt). 3. Place the warming rack into position as shown below. Warming Rack Page 9...
  • Page 10 Assembly Step 6 M6 x 12 Hex Bolt Handle Side Trays x2 (ref:A) x4 Secure side trays onto the side frames using the 2 pre-fitted M6 wing bolts and nuts like below. Fit the handle to the hood using 4 of the M6 x 12 Hex Bolts. Note: side trays can be folded down for easy storage.
  • Page 11 Assembly Step 7 Gas Hose and Regulator Screw the hose connection onto the bottom of the barbecue as shown and then gently pinch with a spanner to secure. DO NOT overtighten. IMPORTANT - PERFORM LEAK TESTING AT THIS STAGE BEFORE USE. SEE ‘LEAK TESTING’...
  • Page 12 Assembly Step 8 Grease Cup Bracket Grease Cup M6 x 12 Hex Bolt (ref:A) x1 Front Panel x1 Front Panel Large Drip Tray x1 M4x10 Bolt Brackets x2 (ref:D) x12 1. Secure the front panel brackets to the side frames using 6 of the M4x10 Bolts (ref:D).

  • Page 13: Leak Testing

    Leak Testing • IMPORTANT – PERFORM LEAK TEST BEFORE USE • NEVER use an open flame to test for leaks at anytime, DO NOT IGNITE THE BARBECUE DURING THE LEAK TESTING. • To be performed in a well ventilated area. •...

  • Page 14: Use Instructions

    Connecting to the Cylinder • Confirm all barbecue control knobs are in the off position. • Connect the regulator to the gas bottle according to your regulator and bottle dealer’s instructions. Use Instructions Before proceeding, make certain that you understand the WARNINGS section of this manual. •...
  • Page 15 Care and Maintenance • Regularly clean your barbecue between uses and especially after extended periods of storage. • Ensure the barbecue and it’s components are sufficiently cool before cleaning. • Do not leave the barbecue exposed to outside weather conditions or stored in damp, moist areas. •...
  • Page 16 Warnings This product is for OUTDOOR USE ONLY. • Important – Ensure the barbecue is positioned on flat level ground to aid with fat/grease run off. • Important – LEAK TEST THE BARBECUE WHEN FULLY ASSEMBLED BEFORE FIRST USE. In addition, always leak test the unit –...

  • Page 17: Gas Category

    Food Cooking Information Please read and follow this advice when cooking on your barbecue. • ALWAYS wash your hands before or after handling uncooked meat and before eating. • ALWAYS keep raw meat away from cooked meat and other foods. •...

  • Page 20: Troubleshooting

    BARBECUE GUARANTEE This barbecue is made by Universal Innovations. It is made to an exacting quality standard and is covered by the following guarantee. The product has a 10 year limited warranty, regarding proper use. Sink + Hood: 10 years (no rust through/burn through/excludes fading/colour change) Cooking grill: 10 years (no rust through/burn through/excludes fading/colour change) Burner/Vaporising bar/Warming rack: 2 years (no rust through/burn through) All other parts: 2 years...
