Assembly & User Instructions
X1
5 0

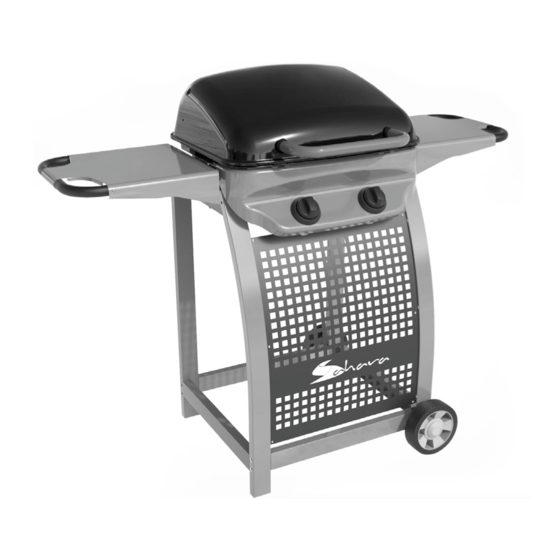

2 Burner Gas BBQ
These instructions are for your safety. Please read them
thoroughly before use and retain them for future reference.
FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact your
local dealer.
• For outdoor use only.
• Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas bottle after use.
• Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
• Retain these instructions for future reference.
• Leak test your barbecue annually. Check the hose connections are tight and leak
test each time you reconnect the gas bottle.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable vapours or
liquids in the vicinity of this or any other appliance.
2. A gas bottle not connected for use shall not be stored in the
vicinity of this or any other appliance.
