- Page 1 Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Titan Dynamics – Hornet VTOL https://www.titandynamics.org/3dhangar/p/titan-hornet-vtol Build & User Manual Revision 1.0 Page 1 of 17...
-
Page 2: Table Of Contents
Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Contents Section 1: Model Information ........................ 3 Section 2: Model Specifications & Performance ................4 2.1: Physical Characteristics ....................... 4 Section 3: Required Build Materials ..................... 5 Section 4: 3D printing .......................... -
Page 3: Section 1: Model Information

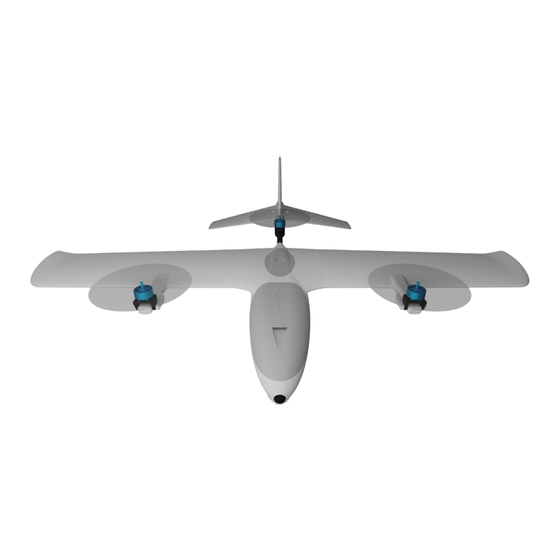

Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Section 1: Model Information Introducing the Titan Hornet, a 1.1m wingspan Tri-Tiltrotor VTOL designed for fun flying at a medium/small scale. Hornet has been specially sculpted in CFD, and obsessively lightened while maintaining great structural rigidity. -
Page 4: Section 2: Model Specifications & Performance
Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Section 2: Model Specifications & Performance 2.1: Physical Characteristics General Stats: • Wingspan: 1100mm • Wing area: 2238cm • Maximum take-off Weight: 2.5kg • Efficiency: 2.2 Wh/km •... -
Page 5: Section 3: Required Build Materials
Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Section 3: Required Build Materials Spars needed: 8x800mm - Front wing spar 8x600mm - Rear wing spar 4x300mm (2) - Wingtip support 2x300mm (2) - Aileron hinge... -
Page 6: Section 4: 3D Printing
Section 4: 3D printing 4.1: Things to know before you start printing. 1. Titan Dynamics strongly recommends using Polymaker Polylite prefoamed LWPLA for the best results. This filament is much easier to tune your printer for and has less stringing than active foaming filaments. If you aren’t able to purchase... -
Page 7: Part Orientation
Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server subdivision or cubic. A part printed at 3% gyroid is comparable weight to the same part printed at 7% cubic subdivision. Polycarbonate, PETG or other high-temp filament should be used for the motor mounts and wing bay covers. - Page 8 Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Page 8 of 17...
-
Page 9: Tuning "Hole Horizontal Expansion
Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server 4.3: Tuning “hole horizontal expansion” It is very important to check the fitment of the carbon rods in their holes on the first parts you print. Because everyone may be using different printers, materials and slicer... -
Page 10: Bed Adhesion And Warping
Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server settings, it is not possible to provide the models with a slicing profile and hole size that will work for everyone. Print your first part with carbon spar hole and check fitment, if it is too tight increase the hole horizontal expansion setting in the “walls”... - Page 11 Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Once completed, be careful when removing these tabs from the print as they are quite strong and can damage the bottom of your part if not removed carefully. Re-open any holes the tab may have filled on the bottom of the print.
-
Page 12: Section 5: Assembly Of 3D Printed Parts
Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Section 5: Assembly of 3D Printed Parts Below are a few exploded views of the Hornet to help with assembly. The spar layout for Hornet is as depicted below. None of the spars need to be glued in, they will all be retained by the printed parts. - Page 13 Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server • Medium CA glue should be used to assemble all fuselage parts. • When first putting the glued parts together be sure to wipe any excess glue off before it sets.
-
Page 14: Section 6: Final Setup & Tuning Tips
Join our Discord server Section 6: Final Setup & Tuning Tips • Titan Dynamics strongly recommends the use of Arduplane for all our models. If you encounter an issue in flight, the data logs Ardupilot creates are invaluable for finding the root cause of any issue and increasing future chances of success. -
Page 15: Section 7: Additional Images
Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Section 7: Additional Images Page 15 of 17... - Page 16 Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Page 16 of 17...
- Page 17 Titan Dynamics Titan Dynamics Webpage Visit our Facebook page Join our Discord server Page 17 of 17...
