PowerVac
(PV2400)
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerVac PV2400 and is the answer not in the manual?

Questions and answers

Related Manuals for Flymo PowerVac PV2400

Summary of Contents for Flymo PowerVac PV2400

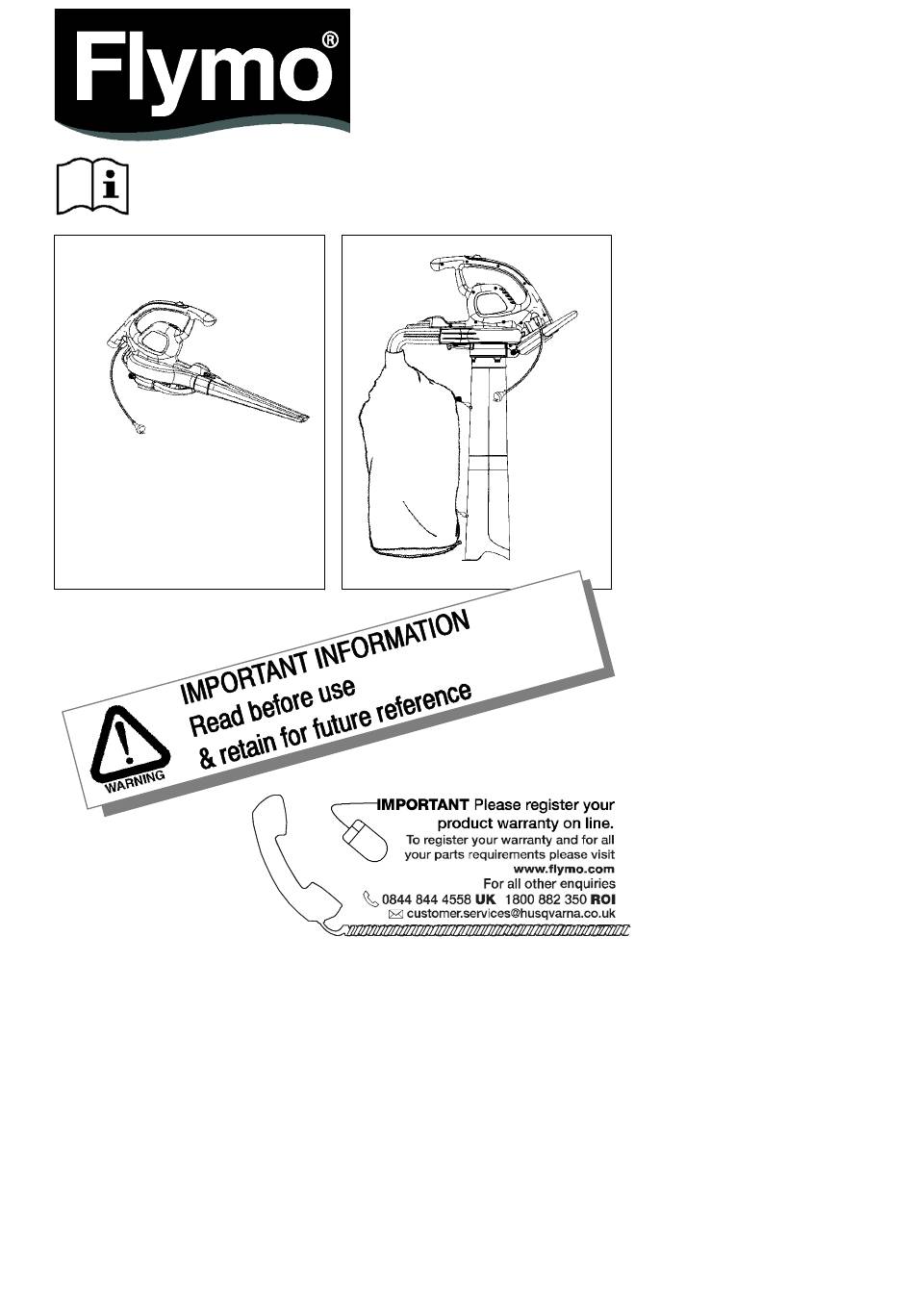

  • Page 1 PowerVac (PV2400) Original instructions...

  • Page 2: Carton Contents

    Elbow Tube with moulded on plug Lower Vacuum Tube IMPORTANT! Please check the contents of the carton are correct BEFORE assembling your new Flymo product. IF ANY PARTS ARE MISSING CONTACT: Husqvarna Australia Pty. Ltd. Locked Bag 5 Central Coast BC...
  • Page 3 Explanation of symbols on the product WARNING: This unit can Switch off! Remove plug from mains before adjust- be dangerous! Careless or improper use can cause ing, cleaning or if cable is entangled or damaged. serious injury. Read the user instructions The use of eye and ear carefully to make sure you protection is recommended.
  • Page 4 e) The electric cord must be un- This enables better control of the coiled. Coiled cord can overheat power tool in unexpected situ- and reduce the efficiency of the ations. product. Always wind cord carefully, e) Dress properly. Always wear avoiding kinks.
  • Page 5 If damaged, have the power tool Vacuum safety warnings: repaired before use. Keep all Stop the motor and disconnect the cooling air inlets clear of debris. extension cord before opening the Many accidents are caused by poor- air inlet door or attempting to insert ly maintained power tools.
  • Page 6 WITH CABLE WIRED DIRECTLY 2. Ensure the mains voltage suits INTO THE PRODUCT. your product. 1. Flymo Mains Cables and Extension Cables are available from your loc- al authorised service provider. 2. Do not wire an extension cable If the mains cable is damaged, it directly to your product yourself.

  • Page 7: Blower Assembly

    Blower Assembly 1. Switch off the product and discon- nect from the mains electricity supply. 2. Align the grooves on the blower tube with the grooves on the blower outlet. Push the blower tube onto the blower outlet until it snaps into place as illustrated in figure A.
  • Page 8 5. Place the hinge of the upper tube in- to the hook on the bottom side of the blower unit as illustration in figure E. 6. Using the ground for support, pivot the blower unit until tube snaps into the latches of the retaining posts on the blower unit as illustrated in figure F.
  • Page 9 For extra support when using your product as a vacuum, a shoulder strap is included. Attach the strap to the blower unit before operation. Snap the hook onto the retainer as illustrated in figure J. Converting from Vacuum Use to Blower Use WARNING: Switch off the product and disconnect from the mains electricity...

  • Page 10: Cable Restraint

    Cable Restraint 1. Form loop in mains cable and push the loop through the slot as illus- trated in figure M. 2. To secure, position loop over the hook and pull the cable back through the slot as illustrated in figure N. Starting and Stopping WARNING: WARNING:...

  • Page 11: How To Use

    NOTE: The motor speed can be increased or decreased by using the variable speed control as illustrated in figure P. CAUTION: To avoid causing damage to the unit, attempt to use the DO NOT variable speed control during vacuum use. Lower speeds during vacuum use could allow debris to build up, stall the motor and cause unit failure.

  • Page 12: Maintenance

    Using as a vacuum (figure S) WARNING: Do not vacuum stones, gravel, metal, broken glass, etc., to avoid severe damage to the impeller. To avoid the possibility of electrical shock, do not attempt to vacuum water or other liquids. Use your product as a vacuum to pick up dry material such as leaves, grass, small twigs, and bits of paper.
  • Page 13 After each use Inspect and clean blower unit and labels Switch off the product and disconnect from the mains electricity supply. S After each use, inspect the com- plete product for loose or damaged parts. S Using a soft brush, remove debris from all air intakes.
  • Page 14 Storage S Clean the entire product before WARNING: Perform the follow- lengthy storage. ing steps after each use: S Open inlet cover and clean any dirt, S Switch off the product and disconnect grass, or debris that has collected. from the mains electricity supply. Inspect the blower and all tubes.

  • Page 15: Service Recommendations

    A network of specialist dealers can be 2. Always use genuine Flymo Spare found in your local Yellow Pages. Parts. To obtain service on your Flymo product 3. Prepacked spares are available simply telephone or visit your local au- from most Flymo authorised service thorised service provider.

  • Page 16: Environmental Information

    Environmental Information S Awareness of the environment must be considered when disposing of ‘end--of--life’ product. S If necessary, contact your local authority for disposal information. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
  • Page 20 Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Copyright E 2011 Flymo S.A. All rights reserved. FlymoRand other product and feature names are registered or unregistered trademarks of Flymo S.A.
