IP DES - Video entrance panel
with 10" touch display
with face recognition and finger print
Description

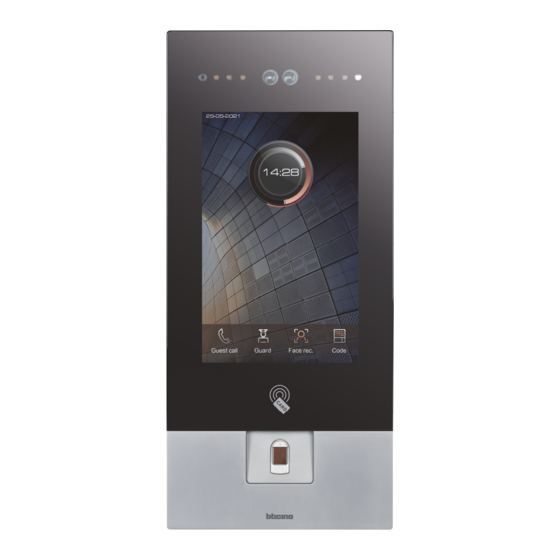

Video entrance panel with 10" touch display, double face recognition camera, fingerprint
reader and badge reader for access control functions.
From the touch display, it is possible to make calls to the apartments and the guard station
and enter the access code to release the lock. Configuration of different calling modes:
- Apartment code (Area - Building - Riser - Floor - Apartment)
- Numeric or alphanumeric codes for residents
- Address book with contact list
Enter the settings menu with a specific code for maintenance and for managing
the settings (e.g. backlight brightness, ring volume, speaker volume, touch volume,
screensaver time). Possibility to upload customized screensavers and advertisements
using the configuration software. The entrance panel can be PoE (power over Ethernet)
powered, or directly powered using power supply 375005. Flush mounted installation
using the dedicated box 375007.
Related items
375007 Metal box for flush-mounting installation
Technical data
Voltage:
Maximum consumption:
C NC NO contact output:
Max. cable section for clamps:
Operating temperature:
Working temperature finger print:
IP degree of protection:
IK degree of protection:
Camera resolution:
Camera viewing field angle:
Face recognition distance during daytime: 30 – 80 cm
Face Recognition Distance at Night:
Badge reader Frequency:
Badge reader transmission power:
Dimensional data
A
A
B
195 mm
430 mm
www.bticino.com
24 Vdc
0.65 A
125 Vac/0.5A, 30Vdc/2A
0.8 mm²
(- 40) – (+ 70) °C
(- 10) – (+ 55) °C (± 2)
54
07
1080 p
H= 80°; V= 53°
30 – 50 cm
13.56 MHz
< 42 dBuA/m @ 10m
C
D
B
C
D
58 mm
12 mm
ST-00001215-

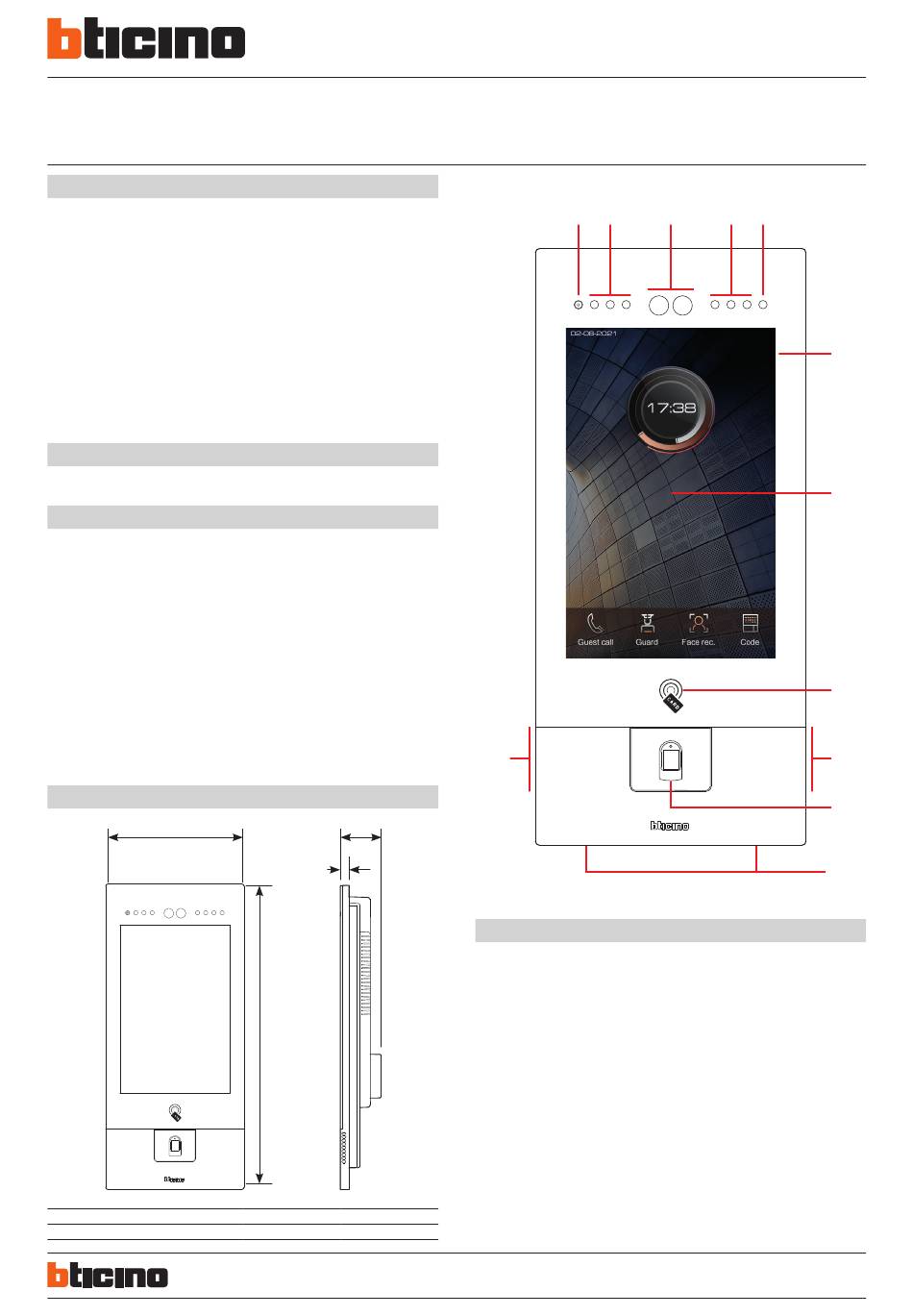

Front view
1
8
Legend
Microphone
1.
LED for the shooting field lighting
2.
Camera
3.
Light sensor
4.
Display 10" (touch screen)
5.
Home Page
6.
Badge reader for door lock opening
7.
Loudspeaker
8.
Finger print reader
9.
Locking screws
10.
EN
27/09/2023
2
3
2
4
374000
5
6
7
8
9
10
1
