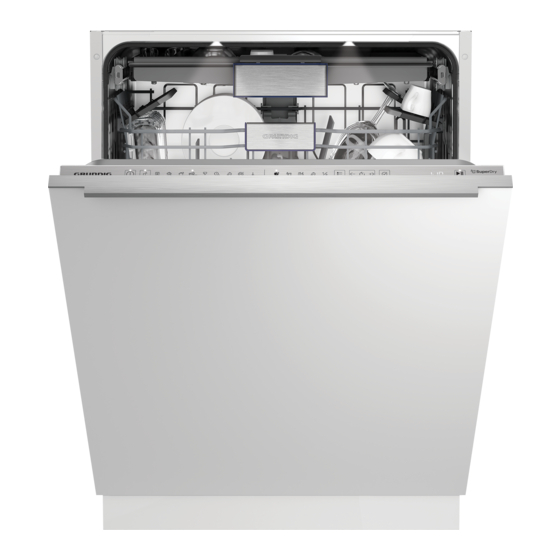

- Page 1 Dishwasher User’s Manual GNVP... 150 0049 0100_AC_GRUNDIG_E8P_EN/ 05-08-22.(9:11)
- Page 2 Dear Customer, Please read this user manual before using the product. Thank you for choosing this Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents before using the product.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS Adjusting the height of the upper basket ..27 Upper basket multi-function service rack..28 Intended Use ............. 4 Collapsible upper basket wires ......29 Safety for children, vulnerable persons and pets 4 Height setting with empty basket ..... 29 Electrical safety .......... -
Page 4: Safety Instructions
This product must be used to Safety Instructions do the domestic type dishes • This section contains safety only. instructions that will help get This product is not suitable for protected against risks of commercial or collective use. personal injury or property damage. -
Page 5: Electrical Safety
Cleaning and user Do not use extension cords, maintenance works should multi-sockets or adapters to not be performed by children operate the product. unless they are supervised by Plug must be easily someone. accessible. If this is not Keep packaging materials possible, the electrical away from children. -
Page 6: Installation Safety
squeezed or crushed while serious burns and injuries, placing the product into its and harm your furniture. location after installation or Do not install the product cleaning procedures. close to heat sources (heater, stove and etc.) or under the Installation Safety cooking area of a hob. -
Page 7: Operational Safety
hose set. Do not make extension baskets. Do not sit or put at the hoses. other loads on the door; otherwise, the product may NOTICE Connect the water inlet tilt. hose directly to the water tap. Maximum washing capacity Pressure coming from the tap of the product is stated in the should be 0.03 MPa (0.3 bars) section called “Technical... -
Page 8: Maintenance And Cleaning Safety
Environmental Maintenance and cleaning safety Instructions Do not wash the product by Compliance with WEEE spreading or pouring water Directive and Disposing of onto it. the Waste Product Do not use sharp or abrasive This product complies with tools when cleaning the EU WEEE Directive (2012/19/ product. -
Page 9: Package Information
Compliance with RoHS Additional Heater Directive Your machine (A) has a The product you have purchased high-power heater system. complies with EU RoHS Directive This system can reach high (2011/65/EU). It does not contain temperatures. Touching the harmful and prohibited materials system may cause serious specified in the Directive. -
Page 10: Technical Specifications
Figures in this manual are schematic Products, address and may not match the product exactly. support.grundig.com Values stated on the markings of the The model information as stored in product or in the printed documents... -
Page 11: Your Dishwasher
Your dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Cutlery basket (depends on model) 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. -
Page 12: Installation
Installation Appropriate installation location In the area where this product is Read “Safety Instructions” section first! installed, there must not be a lockable, Installation procedures must always be sliding or hinged door that will restrict performed by the manufacturer, authorised full opening of the product’s door. -
Page 13: Waterprotect
WaterProtect+ Permitted water temperature: up to 25°C ( 60°C for products equipped (depends on the model) with WaterProtect+; please refer to The WaterProtect+ system protects against WaterProtect+ section ) water leaks that may occur at the hose The dishwasher may not be connected to inlet.Water contact with the valve box of open warm water devices or flow-through the system must be avoided to prevent... -
Page 14: Connection To The Drain
Connection to the drain Electrical connection Water discharge hose can directly be Connect the product to a grounded connected to the drain hole or sink’s outlet protected by a fuse complying drainage. See the installation manual with the values in the "Technical supplied with your machine for detailed specifications"... -
Page 15: Preparation
Adjusting the water softening Preparation system Washing performance will increase when Read “Safety Instructions” section first! water softening system is adjusted properly. Read “Quick Guide - Adjusting Water Tips for energy saving Softening System” before this section! Following information will help you use the The regeneration of the water softening product in an ecological and energy-efficient system can be done in all programmes... -
Page 16: Adding Salt
For the water consumption of your using the salt funnel (D). To speed up dishwasher on Eco 50°C programme, dissolution rate of salt in water, stir it look at the Programme data and average with a spoon. consumption values table given on Quick Guide. -
Page 17: Tablet Detergents
Adding detergent Pay attention to the warnings on the detergent packaging to get better washing and drying results. Contact the manufacturer of the detergent for further questions. Do not put solvents into the detergent dispenser. There is the risk of explosion! 3. -
Page 18: Rinse Aid
Rinse aid softening salt and/or rinse aid effect. Some types of these detergents contain special- The rinse aid used in dishwashers purpose components such as glass and is a special combination that aims to stainless steel protectors. These tablets increase drying efficiency and prevent show their effects up to a certain water water or lime stains on the washed hardness level (21°dH). -
Page 19: Items Not Suitable For Washing In The Dishwasher
default. • Place thin, narrow pieces in the middle sections of baskets if possible. The rinse aid adjustment is described under "Adjusting the amount of rinse • Place the heavily soiled and bigger aid" in the section for operating the items in the lower basket and smaller, machine. - Page 20 Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware 20/EN...
-
Page 21: Cutlery Basket
Cutlery basket Cutlery basket (depends on model) (depends on model) Cutlery basket is designed to wash your Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an dishes such as knife, fork, spoon, etc. in an efficient manner. -
Page 22: Collapsible Lower Basket Tines
Collapsible lower basket tines Collapsible lower basket tines (depends on model) (depends on model) There are foldable tines (A) located at There are foldable tines (A) located at the lower basket of the machine are the lower basket of the machine are designed for an easier placement of large designed for an easier placement of large pieces such as pans, bowls, etc. -
Page 23: Tray Wash Supports
SoftTouch Accessory Tray Wash Supports (depends on model) (depends on model) The SoftTouch Accessory found in the Use the supports to wash trays in the lower basket of your machine enables a bottom basket. safe washing for your fragile glasses. See the Auxiliary functions section for appropriate programme and function selection. -
Page 24: Lower Basket Multipurpose / Height Adjustable Service Rack
Lower basket multipurpose / To close the racks: 1. Fold the rack (A). height adjustable service rack 2. Slide the rack up (B). (depends on model) This accessory located at the lower basket 3. Put the rack in vertical position (C). of your machine allows you to easily wash 4. -
Page 25: Lower Basket Bottle Wire
Lower basket bottle wire Upper basket multipurpose service rack (depends on model) The bottle wire is designed for easier (depends on model) washing of long pieces with wide mouths. This accessory located at the upper basket You may take out the bottle wire from the of your machine allows you to easily wash basket when not in use by pulling it out pieces such as extra long ladles and bread... -
Page 26: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper To lower the basket, while it is in the uppermost position; basket 1. Hold the upper basket wires with both (depends on model) hands, slightly lift up the basket and The upper basket height adjustment simultaneously push and release the mechanism has been designed for you to latches shown in the figure (B). -
Page 27: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper 1. To raise the basket, hold the wires of the basket and pull the basket upwards basket with both hands while the basket is at (depends on model) the lowermost position (B) Upper basket height adjustment 2. -
Page 28: Upper Basket Multi-Function Service Rack
Upper basket multi-function Tray Washing Support (depends on model) service rack You may use the tray washing supports (depends on model) if you want to wash a tray on your lower Thanks to the upper basket multi-function basket. service rack on the upper basket of your Refer to the Additional Functions section to appliance, you may load and wash long select the proper program and function. -
Page 29: Collapsible Upper Basket Wires
Collapsible upper basket wires Height setting with empty basket (depends on model) (depends on model) You can use collapsible wires when you In this model, the height setting of the need a larger space for your dishes in the upper basket may be changed using the upper basket of your machine. -
Page 30: Bottle And Dish Holder On The Lower Basket
Bottle and Dish Holder on the Lower Basket (depends on model) Bottle and dish holder (A) on the lower basket is designed to facilitate washing dirty kitchenware with narrow openings and with greater height. After bringing the foldable wires to horizontal position, you may place your bottles on the bottle holders. -
Page 31: Ceiling Cutlery Basket
Ceiling cutlery basket (depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. -
Page 32: Operating The Product
Operating the product 3. Make sure that the upper and lower Read “Safety Instructions” section first! impellers rotate freely. Read “Quick Quide” before this 4. Put adequate amount of detergent into section. the detergent dispenser. On/Off Key Programme selection When you press the On/Off key, the indicator lights illuminate on the display 1. - Page 33 Half Load function Steam Shine Function (Depends on model) (Depends on model) It is used to operate the machine without It provides superior drying performance. TrayMaster Function loading it completely. 1. Load your dishes in the machine as (depends on the model) you like.
- Page 34 Use the selection key to change the Tablet detergent function desired function or setting and switch off (depends on model) your machine to save the Settings. Allows to obtain a better drying Submenu Functions: performance from the multi-purpose (depends on the model) detergents called as all in one detergents Doormatic Function Off/On such as 2in1, 3in1, 4in1, 5in1 and etc.,...
- Page 35 IonFresh function Floor illumination (depends on the model) Warning to show that machine is in IonFresh function is enabled at regular washing phase intervals and prevents the formation of (depends on the model) bad odours due to putrefaction. If this Your machine reflects a light to the floor function is selected, it will be activated during the washing process.
-
Page 36: Scheduling The Washing Time
Doormatic feature opens the door at Programme and auxiliary functions the end of the washing cycle thanks cannot be set/changed after the to the “door opening shafts". This programme has started. process takes about 2 minutes. Do not To cancel the Time Delay function force to close the door if the power is Open the door of the product Press interrupted while the shafts are moving... -
Page 37: Cancelling The Programme
Cancelling the programme 3. Set to the appropriate level with the Selection key. Open the door of the product Press 4. Press On / Off key to save the setting. and hold the Programme Selection / Programme Cancel keys for 3 seconds. No rinse aid dispensed in P:0 wash After the 3 - 2 - 1 countdown, 0:01 is position. -
Page 38: Water Cut-Off Warning
SelfCare Water cut-off warning (depends on model) If mains water is cut or water inlet tap is This programme is recommended to be turned off the machine cannot take water in operated on each 1-2 months for machine and E:02 icon will flash on the programme cleaning and necessary hygiene. -
Page 39: Maintenance And Cleaning
Maintenance and Cleaning the filters cleaning Clean the filters at least once a week in order for the machine operates efficiently. Read “Safety Instructions” section first! Check if food residues are left on the filters. Unplug the product and turn off the If there are food residues on filters, take tap before attempting any cleaning them out and clean well under running... -
Page 40: Cleaning The Hose Filter
Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary. -
Page 41: Cleaning The Impellers
Cleaning the impellers Do not try to rotate the impeller by Clean the impellers at least once a week in holding its ends. Trying to rotate the order for the machine operates efficiently. end sections may cause the gear system within the impeller to break. Lower impeller Upper impeller Check if the holes on the lower impeller (1) -
Page 42: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 43 • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 44 There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 45 • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers. • Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places.
- Page 46 Foam forms in the machine. • Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
