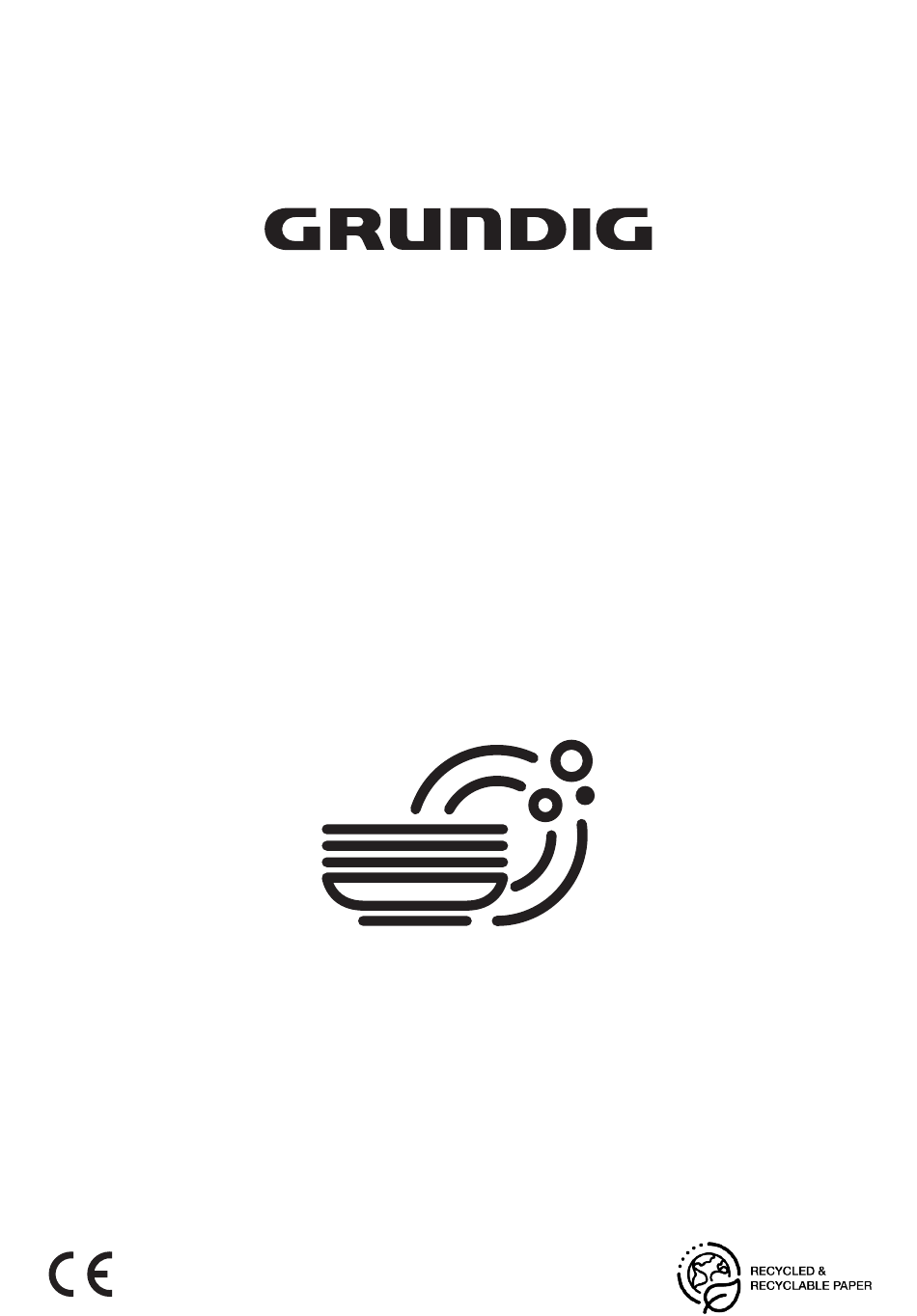

- Page 1 Dishwasher User’s Manual EGNVP... GTVP... GNLP... GNVP... 15 7798 0100_AA_GRUNDIG_E8L_EN/ 08-05-23.(8:35)
- Page 2 Dear Customer, Please read this user manual before using the product. Thank you for choosing this Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents before using the product.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS Bottle and Dish Holder on the Lower Basket .. 27 Adjusting the height of the upper basket ..28 Intended Use ............. 4 Adjusting the height of the upper basket ..29 Safety for children, vulnerable persons and pets 4 Collapsible upper basket wires ...... -
Page 4: Safety Instructions
This product must be used to Safety Instructions do the domestic type dishes • This section contains safety only. instructions that will help get This product is not suitable for protected against risks of commercial or collective use. personal injury or property damage. -
Page 5: Electrical Safety
be left in the open position excessively, pinched or come since this could present a into contact with any heat tripping hazard. sources. Cleaning and user Do not use extension cords, maintenance works should multi-sockets or adapters to not be performed by children operate the product. -
Page 6: Installation Safety
NOTICE Make sure that Otherwise, it might cause the hoses do not get kinked, serious burns and injuries, squeezed or crushed while and harm your furniture. placing the product into its Do not install the product location after installation or close to heat sources (heater, cleaning procedures. -
Page 7: Operational Safety
product. Do not reuse the old baskets. Do not sit or put hose set. Do not make extension other loads on the door; at the hoses. otherwise, the product may tilt. NOTICE Connect the water inlet Maximum washing capacity hose directly to the water tap. of the product is stated in the Pressure coming from the tap section called “Technical... -
Page 8: Maintenance And Cleaning Safety
Maintenance and cleaning safety Do not wash the product by spreading or pouring water onto it. Do not use sharp or abrasive tools when cleaning the product. Do not use home cleaning products, detergent, gas, gasoline, thinner, alcohol, varnish etc. NOTICE Do not forget to install the product’s filter back after you have cleaned it. -
Page 9: Environmental Instructions
Environmental Package information Instructions Packaging materials of the product are Compliance with WEEE manufactured from Directive and Disposing of recyclable materials in the Waste Product accordance with our National Environment Regulations. Do not This product complies with dispose of the packaging EU WEEE Directive (2012/19/ materials together with the EU). -
Page 10: Technical Specifications
Figures in this manual are schematic Products, address and may not match the product exactly. support.grundig.com Values stated on the markings of the The model information as stored in product or in the printed documents... -
Page 11: Your Dishwasher
Your dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Cutlery basket (depends on model) 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. -
Page 12: Installation
Installation Appropriate installation location In the area where this product is Read “Safety Instructions” section first! installed, there must not be a lockable, Installation procedures must always be sliding or hinged door that will restrict performed by the manufacturer, authorised full opening of the product’s door. -
Page 13: Waterprotect
WaterProtect+ Permitted water temperature: up to 25°C ( 60°C for products equipped (depends on the model) with WaterProtect+; please refer to The WaterProtect+ system protects against WaterProtect+ section ) water leaks that may occur at the hose The dishwasher may not be connected to inlet.Water contact with the valve box of open warm water devices or flow-through the system must be avoided to prevent... -
Page 14: Connection To The Drain
Connection to the drain Electrical connection Water discharge hose can directly be Connect the product to a grounded connected to the drain hole or sink’s outlet protected by a fuse complying drainage. See the installation manual with the values in the "Technical supplied with your machine for detailed specifications"... -
Page 15: Preparation
Adjusting the water softening Preparation system Washing performance will increase when Read “Safety Instructions” section first! water softening system is adjusted properly. Read “Quick Guide - Adjusting Water Tips for energy saving Softening System” before this section! Following information will help you use The regeneration of the water softening the product in an ecological and energy- system can be done in all programmes... -
Page 16: Adding Salt
For the water consumption of your using the salt funnel (D). To speed up dishwasher on Eco 50°C programme, dissolution rate of salt in water, stir it look at the Programme data and average with a spoon. consumption values table given on Quick Guide. - Page 17 Adding detergent dishes. One tablet is enough if you are Pay attention to the warnings on the using detergent tablets. detergent packaging to get better washing and drying results. Contact the manufacturer of the detergent for further questions. Do not put solvents into the detergent dispenser.
-
Page 18: Tablet Detergents
Tablet detergents hardness level so as to suit the water supply. In addition to the conventional tablet 4. Make the appropriate rinse aid settings. detergents, there are also commercially available detergent tablets that show water Rinse aid softening salt and/or rinse aid effect. Some types of these detergents contain special- The rinse aid used in dishwashers purpose components such as glass and... -
Page 19: Items Not Suitable For Washing In The Dishwasher
Placing the dishes into the 4. If there are stains on tableware items after washing, level must be increased dishwasher and if there is a blue trace after wiping Depending on the capacity of your them by hand, it must be decreased. dishwasher, you can use your dishwasher This is set to position 3 as factory in the optimum way with respect to energy... - Page 20 Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware 20/EN...
-
Page 21: Cutlery Basket
Cutlery basket Cutlery basket (depends on model) (depends on model) Cutlery basket is designed to wash your Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an dishes such as knife, fork, spoon, etc. in an efficient manner. -
Page 22: Collapsible Lower Basket Tines
Collapsible lower basket tines Collapsible lower basket tines (depends on model) (depends on model) There are foldable tines (A) located at There are foldable tines (A) located at the lower basket of the machine are the lower basket of the machine are designed for an easier placement of large designed for an easier placement of large pieces such as pans, bowls, etc. -
Page 23: Tray Wash Supports
Tray Wash Supports Tray Washing Support (depends on model) (depends on model) You may use the tray washing supports Use the supports to wash trays in the if you want to wash a tray on your lower bottom basket. basket. See the Auxiliary functions section for Refer to the Additional Functions section to appropriate programme and function... -
Page 24: Softtouch Accessory
SoftTouch Accessory Lower basket multipurpose / height adjustable service rack (depends on model) The SoftTouch Accessory found in the (depends on model) lower basket of your machine enables a This accessory located at the lower basket safe washing for your fragile glasses. of your machine allows you to easily wash pieces such as extra glasses, long ladles and bread knives. -
Page 25: Lower Basket Bottle Wire
Lower basket bottle wire To close the racks: 1. Fold the rack (A). (depends on model) The bottle wire is designed for easier 2. Slide the rack up (B). washing of long pieces with wide mouths. 3. Put the rack in vertical position (C). You may take out the bottle wire from the 4. -
Page 26: Upper Basket Multipurpose Service Rack
Upper basket multipurpose Upper basket multi-function service rack service rack (depends on model) (depends on model) This accessory located at the upper basket Thanks to the upper basket multi-function of your machine allows you to easily wash service rack on the upper basket of your pieces such as extra long ladles and bread appliance, you may load and wash long knives. -
Page 27: Bottle And Dish Holder On The Lower Basket
Bottle and Dish Holder on the Lower Basket (depends on model) Bottle and dish holder (A) on the lower basket is designed to facilitate washing dirty kitchenware with narrow openings and with greater height. After bringing the foldable wires to horizontal position, you may place your bottles on the bottle holders. -
Page 28: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper To lower the basket, while it is in the uppermost position; basket 1. Hold the upper basket wires with both (depends on model) hands, slightly lift up the basket and The upper basket height adjustment simultaneously push and release the mechanism has been designed for you to latches shown in the figure (B). -
Page 29: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper 1. To raise the basket, hold the wires of the basket and pull the basket upwards basket with both hands while the basket is at (depends on model) the lowermost position (B) Upper basket height adjustment 2. -
Page 30: Collapsible Upper Basket Wires
Collapsible upper basket wires Height setting with empty basket (depends on model) (depends on model) You can use collapsible wires when you In this model, the height setting of the need a larger space for your dishes in the upper basket may be changed using the upper basket of your machine. -
Page 31: Ceiling Cutlery Basket
Ceiling cutlery basket (depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. -
Page 32: Operating The Product
Operating the product 4. Put adequate amount of detergent into Read “Safety Instructions” section first! the detergent dispenser. Read “Quick Quide” before this section. Programme selection On/Off Key 1. Press the On/Off button to turn on your When you press the On/Off key, the indicator machine. - Page 33 Tablet Detergent Function (T) Some auxiliary functions cannot be (depends on the model) used together. If the function you Depending on the mains water hardness, selected is not active even though it it provides better drying performance appears in the "Program information in washings made with multi-purpose and average consumption values detergents which are named 2in1, 3in1,...
- Page 34 Half Load function (Y) Steam Shine function (E) (depends on the model) (depends on the model) It is used when you want to run your This function enables high level of drying machine without fully fill it. performance. It can extend the duration of 1.
- Page 35 Tablet Detergent Function Off/On Active Self Cleaning Function Off/On DeepClean function (B) / (Z) IonFresh Function Off/On (depends on the model) The Bottle/Pot washing impeller (A) under the lower impeller allows better washing of your bottles and dishes with intense dirt that are placed on the right- hand side of the lower Automatic Liquid/Gel Detergent Function...
- Page 36 SuperDry function (G) Changing Warning Sound Volume (depends on the model) 1. After switching on your machine, press This function enables maximum level drying the Menu key for 3 seconds. performance. It can extend the duration of In some models pressing the Menu key the selected program up to 35 minutes.
-
Page 37: Scheduling The Washing Time
Doormatic to 24 hours every time you press the (Depends on the Model) key. Thanks to the “Doormatic” feature on your 4. Close the door of your machine after machine, the drying effectiveness of your setting the Delayed Start. Once machine is improved and power is saved. -
Page 38: Adjusting The Amount Of Rinse Aid
Pay attention not to open the door of Rinse Aid indicator ( ) the machine when it is running. There Please check the rinse aid indicator on the may be a rush of vapour when you display to see whether there is adequate open the door of your machine;... -
Page 39: Water Cut-Off Warning
SelfCare 4. Unplug the machine from the socket. (depends on model) For energy saving, the machine is This programme is recommended to be automatically turned off following the operated on each 1-2 months for machine completion of the programme or if the cleaning and necessary hygiene. -
Page 40: Maintenance And Cleaning
Maintenance and Cleaning the filters cleaning Clean the filters at least once a week in order for the machine operates efficiently. Read “Safety Instructions” section first! Check if food residues are left on the filters. Unplug the product and turn off the If there are food residues on filters, take tap before attempting any cleaning them out and clean well under running... -
Page 41: Cleaning The Hose Filter
Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary. -
Page 42: Cleaning The Impellers
Cleaning the impellers Clean the impellers at least once a week in order for the machine operates efficiently. Lower impeller Do not try to rotate the impeller by Check if the holes on the lower impeller (1) holding its ends. Trying to rotate the are clogged. -
Page 43: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 44 • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 45 There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 46 • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers. • Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places.
- Page 47 Foam forms in the machine. • Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
