Summary of Contents for Dolmar PS-350 S

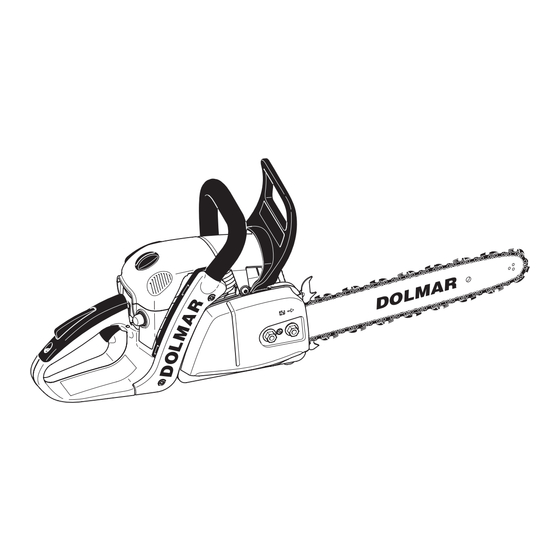

- Page 1 Instruction Manual Original Instruction Manual Important: Read this instruction manual carefully before putting the chain saw into operation and strictly observe the safety regulations! Keep this instruction manual! PS-350 S, 350 SC PS-420 S, 420 SC http://www.dolmar.com...
-
Page 2: Table Of Contents
Thank you for purchasing a DOLMAR product! Table of contents Page Congratulations on choosing a DOLMAR chain saw! We are Delivery inventory .............. 3 conÞ dent that you will be satisÞ ed with this modern piece of Symbols ................3 equipment. -
Page 3: Delivery Inventory
Delivery inventory 1. Chain saw 2. Guide bar 3. Saw chain 4. Chain protection cover 5. Universal wrench 6. Offset screwdriver 7. Screwdriver for carburetor adjustment In case one of the parts listed should not be included in the 8. Instruction manual (not shown) delivery inventory, please consult your sales agent. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Intended use Power chain saws Protective gloves (6) made of thick leather are part of the This power chain saw may be used only for sawing wood out of doors. It is intended for the followung uses depending on its class: prescribed equipment and must always be worn during operation of the chain saw. -
Page 5: Fuels / Refuelling
Fuels / Refuelling Stop the engine before refuelling the chain saw. Do not smoke or work near open Þ res (5). Let the engine cool down before refuelling. Fuels can contain substances similar to solvents. Eyes and skin should not come in contact with mineral oil products. Always wear protective gloves when refuelling. -
Page 6: Kickback
Kickback - When working with the chain saw dangerous kickbacks may occur. Kickback occurs when the upper part of the end of the guide bar inadvertently touches wood or other hard objects (10). This causes the saw to be thrown back toward the user with great force and out of control. - Page 7 Be careful when cutting splintery wood. Cut pieces of wood may be pulled along (risk of injuries). When cutting with the upper edge of the guide bar, the chain saw may be pushed in the direction of the user if the chain gets clamped.
-
Page 8: Transport And Storage
All other work must be carried out by DOLMAR Service. Use only original DOLMAR spare parts and accessories. Using spare parts other than original DOLMAR parts or ac- cesories and guide bar/chain combinations or lengths which are not approved bring a high risk of accidents. We cannot... -
Page 9: Technical Data
Models with catalytic converter (PS-350 SC, PS-420 SC). Uncertainty (K=). Packing Your DOLMAR chain saw comes delivered in a protective cardboard box to protect against shipping damage. Cardboard is a basic raw material and is consequently reuseable or suitable for recycling (waste paper recycling). -
Page 10: Denomination Of Components
IdentiÞ cation plate (14) Indicate when ordering spare parts! DOLMAR PS-420 S Serial number 2011 123456 Year of manufacture DOLMAR GmbH, 22045 Hamburg, Germany 000.000.001 Typ 195 1 Handle 15 Starter grip 2 Cover 16 Combination switch (Choke / ON / Stop) -
Page 11: Putting Into Operation
PUTTING INTO OPERATION Only for models with fastening nuts on the sprocket guard CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the plug cap off the spark plug (see „Replacing the spark plug“). Always wear protec- tive gloves! CAUTION: Start the chain saw only after having assembled it com-... -
Page 12: Tightening The Saw Chain
Lift the chain (9) over the sprocket (8). CAUTION: Do not insert the chain between the chain sprocket and the disc. Guide the chain from above about halfway into the groove (10) on the guide bar. CAUTION: Note that the cutting edges along the top of the chain must point in the direction of the arrow! Pull the chain (9) around the sprocket nose (11) of the guide bar in the direction of the arrow. -
Page 13: Checking The Chain Tension
Checking the chain tension STOP The tension of the chain is correct if the chain rests against the bottom side of the guide bar and can still be easily turned by hand. While doing so the chain brake must be released. Check the chain tension frequently - new chains tend to get longer during use! When checking the chain tension the engine must be switched... -
Page 14: Only For The Quickset Guide Bar
Only for the QuickSet guide bar CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the plug cap off the spark plug (see „Replacing the spark plug“). Always wear protec- tive gloves! CAUTION: Start the chain saw only after having assembled it com- pletely and inspected. -
Page 15: Tightening The Saw Chain
Pull the chain (6) around the sprocket nose (8) of the guide bar in the direction of the arrow. Replace the sprocket guard (3). IMPORTANT: Lift the saw chain over the chain catcher (9). Tighten the nuts (2) only hand-tight to begin with. Tensioning the saw chain Turn the QuickSet chain tensioner (10) to the right (clockwise) using the combination tool, until the saw chain guide elements... -
Page 16: Only For Models With Quick Tensioner On Sprocket Guard
Only for models with quick tensioner on sprocket guard CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the plug cap off the spark plug (see „Replacing the spark plug“). Always wear protec- tive gloves! CAUTION: Start the chain saw only after having assembled it com-... -
Page 17: Tightening The Saw Chain
Pull the chain (8) around the sprocket nose (10) of the guide bar in the direction of the arrow. Line up the holes in the sprocket guard (4) with the pins (11). Turn the chain tensioning screw (B/3) to get the chain tension- ing pin (12) aligned with the hole in the guide bar. -
Page 18: Checking The Chain Tension
Checking the chain tension STOP The tension of the chain is correct if the chain rests against the bottom side of the guide bar and can still be easily turned by hand. While doing so the chain brake must be released. Check the chain tension frequently - new chains tend to get longer during use! When checking the chain tension the engine must be switched... -
Page 19: Fuels
20 l order number 980 008 213 The chain oil BIOTOP sold by DOLMAR is made of special Bio-degradable oil is stable only for a limited period of vegetable oils and is 100% bio-degradable. BIOTOP has been time. -
Page 20: Refuelling
Important note on bio-degradable chain oils If you are not planning to use the saw again for an ex- The next time you use the saw, Þ ll the tank with BIOTOP tended period of time, empty the oil tank and put in a chain oil again. -
Page 21: Checking The Chain Lubrication
Checking the chain lubrication Never work with the chain saw withoute sufÞ cient chain lubri - ca tion. Otherwise the service life of the chain and guide bar will be reduced. Before starting work check the oil level in the tank and the oil feed. -
Page 22: Starting The Engine
Starting the engine Do not start the chain saw until after it is completely as- sembled and checked! Move at least 3 meters / 10 feet away from the place where the chain saw was fuelled. Make sure you have a secure footing, and place the saw on the ground in such a way that the guide bar and chain are not near anything. -
Page 23: Checking The Chain Brake
Bring the engine back to idle and release the chain brake. Caution: If the chain does not stop immediately in this test, turn off the engine immediately. Do NOT use the chain saw in this condition! Contact a DOLMAR service centre. Symbol visible - Normal operation... -
Page 24: Adjusting The Carburetor
Important: If the saw chain still moves during idle even after you have adjusted the idle speed, do NOT use the saw. Take it to a DOLMAR service centre! Note: Carburetor adjustment aids in proper functioning, economi- cal consumption, and safe operation. -
Page 25: Maintenance Sharpening The Saw Chain
MAINTENANCE Sharpening the saw chain CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the plug cap off the spark plug (see „Replacing the spark plug“). Always wear protective gloves! The chain needs sharpening when: The sawdust produced when sawing damp wood looks like wood ß... - Page 26 Files and how to work with them Use a special saw chain round Þ le for sharpening. Standard round Þ les are unsuitable. For the order number, see “Accessories”. Type 484: File the Þ rst cutter half with a 4,8 mm dia. round saw-chain Þ...
-
Page 27: Cleaning The Inside Of The Sprocket Guard
The chain brake is a very important safety device and like any other component subject to normal wear and tear. Regular inspection and maintenance are important for your own safety and must be done by a DOLMAR service centre. SERVICE Cleaning the guide bar CAUTION: Protective gloves must be worn. -
Page 28: Replacing The Saw Chain
Replacing the saw chain CAUTION: Use only chains and guide bars designed for this saw (see the Extract from the spare-parts list)! When changing the type of chain, the complete clutch drum (12) must be changed to Þ t the different chain. If neces- sary, replace it. -
Page 29: Cleaning The Air Þ Lter
Cleaning the air Þ lter CAUTION: To prevent eye injury, always wear eye protection when cleaning the Þ lter with compressed air! Do not use fuel to clean the air Þ lter. Unscrew the hood lock (1) counter-clockwise and remove the hood (2). -
Page 30: Replacing The Spark Plug
Replacing the spark plug CAUTION: 0,5 mm Do not touch the spark plug or plug cap if the engine is running (high voltage). Switch off the engine before starting any maintenance work. A hot engine can cause burns. Wear protective gloves! The spark plug must be replaced in case of damage to the insulator, electrode erosion (burn) or if the electrodes are very dirty or oily. -
Page 31: Replacing The Starter Cable/Replacing The Return Spring
Replacing the starter cable/ Replacing the return spring pack/Replacing the starter spring Unscrew four screws (1). Remove fan housing (2). Remove the air guide (3) from the fan housing. CAREFUL! Injury hazard! Do not unscrew screw (7) if the return spring is under tension. If the starter cable is to be replaced although it is not broken, it will be necessary to Þ... -
Page 32: Cleaning The Air Þ Lter Compartment/Fan Compartment
Cleaning the air Þ lter compartment / fan com- partment Remove cover. Remove the fan housing. CAUTION: To prevent eye injury, always wear eye protection when cleaning the Þ lter with compressed air! The entire area (15) can now be brushed clean or cleaned with compressed air. -
Page 33: Instructions For Periodic Maintenance
The user of the chain saw must not perform maintenance work which is not described in the instruction manual. All such work must be carried out by a DOLMAR service centre. Page General Chain saw Clean exterior, check for damage. -
Page 34: Service, Spare Parts And Guarantee
Please bear in mind that if parts other than original DOLMAR spare parts are used, this will automatically invalidate the DOLMAR product guarantee. -
Page 35: Trouble Shooting
Trouble shooting Malfunction System Observation Cause Chain does not run Chain brake Engine runs Chain brake actuated. Engine does not start or Ignition system Ignition spark Malfunction in fuel supply system, com- only with difÞ culty pression system, mechanical malfunction. No ignition spark STOP switch in position, fault or short-circuit in... -
Page 36: Extract From Spare Parts List
Extract from the spare parts list PS-350 S, 350 SC Use only original DOLMAR parts. For repairs and PS-420 S, 420 SC replacement of other parts, see your DOLMAR service centre. 31/32... -
Page 37: Accessories
PS-350 S, 350 SC Use only original DOLMAR parts. For repairs and PS-420 S, 420 SC replacement of other parts, see your DOLMAR service centre. Accessories (not delivered with the chain saw) Pos. DOLMAR-No. Qty. Denomination 25 953 100 090... -
Page 38: Eu Conformity Declaration
M6T 09 10 24243 106 PS-420 S, PS-420 SC (195) M6T 09 10 24243 106 manufactured by DOLMAR GmbH, Jenfelder Str. 38, 22045 Hamburg, Germany, conforms to the basic safety and health require- ments of the applicable EU Directives: EU Machinery Directive 2006/42/EG. - Page 40 To Þ nd your local distributor, please visit www.dolmar.com DOLMAR GmbH SpeciÞ cations subject to change without notice Postfach 70 04 20 D-22004 Hamburg Germany Form: 995 701 352 (4.11 GB) http://www.dolmar.com...
