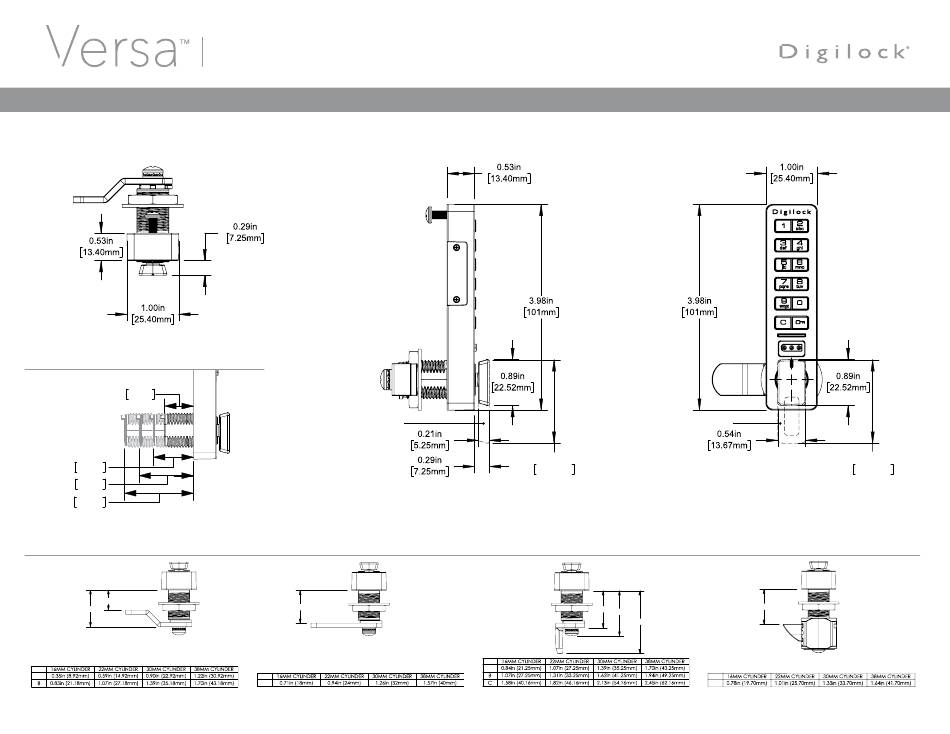

Cylinder Length; Cam Options; Views - Digilock Versa Quick Start Manual

Vertical Mini Body | Knob/ADA Handle on Bottom
TOP VIEW

CYLINDER LENGTH

0.63in 16mm
0.87in 22mm
1.18in 30mm
1.5in 38mm

CAM OPTIONS

A
Offset Cam
R
A
B
N
A
022421
R
KEYPAD | SURFACE MOUNT
ADA Handle ADA Handle
A
Flat Cam
R
A
N
A
1.00in 0.53in
25.40mm 13.40mm
SIDE VIEW
1.61in 1.61in
41.01mm 41.01mm
Lifter Cam
R
N
A
1.00in 0.53in
25.40mm 13.40mm
R
FRONT VIEW
ADA Handle ADA Handle
A
Slam Latch
R
A
B
C
N
A
1.00in 0.53in
25.40mm 13.40mm
707 . 766 . 6000 | sales@digilock.com | www.digilock.com
R
1.61in 1.61in
41.01mm 41.01mm
R
A
N
1.00in
25.40mm
